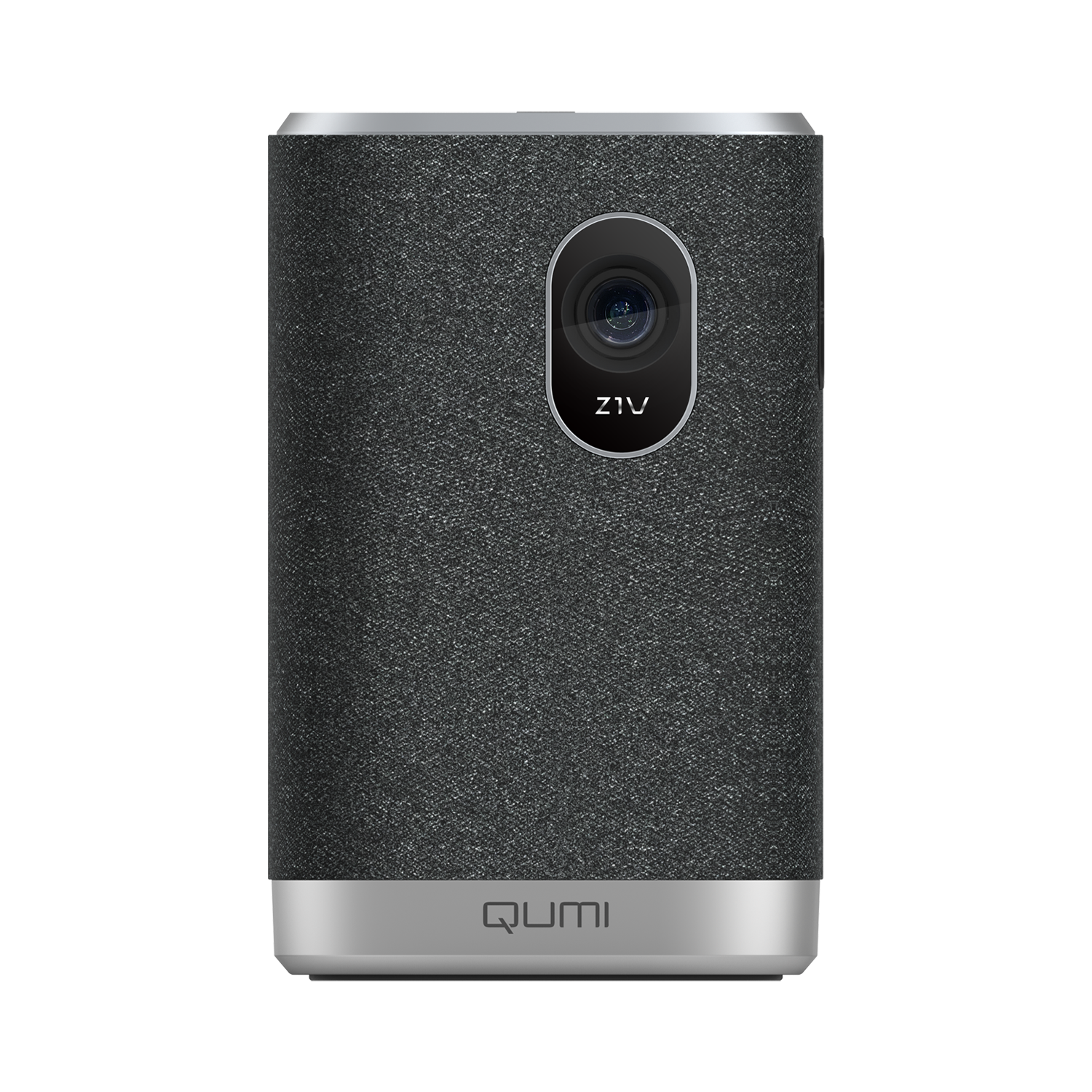

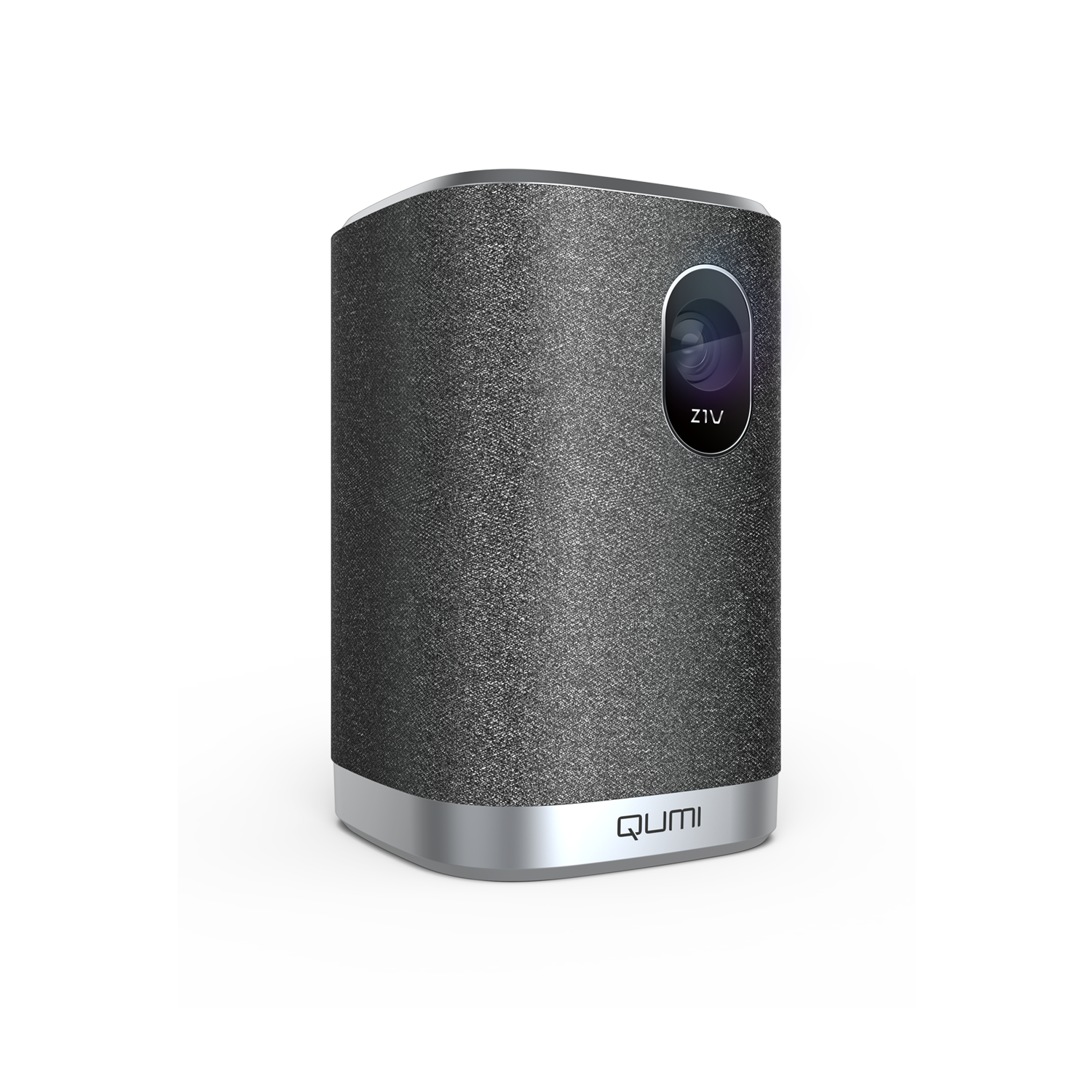

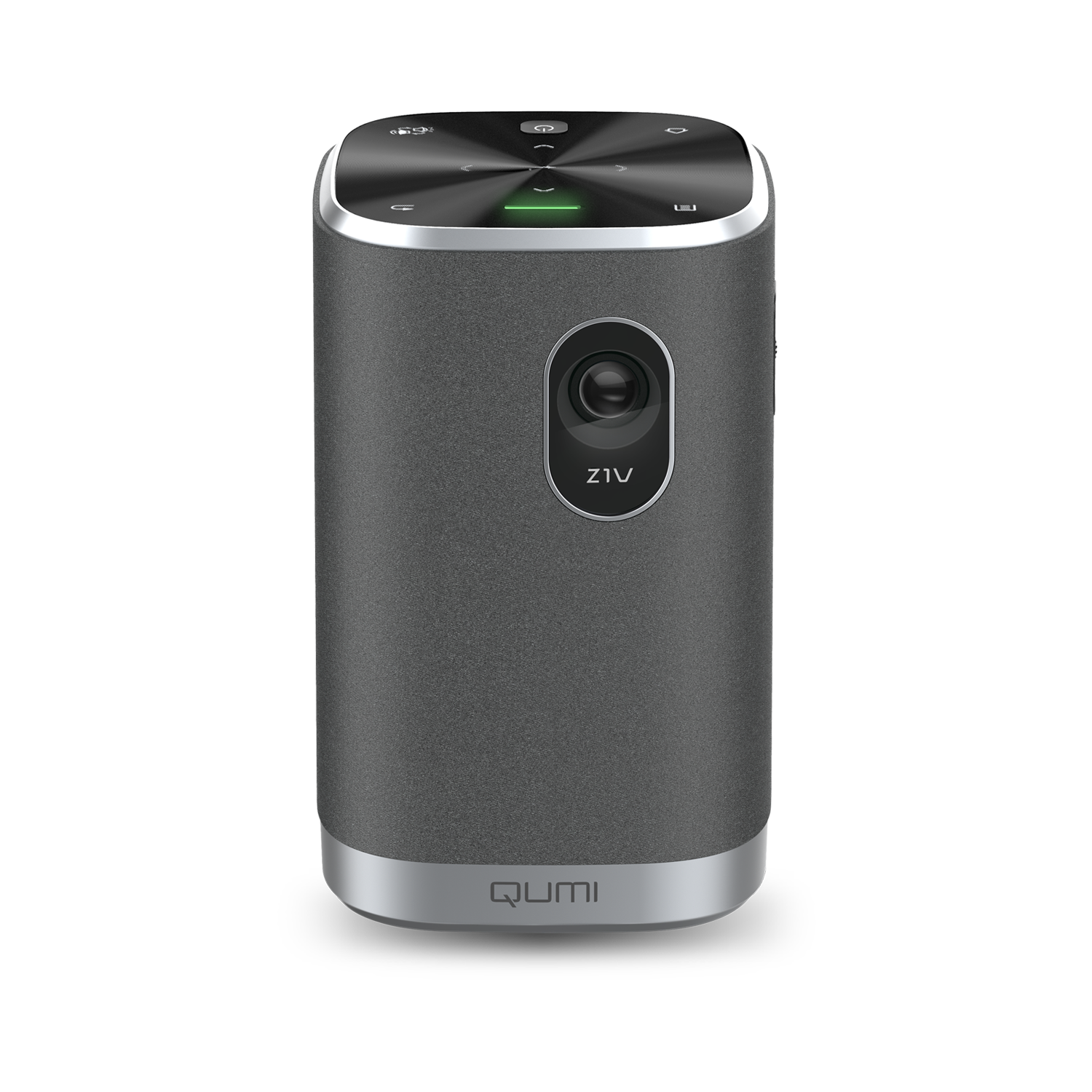

Qumi Z1V
Palm sized and portable WVGA LED projector with rechargeable battery and premium dual audio speakers.
  • Native WVGA resolution with a brightness up to 250 lumens and a 10,000: contrast ratio
  • Texas Instruments DLP® chip technology for long-lasting precise color, image quality and low power comsumptions
  • Enjoy a big bright 75” diagonal projection for one or a group
  • Long lasting, energy efficient RGB LED light source for up to RGB LED technology with long life light source for up to 30,000 hours of operation
  • Texas Instruments DLP® TRP chip technology for long-lasting precise

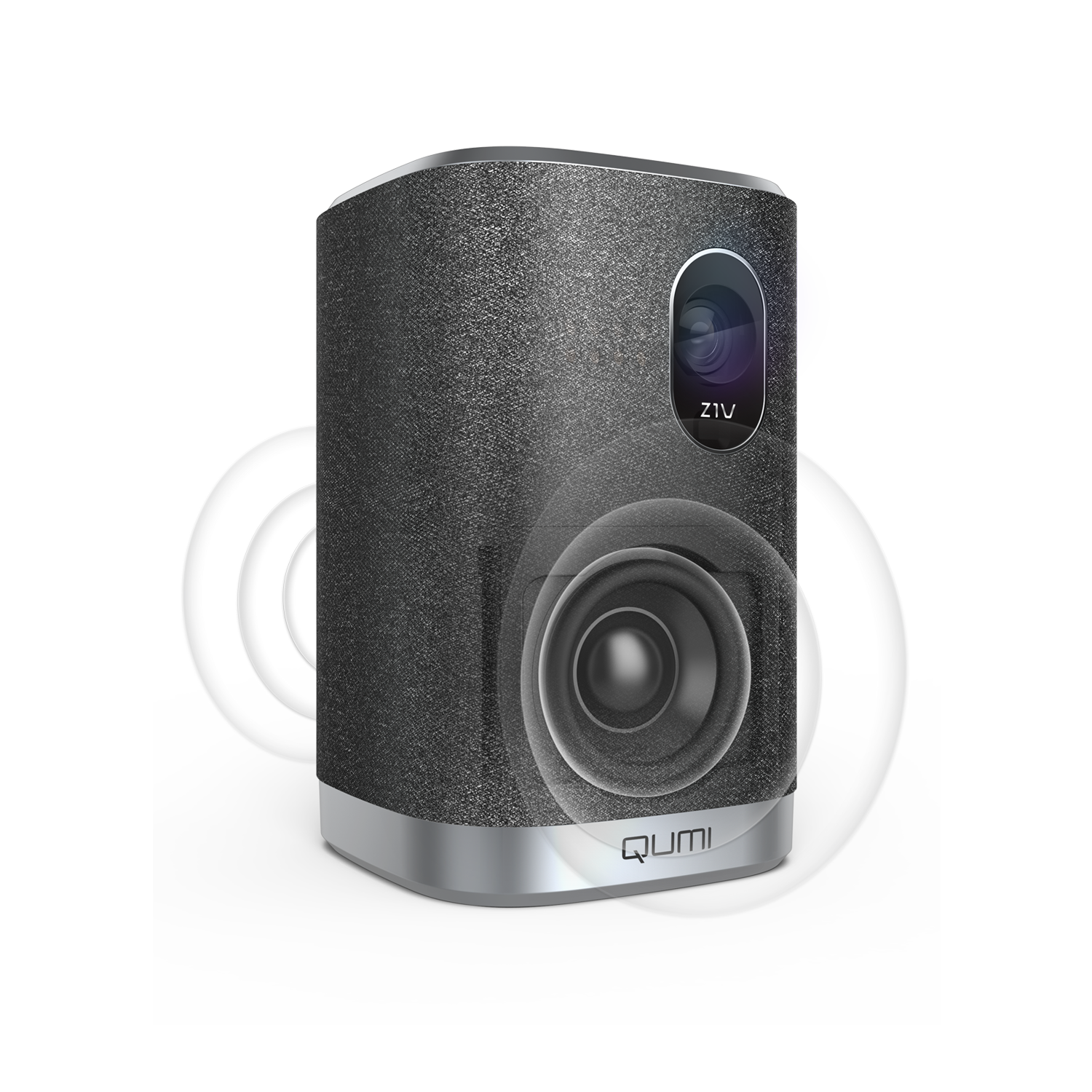

  • Built-in dual 5W speakers with customized sound for crisp, clear and dynamic sound for an incredible theater-quality audio experience
  • Standalone Bluetooth® speaker for convenient audio playback from smartphone, tablet or other BT enabled audio devices

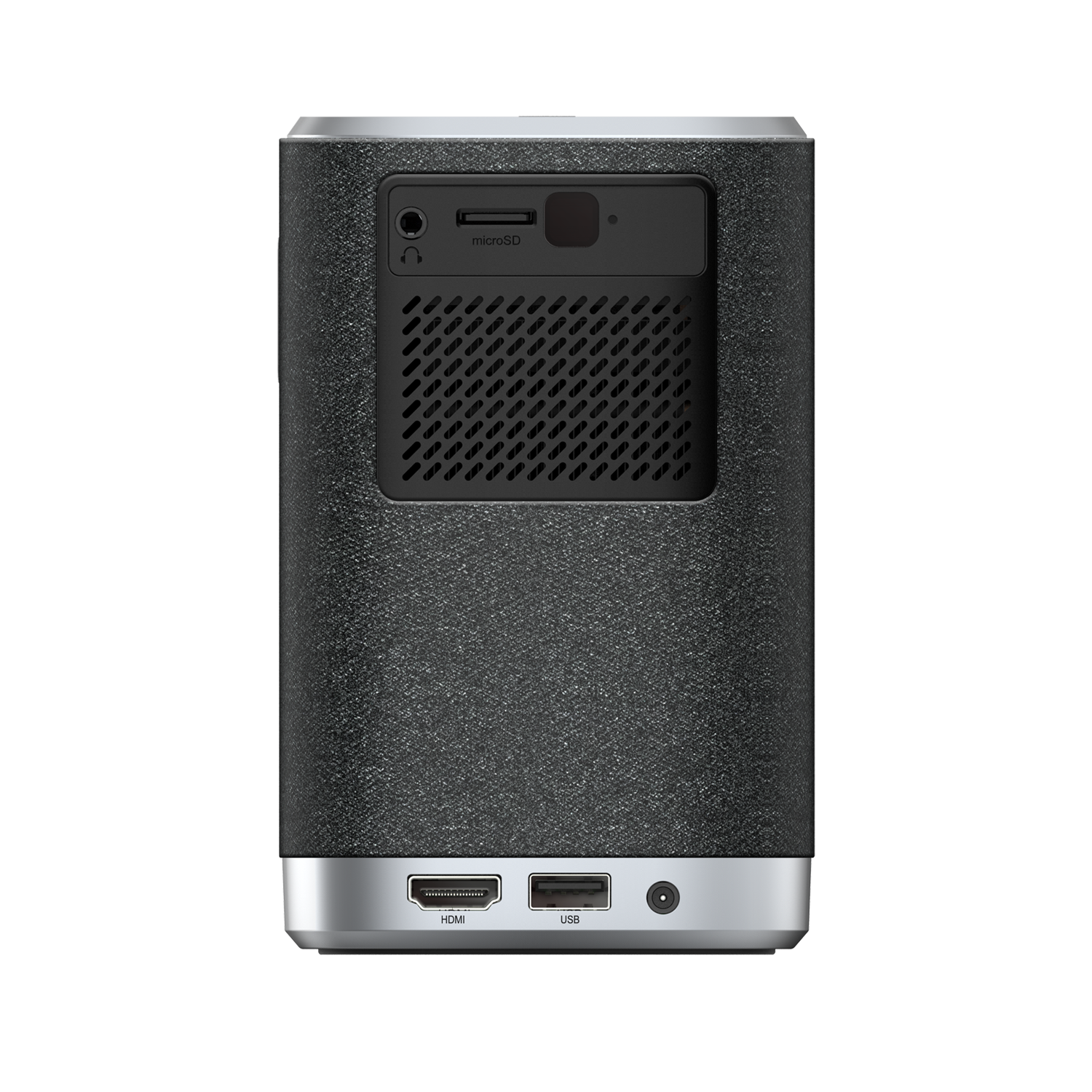

  • Assortment of connectivity options including HDMI, USB, and earphone audio-out
  • PC-fee playback of photos, videos, and audio files with the integrated multimedia player

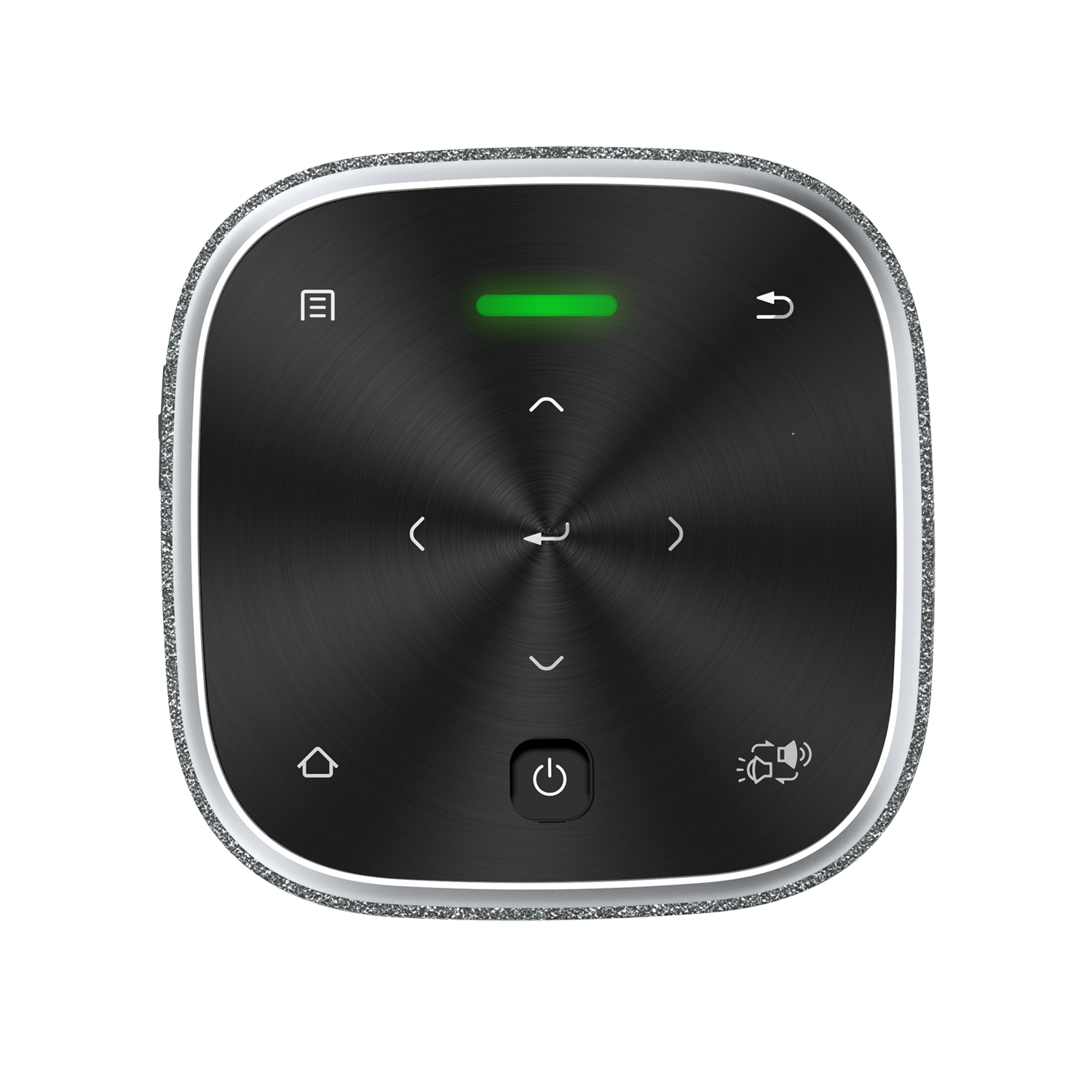

  • Intuitive keypad design with touch-sensitive controls
  • Embedded battery with 4,000mAH provides up to 2 hours of continuous play on a single charge
  • Dual infrared sensors for handy remote control from either in front or behind
  • Tripod port for convenient projector setup and positioning
  • Lightweight friendly profile for easy movement and transportation
  • Available in a charcoal grey finish with highlights of metallic silver
Display Type DLP® 0.20” TRP DMD by TI
Brightness Up to 250 Lumens*
Native Resolution WVGA (854 x 480)
Maximum Detectable Resolution 1080p (1920 x 1080) video playback supported
Contrast Ratio 10,000:1
Lamp Life/Type Up to 30,000 hours
Throw Ratio (Distance/Width) 1.2:1
Image Size (Diagonal) 20” - 75” (0.5m – 1.9m)
Projection Distance 1.6ft – 6.6ft (0.5m – 2.0m)
Aspect Ratio 16:9 Native
Offset 100%
Keystone Correction Vertical ±30°(Digital Auto Keystone Correction)
Vertical Frequency 23 -120Hz
Horizontal Frequency 15K – 102KHz
Bluetooth® Yes (Bluetooth® 4.0)
Storage Expansion microSD Card Slot (Up to 32GB), USB Flash Drive (Up to 64GB)
Speakers 5W (x2) (Stereo)
Tripod Mount Yes (Standard 1/4-20 L6.3 mm camera mount)
Computer Compatibility VGA, SVGA, XGA, SXGA, SXGA+, UXGA, Mac
Video Compatibility SDTV (480i), EDTV (480p), HDTV (720p, 1080i/p)
Media Formats Video - AVI/VOB/MOV/MKV/DAT/MPG/MP4
Photo - JPEG/BMP/GIF/PNG
Audio - MP3,WMA,AAC, M4A, AAC
I/O Connection Ports HDMI v1.4b, MicroSD Card Slot, USB Type A (5V/0.5A), Audio-out (3.5mm Jack)
Projection Method Table Top (Front or Rear)
Dimensions (W x D x H) 3.4” x 3.4” x 5.1” (86 x 86 x 136mm)
Weight (Approximate) 1.4lbs (660g)
Available Colors Dual-Tone: Charcoal Grey and Metallic Silver
Noise Level 32dB (Normal)
Battery Type (Embedded) 4,000 mAh (7.4V) Li-Polymer Rechargeable Battery (Up to 2 hours of usage)
Power Supply AC 100-240V, 50/60Hz
Power Consumption 36W (Normal Mode)

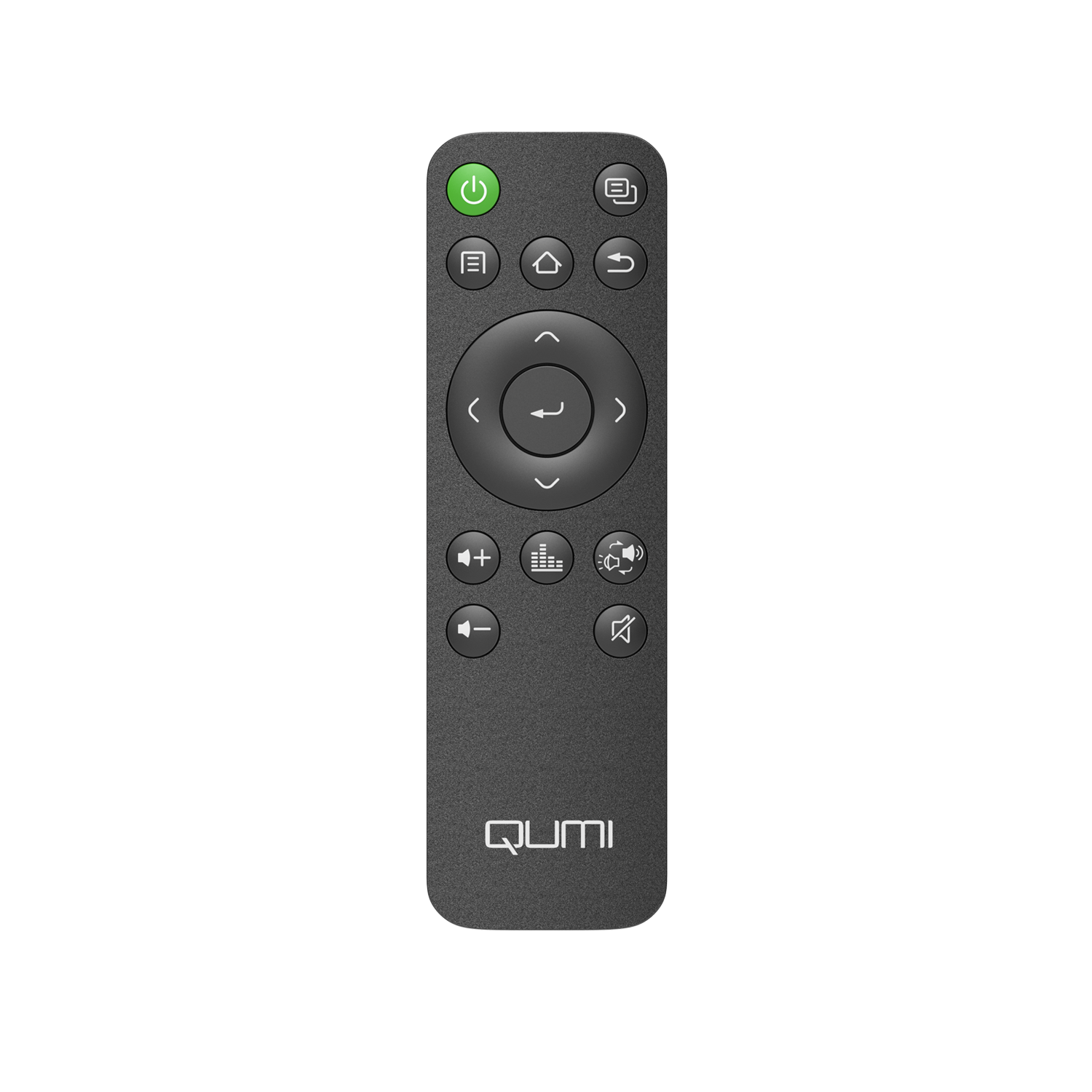

Standard Accessories Remote Control, AC Power Adapter with Cable, HDMI Cable, Documentation Kit
UPC 813097024374
NovoPro
• BYOD Collaboration & Presentation
• Up to 64 users
• iOS/Android full mirroring
• Click-n-display with Launcher
NovoEnterprise
• Screen mirroring for Windows/Mac/iOS/Android
• Collaboration
• Flexible GUI
• Enterprise-grade management software
• LauncherPlus Plug-n-Play
• Complete connectivity
NovoDS4k
• HDMI-input, PoE, 1 Gbps LAN Connectivity
• 4K resolution
• Online content widgets
• Flexible, Easy-to-Create Layouts
• Intuitive Easy-to-Use Software
• Centralized Device Management
• Open Software API
LauncherPlus
• Direct Connectivity
• Compatible with Windows and Mac OS
• One-Click Control
NovoDS
• Digital signage appliance
• 4K resolution
• Intuitive playlist editing
• Remote management over network
Title Version Type Size   Download
Qumi Z1V Datasheet 10/2019 pdf 0.49 MB
Frequently Asked Questions
I lost my remote on my Qumi, how do I select inputs?
Press and hold the right or left arrow key for 3 seconds, and this will bring up the input menu. Use up and down arrow keys to select input. Press enter key.
I plug my computer in to the projector and I don’t get an image.
The projector has many input connectors. Each connector is labelled (HDMI 1, RGB 1 ....). Ensure the projector is switched to that input using the “Source” button on the projector. Also, the computer may require a toggle switch to turn on the output port. This is typically accomplished by holding down the “Fn” at the same time as a Function key. Each laptop manufacturer may use a different “function” key. Typically, it is F4 or F8. The symbol on the key is usually a laptop as well as a square. Please refer to your laptop manufacturers Users Guide for additional information.
My projector won’t turn on via an RS232 or IP command. If it is powered on, other commands work fine.
In the menu, go to Settings 2 menu, then Advanced 1 menu. Turn Low Power Mode to OFF.
How do I take care of my DLP?
Please refer to Warning and Precautions in the User's Manual.
Does HD really look better than SDTV?
Yes. HDTV has at least twice the linear resolution of standard-definition television (SDTV), thus allowing much more detail to be shown compared with analog television or regular DVD. In addition, the technical standards for broadcasting HDTV are also able to handle 16:9 aspect ratio pictures without using letterboxing or anamorphic stretching, thus further increasing the effective resolution for such content.
Where can I send a letter praising your products and customer support?
Customers can send us an email at customerservice@vivitekcorp.com.
How do I get another copy of my manual?
User's Manual can be downloaded here.
What other kinds of products do you make?
Vivitek also manufactures DLP projectors.
How long has Vivitek been in business
Vivitek was established in 2004.
What are the advantages of DLP over LCD or Plasma?
Please refer to Texas Instrument's website Here
What is DLP and how does it work?
Please refer to Texas Instrument's website Here
How do I get warranty service?
By calling our tech support at 877-603-3582 and providing the proof of purchase when required. Their hours of operation are from Monday to Friday, 9AM to 6PM Pacific time.
How do I register my projector for warranty?
Complete and mail in the registration card included with the purchase of your product or fill out the online product registration here.
Where can I purchase your products?
Vivitek is available through authorized retailers, e-tailers, dealers, distributors and resellers. Vivitek has partnered with key partners around the U.S. These authorized partners can be found under the where to buy section.
How do I synchronize my laptop with my projector?
On most laptops, hold down the 'Fn' + 'F4' keys. This may vary, depending on you laptop's brand it may not be 'F4', but 'F5', 'F7' or 'F8'. On the correct function key, there is a symbol 2 squares, have the letters "LCD", or have the symbol of a laptop/square on it. Please refer to your laptops user's guide for additional information.
