NovoConnect l NovoEnterprise

Cross-Platform Support

From the laptops, tablets, and smartphones your team uses to those brought in by guests, a wide array of different devices enters your conference room in any given week. To ensure compatibility with just about everything, NovoEnterprise boasts cross-platform support with Windows, Mac, Android, iOS, and Google devices.

AirPlay & Google Cast Support

NovoEnterprise fully supports Apple AirPlay and Google Cast, enabling quick and simple screen mirroring and content streaming from a wide number of today’s most popular laptop, tablet, and smartphone devices.

Quad-View &
Dynamic Screen Layouts

Perfect for comparing and collaborating, NovoEnterprise can display/mirror up to four different screen sources simultaneously. This means AirPlay, Google Cast, and regular PC mirroring can all run concurrently, side-by-side in default layouts or dynamically rearranged to match the user’s preference.

Intuitive On-Screen Operations

Managing 64 simultaneous users, rearranging mirror windows, and placing on-screen annotations might sound difficult in concept, but NovoEnterprise makes executing these tasks easy and intuitive thanks to its user-friendly, touch-capable on-screen interface.

Versatile HDMI Input

In addition to its robust wireless connectivity capabilities, NovoEnterprise features an HDMI input port that facilitates simple and reliable hardware connections. While most users will use this port to establish a hardwired connection between their computer and their NovoEnterprise unit, it can also be used to connect document cameras, Blu-ray players, and other HDMI-capable devices.

Centralized Management

As with all of the products in the NovoConnect family, NovoEnterprise can be remotely accessed, updated, and operated via the standalone Remote Manager application. Available for Windows and Mac, Remote Manager enables network-wide control over your entire NovoEnterprise fleet from a single computer.

Intuitive ease of use
Connect up to 64 users; 4-to-1 Split screen simultaneously on one display
Full Screen mirroring of multi-platform operation systems
Built-in dual network support (Wireless and Wired)
On-screen annotation mark-up and distribution
Built in Whiteboard capability with touch panel compatibility
Supports video playback with perfect synchronization up to 1080p
Remote management and maintenance software for ease of deployment

Series Name		NovoConnect
Product Name		NovoEnterprise
Model Name		NE3000US
Hardware	WiFi	802.11 ac/b/g/n 2.4GHz/5GHz
	Antenna	External 2T2R up to 300 Mbps
	LAN	10/100/1000 Mbps
	Display Resolution	up to WUXGA (1920x1200)
	Output	HDMI out x 1 Audio out 3.5mm mini jack

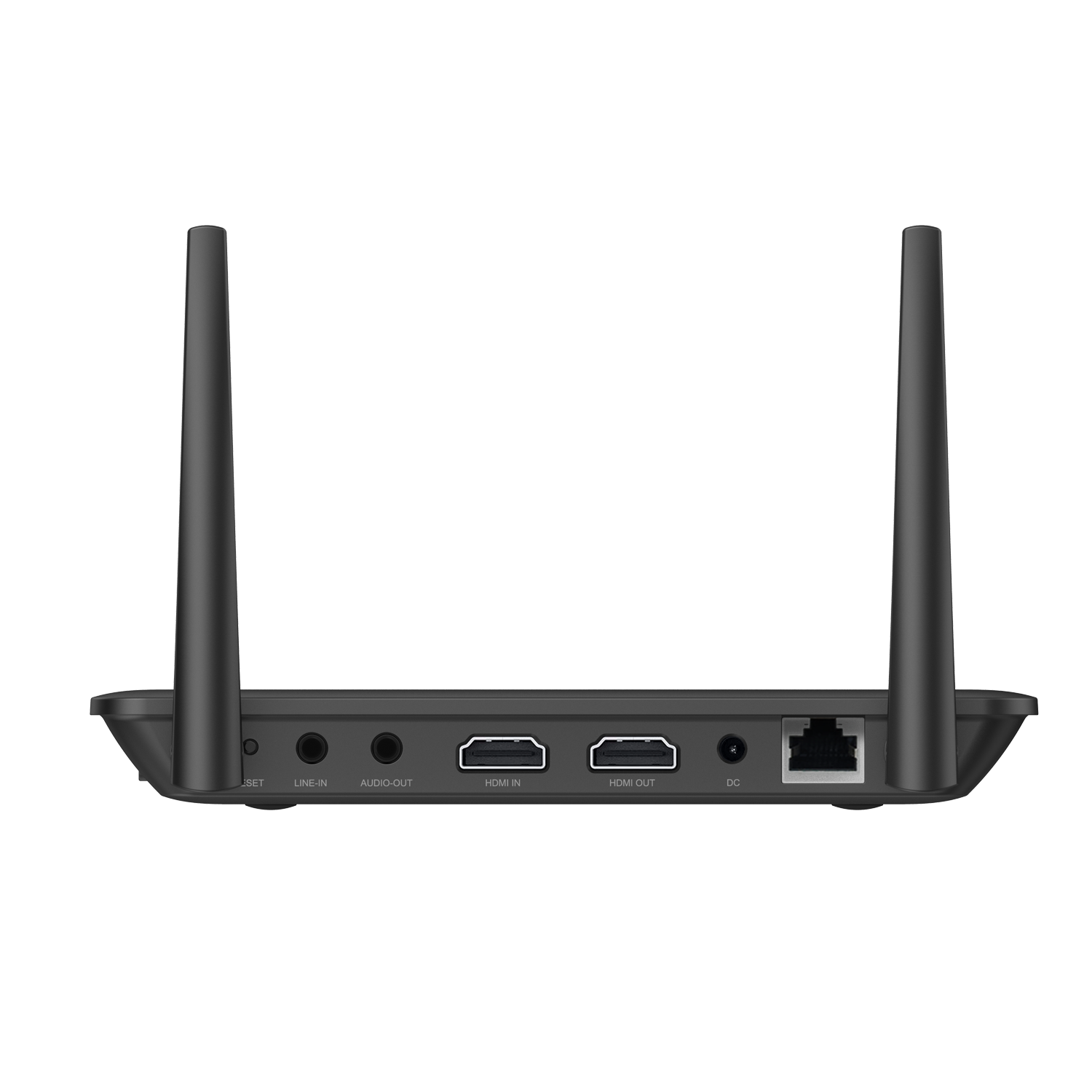

	Input	HDMI in x 1 Audio in 3.5mm mini Jack x 1 USB Type A x 2 RJ45 (PoE) MicroSD card slot x 1 DC jack Power-in Kensington Lock
	Storage	Internal - 8GB (eMMC flash) External -MicroSD card slot (up to 32GB)
	Remote Control	RF
	Security	AES-128 encryption
	Ambient Temperature	Operating: 32° ~ 104° F; 0° ~ 40° C ; Storage: -4° ~ 140° F; -20° C ~ 60° C
	Power	Input to AC Adaptor: AC 100-240V, 50/60Hz; Output from AC Adaptor: 5V/2A; Consumption: 10W
	Dimension (L x W x H)	6.5" x 4.8" x 0.8" (165 mm x 123 mm x 21 mm)
	Weight	8.82 oz (250 g)
	What is in the box	HDMI cable x 1, Micro USB to USB cable x 1, Wall Mount Kit x 1, Remote control x 1 USB Power Adapter Antenna x 2 AAA battery x 2
Software	Video Quality	FHD(1080P/60fps)
	OS support	Windows 7 / 8 / 10 (32 bits and 64 bits), Mac 10.7 and above, iOS 7.0 and above, Android 4.0 and above, Chromebook 37+
	Cross-Platform Mirroring	V
	Air Play	V
	Google Cast	V
	MiraCast
	4-to-1 Screen (Quad screen)	V
	Dynamic Screen layout	V
	Intutitive on-screen operation	V
	Simultaneous Connections	up to 64
	Software Edition	Corporate
	Moderator Preview (Edu only)	V
	Screen Annotation tool	V
	File / URL sharing	V
	Voting / Polling	V
	AirNote	V
	Whiteboard	V
	Classroom management (attendance, lock student tablets, etc.)	V
	HD Video and You Tube streaming	V
	Device Management	Firmware upgrade	FREE
Software upgrade		FREE
Remote Manager		FREE

Type	Title	Version	Size
Brochures
	NovoConnect Series Brochure	10/2017	12.27 MB
	Vivitek Catalog 2019	06/2019	21.59 MB
Guides
	NovoEnterprise Quick Start Guide	08/17	2.87 MB
	NovoScreennote User Guide	12/2017	3.57 MB
AppNotes
	How to Enable and Disable Audio (PC/Mac)		0.51 MB
	Moderator Credentials - Configuration and Usage		0.81 MB
	Reset Setting Protection Password		0.55 MB
	Stream Video from Your Computer		0.57 MB
	Manual Firmware Upgrade Process		0.50 MB
ReleaseNote
	NovoConnect Series Desktop Streamer ReleaseNote V3.0.2	11/2017	0.58 MB
	NovoConnect Series Remote Manager ReleaseNote V3.0.0	1/2018	0.51 MB

Type	Title	Version	Type	Size
NovoConnect Software/Mobile App
	Windows 7 and above	V4.2.0		59.86 MB
	Windows silent installer package (exe)	V4.2.0		59.84 MB
	Windows silent installer package (msi)	V4.2.0		64.03 MB
	Mac OS 10.7 and above	V4.2.0		56.67 MB
	Linux installer package (deb)	V 4.2.1		92.38 MB
	Chromebook (V.37 and above)	V3.2.3	Ext. URL	N/A
	iOS mobile App	V4.2.0	Ext. URL	N/A
	Android mobile App	V4.2.0	Ext. URL	N/A
Screen Extension
	Windows 10	V1.0.2		0.74 MB
	Windows 10 (Silent installer)	V1.0.2		0.74 MB
	Windows 10 (MSI version – please install as admin)	V1.0.2		3.53 MB
Remote Manager
	Windows 7 and above	V3.1.5		14.13 MB
	Windows silent installer package (exe)	V3.1.5		14.12 MB
	Remote Manager DB Server for Windows	V1.1.0		10.21 MB
NovoScreenote
	Windows 7 and above	V2.1		116.32 MB
