The Collaborative and Interactive Solution

NovoConnect - A Wireless Presentation & Collaboration System
INTEGRATED WITH
AWARD-WINNING NOVOCONNECT
In order to address today’s collaborative meetings, NovoTouch is equipped with Vivitek’s award winning NovoConnect — a next-generation system for wireless presentation and collaboration, capable of connecting up to 64 users simultaneously and displaying 4 sources at once. NovoTouch is designed to take classrooms, business meetings and corporate presentations to a new level of collaboration and interaction. The presenter can wirelessly interact and share digital content with attendees — and vice versa — via their PCs, tablets or other portable devices in a clutter-free, dynamic environment that promotes increased productivity and comprehension, while encouraging teamwork. Furthermore, a suite of moderation and on-screen annotation functions enable leaders to control and direct the flow of their meetings in real-time.
One-Click Management
INTERACTIVE COLLABORATION WITH
ONE-CLICK MANAGEMENT
NovoTouch provides meeting participants a convenient way to share, compare and collaborate with one another, in a conference room or the classroom, using one-click management. moderation and On-screen annotation fuction keeps you in control of the meeting and collaborate in real time manner. The presentation and collaboration management software provides a meeting host (or the teacher) with the following functions:

  • Connect up to 64 users
  • Four members can present on the screen using a quad-split screen
  • One-click control over who displays
  • Presenter screen preview
  • Secured meeting login
  • Moderator
  • Poll/vote feature that measures audience comprehension
Multiple Dimensions Available

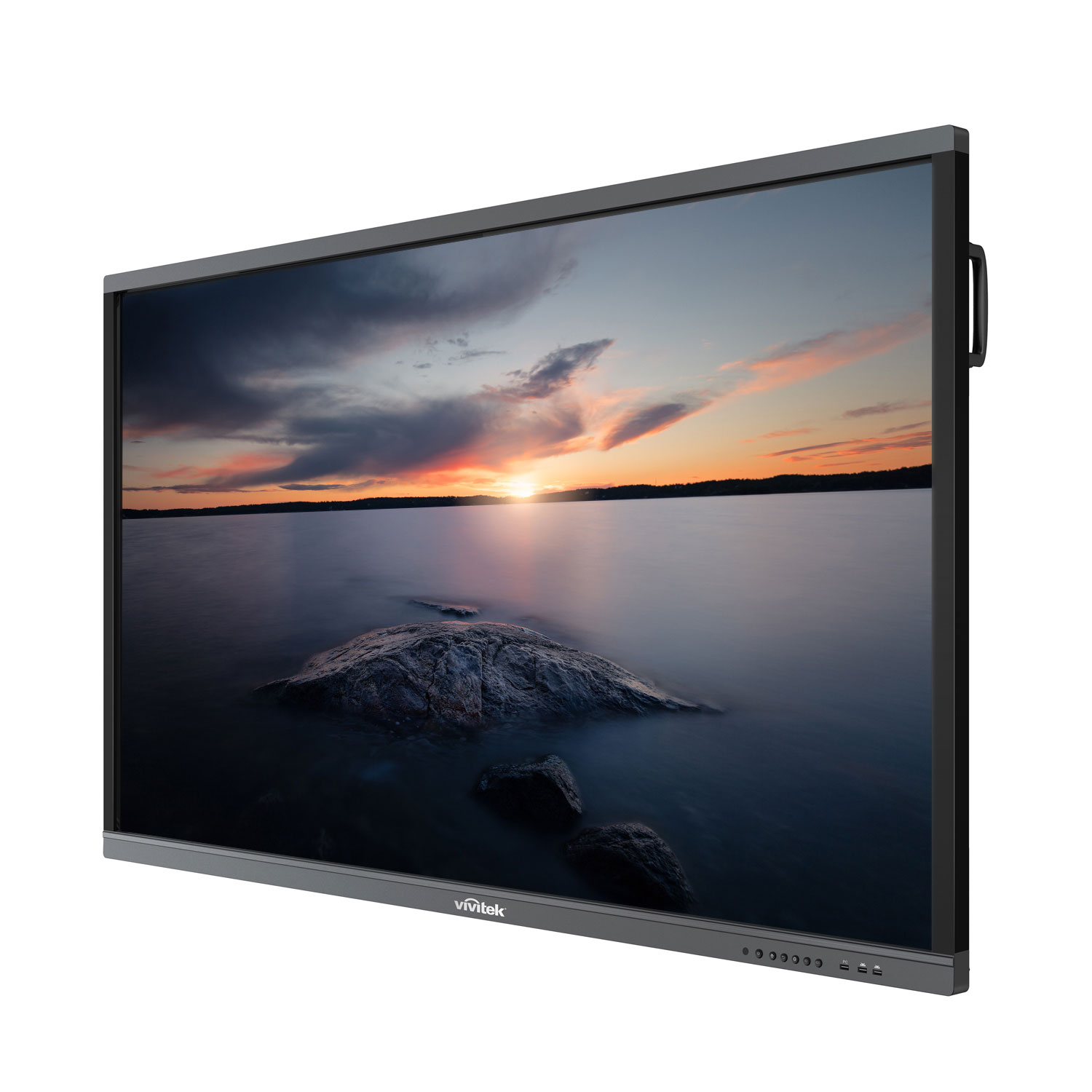

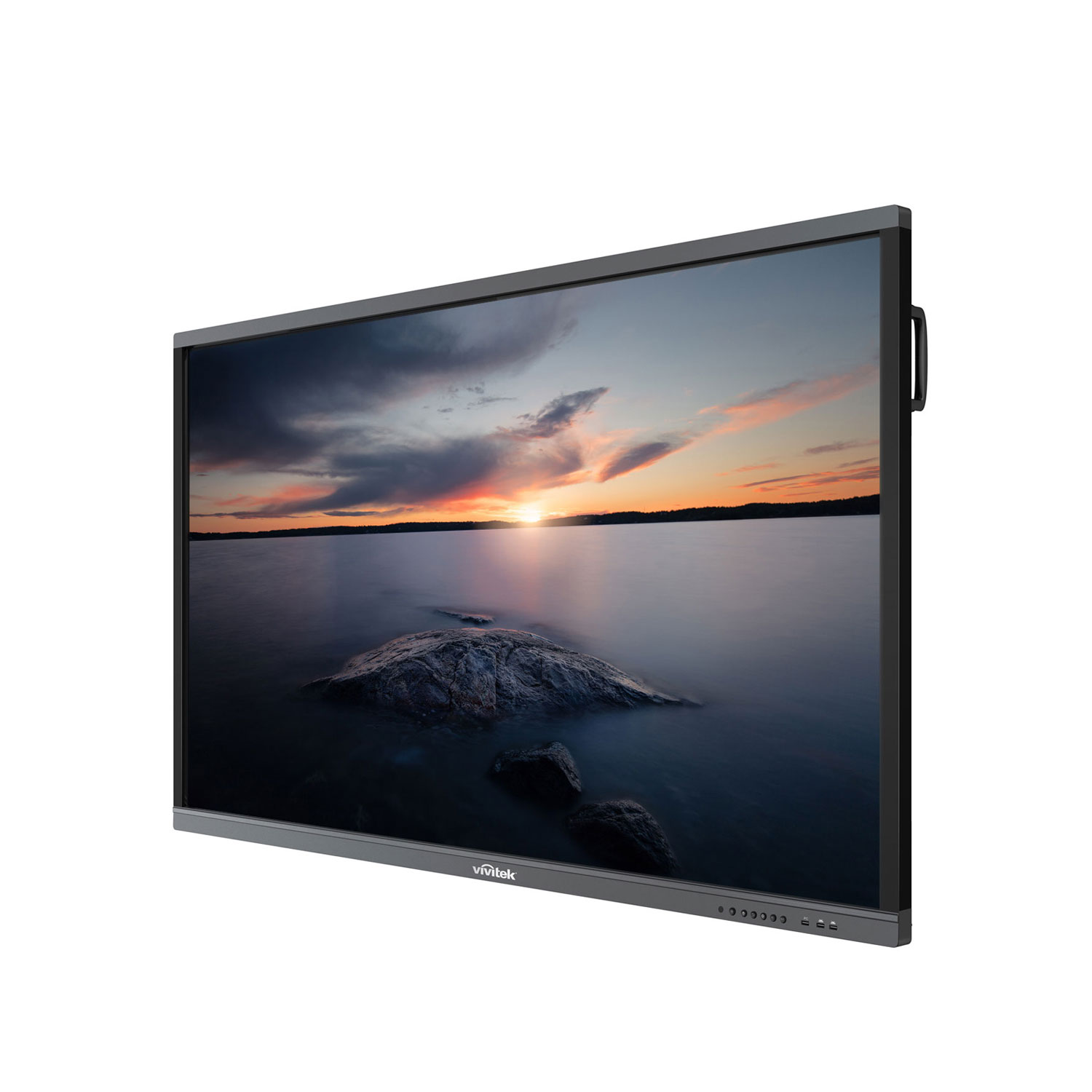

To accommodate use environments of all dimensions and configurations, NovoTouch is available
in 75", 86", and 98" models, all of which boast a Native UHD 4K (3,840 x 2,160) resolution.
TOP-OF-THE-LINE VISUALS
Eye-catching from a distance and gorgeously detailed up-close, Vivitek's NovoTouch collaborative displays use the latest technology to achieve unmatched vibrancy, readability and performance in any environment. Available in Ultra HD 4K resolution, NovoTouch utilizes LED backlight technology to provide over 30,000 hours of low energy consumption. NovoTouch boasts high contrast ratios, fast response times, 178° viewing angles, and an anti-glare surface that delivers impressive screen visibility and readability even in high ambient light environments.
TOUCH AND GESTURE-BASED INTERACTIVITY
NovoTouch provides a powerful and versatile focal point for meetings, conferences, or classrooms with interactive functionalities capable of supporting up to twenty points of touch, perfect for easily manipulating content. Designed from the ground-up to foster collaboration, NovoTouch uses common gesture recognition and easy-to-use annotation tools to allow up to 10 users to simultaneously write on-screen using their fingers, stylus or included interactive pens. Digitally mark-up documents and then instantly share over a wireless connection for a natural flow state of communication.
WIDE RANGE OF
CONNECTIVITY OPTIONS
Securely and discretely housed in an easy-access control panel, Vivitek’s NovoTouch offers complete connectivity with a multitude of ports including HDMl 2.0, VGA, and USB. This design focus on connectivity enables NovoTouch to support multiple digital sources simultaneously. NovoTouch also comes network-ready for RJ45 integration and system administration to support convenient and hassle-free networked management.
DUAL NETWORK SUPPORT
NovoTouch is compatible with dual and ultra-secured networks, enabling it to support separate and parallel wired and wireless connections. This feature is especially useful for facilitating seamless switching from Corporate-to-Guest and Faculty-to-Student network access.

IOS/ANDROID FULL MIRRORING
Whether you’re showcasing the user experience of an app or providing technical instruction, NovoTouch’s screen mirroring of any device enables users to discuss, share, and collaborate completely cable-free.
launcher Connect
OPTIONAL WINDOWS PC MODULE
For applications that demand additional power and functionality, NovoTouch can be expanded with an optional Windows PC module. Easily integrated into Vivitek’s display OPS slot, this optional module makes NovoTouch a fully featured, compact, all-in-one PC with a Windows OS for ease of use and stability. Complete with an Intel Core i5 processor and integrated graphics card, a USB 3.0 port, and a HDMI 1.4a output port. And thanks to the module being discreetly hidden on the rear side of the display, it can be safely deployed in highly trafficked public locations.
ENERGY EFFICIENT &
ENVIRONMENTALLY FRIENDLY
Much like the rest of Vivitek's product lines, the design of NovoTouch is strengthened by Vivitek's commitment to eco-conscious manufacturing and green initiatives. In addition to being ENERGY STAR-compliant across the board, NovoTouch uses mercury-free LED backlighting and robust On, Sleep, and Off Modes for additional energy efficiency.

Interactive & Dynamic Presentations

  • Native UHD 4K (3,840 x 2,160) resolution
  • Available in 98”, 86” and 75” display sizes
  • Manipulate the content with up to 20-points touch
  • LED backlight technology provides a longer life of 30,000+ hours, and lower energy costs
  • Anti-glare surface brings impressive screen visibility and readability
  • Built-in rich connectivity design supports multi digital sources

Collaborative NovoConnect Solution

  • Connect up to 64 users simultaneously, and allow 4 people to present on one display to facilitate large group work
  • Cross platform mirroring from any device to bring a cable free work space for discussion and sharing
  • Dual-network with ultra-secured networks support for separate or parallel wired and wireless connection
  • Moderation and On-screen annotation function keeps you in control of the meeting and collaborate in real time manner
Model Name NovoTouch LK7530i NovoTouch LK8630i NovoTouch LK9810i
Display Display Technology Type Backlit LED (IPS Panel) Backlit LED (IPS Panel) Backlit LED (IPS Panel)
Panel Size 75” 86” 98”
Brightness (Typical/Minimum) 330cd/m2/300cd/m2 330cd/m2/300cd/m2 440cd/m2/400cd/m2
Contrast Ratio (Typical) 1,200:1 1,200:1 1,300:1
Native Resolution 4K Ultra-HD (3840 x 2160) 4K Ultra-HD (3840 x 2160) 4K Ultra-HD (3840 x 2160)
Viewing Angle (H/V) 178o/178o 178o/178o 178o/178o
Aspect Ratio 16:9 16:9 16:9
Response Time (MS) 8ms (Typ) 8ms (Typ) 5ms (Typ)
Pixel Pitch 0.429mm x 0.429mm 0.4935mm x 0.4935mm 0.5622mm x 0.5622mm
Refresh Rate (Hz) 60Hz 60Hz 120Hz
Estimated Life Time (Typical) 30,000 hours (Min) 30,000 hours (Min) 30,000 hours (Min)
Viewable Area (WxH) 1,649.66mm x 927.93mm 1,895.04mm x 1,065.96mm 2,158.848mm x 1,214.352mm
Color Saturation (x% NTSC) Mini 0.68 0.68 0.72
Display Color (Bit) 1.06 billion (10-bit) 1.06 billion (10-bit) 1.06 billion (10-bit)
Orientation Landscape Landscape Landscape
Interactivity Touch Technology Infrared Touch Infrared Touch Infrared Touch
Touch Points Writing 10 Points 10 Points 5 Points
Touch 20 Points 20 Points 10 Points
Accuracy ±2mm (Over 90% area) ±2mm (Over 90% area) ±2mm (Over 90% area)
Response Time <15ms <20ms <20ms
Touch Resolution 32,767 x 32,767 32,767 x 32,767 32,767 x 32,767
Surface Protection 4mm Thick Toughened Glass (Level 7H on Mohs Scale of Mineral Hardness) 4mm Thick Toughened Glass (Level 7H on Mohs Scale of Mineral Hardness) 4mm Thick Toughened Glass (Level 7H on Mohs Scale of Mineral Hardness)
Minimum Touch Object Single-Touch ??6mm and Multi-Touch ??8mm Single-Touch ??6mm and Multi-Touch ??8mm Single-Touch ??6mm and Multi-Touch ??8mm
H/W Solution Yes Yes Yes
Touch Tools Finger, Stylus, Glove, Opaque Objects Finger, Stylus, Glove, Opaque Objects Finger, Stylus, Glove, Opaque Objects
Gestures Supported Yes (Use palm?hand back to erase/ Slide up from bottom to call out Touch Menu//Two fingers to call out floating toolbar. /Under PC:20 point touch, 10 point writing. ? Under Android, 10 point touch. 5 point writing) Yes (Use palm?hand back to erase/ Slide up from bottom to call out Touch Menu//Two fingers to call out floating toolbar. /Under PC:20 point touch, 10 point writing. ? Under Android, 10 point touch. 5 point writing) Yes (Use palm?hand back to erase/ Slide up from bottom to call out Touch Menu//Two fingers to call out floating toolbar. /Under PC:10 point touch, 5 point writing. ? Under Android, 10 point touch. 5 point writing)
OS Compatibility Windows® (Windows 7 and above: Driver Free), Mac® (10.10 and above), Android™ (2.2/2.3/4.0/4.1/4.2 (Kernel v3.5 and above - Driver Free), Chrome (v39 and above), Linux (Kernal v3.5 and above) Windows® (Windows 7 and above: Driver Free), Mac® (10.10 and above), Android™ (2.2/2.3/4.0/4.1/4.2 (Kernel v3.5 and above - Driver Free), Chrome (v39 and above), Linux (Kernal v3.5 and above) Windows® (Windows 7 and above: Driver Free), Mac® (10.10 and above), Android™ (2.2/2.3/4.0/4.1/4.2 (Kernel v3.5 and above - Driver Free), Chrome (v39 and above), Linux (Kernal v3.5 and above)
Operating System System Version Android™ v6.0 Android™ v6.0 Android™ v4.2.1
CPU RK3399, Dual-Core ARM® Cortex® A72 and Quad Core ARM® Cortex® A53 RK3399, Dual-Core ARM® Cortex® A72 and Quad Core ARM® Cortex® A53 ARM® Cortex® A9 Dual Core CPU
GPU Mali™ T860 Mali™ T860 Quad Core GPU
RAM 4GB DDR3 4GB DDR3 1.5G RAM
Internal Storage 16GB (eMMC Flash) 16GB (eMMC Flash) 8G
Connectivity Input Display HDMI v2 (x1), HDMI v1.4 (x2), DisplayPort (x1), VGA-In (x1) HDMI v2 (x1), HDMI v1.4 (x2), DisplayPort (x1), VGA-In (x1) HDMI v1.4 (x1), HDMI v1.3 (x3), AV-In (x1), VGA-In (x3)
Audio Audio-In (3.5mm) (x1), AV-In (x1) Audio-In (3.5mm) (x1), AV-In (x1) Audio-In (x3)
Out Display HDMI-Out (1080P) (x1) HDMI-Out (1080P) (x1) VGA-Out (x1)
Audio Audio-Out (3.5mm) (x1), Coaxial-Out (RCA) (x1) Audio-Out (3.5mm) (x1), Coaxial-Out (RCA) (x1) Audio-Out (3.5mm) (x1), Coaxial-Out (RCA) (x1)
Internet LAN (RJ45) (x1) LAN (RJ45) (x1) LAN (RJ45) (x1)
Control RS232 (x1) RS232 (x1) RS232 (x1)
USB Front USB 2.0 (x2), USB 3.0 (x1) USB 2.0 (x2), USB 3.0 (x1) USB 2.0 (x3)
Side USB 2.0 (x1), USB 3.0 (x1), USB Type B (x2)(For Touch Port) USB 2.0 (x1), USB 3.0 (x1), USB Type B (x2)(For Touch Port) USB 2.0 (x1), USB 3.0 (x1), USB Type B (x2)(For Touch Port)
Bottom USB 2.0 (x1) USB 2.0 (x1) N/A
Expansion Modules (OPS) NovoPro Android Module (Slot 1) Standard (120pin) Standard (120pin) N/A (External Device Connection)
Windows PC Module (Slot 2) Optional (120pin) Optional (120pin) Optional (48pin)
Audio Internal Speakers 12W (x2) (Stereo) 12W (x2) (Stereo) 10W (x2) (Stereo)
Power Power Supply (Internal) AC 100-240V, 50/60Hz AC 100-240V, 50/60Hz AC 100-240V, 50/60Hz
Consumption 400W 500W 650W (with PC module)
Standby Mode <0.5W (Standby) <0.5W (Standby) <0.5W (Standby)
Plug Type US/ EU/ UK/ AU Optional US/ EU/ UK/ AU Optional US/ EU/ UK/ AU Optional
Environmental Conditions Operating Temperature 0°C - 40°C (32°F - 104°F) 0°C - 40°C (32°F - 104°F) 0°C - 40°C (32°F - 104°F)
Humidity 10% - 90% 10% - 90% 10% - 90%
Storage Temperature -20°C - 60°C (-4°F - 140°F) -20°C - 60°C (-4°F - 140°F) -20°C - 60°C (-4°F - 140°F)
Humidity 10% - 90% 10% - 90% 10% - 90%
Altitude Below 5,000m (16,400ft) Below 5,000m (16,400ft) Below 5,000m (16,400ft)
Physical Characteristics Dimensions (L x H x D)
(Estimated)
Product 1,762 x 1,034 x 100mm (69.4" x 40.7" x 3.9") 1,988 x 1,178 x 99.6mm (78.3” x 46.4" x 3.9") 2,257 x 1,335 x 118mm (88.8” x 52.6" x 4.6")
Package 1,913 x 1,225 x 280mm (75.3” x 48.2"x11") 2,211 x 1,370 x 280mm (87” x 53.9" x 11") 2,450 x 1,555 x 385mm (96.4” x 61.2" x 15.1")
Weight (Estimated) Net 60kg (132lbs) 78kg (172lbs) 150kg (331lbs)
Gross 78kg (172lbs) 105kg (231bs) 200kg (441lbs)
VESA Mounting (FPMPMI) 4 - M8 × 25mm, 800 x 400mm (31.5" x 15.7") 4 - M8 × 25mm, 800 x 600mm (31.5" x 23.6") 4 - M8 × 25mm, 800 x 600mm (31.5 x 23.6")
Construction/Materials Aluminium (Front Frame), Iron (Rear Cover) Aluminium (Front Frame), Iron (Rear Cover) Aluminium (Front Frame), Iron (Rear Cover)
Available Color Black Black Black
Accessories Standard AC Power Cord, VGA Cable, USB Cable, Audio Cable, Stylus (x3), Wall Mount Kit, Remote Control, Documentation Kit AC Power Cord, VGA Cable, USB Cable, Audio Cable, Stylus (x3), Remote Control, Wall Mount Kit, Documentation Kit AC Power Cord, VGA Cable, USB Cable, Audio Cable, Stylus (x3), Remote Control, Wall Mount Kit, Documentation Kit
