Ultra HD 4K projector for the Home Cinema enthusiast.


A Wireless Presentation & Collaboration

NovoConnect allows participants to seamlessly share content from connected device through a wireless network to conduct interactive presentations with dynamic content sources and HD display quality.

  • Ultra HD 4K (3,840 x 2,160) resolution for outstanding details and stunning visuals
  • 2,000 ANSI lumens for an amazing brightness
  • Extremely high 18,000:1 contrast ratio for spectacular blacks and outstanding white colors
  • Advanced video processor for fluid video streaming and programmable RGB colour adjustments
  • VividMotion reduces fast-moving motion judder to create a fluid and flawless video stream
  • High Dynamic Range (HDR10) for enriched brightness and impeccable vibrancy for precise natural colors
  • 100% REC 709 and 80% DCI-P3 for an incredible cinematic like movie experience
  • Six segment RGBRGB color wheel delivers outstanding reds, greens and blue color reproductions
  • Fine tune and optimize an image with advanced calibrations, including gamma and color management settings
  • Vertical len shift for greater installation convenience and flexibility
  • Wirelessly screen casting capablity (Wifi USB dongle is required)
  • Display content directly from projector’s internal memory or flash drive
  • Advanced HDMI 2.0 connectors for high quality digital video signals and quick data transfer rates
  • Audio USB ready with built-in 5 watt speaker and audio out port
  • Long lasting energy efficient lamps that last up to 15,000 hours (Dynamic Eco)
  • Wide 1.3x zoom range and vertical lens shift for greater installation convenience and flexibility
  • Full functioning remote control for easy control
  • Secure a cable to the projector’s security bar to prevent theft or unauthorized movement of the projector
Display Type DLP® 0.47” TRP Technology by Texas Instruments
Brightness 2,000 ANSI Lumens
Native Resolution UHD (3840 2160), 16:9 Format
Contrast Ratio 18,000:1 (Full On/Off)
Lamp Life/Type 4,000 / 10,000 / 15,000 hours (Normal / Eco. / Dynamic Eco.) 245W
Throw Ratio 1.13 – 1.47:1
Image Size (Diagonal) 0.8 - 7.62 (30” - 300”)
Projection Distance 0.95m – 7.6m (3.1ft - 25ft)
Projection Lens F= 1.9 – 2.47, f=12 – 15.6mm
Zoom Ratio 1.3x
Aspect Ratio Options* 16:9
Offset 100%
Lens Shift Range Vertical: +10% / -5 of full image height
Vertical Scan Rate 24 - 85Hz
Horizontal Frequency 31 - 135kHz
Video Compatibility UHD 4K (3840 2160), HDTV (1080i/p, 720p), EDTV (480p, 576p)
Computer Compatibility UHD 4K, WUXGA, UXGA, SXGA+, SXGA, XGA, SVGA, VGA, Mac
3D Yes (Via DLP® Link™, Blu-ray 3D)
Speaker 5W (Mono)
Remote Control Fully Featured IR Remote
Projection Method Table Top or Ceiling Mount (Front or Rear)
Uniformity 85%

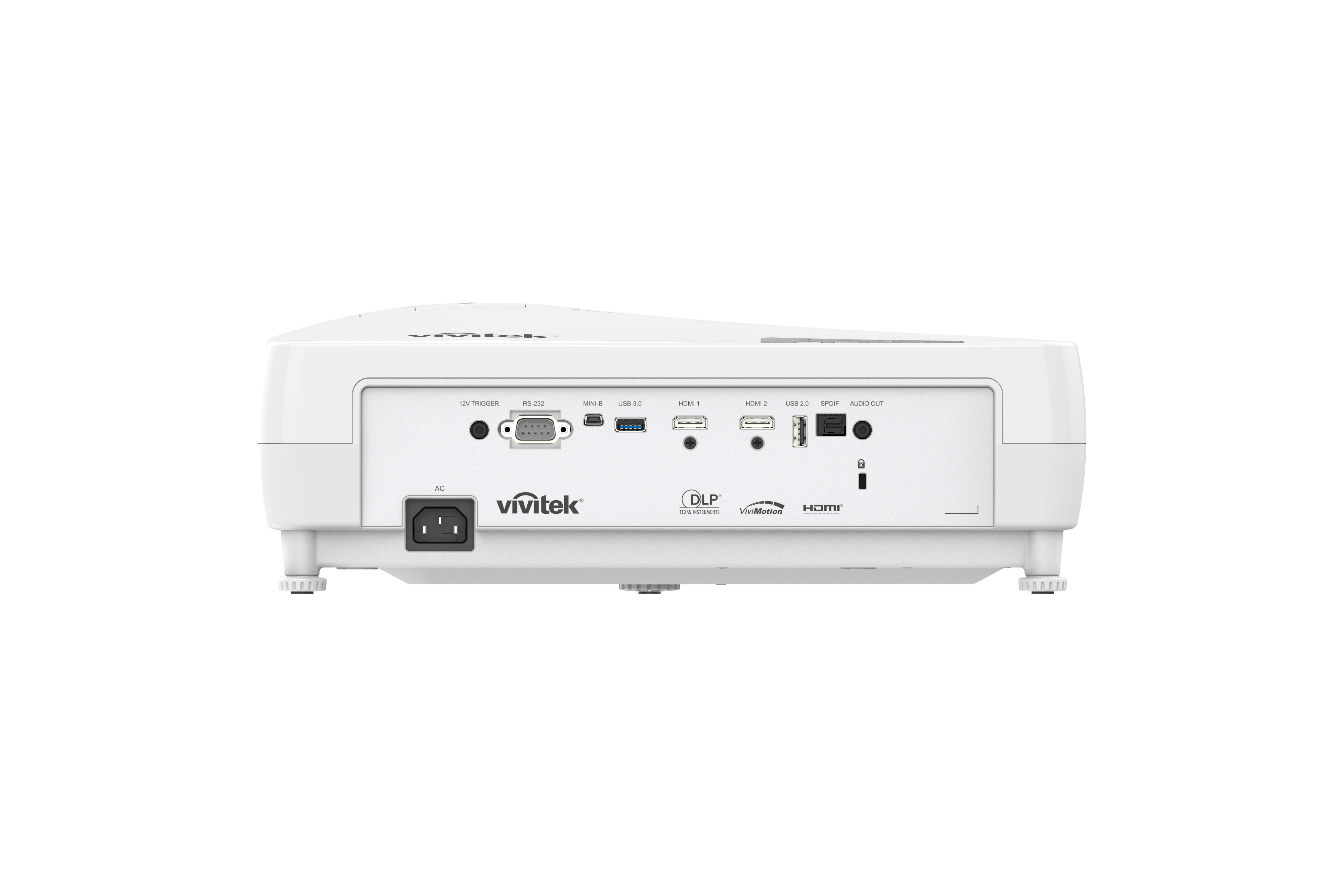

I/O Connection Ports HDMI 1 v2.0, Audio-Out (3.5mm Mini Jack), HDMI 2 v2.0, Audio-Out (S/PDIF), USB 3.0 Type A (5V / 1.5A), RS-232, USB 2.0 Type A (5V / 1.5A), 12-V Trigger, Power (5V/1.5A) USB Type A, Service Only (USB Type B)
Security Kensington® Lock Port, Security Bar
Weight 9.3lbs (4.2kg)
Dimensions (W x D x H) 14.6" x 10" x 5.1" (370 x 253 x 130mm)
Noise Level 32dB / 29dB (Normal / Eco)
Power Supply: AC 100-240V, 50/60Hz Consumption: TBA W/ TBAW (Normal/Eco) <0.5W (Standby Mode)
Operating Temperature 41 to 104°F (5 to 40°C)
Warranty 3-Year Limited Parts/Labor
Standard Accessories AC Power Cord, HDMI Cable, Remote Control, Batteries for Remote, User Manual (CD), Warranty Card
UPC 813097024558
• BYOD Collaboration & Presentation
• Up to 64 users
• iOS/Android full mirroring
• Click-n-display with Launcher
• Screen mirroring for Windows/Mac/iOS/Android
• Collaboration
• Flexible GUI
• Enterprise-grade management software
• LauncherPlus Plug-n-Play
• Complete connectivity
Part number: 5042194401
Title Version Type Size   Download
HK2200 CAD Drawing 01/2020 pdf 0.46 MB
HK2200 Datasheet 01/2020 pdf 0.45 MB
HK2200 RS-232c 01/2020 pdf 0.11 MB
HK2200 User's Manual 01/2020 pdf 9.89 MB
Vivitek Catalog 2019 06/2019 pdf 21.59 MB
Frequently Asked Questions
I plug my computer in to the projector and I don’t get an image.
The projector has many input connectors. Each connector is labelled (HDMI 1, RGB 1 ....). Ensure the projector is switched to that input using the “Source” button on the projector. Also, the computer may require a toggle switch to turn on the output port. This is typically accomplished by holding down the “Fn” at the same time as a Function key. Each laptop manufacturer may use a different “function” key. Typically, it is F4 or F8. The symbol on the key is usually a laptop as well as a square. Please refer to your laptop manufacturers Users Guide for additional information.
Is it OK to use 3rd. party lamps or lamps quoted to be Original Equipment Manufacturer lamps?
Please refer to lamp warranty under Warranty tab and then Vivitek Warranties, as using lamps that are not Vivitek supplied may result in warranties being voided and your projector not meeting required safety standards. Lamp manufacturers provide many different classes of lamps and projectors are built around a specific lamp. While being “original manufacturer” lamps, it is not guaranteed that the class of lamp is the same as the Vivitek specified lamp from the manufacturer.
My projector won’t turn on via an RS232 or IP command. If it is powered on, other commands work fine.
In the menu, go to Settings 2 menu, then Advanced 1 menu. Turn Low Power Mode to OFF.
How often should I change the filters in my DLP?
The majority of Vivitek projectors, due to sealed DLP optics, do not require filters. This eases maintenance requirements.The filters can be cleaned with running water. Please make sure to let them dry completely before installing them back. The filters should be changed if they are torn or worn.
How do I take care of my DLP?
Please refer to Warning and Precautions in the User's Manual.
Why are the lamps so expensive?
The selling price of the lamps is based on the purchase price we obtain from the manufacturers. Vivitek would reflect the price reduction if there is any from the manufacturers.
Why do I have to replace the lamp myself?
Lamp is a consumable part that needs to be replaced regularly. Customers can have a technician do the replacement, but the labor would not be covered by the manufacturer's warranty.
Why can't I order a lamp over the phone?
At the current stage, we don't process orders over the phone to protect our customers' credit card information. When the credit card information is sent to us by fax, only employees with authorization have access to this information.
Does HD really look better than SDTV?
Yes. HDTV has at least twice the linear resolution of standard-definition television (SDTV), thus allowing much more detail to be shown compared with analog television or regular DVD. In addition, the technical standards for broadcasting HDTV are also able to handle 16:9 aspect ratio pictures without using letterboxing or anamorphic stretching, thus further increasing the effective resolution for such content.
Where can I send a letter praising your products and customer support?
Customers can send us an email at customerservice@vivitekcorp.com.
How do I get another copy of my manual?
User's Manual can be downloaded here.
What other kinds of products do you make?
Vivitek also manufactures DLP projectors.
How long has Vivitek been in business
Vivitek was established in 2004.
What are the advantages of DLP over LCD or Plasma?
Please refer to Texas Instrument's website Here
What is DLP and how does it work?
Please refer to Texas Instrument's website Here
How do I get warranty service?
By calling our tech support at 877-603-3582 and providing the proof of purchase when required. Their hours of operation are from Monday to Friday, 9AM to 6PM Pacific time.
What is the life expectancy of my projector lamp?
Lamps typically last about 1,500 ~ 10,000 hours. Usually the higher the brightness, the lower the lamp hours. Keep in mind however that some lamps won't make it all the way to their estimated life spans. If you operate your projector in a warm environment that is not adequately ventilated or at higher elevations without switching to “high altitude” mode in the menu, this will reduce lamp life. It is also strongly recommended that the projectors be connected to a surge protector as power surges can damage your lamp. Adhering to the recommended power-off cycling will assist in maintaining lamp life. Frequent powering on/off will also reduce lamp life expectancy so it may be better to leave the projector on if you intend to use again within 20 minutes. Using the projector in Economy mode will extend your lamp life.
How do I replace the lamp myself?
In the user's manual, there is a section that shows you how to replace the lamp.
How much do replacement lamps/remotes cost?
You will need to contact your local/online reseller. Vivitek is available through authorized retailers, e-tailers, dealers, distributors and resellers. Vivitek has partnered with key partners around the U.S. These authorized partners can be found under the where to buy section.
How do I register my projector for warranty?
Complete and mail in the registration card included with the purchase of your product or fill out the online product registration here.
What is DLP® technology and how does it work?
DLP®-based projectors produce stunning images with digital clarity and precision. The DLP chip uses millions of tiny mirrors to reflect all colors of visible light to project an all-digital image on the screen. Click here for more detailed information.
Where can I purchase your products?
Vivitek is available through authorized retailers, e-tailers, dealers, distributors and resellers. Vivitek has partnered with key partners around the U.S. These authorized partners can be found under the where to buy section.
How do I synchronize my laptop with my projector?
On most laptops, hold down the 'Fn' + 'F4' keys. This may vary, depending on you laptop's brand it may not be 'F4', but 'F5', 'F7' or 'F8'. On the correct function key, there is a symbol 2 squares, have the letters "LCD", or have the symbol of a laptop/square on it. Please refer to your laptops user's guide for additional information.
5 year Warranty Parts and Labor - 3year Advanced Replacement
Standard Warranty
5-Year Warranty on Parts and Labor / 3-years Advanced Exchange / 1-year Lamp Warranty
