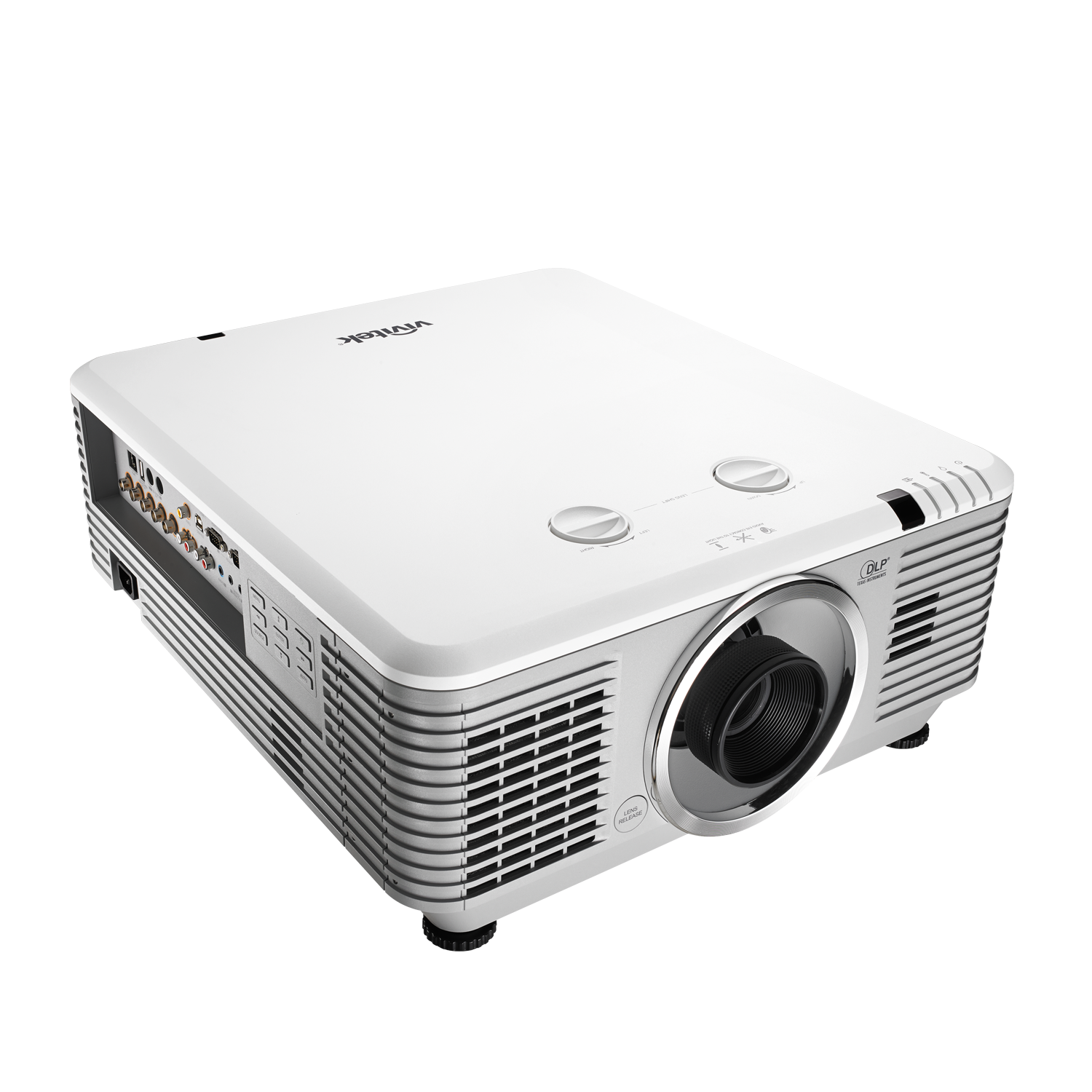

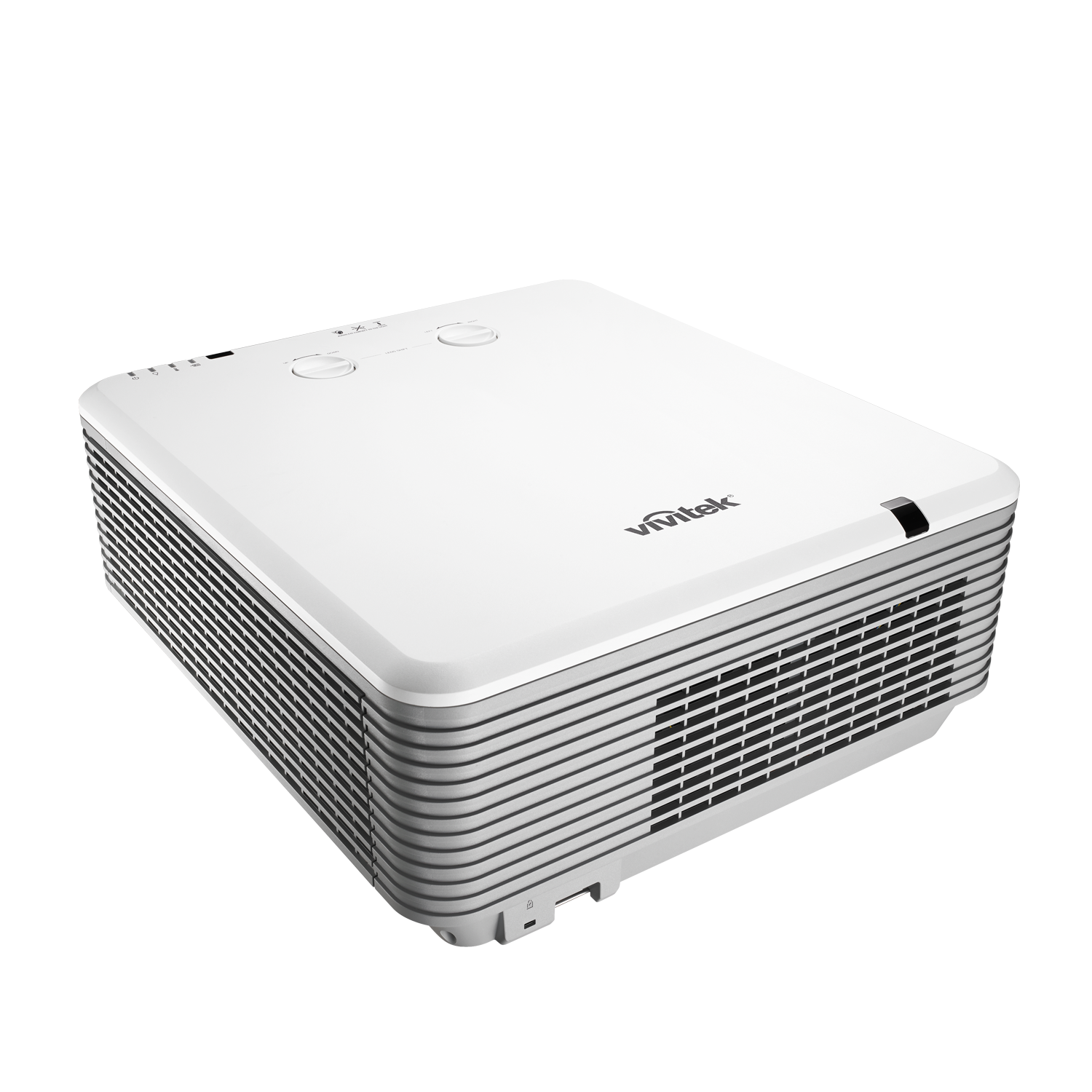

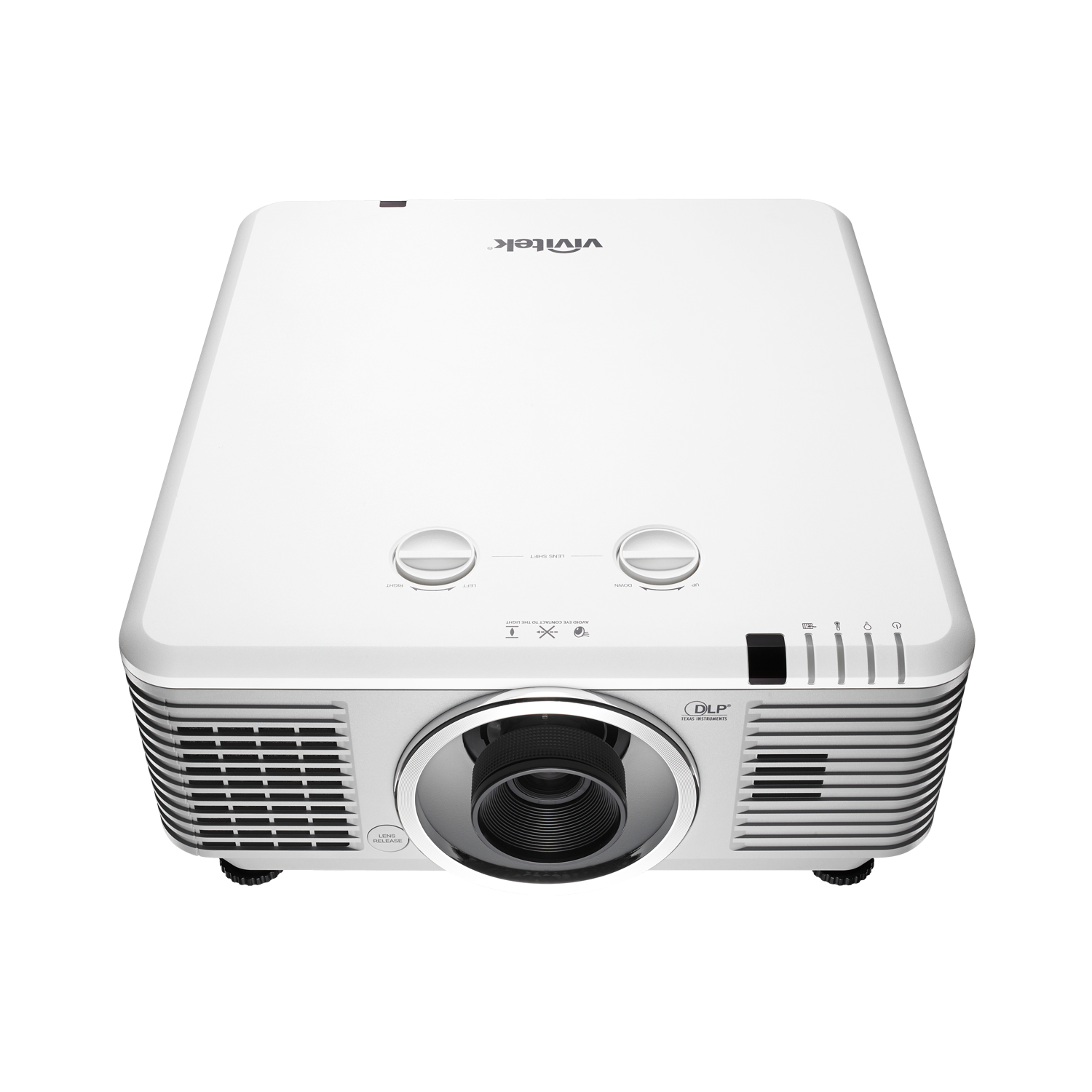

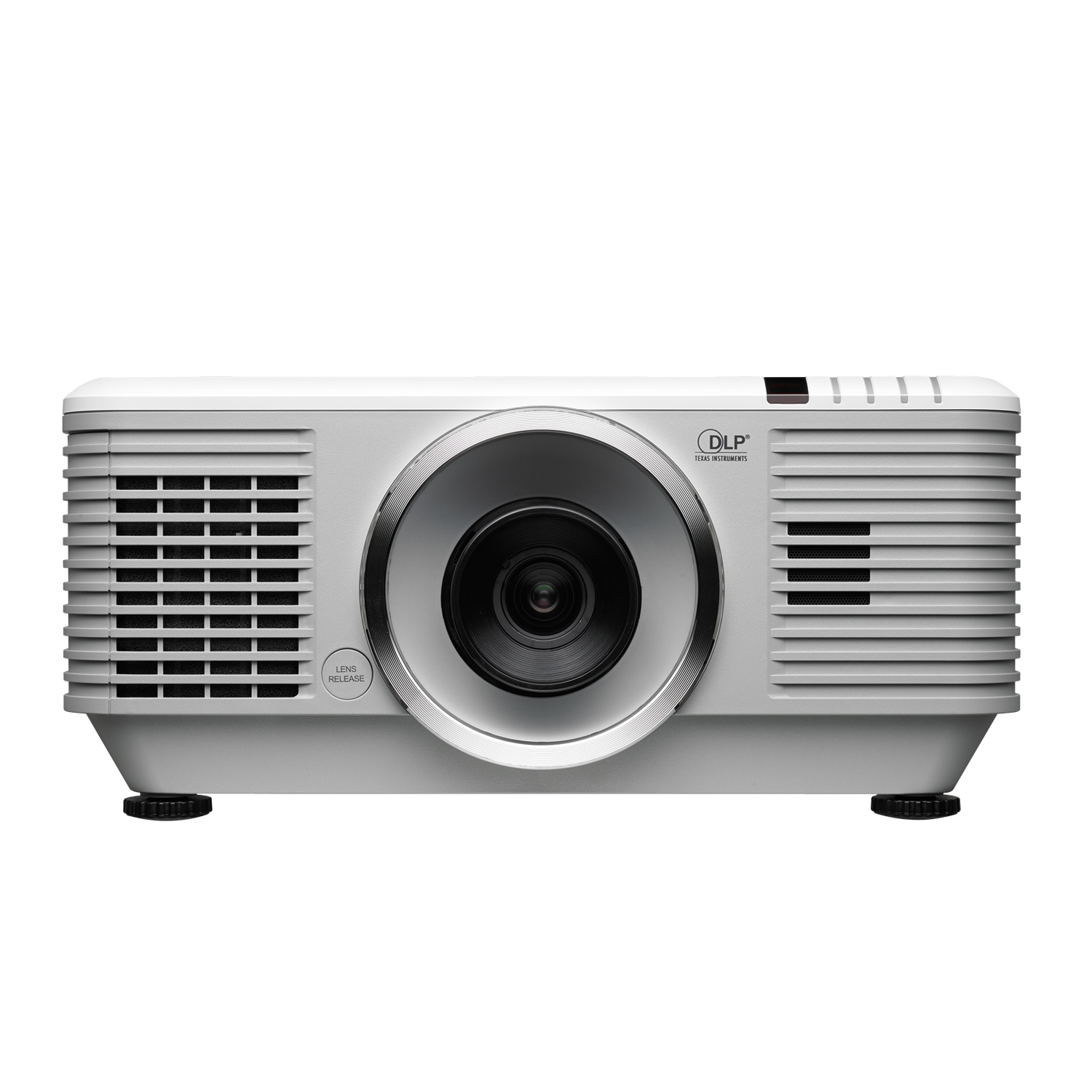

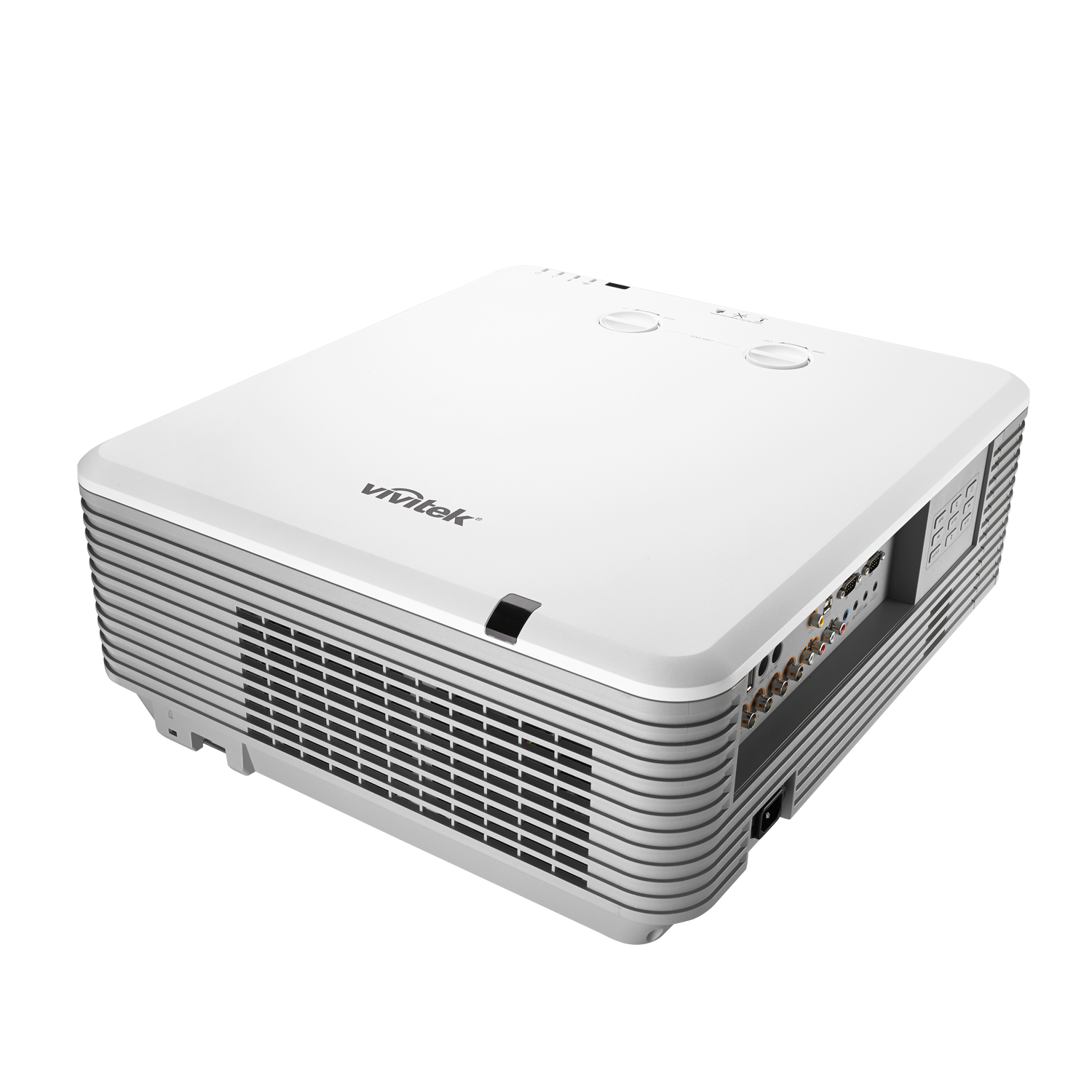

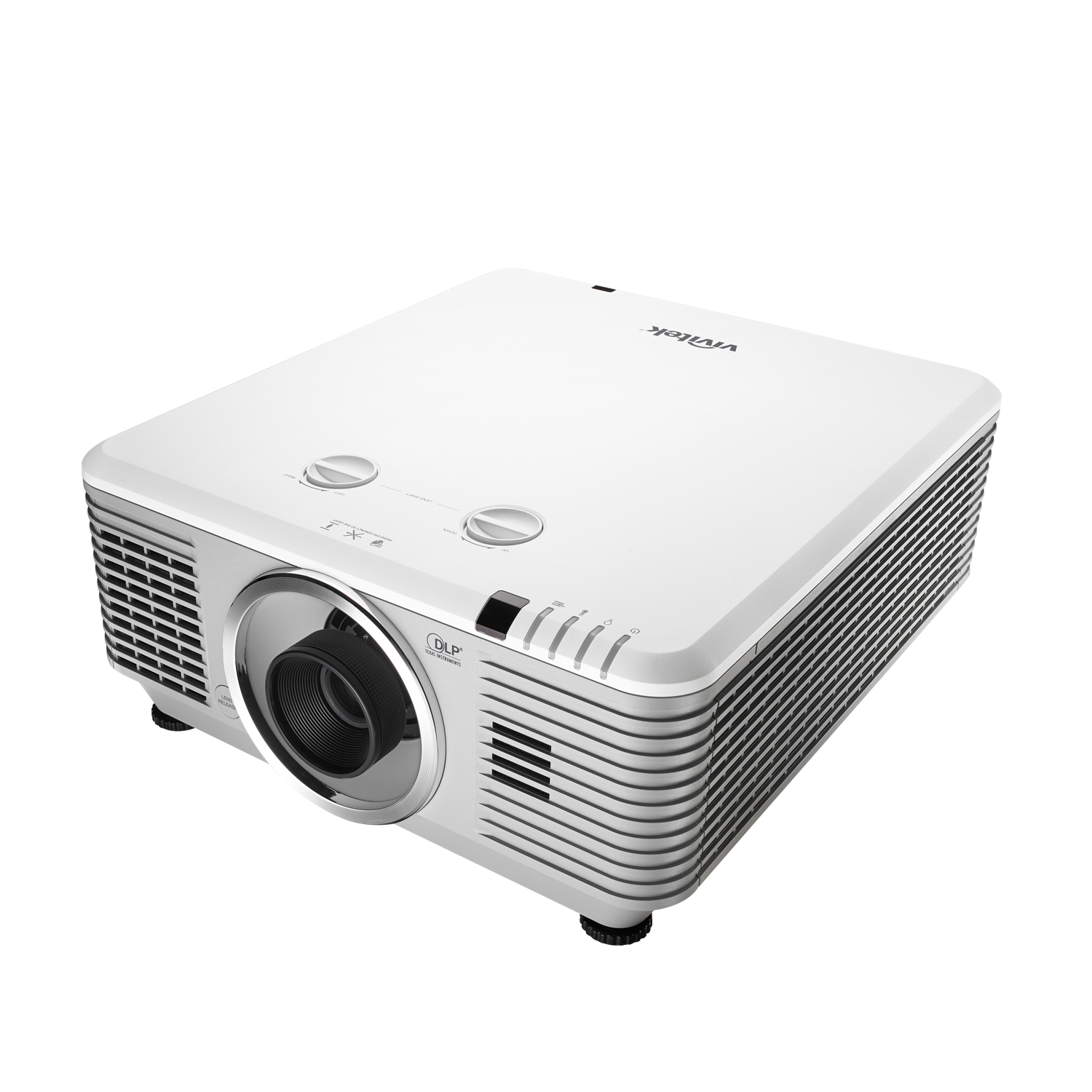

DU7195Z
High Performance WUXGA Large Venue Laser Projector with HDBaseT™ , MHL Compatibility and 3D Ready

NovoConnect

A Wireless Presentation & Collaboration

NovoConnect allows participants to seamlessly share content from connected device through a wireless network to conduct interactive presentations with dynamic content sources and HD display quality.

LEARN MORE BUY NOW
  • Advanced laser phosphor light engine for superior brightness and color uniformity
  • Lampless design deliveries up to 20,000 hours of operational time
  • Up to 8,000 ANSI lumens with a 20,000:1 contrast ratio
  • Native WUXGA resolution with a maximum WUXGA resolution
  • Manual zoom and focus for easy adjustment and positioning flexibility
  • Centered lens for easy installation
  • Horizontal and vertical lens shift for greater installation convenience and flexibility
  • Distorted and trapezoid image issues are easily corrected with keystone, and 4-corner adjustment
  • HDBaseT™ interface with support for distribution of HD video and digital audio content over standard CAT5e/6 LAN cable
  • MHL device compatibility for streaming of video and audio content from a compatible mobile device
  • Full suite of display connectivity inputs and outputs including: HDMI v1.4b, MHL/HDMI 1.4b, DVI-D, Composite Video, Component (5 BNC) (RGBHV), VGA-In, VGA-Out, HDBaseT™ and LAN
  • 3D compatibility with DLP® Link™ and HDMI 1.4 Blu-Ray technology support
  • 3D sync port for compatibility with IR (infrared) 3D passive synchronization protocol
  • 360° (degree) installation for flexible installation in a wide variety of environmental conditions
  • Network ready for integration and system administration via RJ45
  • Crestron® RoomView™ integration for network monitoring and management
  • Seven (7) interchangeable lens options with quick touch lens release design for easy lens installation/removal
  • An-theft security features include: Kensington® security slot, and security bar
Display Type Single Chip 0.67” DLP Technology by TI
Brightness 8,000 Lumens
Native Resolution WUXGA (1920 x 1200)
Contrast Ratio 20,000:1
Laser Life/Type 20,000 + hours (Laser Phosphor Light Engine)
Aspect Ratio 16:10 format
Offset N/A (Manual Focus/Zoom)
Keystone Correction Vertical ±25° - ±30°, Horizontal ±30°
Horizontal Frequency 15, 31 - 91.4Hz
Vertical Scan Rate 24 - 30Hz, 47 - 120Hz
3D Yes (DLP® Link™, HDMI 1.4 (Blu-Ray 3D)
Speaker 10W (x2)
Lens Shift Range* Vertical: -15% - +55%, Horizontal: -5% - +5%
Projector Lens * 7 options (See page 2 for specification)
Computer Compatibility VGA, SVGA, XGA, SXGA, SXGA+, UXGA, WUXGA@60hz, Mac
Video Compatibility SDTV (480i, 576i) / EDTV (480p, 576p) / HDTV (720p, 1080i, 1080p), NTSC (M, 3.58/4.43 MHz), PAL (B,D,G,H,I,M,N) SECAM (B,D,G,K,K1,L)
I/O Connection Ports HDMI 1 v.1.4b, HDMI 2 v.1.4b/MHL, DVI-D, HDBaseT (Full Spec) RJ45, Component/RGBHV (5 BNC), VGA-In (DB15), VGA-Out (DB15), Composite, LAN Control (RJ45), Audio-In (3.5mm Jack), Audio-In (RCA L/R), Audio-Out (RCA L/R), RS-232-In/Out (DB-9), Wire Remote 3.5mm In/Out, 3D-Sync In/Out, 12V Trigger (3.5mm Jack), USB Type A (5V/2.0A), USB Type A (5V/2.0A), USB Type B (Service Only)
Projection Method Table Top, Ceiling Mount, Portrait (Front or Rear)
Security Solutions Kensington® Security Slot, Security Bar, Keypad Lock
Dimensions (W x D x H) 18.5” x 20.3” x 7.9" (470 x 517 x 202mm)
Weight 54lbs (24.5Kg)
Available ID Colors White (DU7195Z-WH), Black (DU7195Z-BK)
Noise Level 40dB/35DdB (Normal/Eco. Mode)
Power Supply AC 100-240V, 50/60Hz
Power Consumption 830W (Normal Mode), 680W (Eco. Mode), <0.5W (Standby Mode), <2W (LAN Standby Mode)
Standard Accessories AC Power Cord, VGA Cable, Remote Control, Filter, Lens Cap, Documentation Kit
Optional Accessories Interchangeable Lens Options (x7)
UPC Code (Projector) White (DU7195Z-WH: 813097024183)
Black (DU7195Z-BK: 813097024145)
NovoPro
• BYOD Collaboration & Presentation
• Up to 64 users
• iOS/Android full mirroring
• Click-n-display with Launcher
NovoTouch
NovoEnterprise
• Screen mirroring for Windows/Mac/iOS/Android
• Collaboration
• Flexible GUI
• Enterprise-grade management software
• LauncherPlus Plug-n-Play
• Complete connectivity
Description: 36 Key funtions,New type white remote
Part number: 5041846601
541846601
Part Number 5811120818-SVV 5811122742-SVV 5811120054-SVV 5811122743-SVV 5811120865-SVV 5811119237-SVV 5811120055-SVV
Lens Type Fixed Short Throw Short Throw Zoom Standard Short Throw Semi Short Zoom Standard Lens Long Throw Lens Super Long Throw
UPC Code 813097021571 813097023735 814964339928 813097023742 813097022066 814964335272 814964339935
Compatibility DU7090Z/DU7095Z/DU7195Z
Throw Ratio WUXGA: 0.78:1 WUXGA: 0.77 - 1.1:1 WUXGA:1.1 - 1.3:1 WUXGA: 1.25 - 1.60:1 WUXGA: 1.54 - 1.93:1 WUXGA: 1.93 - 2.9:1 WUXGA: 3 - 5:1
Zoom Ratio N/A 1.42x 1.18x 1.28x 1.25x 1.5x 1.67x
f Value (Focal Length) 11.46mm 11.45 – 16.32mm 16.64 - 19.54mm 18.65 – 23.85mm 22.84 - 28.61mm 28.5 - 42.75mm 44.5 - 74.19mm
F Number 2.54 2.1 - 2.6 2.05 – 2.27 2.0 - 2.44 2.0 - 2.09 2.5 - 3.1 2.2 – 2.5
Image Size
(Diagonal Image Size/ Optimal Focus Range) 		47.8" - 298.3" 42.3" - 300" 35.8" - 379.8" 39.1" - 300" 36.1'' - 300'' 32.1'' - 481.1'' 27.9" - 309.5"
Projection Distance
(Approximate/Optimal Focus Range) 		0.8 - 5m 1m - 4.98m 1 - 9m 1.346 - 8.078m 1.5 - 9.95m 2 - 20m 3 - 20m
Focus/Zoom Adjustment Manual/NA Manual Manual Manual Manual Manual Manual
Lens Shift Range Ver.: -15% to +55%
Hor.: -5% to +5%		 Ver.: -15% to +55%
Hor.: -5% to +5%		 Ver.: -15% to +55%
Hor.: -5% to +5%		 Ver.: -15% to +55%
Hor.: -5% to +5%		 Ver.: -15% to +55%
Hor.: -5% to +5%		 Ver.: -15% to +55%
Hor.: -5% to +5%		 Ver.: -15% to +55%
Hor.: -5% to +5%
Accessories Lens Hood and Cap Lens Hood and Cap Lens Hood and Cap Lens Hood and Cap Lens Hood and Cap Lens Hood and Cap Lens Hood and Cap
Dimensions
(Diameter x Length) 		88 x 118.9mm
(3.5” x 4.6”)		 132 x 202mm
(5.2” x 7.9”) 		126 x 197.8mm
(4.9” x 7.7”) 		126 x 193mm
(4.9” x 7.6”) 		88 x 133mm
(3.5” x 5.2”) 		88 x 141.4mm
(3.5” x 5.5”) 		98 x 173.3mm
(3.8” x 6.8”)
Weight 450g (0.99lbs) 1,350g (2.97lbs) 1,240g (2.73lbs) 1,210g (2.66lbs) 400g (0.88lbs) 450g (0.99lbs) 810g (1.78lbs)
Type Title Version Type Size   Download
Brochures
  Vivitek Catalog 2019 06/2019 pdf 21.59 MB
Title Version Type Size   Download
D7000Z Remote IR HEX Codes 10/2019 csv 0.01 MB
DU7000 CAD Drawing 01/2020 pdf 1.91 MB
DU7000 LED Error Messages 01/2020 pdf 0.06 MB
DU7000 Lens CAD Drawing 01/2020 pdf 0.12 MB
DU7090Z DU7095Z DU7098Z DU7192Z Product Drawing 10/2019 pdf 1.91 MB
DU7195Z Datasheet 10/2018 pdf 0.64 MB
DU7195Z Communication Manual 06/2019 pdf 1.53 MB
DU7195Z User's Manual 06/2019 pdf 11.61 MB
10/2018
We Just launched the DU7195Z! 8,500 lumen projector great for Large Venue applications
Frequently Asked Questions
I plug my computer in to the projector and I don’t get an image.
The projector has many input connectors. Each connector is labelled (HDMI 1, RGB 1 ....). Ensure the projector is switched to that input using the “Source” button on the projector. Also, the computer may require a toggle switch to turn on the output port. This is typically accomplished by holding down the “Fn” at the same time as a Function key. Each laptop manufacturer may use a different “function” key. Typically, it is F4 or F8. The symbol on the key is usually a laptop as well as a square. Please refer to your laptop manufacturers Users Guide for additional information.
Is it OK to use 3rd. party lamps or lamps quoted to be Original Equipment Manufacturer lamps?
Please refer to lamp warranty under Warranty tab and then Vivitek Warranties, as using lamps that are not Vivitek supplied may result in warranties being voided and your projector not meeting required safety standards. Lamp manufacturers provide many different classes of lamps and projectors are built around a specific lamp. While being “original manufacturer” lamps, it is not guaranteed that the class of lamp is the same as the Vivitek specified lamp from the manufacturer.
My projector won’t turn on via an RS232 or IP command. If it is powered on, other commands work fine.
In the menu, go to Settings 2 menu, then Advanced 1 menu. Turn Low Power Mode to OFF.
How often should I change the filters in my DLP?
The majority of Vivitek projectors, due to sealed DLP optics, do not require filters. This eases maintenance requirements.The filters can be cleaned with running water. Please make sure to let them dry completely before installing them back. The filters should be changed if they are torn or worn.
How do I take care of my DLP?
Please refer to Warning and Precautions in the User's Manual.
Why are the lamps so expensive?
The selling price of the lamps is based on the purchase price we obtain from the manufacturers. Vivitek would reflect the price reduction if there is any from the manufacturers.
Why do I have to replace the lamp myself?
Lamp is a consumable part that needs to be replaced regularly. Customers can have a technician do the replacement, but the labor would not be covered by the manufacturer's warranty.
Why can't I order a lamp over the phone?
At the current stage, we don't process orders over the phone to protect our customers' credit card information. When the credit card information is sent to us by fax, only employees with authorization have access to this information.
Does HD really look better than SDTV?
Yes. HDTV has at least twice the linear resolution of standard-definition television (SDTV), thus allowing much more detail to be shown compared with analog television or regular DVD. In addition, the technical standards for broadcasting HDTV are also able to handle 16:9 aspect ratio pictures without using letterboxing or anamorphic stretching, thus further increasing the effective resolution for such content.
Where can I send a letter praising your products and customer support?
Customers can send us an email at customerservice@vivitekcorp.com.
How do I get another copy of my manual?
User's Manual can be downloaded here.
What other kinds of products do you make?
Vivitek also manufactures DLP projectors.
How long has Vivitek been in business
Vivitek was established in 2004.
What are the advantages of DLP over LCD or Plasma?
Please refer to Texas Instrument's website Here
What is DLP and how does it work?
Please refer to Texas Instrument's website Here
How do I get warranty service?
By calling our tech support at 877-603-3582 and providing the proof of purchase when required. Their hours of operation are from Monday to Friday, 9AM to 6PM Pacific time.
What is the life expectancy of my projector lamp?
Lamps typically last about 1,500 ~ 10,000 hours. Usually the higher the brightness, the lower the lamp hours. Keep in mind however that some lamps won't make it all the way to their estimated life spans. If you operate your projector in a warm environment that is not adequately ventilated or at higher elevations without switching to “high altitude” mode in the menu, this will reduce lamp life. It is also strongly recommended that the projectors be connected to a surge protector as power surges can damage your lamp. Adhering to the recommended power-off cycling will assist in maintaining lamp life. Frequent powering on/off will also reduce lamp life expectancy so it may be better to leave the projector on if you intend to use again within 20 minutes. Using the projector in Economy mode will extend your lamp life.
How do I replace the lamp myself?
In the user's manual, there is a section that shows you how to replace the lamp.
How much do replacement lamps/remotes cost?
You will need to contact your local/online reseller. Vivitek is available through authorized retailers, e-tailers, dealers, distributors and resellers. Vivitek has partnered with key partners around the U.S. These authorized partners can be found under the where to buy section.
How do I register my projector for warranty?
Complete and mail in the registration card included with the purchase of your product or fill out the online product registration here.
What is DLP® technology and how does it work?
DLP®-based projectors produce stunning images with digital clarity and precision. The DLP chip uses millions of tiny mirrors to reflect all colors of visible light to project an all-digital image on the screen. Click here for more detailed information.
Where can I purchase your products?
Vivitek is available through authorized retailers, e-tailers, dealers, distributors and resellers. Vivitek has partnered with key partners around the U.S. These authorized partners can be found under the where to buy section.
How do I synchronize my laptop with my projector?
On most laptops, hold down the 'Fn' + 'F4' keys. This may vary, depending on you laptop's brand it may not be 'F4', but 'F5', 'F7' or 'F8'. On the correct function key, there is a symbol 2 squares, have the letters "LCD", or have the symbol of a laptop/square on it. Please refer to your laptops user's guide for additional information.
BrilliantColor™
BrilliantColor from Texas Instruments is a multi-color processing technology that produces vibrant images. BrilliantColor technology uses up to six colors, instead of just the three primary colors, red, green and blue, to improve color accuracy and brightens secondary colors.
DLP® Technology
DLP® chipset-based projectors produce vivid images with digital clarity and precision. The DLP® chip uses millions of tiny mirrors to reflect all the colors of visible light to project a digital image onto a screen. DLP® technology delivers high contrast ratios and minimizes the gaps between pixels for bright, sharp pictures.
5 year Warranty Parts and Labor - 3year Advanced Replacement
Standard Warranty
5-Year Warranty on Parts and Labor / 3-years Advanced Exchange / 1-year Lamp Warranty
