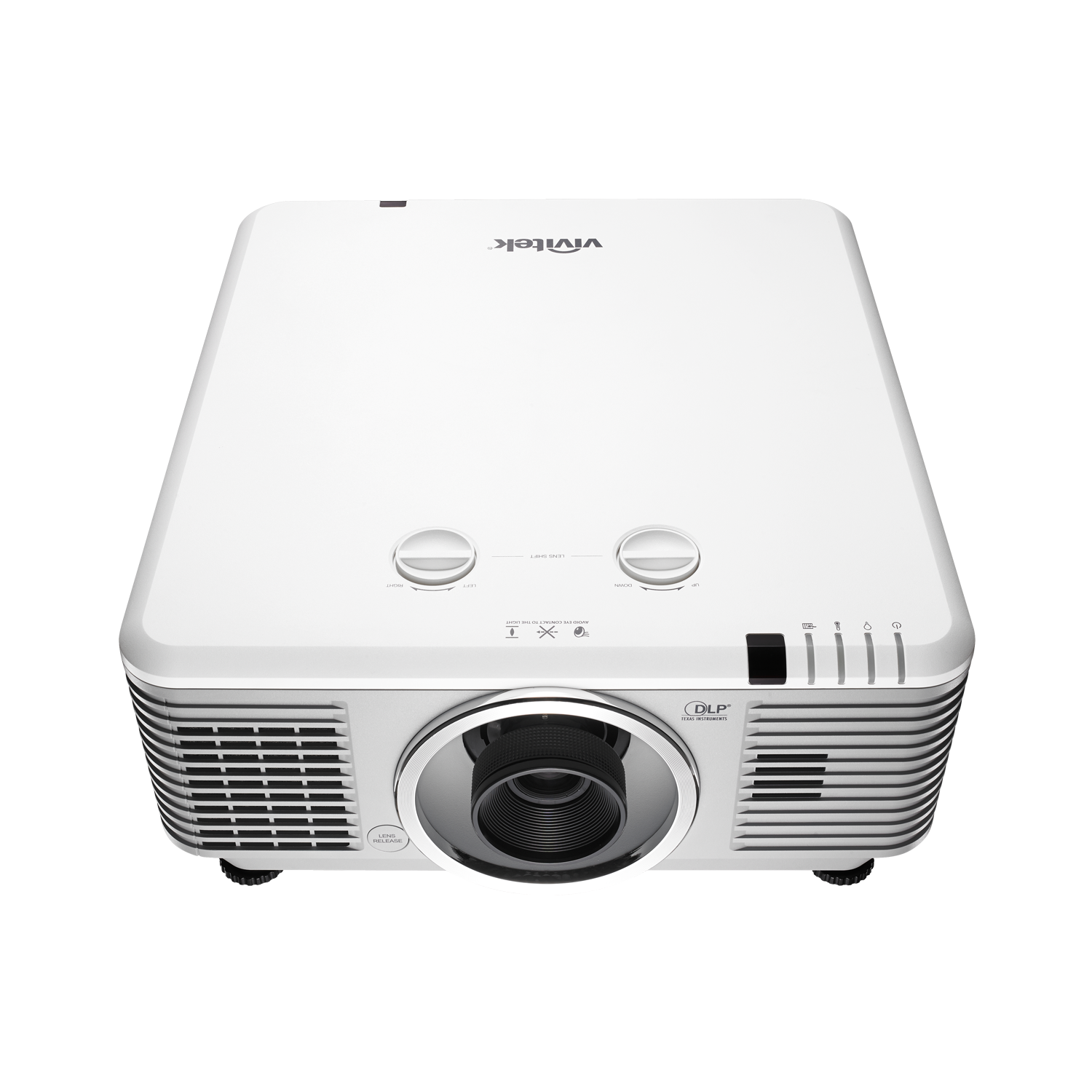

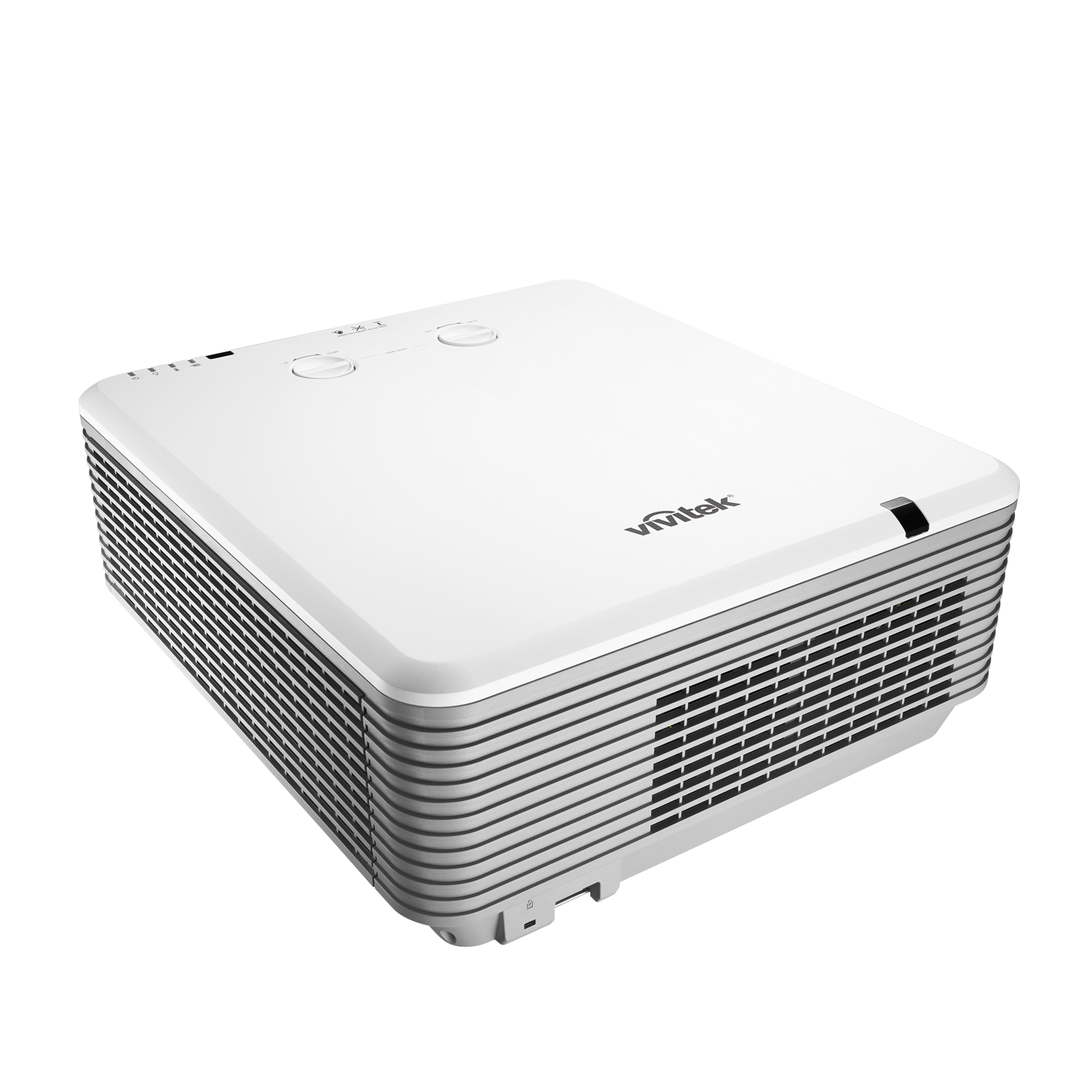

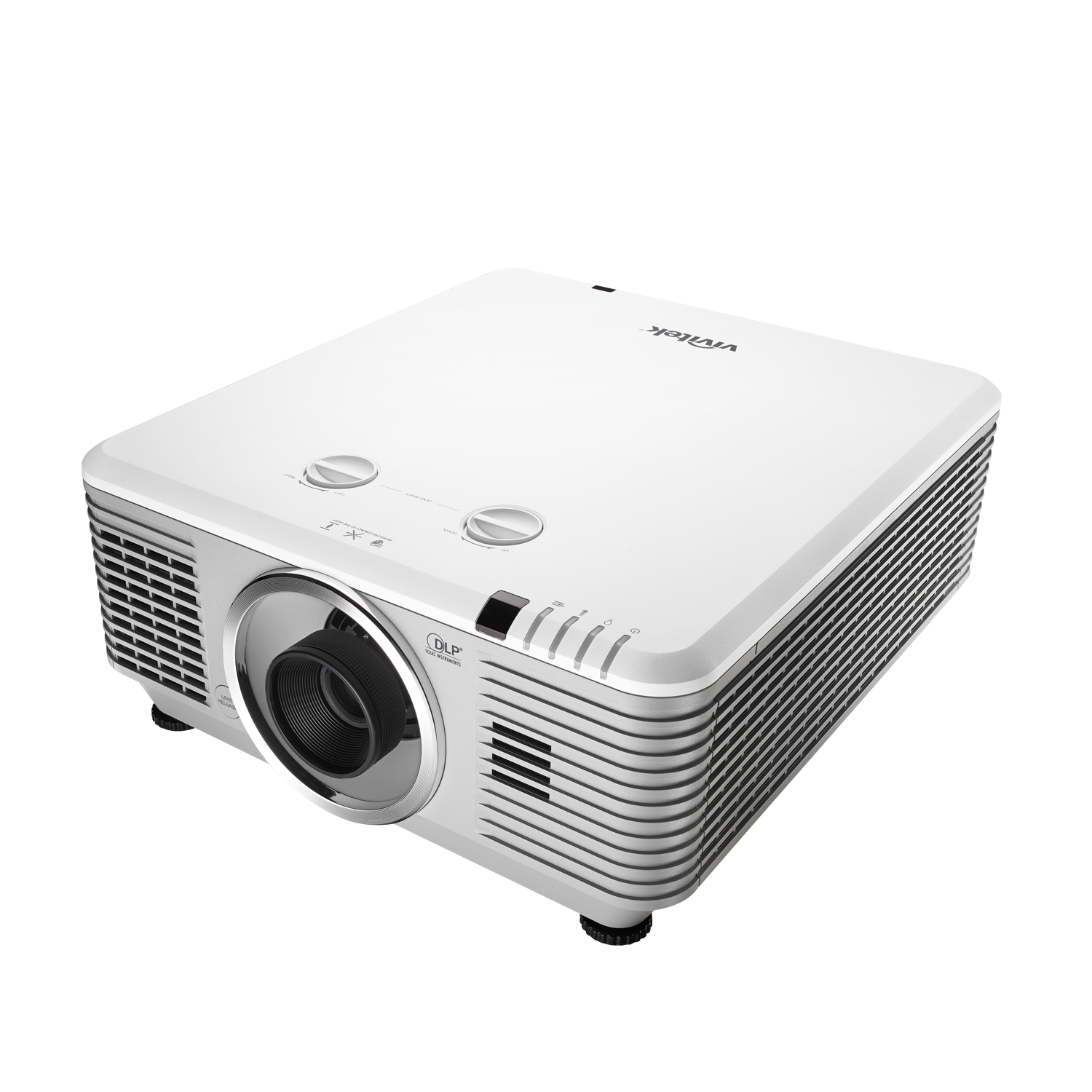

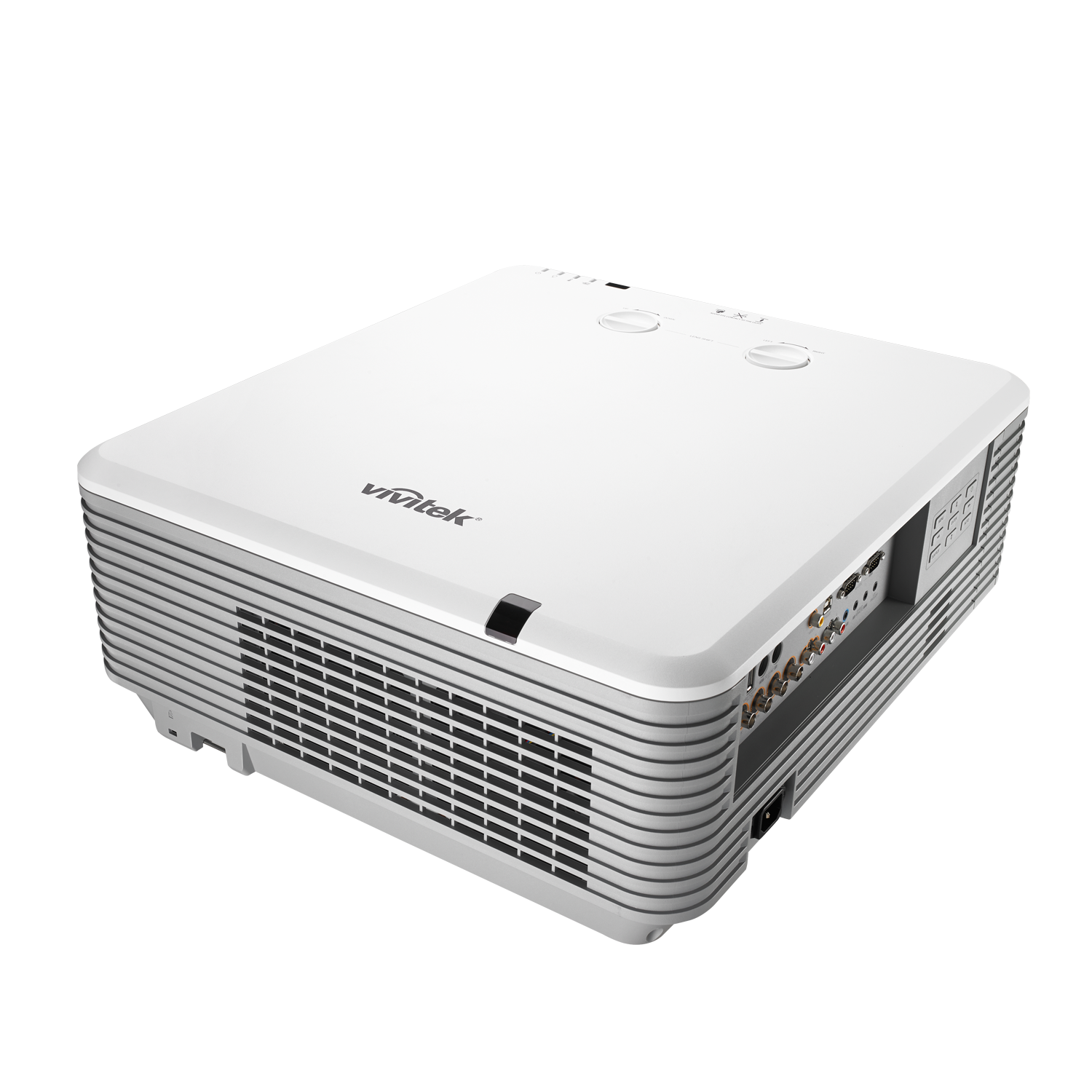

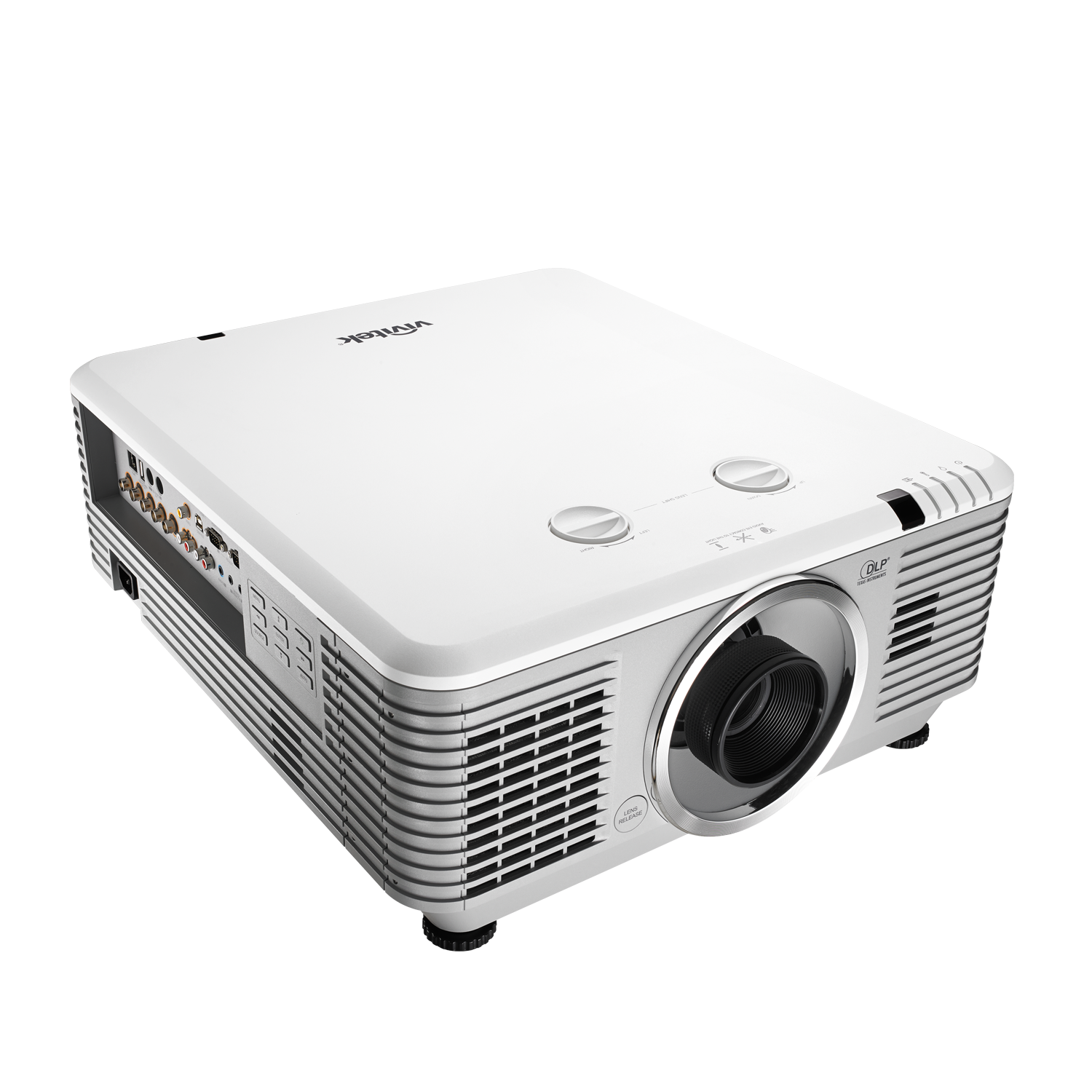

DU7098Z
Versatile High Performance WUXGA Large Venue Laser Projector, with HDBaseT™, 4K compatible and 3D Ready
  • Advanced laser phosphor light engine for superior brightness and color uniformity
  • Lampless design deliveries up to 20,000 hours of operational time
  • Up to 7,000 ANSI lumens with a 20,000:1 contrast ratio
  • Native WUXGA resolution with 4K compatible resolution
  • Manual zoom and focus for easy adjustment and positioning flexibility
  • Centered lens for easy installation
  • Horizontal and vertical lens shift for greater installation convenience and flexibility
  • Distorted and trapezoid image issues are easily corrected with keystone, and 4-corner adjustment
  • HDBaseT™ interface with 4K support for distribution of HD video and digital audio content over standard CAT5e/6 LAN cable
  • DB (Dynamic Black) ready for deeper blacks with detailed blackreproduction
  • Embedded smart sensor to detect and automatically adjusts to ensure a constant bright image
  • Full suite of display connectivity inputs and outputs including: HDMI v2.0, DVI-D, Composite Video, Component/RGBHV (5 BNC), VGA-In, VGA-Out, HDBaseT™ and LAN
  • 3D compatibility with DLP® Link™ and HDMI 1.4 Blu-Ray technology support
  • 3D sync port for compatibility with IR (infrared) 3D passive synchronization protocol
  • 360° (degree) installation for flexible installation in a wide variety of environmental conditions
  • Network ready for integration and system administration via RJ45
  • Crestron® RoomView™ integration for network monitoring and management
  • Seven (7) interchangeable lens options with quick touch lens release design for easy lens installation/removal
  • An-theft security features include: Kensington® security slot, and security bar
Display Type Single Chip 0.67" DLP Technology by TI
Brightness 7,000 ANSI Lumens
Native Resolution WUXGA (1920 x 1200)
Supportive Resolution 4K Compatible
Contrast Ratio 20,000:1
Lamp Life and Type 20,000 + hours (Laser Phosphor Light Engine)
Aspect Ratio 16:10 format
Offset N/A (Manual Focus/Zoom)
Keystone Correction Vertical ±30°, Horizontal ±30°
Horizontal Frequency 15, 31 – 102kHz
Vertical Scan Rate 24 - 30Hz, 47 - 120Hz
3D Yes (DLP® Link™, HDMI 1.4 (Blu-Ray 3D)
Speaker 10W (x2)
Lens Shift Range* Vertical: -15% - +55%, Horizontal: -5% - +5%
Projector Lens * 7 options (See page 2 for specification)
Computer Compatibility VGA, SVGA, XGA, SXGA, SXGA+, UXGA, WUXGA@60hz, Mac, UHD
Video Compatibility SDTV (480i, 576i) / EDTV (480p, 576p) / HDTV (720p, 1080i, 1080p), UHD, NTSC (M, 3.58/4.43 MHz), PAL (B,D,G,H,I,M,N) SECAM (B,D,G,K,K1,L)
I/O Connection Ports HDMI v.2.0 (X2), Audio-In (3.5mm Jack), DVI-D, Audio-In (RCA L/R), HDBaseT (Full Spec) RJ45, Audio-Out (RCA L/R), Component/RGBHV (5 BNC), Wire Remote 3.5mm In/Out, VGA-In / Out (DB15), 3D-Sync In/Out, Composite, 12V Trigger (3.5mm Jack), LAN Control (RJ45), USB Type A (5V/1.5A), RS-232-In/Out (DB-9), USB Type B (Service Only)
Projection Method Table Top, Ceiling Mount (Front or Rear)
Security Solutions Kensington® Security Slot, Security Bar, Keypad Lock
Dimensions (W x H x D) 18.5” x 20.3” x 7.9" (470 x 517 x 202mm)
Weight 54lbs (24.5Kg)
Available ID Colors White (DU7098Z-WH), Black (DU7098Z-BK)
Noise Level 37dB/35DdB (Normal/Eco. Mode)
Power Supply AC 100-240V, 50/60Hz
Power Consumption 650W (Normal Mode), 530W (Eco. Mode), <0.5W (Standby Mode), <2W (LAN Standby Mode)
Standard Accessories AC Power Cord, VGA Cable, Remote Control, Filter, Lens Cap, Documentation Kit
Optional Accessories Interchangeable Lens Options (x7)
UPC Code (Projector) White (DU7098Z-WH: 813097024350)
Black (DU7098Z-BK: 813097024367)
NovoPro
• BYOD Collaboration & Presentation
• Up to 64 users
• iOS/Android full mirroring
• Click-n-display with Launcher
NovoEnterprise
• Screen mirroring for Windows/Mac/iOS/Android
• Collaboration
• Flexible GUI
• Enterprise-grade management software
• LauncherPlus Plug-n-Play
• Complete connectivity
NovoDS4k
• HDMI-input, PoE, 1 Gbps LAN Connectivity
• 4K resolution
• Online content widgets
• Flexible, Easy-to-Create Layouts
• Intuitive Easy-to-Use Software
• Centralized Device Management
• Open Software API
Description: 36 Key funtions,New type white remote
Part number: 5041846601
541846601
LauncherPlus
• Direct Connectivity
• Compatible with Windows and Mac OS
• One-Click Control
NovoDS
• Digital signage appliance
• 4K resolution
• Intuitive playlist editing
• Remote management over network
Model Number VL904G/LNS-5FX2 VL911G/LNS-5WZ2 VL907G/LNS-5ST VL912G/LNS-5SZ12 VL906G/LNS-5SZ12 VL908G/LNS-5LZ23 VL909G/LNS-5LZ2
Part Number 5811120818-SVV 5811122742-SVV 5811120054-SVV 5811122743-SVV 5811120865-SVV 5811119237-SVV 5811120055-SVV
Lens Type Fixed Short Throw Short Throw Zoom Standard Short Throw Semi Short Zoom Standard Lens Long Throw Lens Super Long Throw
UPC Code 813097021571 813097023735 814964339928 813097023742 813097022066 814964335272 814964339935
Compatibility DU7090Z/DU7095Z/DU7195Z
Throw Ratio WUXGA: 0.78:1 WUXGA: 0.77 - 1.1:1 WUXGA:1.1 - 1.3:1 WUXGA: 1.25 - 1.60:1 WUXGA: 1.54 - 1.93:1 WUXGA: 1.93 - 2.9:1 WUXGA: 3 - 5:1
Zoom Ratio N/A 1.42x 1.18x 1.28x 1.25x 1.5x 1.67x
f Value (Focal Length) 11.46mm 11.45 – 16.32mm 16.64 - 19.54mm 18.65 – 23.85mm 22.84 - 28.61mm 28.5 - 42.75mm 44.5 - 74.19mm
F Number 2.54 2.1 - 2.6 2.05 – 2.27 2.0 - 2.44 2.0 - 2.09 2.5 - 3.1 2.2 – 2.5
Image Size
(Diagonal Image Size/ Optimal Focus Range)
47.8" - 298.3" 42.3" - 300" 35.8" - 379.8" 39.1" - 300" 36.1'' - 300'' 32.1'' - 481.1'' 27.9" - 309.5"
Projection Distance
(Approximate/Optimal Focus Range)
0.8 - 5m 1m - 4.98m 1 - 9m 1.346 - 8.078m 1.5 - 9.95m 2 - 20m 3 - 20m
Focus/Zoom Adjustment Manual/NA Manual Manual Manual Manual Manual Manual
Lens Shift Range Ver.: -15% to +55%
Hor.: -5% to +5%
Ver.: -15% to +55%
Hor.: -5% to +5%
Ver.: -15% to +55%
Hor.: -5% to +5%
Ver.: -15% to +55%
Hor.: -5% to +5%
Ver.: -15% to +55%
Hor.: -5% to +5%
Ver.: -15% to +55%
Hor.: -5% to +5%
Ver.: -15% to +55%
Hor.: -5% to +5%
Accessories Lens Hood and Cap Lens Hood and Cap Lens Hood and Cap Lens Hood and Cap Lens Hood and Cap Lens Hood and Cap Lens Hood and Cap
Dimensions
(Diameter x Length)
88 x 118.9mm
(3.5” x 4.6”)
132 x 202mm
(5.2” x 7.9”)
126 x 197.8mm
(4.9” x 7.7”)
126 x 193mm
(4.9” x 7.6”)
88 x 133mm
(3.5” x 5.2”)
88 x 141.4mm
(3.5” x 5.5”)
98 x 173.3mm
(3.8” x 6.8”)
Weight 450g (0.99lbs) 1,350g (2.97lbs) 1,240g (2.73lbs) 1,210g (2.66lbs) 400g (0.88lbs) 450g (0.99lbs) 810g (1.78lbs)
Type Title Version Type Size   Download
Brochures
  Vivitek Catalog 2019 06/2019 pdf 21.59 MB
Title Version Type Size   Download
DU7195Z Datasheet 10/2018 pdf 0.64 MB
DU7195Z Communication Manual 06/2019 pdf 1.53 MB
DU7195Z User's Manual 06/2019 pdf 11.61 MB
BrilliantColor™
BrilliantColor from Texas Instruments is a multi-color processing technology that produces vibrant images. BrilliantColor technology uses up to six colors, instead of just the three primary colors, red, green and blue, to improve color accuracy and brightens secondary colors.
DLP® Technology
DLP® chipset-based projectors produce vivid images with digital clarity and precision. The DLP® chip uses millions of tiny mirrors to reflect all the colors of visible light to project a digital image onto a screen. DLP® technology delivers high contrast ratios and minimizes the gaps between pixels for bright, sharp pictures.
