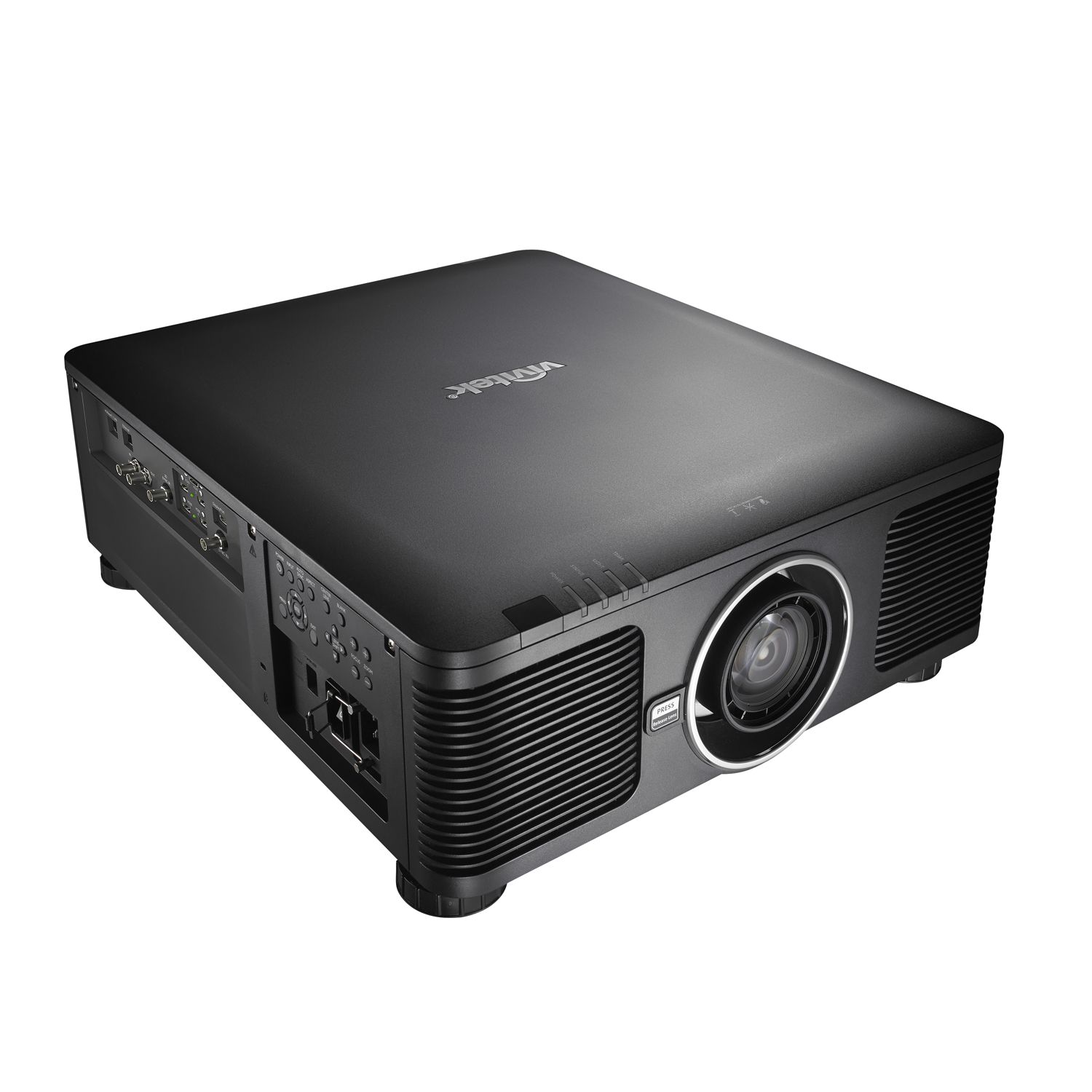

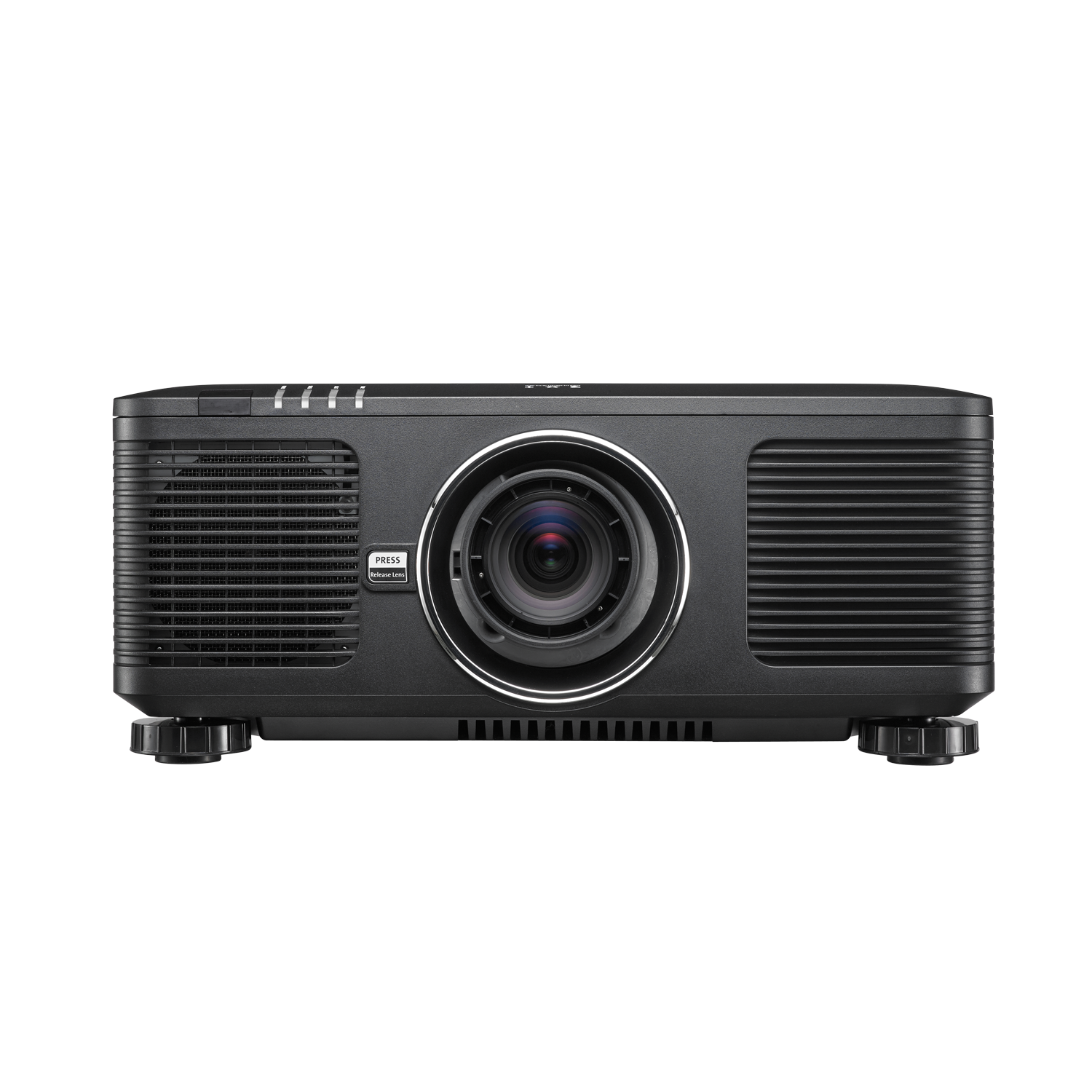

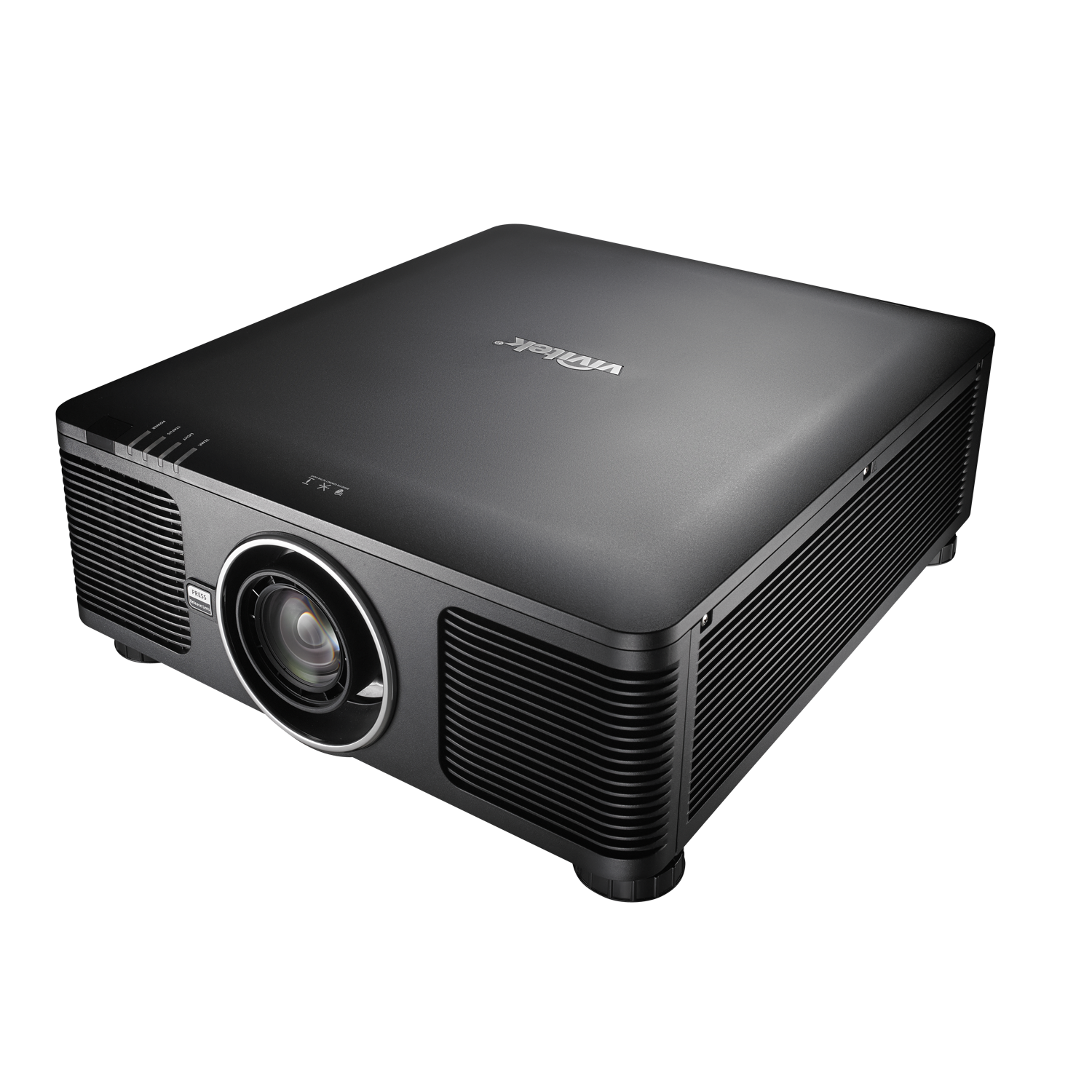

Large Venue, House of Worship & Professional Installation l DK8500Z

Ultra HD 4K (3,840 x 2,160) resolution for outstanding details and stunning visuals
DLP® DarkChip3™ and BrilliantColor™ technologies for optimal black levels and vibrant colorful images
Sold state laser phosphor light source for reliable projection and performance
Environmentally friendly lamp-less design that is mercury-free and energy efficient
7,500 ANSI lumens with a dynamic 10,000:1 contrast ratio for an amazing image quality
Almost maintenance-free with up to 20,000 hours of operating time
Advanced video processor for fluid video streaming and 10-bit programmable RGB color adjustments
Laser light source produces rich colors for an incredible cincematic like movie experience
Fine tune and optimize an image with advanced calibrations, including gamma and color management settings
Built-in hardware edge blending and warping functionality
Powered zoom, focus and lens shift (horizontal/vertical) for easy adjustment and positioning flexibility
Lens Positioning Memory (LPS) for quick recall of user defined lens positions (focus, zoom and lens shift)
Picture-in-Picture (PIP) for simultaneously image projection from two different active sources
Full suite of display connectivity inputs and outputs including: HDMI v2.0, DisplayPort v1.2, 3G-SDI-In/Out, HDBaseT™
Advanced HDMI 2.0 (x2) connectors for high resolution and quality digital video signals and quick data transfer rates
HDBaseT™ interface with support for distribution of digital UHD video content over standard CAT5e/6 LAN cable
Portrait mode projection allows the projector to be easily setup and installed in a 90° installation
360° operation and projection design for set up in all angles
Instantaneous power-on & off, so no need for system pre-heating and postcooling
Airtight sealed engine and filter-less design for improved performance against fighting dust and fibers
Frame sequential and dual channel 3D supported
Eight (8) interchangeable lens options with quick touch lens release design for easy lens removal and reinstallation

Display Type	Single Chip 0.66" DLP Technology by TI
Brightness	7,500 ANSI Lumens
Native Resolution	UHD (3821 x 2160)
Max. Resolution	UHD (3840 x 2160)@60Hz
Contrast Ratio	10,000:1
Laser Life/Type	Up to 20,000 hours (Laser Phosphor Light Engine)
Throw Ratio	1.73 - 2.27:1
Image Size (Diagonal)	40" - 500"
Projection Distance	1.45 - 24.85m (4.77ft to 81.52ft)
Projection Lens	F = 1.7 - 1.9, f = 26 - 34mm
Zoom Ratio	1.3x
Aspect Ratio	16:9 format
Offset	Motorized Lens Shift
Keystone Correction	Horizontal ±60°, Vertical ±40°
Horizontal Frequency	15, 30 – 90Hz
Vertical Scan Rate	50 - 85Hz
Edge Blending	Yes (Built-In)
Warping	Yes (Built-In)
3D Functionality	Yes
Lens Shift Range	Vertical: 0-50%, Horizontal: ±10%
Computer Compatibility	VGA, SVGA, XGA, WXGA,SXGA, SXGA+, UXGA, 1080P, WUXGA@60hz, UHD 3840x2160@60Hz Mac
Video Compatibility	SDTV (480i, 576i), EDTV (480p, 576p), HDTV (720p, 1080i/p), UHD 3840x2160@60Hz, NTSC (M, 3.58/4.43 MHz), PAL (B, D, G, H, I, M, N), SECAM (B, D, G, K, K1, L)
I/O Connection Ports	HDMI v2.0 (x2), 3G-SDI-In/Out, DisplayPort v1.2, RS-232, 12v Trigger, Wired Remote, HDBaseT™, RJ45
Projection Method	Table Top, Ceiling Mount (Front or Rear)
Security Solutions	Kensington® Security Slot, Security Bar, Keypad Lock, Anti-Theft Lens Screw
Dimensions (W x D x H)	500 x 580 x 205mm (19.7” x 22.8" x 8.1")
Weight	28kg (61.7lbs) (TBD)
Available Colors	Black (DK8500Z-BK)
Noise Level	40dB (Normal Mode)
Power Supply	AC 100-240V, 50/60Hz
Power Consumption	1,000W (Normal Mode), 800W (Eco. Mode), <6W (Network Standby), <0.5W (Eco Mode)
Standard Accessories	AC Power Cord, Remote Control w/Batteries, Lens Cap, Anti-Theft Lens Screw, Documentation Kit
Optional Accessories	Interchangeable Lens Options (x8)**

NovoPro

• BYOD Collaboration & Presentation
• Up to 64 users
• iOS/Android full mirroring
• Click-n-display with Launcher

NovoTouch

NovoEnterprise

• Screen mirroring for Windows/Mac/iOS/Android
• Collaboration
• Flexible GUI
• Enterprise-grade management software
• LauncherPlus Plug-n-Play
• Complete connectivity

Description: 30 Key funtions,New type Black remote
Part number: 5041848301

Part Number	3797866500-SVK	3797804200-SVK	3797745100-SVK	3797745200-SVK	3797744200-SVK	3797745000-SVK	3797745400-SVK	3797744900-SVK
Lens Type	Ultra Short Throw Lens	Ultra-Wide Zoom Lens	Wide Fixed Lens	Wide Zoom Lens	Standard Lens	Semi Long Zoom Lens	Long Zoom Lens 1	Long Zoom Lens 2
UPC Code	813097021809	814964339379	814964336835	814964336842	814964336828	814964336859	814964336866	814964336873
Compatibility	Compatible with DW6035/DW6030/DX6535/DX6530/DH6671/DH6771/DU6675/DX6831/DW6851/DU6871/D8800/D8900/D8010W/DU8090Z/DU8190Z*
Throw Ratio	XGA: 0.39:1 WXGA: 0.40:1 1080p: 0.38:1 WUXGA: 0.38:1	XGA: 0.77-0.97:1 WXGA: 0.78-0.99:1 1080p:0.75-0.93:1v WUXGA: 0.75-0.93:1	XGA: 0.79:1 WXGA: 0.8:1 1080p: 0.76:1 WUXGA: 0.76:1	XGA: 1.3-1.85:1 WXGA: 1.31-1.87:1 1080p:1.25-1.79:1 WUXGA: 1.25-1.79:1	XGA: 1.79-2.35:1 WXGA: 1.81-2.38:1 1080p: 1.73-2.27:1 WUXGA: 1.73-2.27:1	XGA: 2.3-3.81:1 WXGA: 2.33-3.86:1 1080p:2.22-3.67:1 WUXGA: 2.22-3.67:1	XGA: 3.71-5.57:1 WXGA: 3.76-5.64:1 1080p:3.58-5.38:1 WUXGA: 3.58-5.38:1	XGA: 5.5-8.56:1 WXGA: 5.56-8.67:1 5.31-8.26:1 WUXGA: 5.31-8.26:1
Zoom Ratio	N/A	1.25x	N/A	1.41x	1.3x	1.65x	1.5x	1.55x
Offset	Power Lens Shift***	Power Lens Shift	Power Lens Shift***	Power Lens Shift	Power Lens Shift	Power Lens Shift	Power Lens Shift	Power Lens Shift
f Value(Focal Length)	5.64mm	11.3–14.1mm	11.6mm	18.7 - 26.5mm	26 - 34mm	32.9 - 54.2mm	52.8 - 79.1mm	78.5 - 121.9mm
F Number	2.0	1.96 – 2.3	1.85	1.85 - 2.5	1.7 - 1.9	1.86 - 2.48	1.85 - 2.41	1.85 - 2.48
Image Size(Minimum/ Maximum Image Diagonal)	100” – 350”	40”– 500”	40”– 500”	40”– 500”	40”– 500”	40”– 500”	40”– 500”	40”– 500”
Projection Distance (Projection Distance Range)	XGA: 0.83 – 2.68m WXGA: 0.89 – 2.87m 1080p: 0.87 – 2.81m WUXGA: 0.85 – 2.74m	XGA: 0.61–10.16m WXGA: 0.65 –10.91m 1080p:0.64–10.66m WUXGA:0.62–10.36m	XGA: 0.62 – 8.31m WXGA: 0.67 – 8.92m 1080p:0.66–8.73m WUXGA: 0.64– 8.5m	XGA: 1.03 – 19.14m WXGA: 1.11 – 20.58m 1080p: 1.08 – 20.14m WUXGA:1.05– 19.59m	XGA: 1.42 – 24.28m WXGA: 1.53 – 26.11m 1080p:1.50 – 25.55m WUXGA: 1.45– 24.85m	XGA: 1.83 – 39.42m WXGA: 1.97 – 42.35m 1080p:1.93 – 41.45 WUXGA:1.87– 40.33m	XGA: 2.94- 57.69m WXGA: 3.17 – 61.97m 1080p:3.10 - 60.66m WUXGA:3.01– 59.02m	XGA: 4.31- 89.48m WXGA: 4.65- 96.13m 1080p:4.55 – 94.09m WUXGA:4.42– 91.54m
Focus/Zoom Adjustment	Motorized	Motorized	Motorized	Motorized	Motorized	Motorized	Motorized	Motorized
Dimensions (D x L)	313 x 421mm (12.3” x16.6”)	100 x 141mm (3.9 x 5.5”)	102 x 160mm (4” x 6.3”)	100 x 166mm (3.9” x 6.5”)	100 x 141mm (3.9 x 5.5”)	100 x 160mm (3.9” x 6.3”)	100 x 173mm (3.9” x 6.8”)	100 x 210mm (3.9” x 8.3”)
Weight	2,700g (5.9lbs)	1280g (1.8lbs)	910g (2lbs)	1,090g (2.4lbs)	820g (1.8lbs)	950g (2.1lbs)	1,020g (2.2bs)	1,350g (2.9lbs)

*Note: Not compatible with D8800/D8900/D8010W **Note: On-Axis, fixed centre screen, *** D88-WF18501 Wide Fixed Lens (3797745100-SVK) and D88-UST01 Ultra-Short Throw Lens (3797855700-SVK) are not compatible with Lens shift. Lens throw, image size and zoom ratio is subject to a 5% tolerance. Geometry is subject to a 0.6% tolerance of image height and/or width. .©2015 Vivitek. Vivitek is a trademark of Delta Electronics, Inc. Other trademarks are the properties of their respective owners. Values, weights and dimensions shown are approximate. Errors and omissions accepted. Specifications are subjection to change without prior notice.
