DH3660Z
Full 1080p laser projector with high brightness, a full suite of displays ports,

and long life ideally suite for meeting room installation venues
  • Full 1080p (1,920 x 1,080) resolution perfect for HD multimedia presentations and movies
  • Solid-state laser phosphor light source for reliable projection and performance
  • DLP® DarkChip3™ and BrilliantColor™ technologies for optimal black levels and vibrant colorful images
  • Environmentally friendly lamp-less design with an operating time up to 20,000 hours
  • 4,500 ANSI lumens with a dynamic 20,000:1 contrast ratio for an amazing image quality
  • Manual zoom and focus for easy adjustment and positioning flexibility
  • Vertical lens shift and 1.5x zoom ratio for greater installation convenience and flexibility
  • 4 segment RGBY color wheel for improved and vivid color reproduction
  • Project 3D content from DLP® Link™, and BluRay HDMI 1.4b for realistic life-like images
  • Built-in 10W audio speaker with multiple audio-in and audio-out ports
  • 360° operation and projection design for set up in all angles
  • Portrait mode projection allows the projector to be easily setup and installed in a 90° installation
  • Airtight sealed engine and filter-less design for improved performance against fighting dust and fibers
  • Integrated network monitoring and management solutions (product certified) including Crestron® RoomView™, Extron, AMX SSDP and Telnet
  • Choice of 8 pre-set display scenario modes to get the most suitable display image
  • Quick on/off for immediate power on or shutdown
  • Anti-theft security features include: Kensington® security slot, security bar, and password protected keypad lock
  • Display Type Single Chip 0.65" DLP Technology by TI
    Brightness 4,500 ANSI Lumens
    Native Resolution 1080p (1920 x 1080), 16:9 format
    Contrast Ratio 20,000:1
    Laser Life/Type 20,000 + hours (Laser Phosphor Light Engine)
    Throw Ratio (±3%) 1.39 - 2.09:1
    Image Size (Diagonal) 25.9" - 324.9"
    Projection Distance 1.2m - 10m (3.9ft – 32.8ft)
    Projection Lens F#2.42 - 2.97, f=20.7 - 31.05mm
    Zoom Ratio 1.5x
    Aspect Ratio 16:9
    Offset 145%/122.5%
    Keystone Correction Vertical ±30°
    Horizontal Frequency 15, 31 - 91.4kHz
    Vertical Frequency 24 - 30Hz, 47 - 120Hz
    3D Compatibility Yes (DLP® Link™, HDMI 1.4 (Blu-Ray 3D)
    Speaker 10W (Mono)
    Lens Shift Yes (Vertical)
    Computer Compatibility VGA, SVGA, XGA, SXGA, SXGA+, UXGA, WUXGA@60hz, Mac
    Video Compatibility SDTV (480i, 576i) / EDTV (480p, 576p) / HDTV (720p, 1080i, 1080p), NTSC (M, 3.58/4.43 MHz), PAL (B,D,G,H,I,M,N) SECAM (B,D,G,K,K1,L)

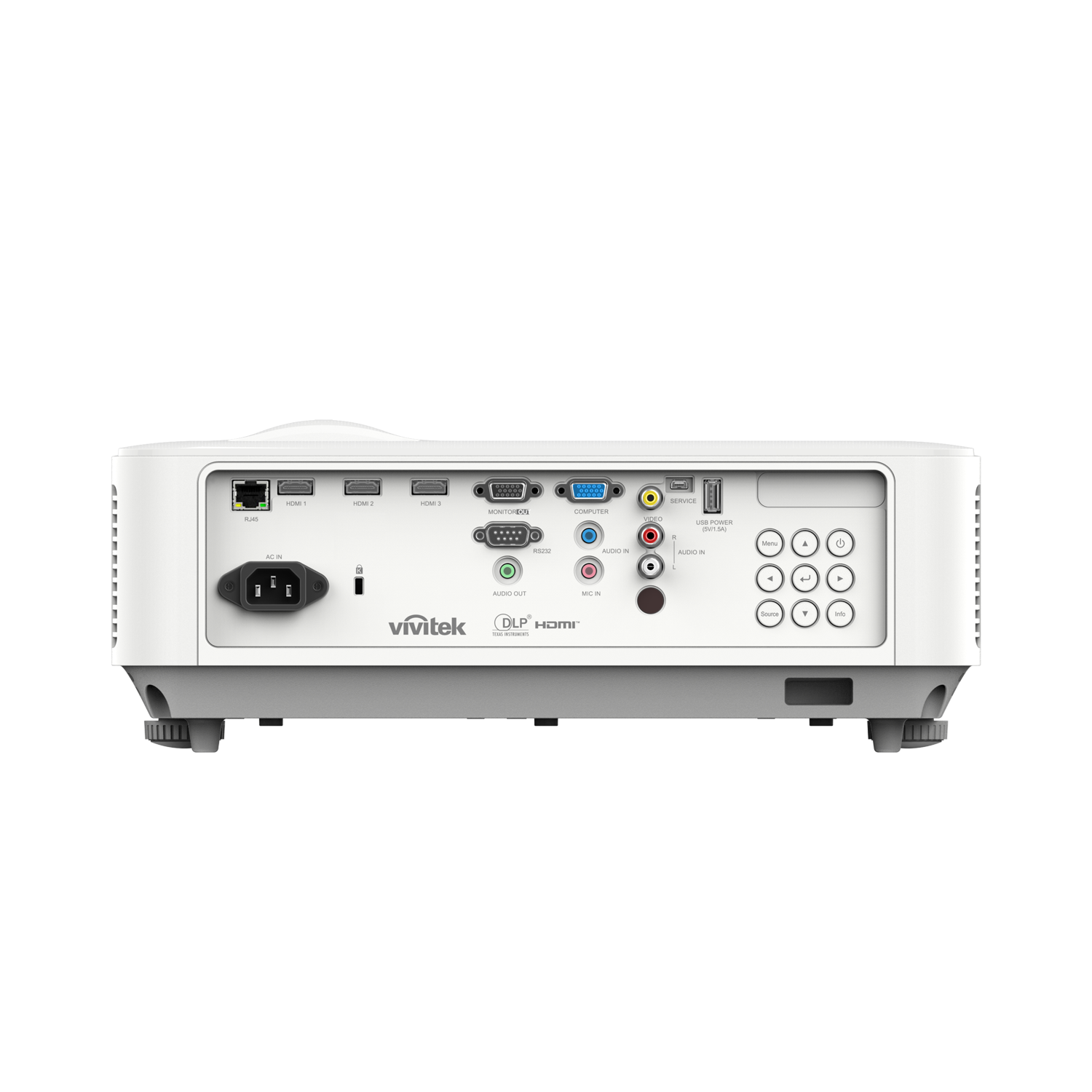

    I/O Connection Ports HDMI v.1.4 (x3) Audio-In 3.5mm Mini-Jack
    Composite Video RCA (L/R)
    VGA VGA-In Audio-Out (3.5mm Mini-Jack)
    VGA-Out Mic-In (3.5mm Mini Jack)
    Control RJ45 (LAN) Power (5V/1.5A USB Type A)
    RS-232c Mini USB (Service Only)
    Projection Method Table Top, Ceiling Mount (Front or Rear)
    Security Solutions Kensington® Security Slot, Security Bar, Keypad Lock
    Dimensions (WxDxH) 15.5"x 13.3" x 4.9" (395 x 338 x 126mm)
    Weight Estimated 7kg (15.4lbs)
    Available Colors White
    Noise Level 35dB/29dB (Normal/Eco. Mode)
    Power Supply AC 100-240V, 50/60Hz
    Power Consumption 330W (Normal Mode), 260W (Eco. Mode), <0.5W (Standby Mode), <2W (LAN Standby Mode)
    Standard Accessories AC Power Cord, VGA Cable, Remote Control, Documentation Kit
    UPC Code (Projector) 813097024220
    NovoPro
    • BYOD Collaboration & Presentation
    • Up to 64 users
    • iOS/Android full mirroring
    • Click-n-display with Launcher
    NovoEnterprise
    • Screen mirroring for Windows/Mac/iOS/Android
    • Collaboration
    • Flexible GUI
    • Enterprise-grade management software
    • LauncherPlus Plug-n-Play
    • Complete connectivity
    NovoDS4k
    • HDMI-input, PoE, 1 Gbps LAN Connectivity
    • 4K resolution
    • Online content widgets
    • Flexible, Easy-to-Create Layouts
    • Intuitive Easy-to-Use Software
    • Centralized Device Management
    • Open Software API
    NovoCast
    • BYOD cross-platform mirroring
    • AirPlay & Google Cast Support
    • Support to connect up to 8 Participants
    • Collaboration tools – File-sharing, AirNote Annotating
    • Moderation and Screen Preview
    • Centralized Management
    LauncherPlus
    • Direct Connectivity
    • Compatible with Windows and Mac OS
    • One-Click Control
    NovoDS
    • Digital signage appliance
    • 4K resolution
    • Intuitive playlist editing
    • Remote management over network
    Title Version Type Size   Download
    DH3660Z Datasheet 06/2019 pdf 0.55 MB
    Frequently Asked Questions
    I plug my computer in to the projector and I don’t get an image.
    The projector has many input connectors. Each connector is labelled (HDMI 1, RGB 1 ....). Ensure the projector is switched to that input using the “Source” button on the projector. Also, the computer may require a toggle switch to turn on the output port. This is typically accomplished by holding down the “Fn” at the same time as a Function key. Each laptop manufacturer may use a different “function” key. Typically, it is F4 or F8. The symbol on the key is usually a laptop as well as a square. Please refer to your laptop manufacturers Users Guide for additional information.
    Is it OK to use 3rd. party lamps or lamps quoted to be Original Equipment Manufacturer lamps?
    Please refer to lamp warranty under Warranty tab and then Vivitek Warranties, as using lamps that are not Vivitek supplied may result in warranties being voided and your projector not meeting required safety standards. Lamp manufacturers provide many different classes of lamps and projectors are built around a specific lamp. While being “original manufacturer” lamps, it is not guaranteed that the class of lamp is the same as the Vivitek specified lamp from the manufacturer.
    My projector won’t turn on via an RS232 or IP command. If it is powered on, other commands work fine.
    In the menu, go to Settings 2 menu, then Advanced 1 menu. Turn Low Power Mode to OFF.
    How often should I change the filters in my DLP?
    The majority of Vivitek projectors, due to sealed DLP optics, do not require filters. This eases maintenance requirements.The filters can be cleaned with running water. Please make sure to let them dry completely before installing them back. The filters should be changed if they are torn or worn.
    How do I take care of my DLP?
    Please refer to Warning and Precautions in the User's Manual.
    Why are the lamps so expensive?
    The selling price of the lamps is based on the purchase price we obtain from the manufacturers. Vivitek would reflect the price reduction if there is any from the manufacturers.
    Why do I have to replace the lamp myself?
    Lamp is a consumable part that needs to be replaced regularly. Customers can have a technician do the replacement, but the labor would not be covered by the manufacturer's warranty.
    Why can't I order a lamp over the phone?
    At the current stage, we don't process orders over the phone to protect our customers' credit card information. When the credit card information is sent to us by fax, only employees with authorization have access to this information.
    Does HD really look better than SDTV?
    Yes. HDTV has at least twice the linear resolution of standard-definition television (SDTV), thus allowing much more detail to be shown compared with analog television or regular DVD. In addition, the technical standards for broadcasting HDTV are also able to handle 16:9 aspect ratio pictures without using letterboxing or anamorphic stretching, thus further increasing the effective resolution for such content.
    Where can I send a letter praising your products and customer support?
    Customers can send us an email at customerservice@vivitekcorp.com.
    How do I get another copy of my manual?
    User's Manual can be downloaded here.
    What other kinds of products do you make?
    Vivitek also manufactures DLP projectors.
    How long has Vivitek been in business
    Vivitek was established in 2004.
    What are the advantages of DLP over LCD or Plasma?
    Please refer to Texas Instrument's website Here
    What is DLP and how does it work?
    Please refer to Texas Instrument's website Here
    How do I get warranty service?
    By calling our tech support at 877-603-3582 and providing the proof of purchase when required. Their hours of operation are from Monday to Friday, 9AM to 6PM Pacific time.
    What is the life expectancy of my projector lamp?
    Lamps typically last about 1,500 ~ 10,000 hours. Usually the higher the brightness, the lower the lamp hours. Keep in mind however that some lamps won't make it all the way to their estimated life spans. If you operate your projector in a warm environment that is not adequately ventilated or at higher elevations without switching to “high altitude” mode in the menu, this will reduce lamp life. It is also strongly recommended that the projectors be connected to a surge protector as power surges can damage your lamp. Adhering to the recommended power-off cycling will assist in maintaining lamp life. Frequent powering on/off will also reduce lamp life expectancy so it may be better to leave the projector on if you intend to use again within 20 minutes. Using the projector in Economy mode will extend your lamp life.
    How do I replace the lamp myself?
    In the user's manual, there is a section that shows you how to replace the lamp.
    How much do replacement lamps/remotes cost?
    You will need to contact your local/online reseller. Vivitek is available through authorized retailers, e-tailers, dealers, distributors and resellers. Vivitek has partnered with key partners around the U.S. These authorized partners can be found under the where to buy section.
    How do I register my projector for warranty?
    Complete and mail in the registration card included with the purchase of your product or fill out the online product registration here.
    What is DLP® technology and how does it work?
    DLP®-based projectors produce stunning images with digital clarity and precision. The DLP chip uses millions of tiny mirrors to reflect all colors of visible light to project an all-digital image on the screen. Click here for more detailed information.
    Where can I purchase your products?
    Vivitek is available through authorized retailers, e-tailers, dealers, distributors and resellers. Vivitek has partnered with key partners around the U.S. These authorized partners can be found under the where to buy section.
    How do I synchronize my laptop with my projector?
    On most laptops, hold down the 'Fn' + 'F4' keys. This may vary, depending on you laptop's brand it may not be 'F4', but 'F5', 'F7' or 'F8'. On the correct function key, there is a symbol 2 squares, have the letters "LCD", or have the symbol of a laptop/square on it. Please refer to your laptops user's guide for additional information.
