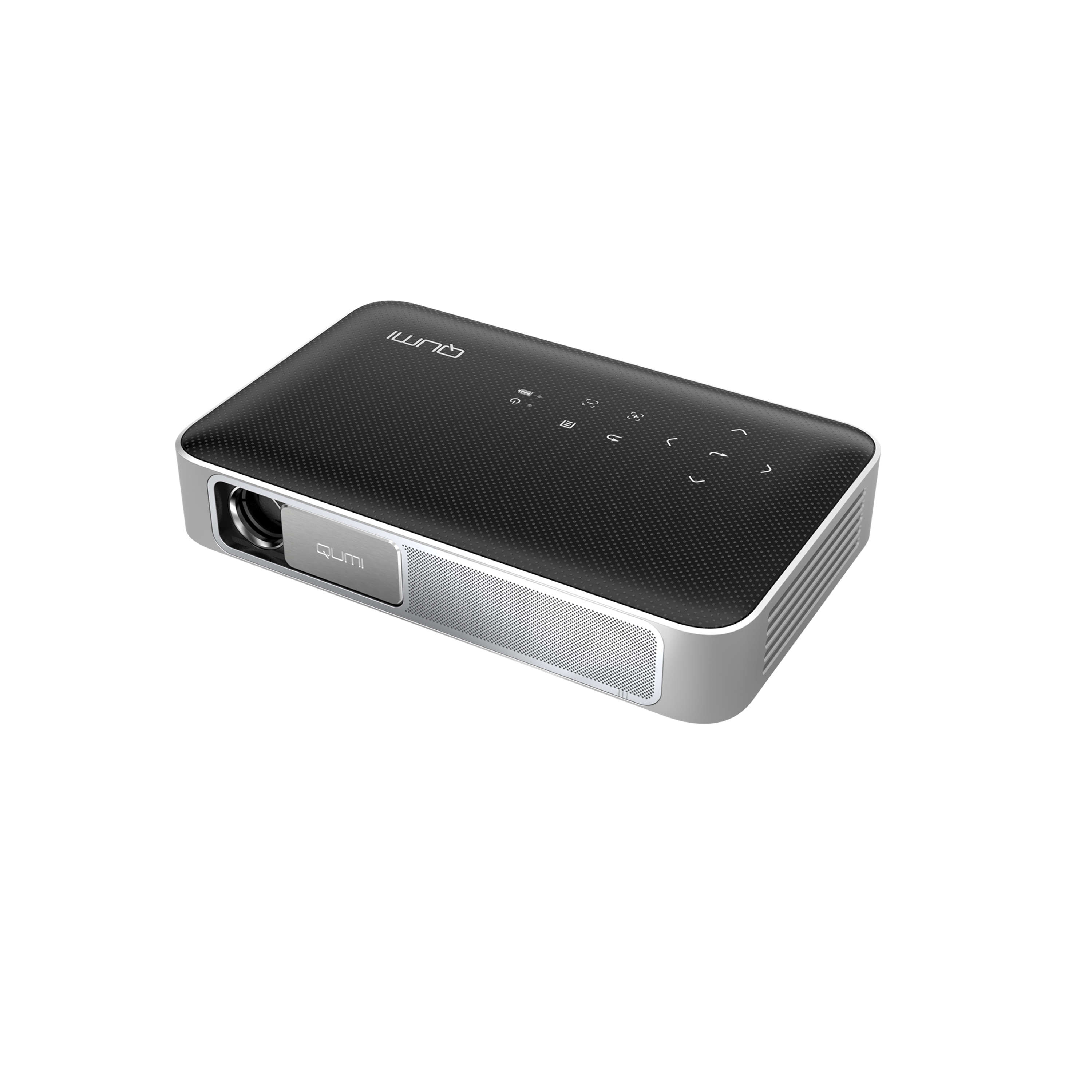

Legacy l Qumi Q38

Watch movies, games or other high-definition content in native 16:9 FullHD 1080P resolution with a maximum resolution of WUXGA (1920 x 1200) on HDMI port
UHD 4K video playback support on Android OS
Enjoy a big bright 130” HD projection with 600 lumens and 10,000:1 contrast ratio
RGB LED technology with long life light source for up to 30,000 hours of operation
Texas Instructions DLP® TRP chip technology for long-lasting precise
Advanced Quad-Core CPU running and Android™ operating system
Digital auto keystone correction with motorized focus for quick adjustments
Wirelessly stream and project documents, photos, movies and other content with the integrated wireless system from an iOS and Android™ smartphone or tablet
Display content from integrated media and document viewer conveniently plays office, photos, videos and audio files without connecting to a PC
Assortment of connectivity options for easy connection to a notebook, smartphone, tablet, camera, game console and more
Display content directly from a microSD card, USB flash drive or from the onboard memory
Blue tooth enabled for easy and convenient connection to a speaker, keyboard, mouse or other device
Large embedded battery provides up to 2 hours of continuous play on a single charge
Built-in 2W (x2) stereo loudspeakers with audio-out for easy connection to other audio devices
Touch-sensitive keypad with illuminated backlit controls
Tripod port and swing out kickstand for convenient projector setup and positioning
Lightweight friendly profile for easy movement and transportation
Available in three (3) vibrant colors including black, white, and red

Display Type		DLP® 0.33” TRP DMD by TI
Brightness		Up to 600 Lumens
Native Resolution		Full HD 1080p (1920 x 1080)
Maximum Resolution		WUXGA (1920 x 1200) / UHD 4K video playback support on Android OS
Contrast Ratio		10,000:1
Lamp Life/Type		Up to 30,000 hours
Throw Ratio (Distance/Width)		1.2:1
Image Size (Diagonal)		19” - 130” (0.5m - 3.3m)
Projection Distance		1.6ft – 12.5ft (0.5m - 3.5m)
Aspect Ratio		16:9 Native
Offset		100%
Keystone Correction		Vertical ±40°(±40 Steps)/Digital Auto Keystone Correction
Vertical Frequency		15 -102kHz
Horizontal Frequency		23 - 120Hz
GPU/CPU Processor		ARM Quad Cortex - A53 CPU up to 2.0GHz
Operating System		Android™ v6.0
Wireless		Yes (Internal IEEE 802.11 b/g/n (2.4GHz))
Bluetooth®		Yes (Bluetooth® 4.0)
RAM / Storage Expansion	RAM	1GB DDR3
	Internal	8GB (eMMC Flash) (5GB User Availability)
	Expansion	microSD Card Slot (Up to 64GB)
		USB Flash Drive (Up to 64GB)
Speakers		2W (x2) (Stereo)
Tripod Mount		Yes (Standard 1/4-20 L6.3 mm camera mount hole)
Kickstand		Yes (Integrated into bottom of projector)
Computer Compatibility		VGA, SVGA, XGA, SXGA, SXGA+, UXGA, Mac
Video Compatibility		SDTV (480i), EDTV (480p), HDTV (720p, 1080i/p), NTSC/NTSC 4.43, PAL (B, D, G, H, I, M, N) 60, SECAM, UHD 4K
Media Formats	Office	Microsoft® Office 97-2010 (Word, Excel®, PowerPoint®), Adobe® PDF (1.0, 1.1, 1.2, 1.3, 1.4)
	Video	AVI/RM/RMVB/TS/VOB/MLV/MOV/ISO/WMV/ASF/FLV/DAT/MPG/MPEG
	Photo	JPEG/BMP/GIF/PNG
	Audio	MP3,WMA,AAC,WAV/OGG/AC3/DDP/FLAC/APE
I/O Connection Ports		HDMI v1.4b	MicroSD Card Slot
		USB Type A (x2)	Audio-out (3.5mm Jack)
Projection Method		Table Top, Ceiling Mount (Front or Rear)
Dimensions (W x D x H)		7.3" x 4.6” x 1.3” (188 x 118 x 34mm)
Weight (Approximate)		1.6lbs (746g))
Available Colors		Black (Q38-BK), White (Q38-WH), Red (Q38-RD)
Noise Level		32dB (Normal)
Battery Type (Embedded)		12,000 mAh (3.7V) Li-Polymer Rechargeable Battery (Up to 2 hours of usage)
Power Supply		AC 100-240V, 50/60Hz
Power Consumption		66W (Normal Mode)
Standard Accessories		Remote Control, AC Power Adapter with Cable, HDMI Cable, Documentation Kit
UPC	Q38-BK	Black	813097023643
	Q38-WT	White	813097023629
	Q38-RD	Red	813097023667

NovoTouch

NovoEnterprise

• Screen mirroring for Windows/Mac/iOS/Android
• Collaboration
• Flexible GUI
• Enterprise-grade management software
• LauncherPlus Plug-n-Play
• Complete connectivity

Title	Version	Size
Qumi Q38 Datasheet	12/2017	0.44 MB
Qumi Q38 Screen Mirroring Update	12/2017	0.64 MB
Vivitek Catalog 2019	06/2019	21.59 MB

Frequently Asked Questions

I lost my remote on my Qumi, how do I select inputs?

Press and hold the right or left arrow key for 3 seconds, and this will bring up the input menu. Use up and down arrow keys to select input. Press enter key.

I plug my computer in to the projector and I don’t get an image.

The projector has many input connectors. Each connector is labelled (HDMI 1, RGB 1 ....). Ensure the projector is switched to that input using the “Source” button on the projector. Also, the computer may require a toggle switch to turn on the output port. This is typically accomplished by holding down the “Fn” at the same time as a Function key. Each laptop manufacturer may use a different “function” key. Typically, it is F4 or F8. The symbol on the key is usually a laptop as well as a square. Please refer to your laptop manufacturers Users Guide for additional information.

My projector won’t turn on via an RS232 or IP command. If it is powered on, other commands work fine.

In the menu, go to Settings 2 menu, then Advanced 1 menu. Turn Low Power Mode to OFF.

How do I take care of my DLP?

Please refer to Warning and Precautions in the User's Manual.

Does HD really look better than SDTV?

Yes. HDTV has at least twice the linear resolution of standard-definition television (SDTV), thus allowing much more detail to be shown compared with analog television or regular DVD. In addition, the technical standards for broadcasting HDTV are also able to handle 16:9 aspect ratio pictures without using letterboxing or anamorphic stretching, thus further increasing the effective resolution for such content.

Where can I send a letter praising your products and customer support?

Customers can send us an email at customerservice@vivitekcorp.com.

How do I get another copy of my manual?

User's Manual can be downloaded here.

What other kinds of products do you make?

Vivitek also manufactures DLP projectors.

How long has Vivitek been in business

Vivitek was established in 2004.

What are the advantages of DLP over LCD or Plasma?

Please refer to Texas Instrument's website Here

What is DLP and how does it work?

Please refer to Texas Instrument's website Here

How do I get warranty service?

By calling our tech support at 877-603-3582 and providing the proof of purchase when required. Their hours of operation are from Monday to Friday, 9AM to 6PM Pacific time.

How do I register my projector for warranty?

Complete and mail in the registration card included with the purchase of your product or fill out the online product registration here.

What is DLP^® technology and how does it work?

DLP^®-based projectors produce stunning images with digital clarity and precision. The DLP chip uses millions of tiny mirrors to reflect all colors of visible light to project an all-digital image on the screen. Click here for more detailed information.

Where can I purchase your products?

Vivitek is available through authorized retailers, e-tailers, dealers, distributors and resellers. Vivitek has partnered with key partners around the U.S. These authorized partners can be found under the where to buy section.

How do I synchronize my laptop with my projector?

On most laptops, hold down the 'Fn' + 'F4' keys. This may vary, depending on you laptop's brand it may not be 'F4', but 'F5', 'F7' or 'F8'. On the correct function key, there is a symbol 2 squares, have the letters "LCD", or have the symbol of a laptop/square on it. Please refer to your laptops user's guide for additional information.
