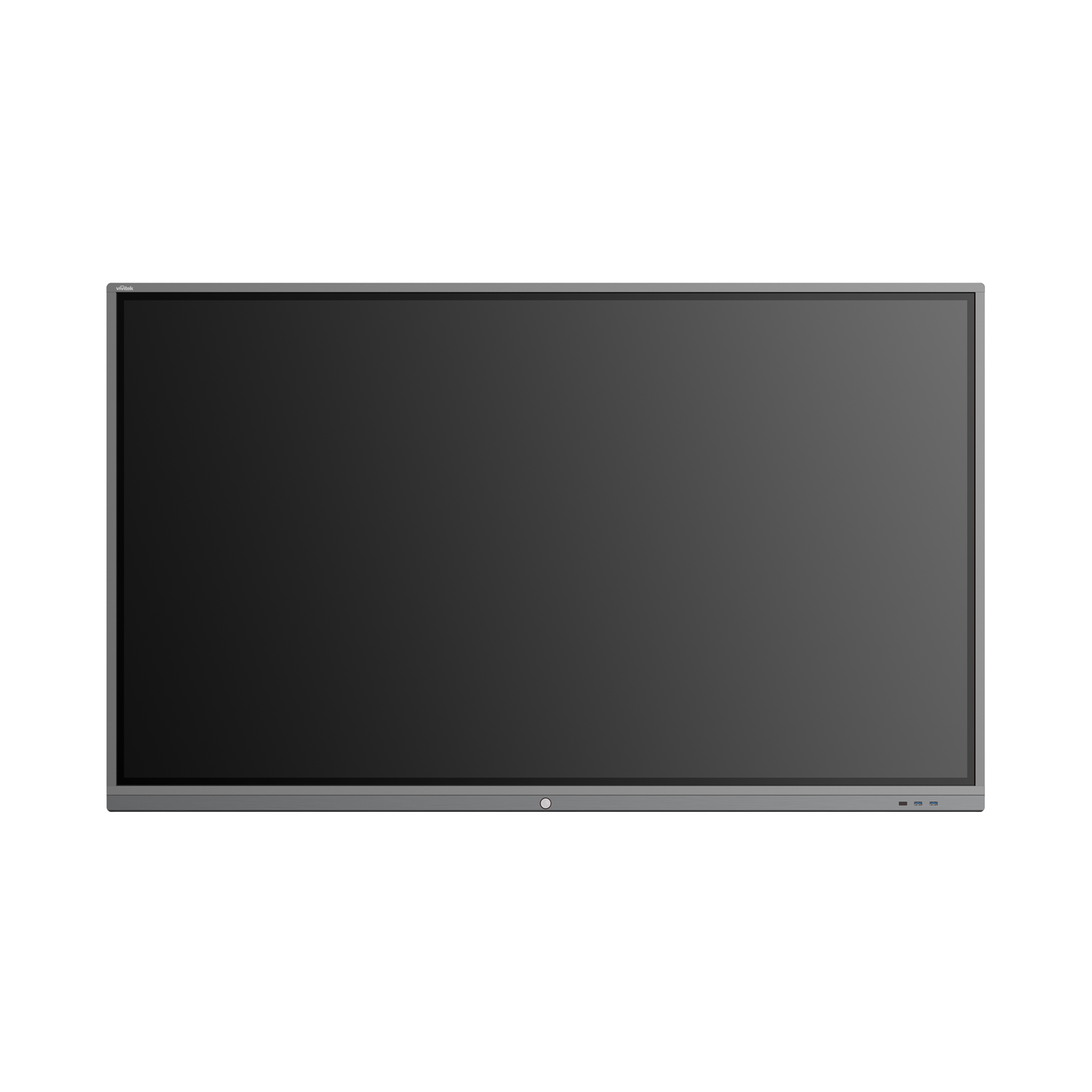

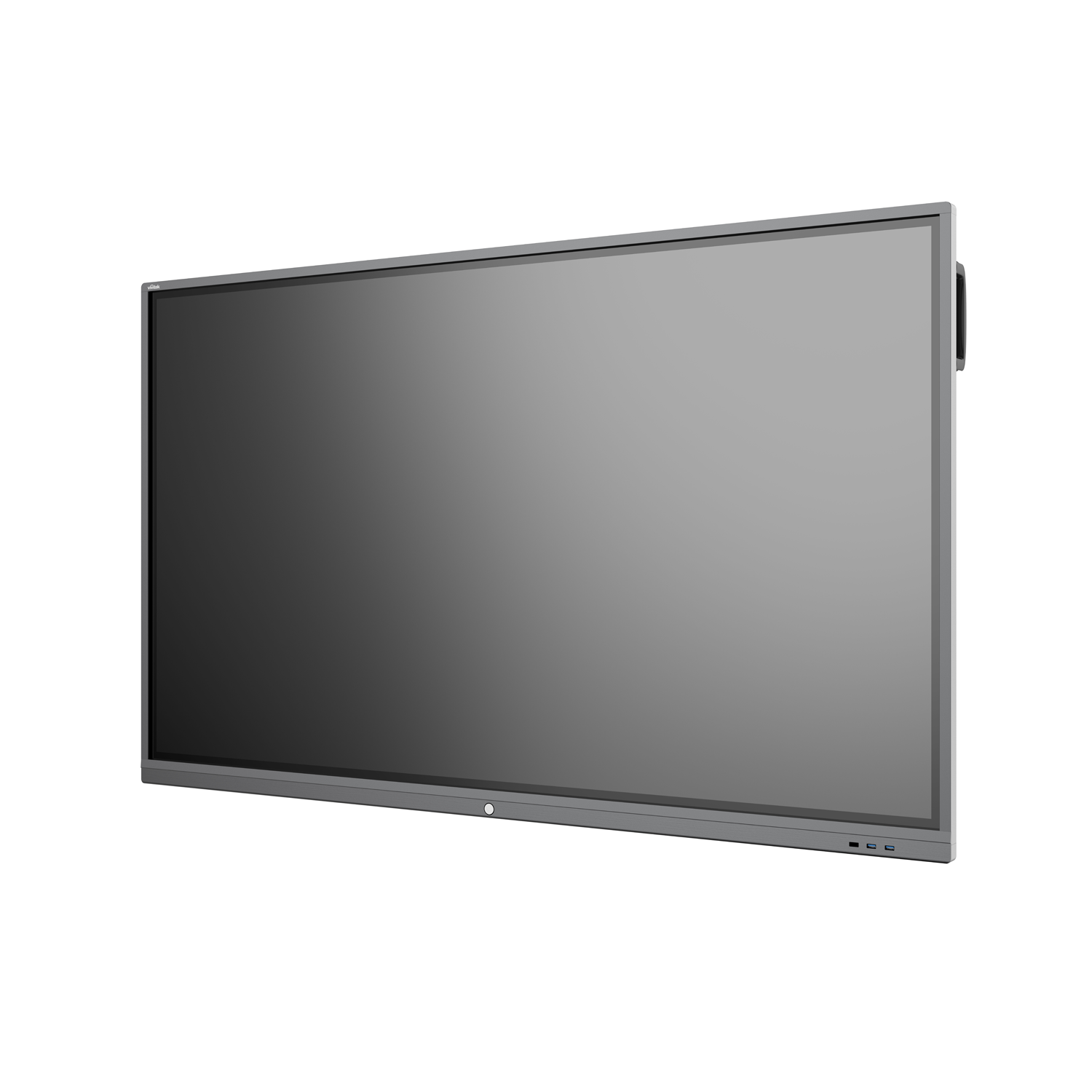

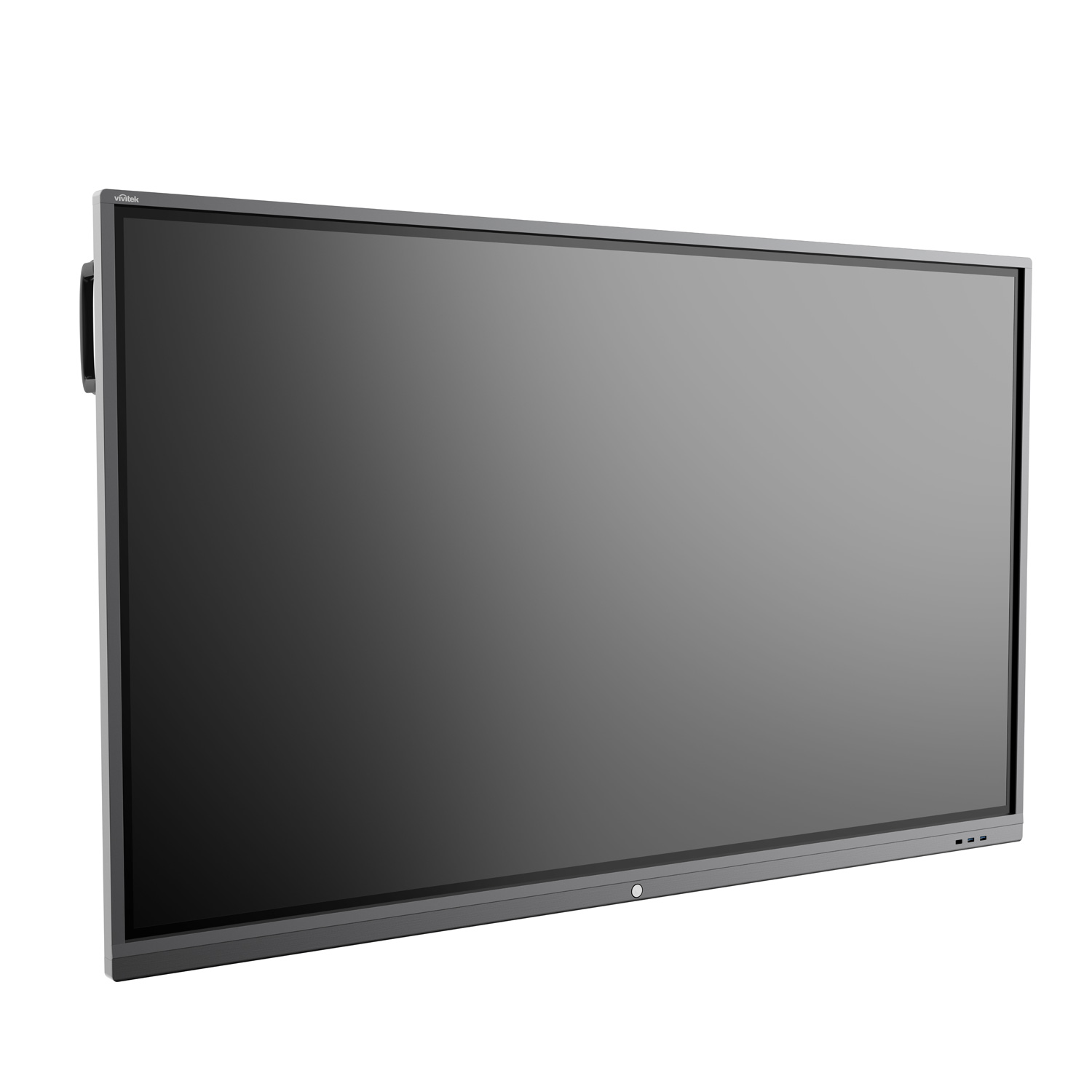

NovoTouch EK863i
True 86” 4K interactive display with wireless collaboration and touch interaction for the classroom
  • 86” display with ultraHD 4K (3,840 x 2,160) resolution for outstanding details and stunning visuals
  • Backlit D-LED (ADS panel) technology for brighter pictures, flawless colors, richer textures, and extra wide viewing angels (178o/178o )
  • Preconfigured with NovoConnect wireless presentation and collaborative system for cable-free and hassle-free presenting in the classroom
  • Connect up to 64 users simultaneously, and allow 4 people to present on one display to facilitate large group work
  • High contrast ratio and fast response time deliverables crisp, readable content
  • Interactive functionality with up to a 20-point finger touch capabilities (10-point writing, 20-point touch) for on-screen annotation, drawing and common gesture controls
  • Simple wireless display and true fast collaboration solution thanks to 802.11n/ac dual-band 2.4/5GHz support
  • Remote manager with IT management software with automatic discovery and configuration
  • Full suite of connectivity ports including HDMI-In VGAIn, Audio-In/Out, LAN, RS232 and USB.
  • Front bezel USB ports for quick connection to USB memory drives and data
  • 4mm thick toughened glass for added protection against scratches or screen damage
  • Powerful front- facing stereo audio speakers with up to 32W of total power (16Wx2) and multiple audio-in/out ports
Display Type/Technology Backlit D-LED (ADS Panel)
Panel Size 86”
Brightness 500cd/m2
Contrast Ratio (Typical) 4,000:1
Native Resolution 4K Ultra-HD (3840 x 2160)
Viewing Angle (H/V) 178o/178o
Aspect Ratio 16:9
Response Time (MS) 8ms
Refresh Rate (Hz) 60Hz
Estimated Life Time (Typ) 30,000 hours
Display Color (Bit) 1.07 billion (10-bit)
Installation Orientation Landscape
Daily Operation (Hours/Days) 16/7
Interactivity Technology Infrared Touch
Touch Points Writing 10 Point (Standard)
Touch 20 Point (Standard)
Touch Resolution 32,768 x 32,768
Surface Protection 4mm Thick Toughened Glass (Level 7H on Mohs Scale of Mineral Hardness)
Touch Tools Finger, Stylus, Glove, Opaque Objects
Operating System System Version Android™ v8.0
CPU Multi-Core High-Performance ARM®CPU
GPU 4*Mali™ G51
Internal Storage 16GB (eMMC Flash) (About 9GB User Availability)
Connectivity Input Display HDMI v2.0 (x3) (HDCP v2.2 Compliant), VGA-In (x1)
Audio Audio-In (3.5mm) (x1)
Output Display HDMI-Out v2.0 (x1) (HDCP v2.2 Compliant)
Audio Audio-Out (3.5mm) (x1), SPDIF-Out (x1)
Internet LAN (RJ45) (x1)
Control RS232-In (x1)
Wireless Wifi (USB Module) IEEE 802.11 a/b/g/n/ac (2.4GHz/5GHz)
I/R Receiver Front (x1) (±25° Angle, >8m Distance)
USB Front USB 2.0 (x2)
Side USB3.0 (x3), USB Type B (x2)(For Touch Port)
Bottom USB 2.0 (x1)
Default App Wireless Collaboration Screen mirroring (NovoConnect), Screen duplication over the corporate network (NT LiveScreen/ NT LiveReceiver), White board (Note), Screen login protection (Screen Lock), Screen Recording (NT Minutes), Video Conferencing, Over 50 Apps Built-In (NT App Store)
Expansion Window Module (Option) Standard Intel 80pin OPS (Option)
Audio Speakers 16W (x2) (Stereo)
Power Power Supply (Internal) AC 100 - 240V, 50/60Hz (4.0A)
Consumption 450W
Standby Mode <0.5W (Standby)
Physical Characteristics Dimension (L x H x D) 1,957.4 x 1,160.1 x 91.4mm (77.1” x 45.7" x 3,6")
Weight 70.8kg (156.1lbs)
VESA Mounting (FPMPMI) 4 - M8 × 25mm, 800 x 600mm (31.5" x 23.6")
Color Grey

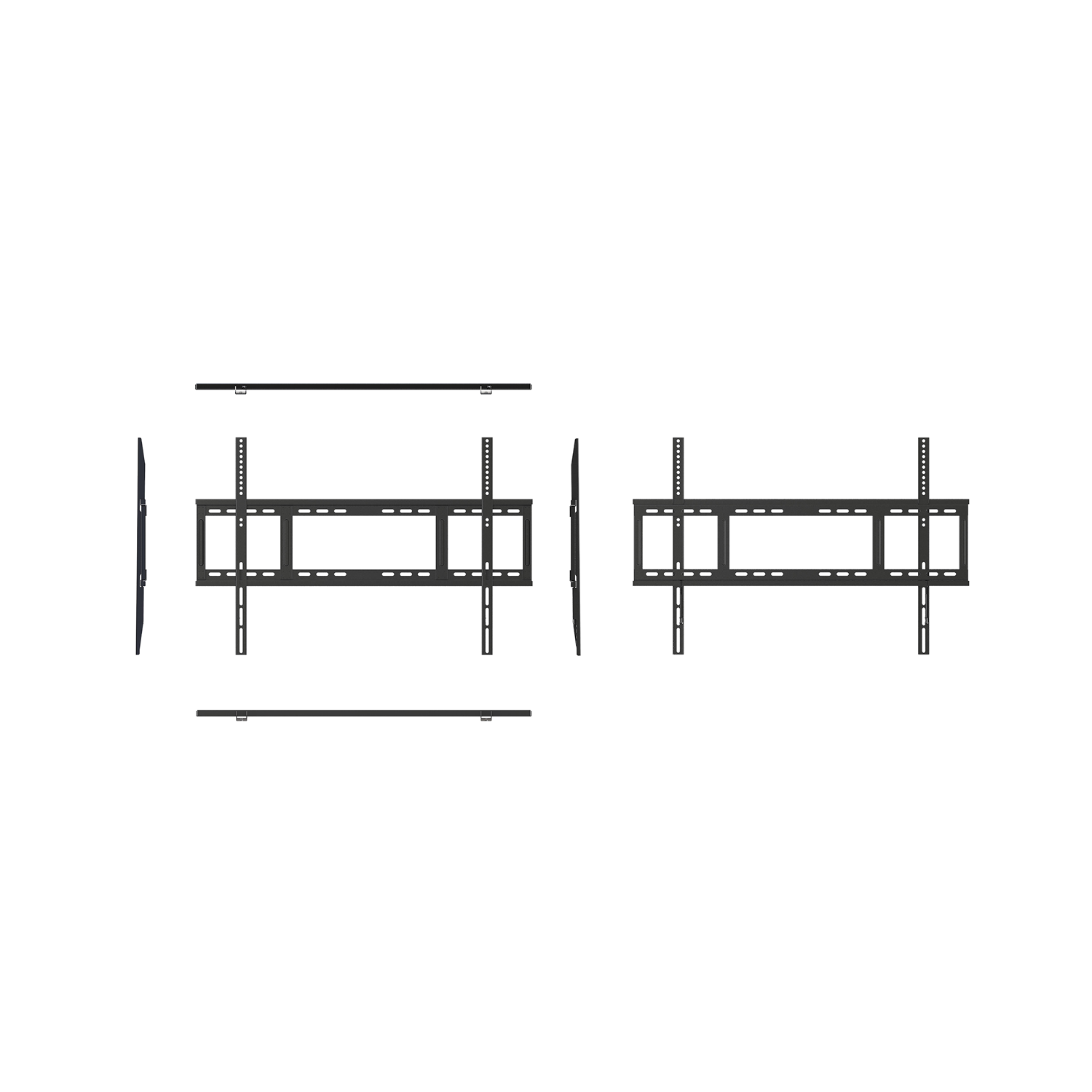

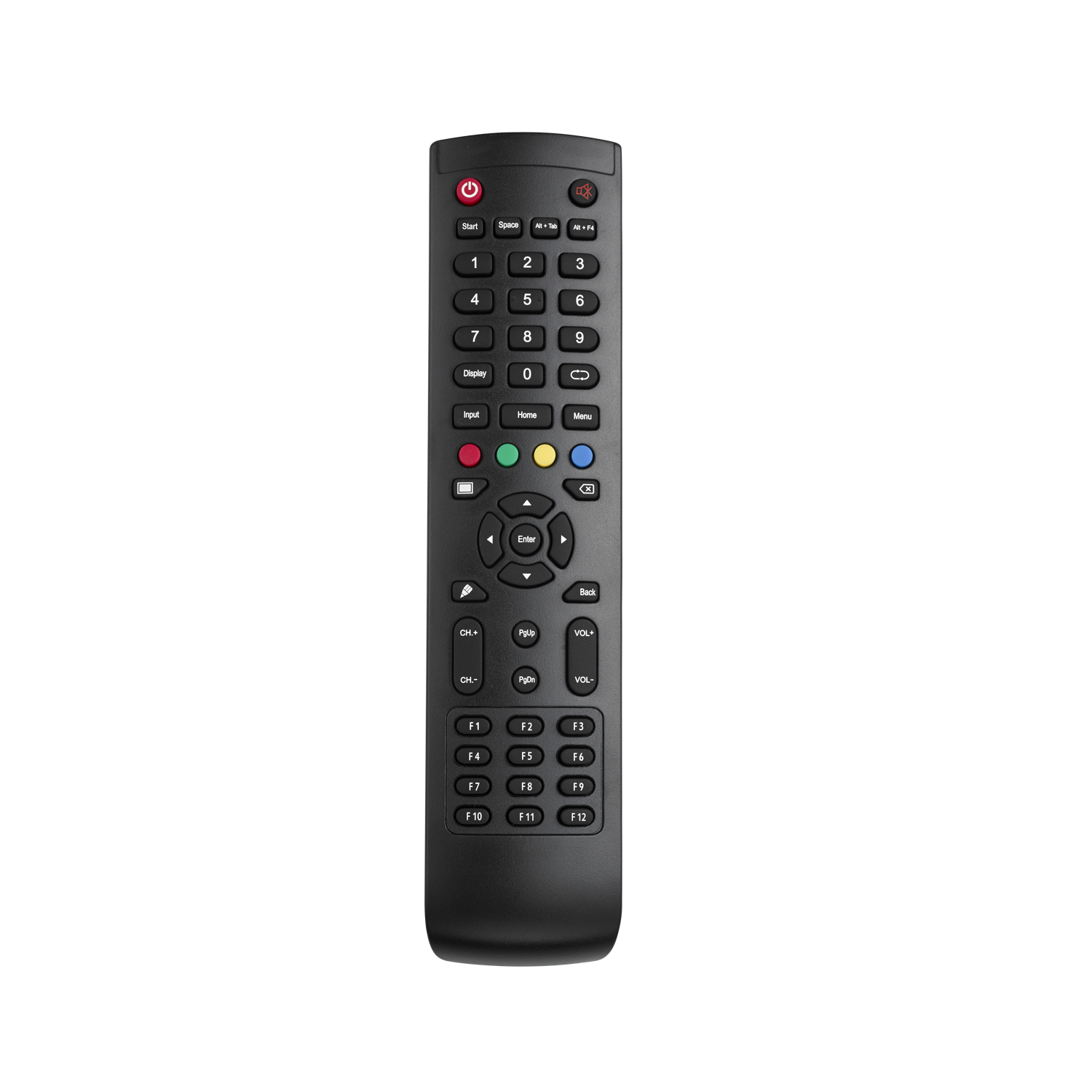

Accessories Standard AC Power Cord, VGA Cable, HDMI Cable, USB Cable, Audio Cable, Stylus (x2), Remote Control (W/Batteries), Wall Mount Kit, Wifi USB Module, Documentation Kit
UPC 813097025050
