D770 Series

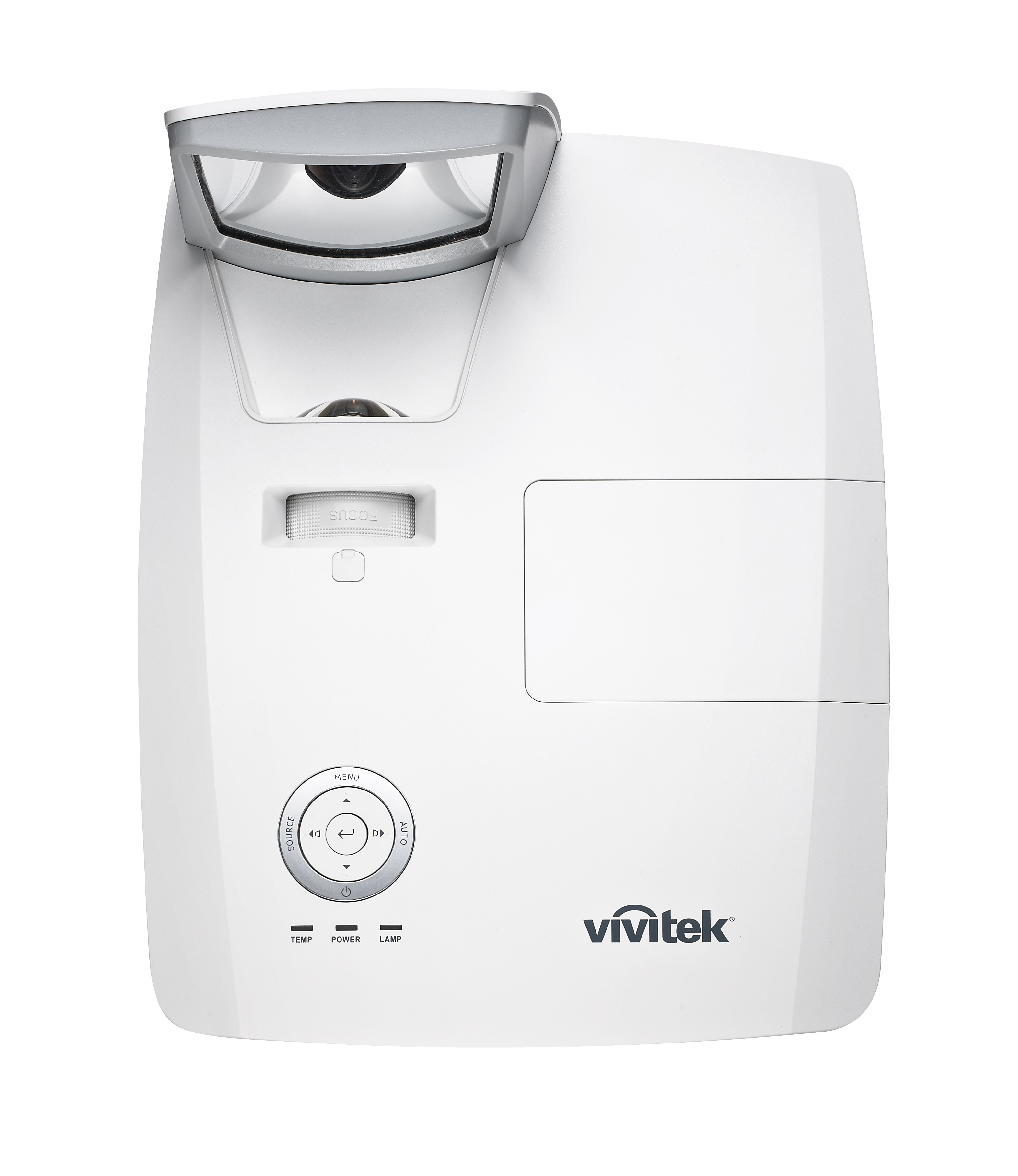

DW770UST

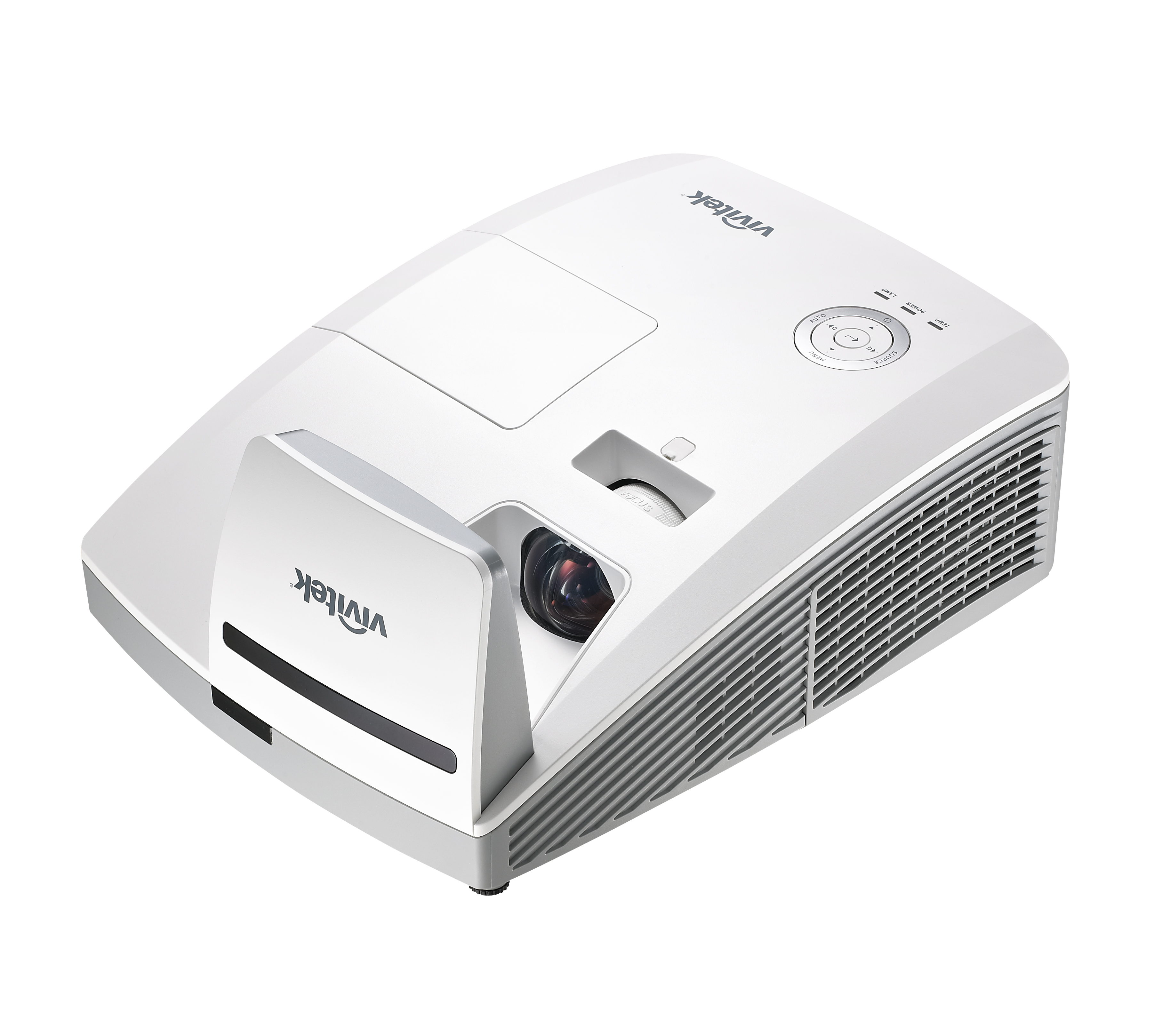

ULTRA SHORT-THROW PROJECTOR
The DW770UST is the ultimate ultra-short-throw projector with enhance 4K capability producing ultimate image quality. The projector offers 3500 lumen and 100 inch diagonal image from a distance of 15.75 inch away from the display surface. For added user convenience, the DW770UST feature integrated networking monitoring and management solution, including TCP/IP TELNET and those from Crestron® RoomView™, as well as others
  • DLP® and BrilliantColor™ technologies for sharp and detailed image quality
  • Brilliant 3,500 ANSI lumens of brightness with a crisp 10000:1 contrast ratio
  • Native WXGA (1280 x 800) resolution with enhance 4K capability up to UHD (3840 x 2160)
  • High-efficiency lamp that last up to 12,000 hours (Dynamic Eco Mode)
  • Multiple segment color wheel for the best possible image quality
  • Ultra-short throw projector with low profile design and embedded reflective mirror
  • Project a large 80” to 100” image from a distance extremely close to the projection surface prevents light glare in the presenter’s eyes and shadow-free image obstruction

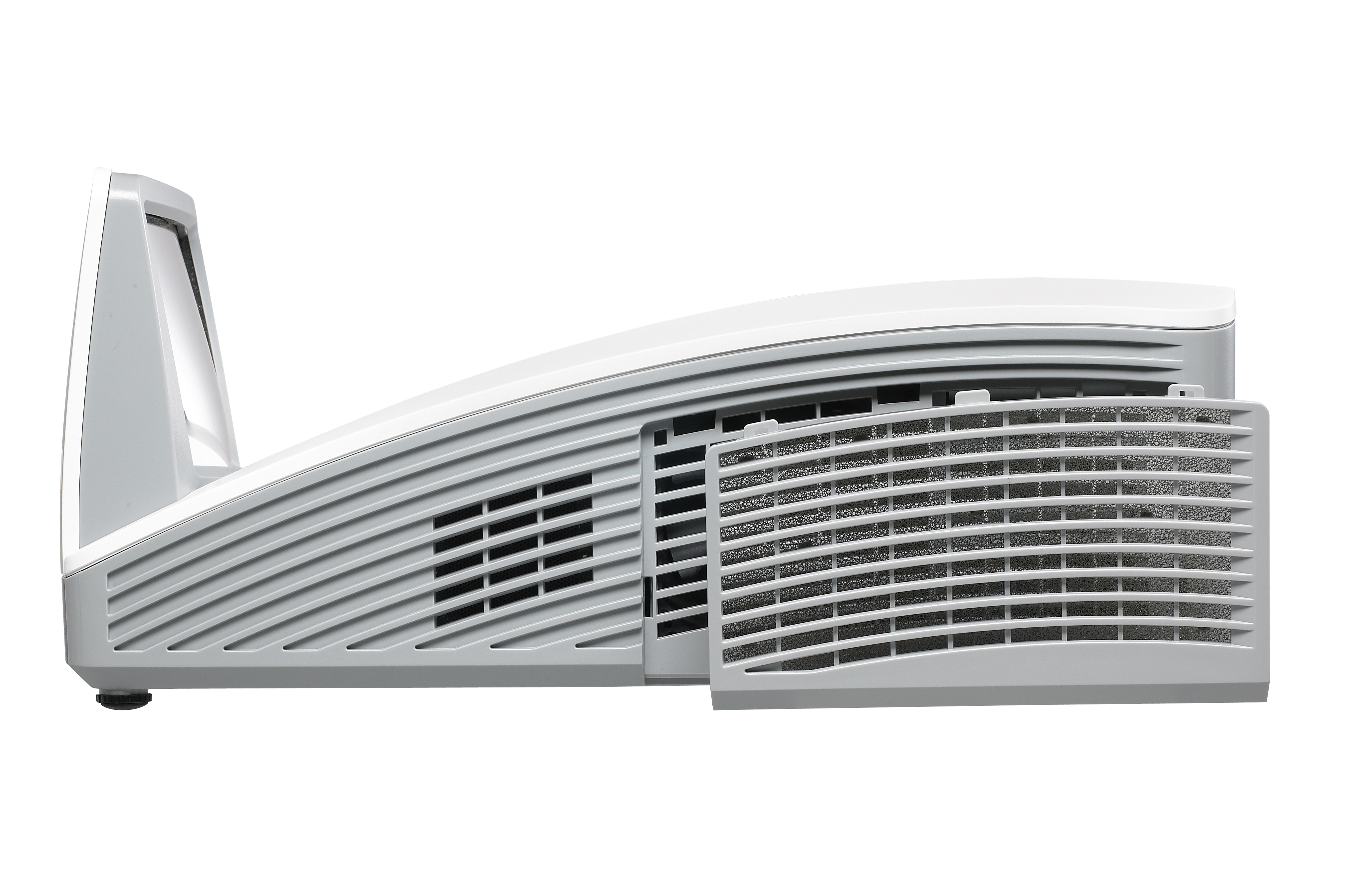

  • Sealed optical engine and enhanced ventilation system design to minimizing the impact of dust and smoke
  • Full suite of display connections including HDMI 2.0, composite video, and VGA-in/out
  • VGA–output for display on a secondary monitor
  • Total 20W (10Wx2) audio power with multiple audio-in and audio-out ports for external device connection
  • Network ready and Crestron® RoomView™ approved for network monitoring and management

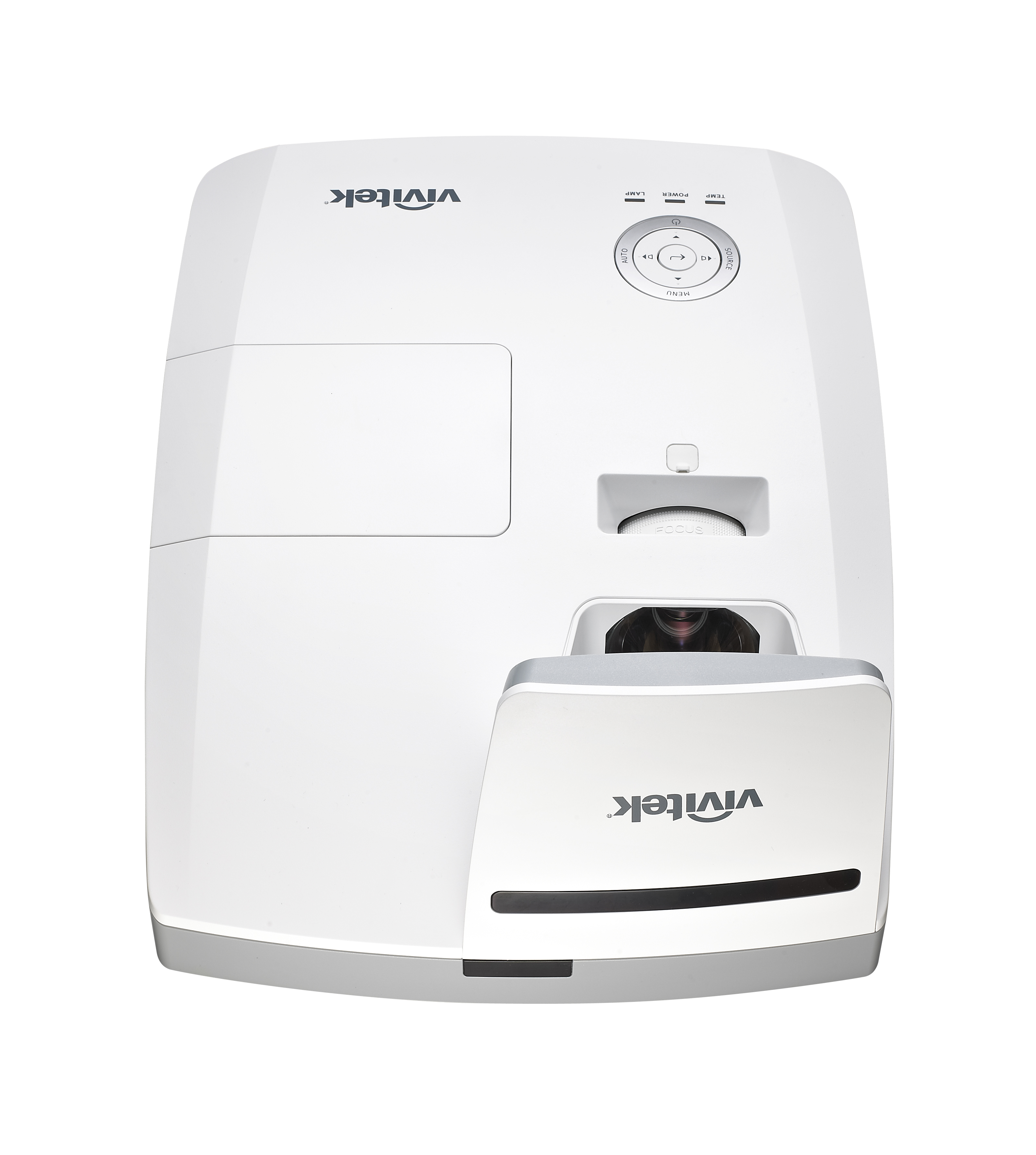

  • Top-loading, cover for quick and easy lamp replacement
  • Keypad lock prevents accidental system adjustments
  • Ani-theft security features include: Kensington® security slot and PIN lock keypad
Display Type Single 0.65” DMD DLP® Technology by TI
Brightness 3,500 Lumen
Native Resolution WXGA (1280 x 800), 16:10 Format
Maximum Supported Resolution UHD (3840 x 2160) @60Hz
Contrast Ratio 10,000:1
Native Aspect Ratio 16:10
Lamp Life and Type 5,000/8,000/12,000 Hours (Normal/Eco/Dynamic Eco. Mode), 240W/190W
Throw Ratio (±3%) 0.35:1 (Distance/Width)
Zoom Ratio Fixed Lens, Manual Focus
Projection Lens F=2.5, f=5.1mm
Image Size (Diagonal) 80” to 100” (203 to 254cm)
Projection Distance (D)
(Distance between projector rear and display surface)		 11.11” to 17.55” (283 to 446mm)
Lens Shift (Based on Full Image Height) Limited Lens shift Vertical +3.5%
Offset (Based on Full Image Height) 120%
Keystone Correction ±40° Vertical, ±40 Steps
Horizontal Scan Rate 15, 30 to 91.4 KHz
Vertical Scan Rate 24 ~ 30Hz, 47 ~ 120 Hz
3D Functionality Yes (Supports DLP Link, Blu-Ray 3D)
Speaker 10W Mono (x2)
Remote Control Fully Featured IR Remote with Laser Pointer

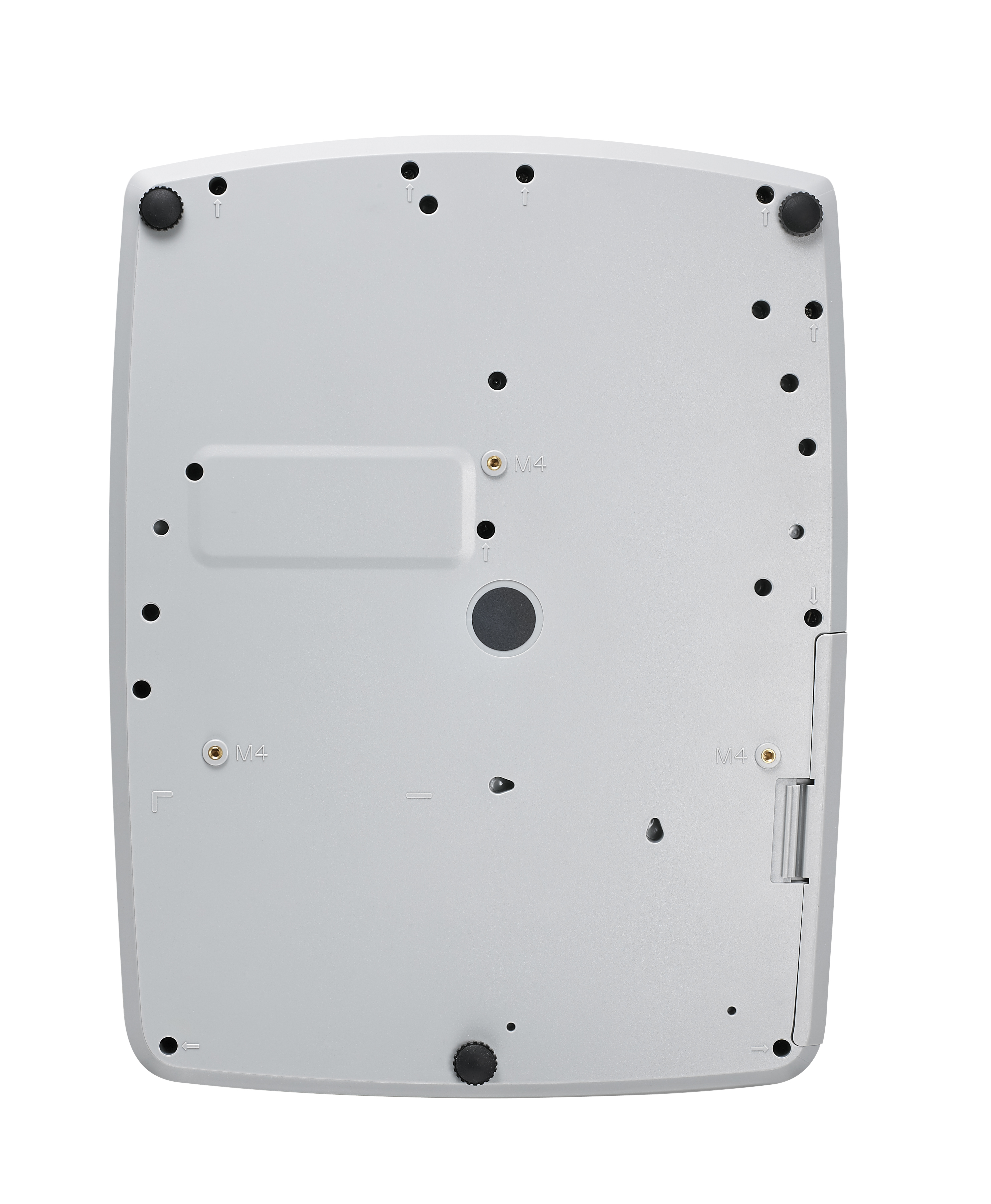

Projection Method Table Top or Ceiling Mount (Front or Rear)
Uniformity 85%
Computer Compatibility UDH,WUXGA, WXGA, SXGA+, SXGA, XGA, SVGA, VGA Resized; VESA Standards; PC and Macintosh Compatible
Video Compatibility UHD (3840 x 2160) @60Hz, HDTV (720p, 1080i/p), EDTV (480p, 576p), (SDTV(480i, 576i), NTSC (M, 3.58/4.43 MHz), PAL (B, D, G, H, I, M, N), SECAM (B, D, G, K, K1, L)
I/O Connection Ports HDMI v2.0 (x2) Microphone (Mini-Jack)
VGA-In USB A (Power Only)
VGA-Out Microphone (Mini-Jack)
Composite Video USB A (Power Only)
Audio-In RCA (L/R) Audio-Out (Mini-Jack)
Mini-Jack USB B (Service Only)
Security Kensington® Lock Port, Security Bar
Weight 11lbs (5.0 kg)
Dimensions (W x H x D)
(Not including height of mirror)		 11.3" x 4.9" x 14.7" (287.7 x 126.6 x 374.5 mm)
Noise Level 33dB/29dB (Normal / Eco. Mode)
Power Supply: AC 100-240V, 50/60Hz
Consumption: 250W (Eco Mode), 290W (Normal Mode), <0.5W (Standby Mode)
Operating Temperature 41 to 104°F (5 to 40°C)
Warranty 5-Year Limited Parts/Labor, 1-Year on Lamp
Standard Accessories AC Power Cord, VGA Cable, Remote Control (with batteries), User Manual (CD), Warranty Card, Wall Mount (%WM-3)
Optional Accessories Spare Lamp P/N (5811123650-SVV)
Remote Control P/N (5041841300)
UPC 813097024268
NovoPro
• BYOD Collaboration & Presentation
• Up to 64 users
• iOS/Android full mirroring
• Click-n-display with Launcher
NovoTouch
NovoEnterprise
• Screen mirroring for Windows/Mac/iOS/Android
• Collaboration
• Flexible GUI
• Enterprise-grade management software
• LauncherPlus Plug-n-Play
• Complete connectivity
Title Version Type Size   Download
DW770UST Datasheet 02/2021 pdf 0.61 MB
DW770UST DH772UST CAD Drawing 02/2021 pdf 0.67 MB
DW770UST DW771USTi DH772UST DH773USTi User's Manual 02/2021 pdf 9.59 MB
DW770UST DW771USTi DH772UST DH773USTi Error Messages 02/2021 pdf 0.04 MB
DW770UST DW771USTi DH772UST DH773USTi RS-232 Codes 02/2021 pdf 1.39 MB
Frequently Asked Questions
I plug my computer in to the projector and I don’t get an image.
The projector has many input connectors. Each connector is labelled (HDMI 1, RGB 1 ....). Ensure the projector is switched to that input using the “Source” button on the projector. Also, the computer may require a toggle switch to turn on the output port. This is typically accomplished by holding down the “Fn” at the same time as a Function key. Each laptop manufacturer may use a different “function” key. Typically, it is F4 or F8. The symbol on the key is usually a laptop as well as a square. Please refer to your laptop manufacturers Users Guide for additional information.
Is it OK to use 3rd. party lamps or lamps quoted to be Original Equipment Manufacturer lamps?
Please refer to lamp warranty under Warranty tab and then Vivitek Warranties, as using lamps that are not Vivitek supplied may result in warranties being voided and your projector not meeting required safety standards. Lamp manufacturers provide many different classes of lamps and projectors are built around a specific lamp. While being “original manufacturer” lamps, it is not guaranteed that the class of lamp is the same as the Vivitek specified lamp from the manufacturer.
My projector won’t turn on via an RS232 or IP command. If it is powered on, other commands work fine.
In the menu, go to Settings 2 menu, then Advanced 1 menu. Turn Low Power Mode to OFF.
How often should I change the filters in my DLP?
The majority of Vivitek projectors, due to sealed DLP optics, do not require filters. This eases maintenance requirements.The filters can be cleaned with running water. Please make sure to let them dry completely before installing them back. The filters should be changed if they are torn or worn.
How do I take care of my DLP?
Please refer to Warning and Precautions in the User's Manual.
Why are the lamps so expensive?
The selling price of the lamps is based on the purchase price we obtain from the manufacturers. Vivitek would reflect the price reduction if there is any from the manufacturers.
Why do I have to replace the lamp myself?
Lamp is a consumable part that needs to be replaced regularly. Customers can have a technician do the replacement, but the labor would not be covered by the manufacturer's warranty.
Why can't I order a lamp over the phone?
At the current stage, we don't process orders over the phone to protect our customers' credit card information. When the credit card information is sent to us by fax, only employees with authorization have access to this information.
Does HD really look better than SDTV?
Yes. HDTV has at least twice the linear resolution of standard-definition television (SDTV), thus allowing much more detail to be shown compared with analog television or regular DVD. In addition, the technical standards for broadcasting HDTV are also able to handle 16:9 aspect ratio pictures without using letterboxing or anamorphic stretching, thus further increasing the effective resolution for such content.
Where can I send a letter praising your products and customer support?
Customers can send us an email at customerservice@vivitekcorp.com.
How do I get another copy of my manual?
User's Manual can be downloaded here.
What other kinds of products do you make?
Vivitek also manufactures DLP projectors.
How long has Vivitek been in business
Vivitek was established in 2004.
What are the advantages of DLP over LCD or Plasma?
Please refer to Texas Instrument's website Here
What is DLP and how does it work?
Please refer to Texas Instrument's website Here
How do I get warranty service?
By calling our tech support at 877-603-3582 and providing the proof of purchase when required. Their hours of operation are from Monday to Friday, 9AM to 6PM Pacific time.
What is the life expectancy of my projector lamp?
Lamps typically last about 1,500 ~ 10,000 hours. Usually the higher the brightness, the lower the lamp hours. Keep in mind however that some lamps won't make it all the way to their estimated life spans. If you operate your projector in a warm environment that is not adequately ventilated or at higher elevations without switching to “high altitude” mode in the menu, this will reduce lamp life. It is also strongly recommended that the projectors be connected to a surge protector as power surges can damage your lamp. Adhering to the recommended power-off cycling will assist in maintaining lamp life. Frequent powering on/off will also reduce lamp life expectancy so it may be better to leave the projector on if you intend to use again within 20 minutes. Using the projector in Economy mode will extend your lamp life.
How do I replace the lamp myself?
In the user's manual, there is a section that shows you how to replace the lamp.
How much do replacement lamps/remotes cost?
You will need to contact your local/online reseller. Vivitek is available through authorized retailers, e-tailers, dealers, distributors and resellers. Vivitek has partnered with key partners around the U.S. These authorized partners can be found under the where to buy section.
How do I register my projector for warranty?
Complete and mail in the registration card included with the purchase of your product or fill out the online product registration here.
What is DLP® technology and how does it work?
DLP®-based projectors produce stunning images with digital clarity and precision. The DLP chip uses millions of tiny mirrors to reflect all colors of visible light to project an all-digital image on the screen. Click here for more detailed information.
Where can I purchase your products?
Vivitek is available through authorized retailers, e-tailers, dealers, distributors and resellers. Vivitek has partnered with key partners around the U.S. These authorized partners can be found under the where to buy section.
How do I synchronize my laptop with my projector?
On most laptops, hold down the 'Fn' + 'F4' keys. This may vary, depending on you laptop's brand it may not be 'F4', but 'F5', 'F7' or 'F8'. On the correct function key, there is a symbol 2 squares, have the letters "LCD", or have the symbol of a laptop/square on it. Please refer to your laptops user's guide for additional information.
