Legacy
DW3321

WXGA Versatile Installation Projector

The DW3321 offers great features and performance combined with great installation flexibility. The 6,000 lumens make it bright enough for larger screens, and the wide screen WXGA native image resolution ensures that your content will be delivered with fidelity and sufficient detail for a wide range of applications. The 1.34-2.4:1 throw ratio (1.7x zoom) makes it possible to install the projector in a wide range of distance/screen scenario's, making installation planning easier whether you replace an older projector or making a new installation. The horizontal and vertical lens shift gives further flexibility when installing the projector. Features such as 3D, JPG reader, optional wireless adapter and HDBaseT ensures the projector can handle modern signal inputs and features customers expect.
Excellent Connectivity
The Vivitek DW3321 provides the connections necessary for many diverse projection environments: HDMI v1.4, MHL/HDMI v1.4, Component (5 BNC) (RGBHV), S-Video, Composite video, VGA input for PC and Laptop, 3D Sync Out, Audio RCA in-out, Microphone-In, RS232, USB Type A (File Reader/USB Host), USB Type B (Service), USB Display (MINI B), USB Type A (Wireless Dongle), Wired Remote, RJ45 and 12V Trigger for automation.

NovoConnect

A Wireless Presentation & Collaboration

NovoConnect allows participants to seamlessly share content from connected device through a wireless network to conduct interactive presentations with dynamic content sources and HD display quality.

  • 6,000 Lumens
  • WXGA (1280 x 800)
  • 16:10 format
  • HDBaseT
  • Horizontal and Vertical lens shift
  • Electronic H &V Keystone
  • Electronic Corner corrections
Brightness 6,000 Lumens
Native Resolution WXGA (1280 x 800)
Max. Resolution WUXGA (1920 x 1200) @60Hz
Contrast Ratio 10,000:1 (Full On/Off)
Lamp Life and Type 3500/5000/7000 Hours (Standard/Economy/Dynamic Economy Mode), 240W/190W
Lamp Part # 5811119560-SVV
Display Type Single 0.7" DLP® Technology by Texas Instruments
Throw Ratio (±3%) 1.32 to 2.24:1 (Distance/Width)
Image Size (Diagonal) 21" to 351"
Projection Distance 3.28’ to 32.8’ (1.0 to 10.0 m)
Projection Lens F=2.45 - 3.22, f=18.8 - 32mm
Zoom Ratio 1.7:1 Manual Zoom/Focus
Aspect Ratio 16:10 format
Offset 124.7% / 112.3%
Keystone Correction ± 30° Vertical, Horizontal ± 25°
Color Spectrum 1.07 Billion
Horizontal Scan Rate 15, 30 to 91.4KHz
Vertical Scan Rate 24 to 30Hz, 47 to 120Hz
Speaker 3D Audio Surround Sound (7Wx2)
Remote Control Full Featured IR Remote
Projection Method Table Top or Ceiling Mount (Front or Rear)
Uniformity 85%
Computer Compatibility WUXGA, UXGA, SXGA+, SXGA, XGA, SVGA, VGA Resized; VESA Standards; PC and Macintosh Compatible
Video Compatibility  SDTV(480i, 576i), EDTV (480p, 576p), HDTV (1080i/p, 720p), NTSC 4.43, PAL B/G/H/I/M/N 60, SECAM
3D Compatibility Full 3D (Via DLP® Link™, BluRay 3D, Broadcast 3D)

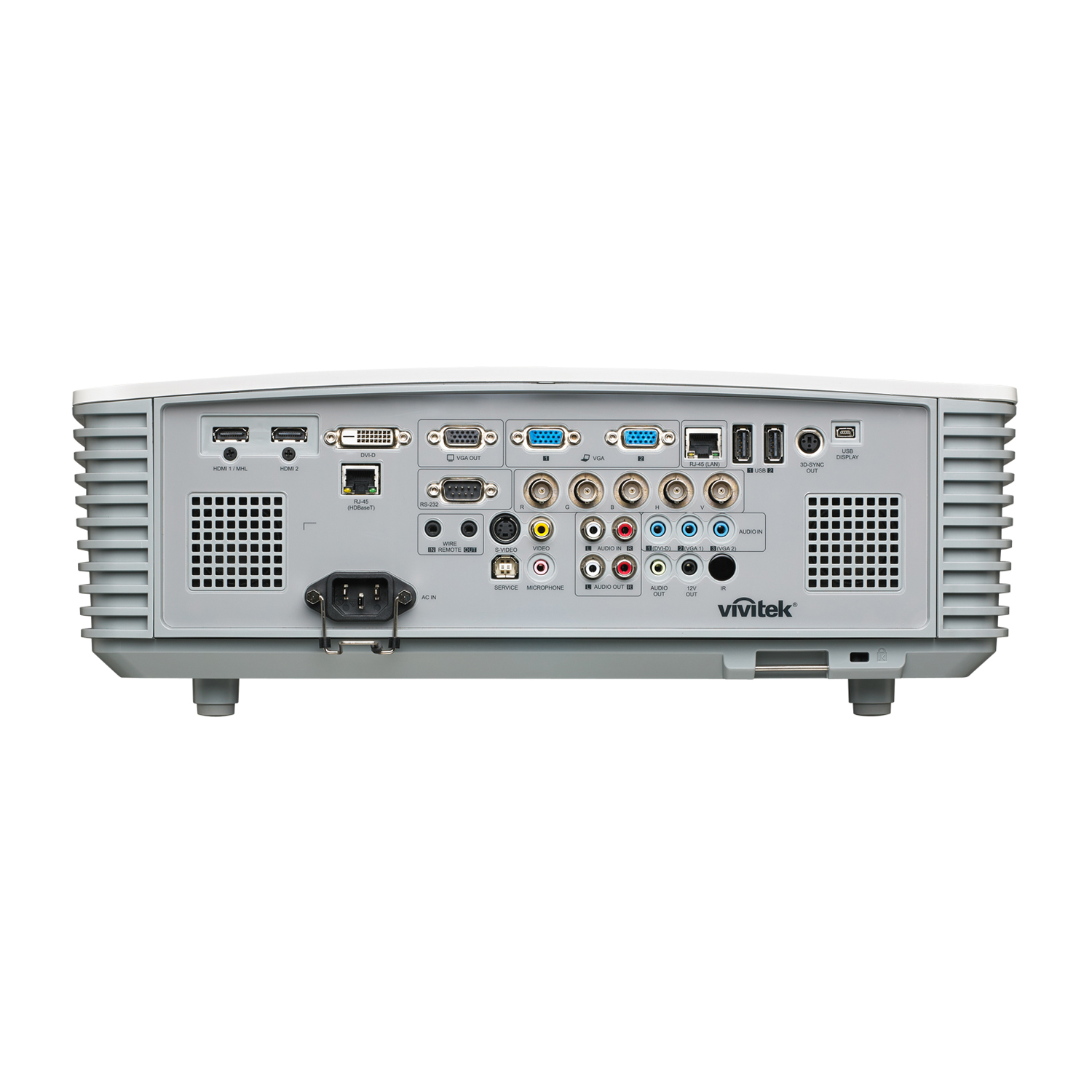

I/O Connection Ports HDMI v1.4, MHL/HDMI v1.4, VGA-In (x2), DVI-D, Component (5 BNC) (RGBHV), S-Video, Composite Video, Audio-In RCA (L/R), Audio-In (Mini-Jack)(x3), Microphone-In (Mini-Jack), Wired Remote-In (Mini-Jack), VGA-Out, Audio-Out (Mini- Jack), Audio-Out RCA (L/R), 12v Screen Trigger (Mini-Jack), 3D Sync-Out, RS-232, USB Type A (File Reader/USB Host), USB Type B (Service), USB Display (MINI B), USB Type A (Wireless Dongle), Wired Remote-Out (Mini-Jack), RJ45
Security Kensington® Lock Port, Security Bar
Weight 15lbs (6.8kg)
Dimensions (W x D x H) 12.36" x 9.50" x 4.96" (314 x 241 x 126 mm) with lens
Noise Level 36dB/32dB (Standard/Economy Mode)
Power Supply: AC Input 100-240V, 50/60Hz
Consumption: 250 Watts (Eco Mode), 310 Watts (Normal Mode), < 0.5 Watts (Standby Mode)
Operating Temperature 41 to 104°F (5 to 40°C)
Warranty 5-Year Limited Parts/Labor, 1-Year Lamp
Standard Accessories AC Power Cord, VGA Cable, Remote Control, Batteries for Remote, User’s Manual (CD), Lens Cap, Warranty Card
Optional Accessories Wireless: Presentation and Collaboration NovoConnect (B360)
Interactive: Finger Touch Module
UPC 8 13097 02038 3
Power: 370 W
Part number: 5811119760-SVV
NovoPro
• BYOD Collaboration & Presentation
• Up to 64 users
• iOS/Android full mirroring
• Click-n-display with Launcher
NovoEnterprise
• Screen mirroring for Windows/Mac/iOS/Android
• Collaboration
• Flexible GUI
• Enterprise-grade management software
• LauncherPlus Plug-n-Play
• Complete connectivity
Description: 36 Key funtions,New type white remote
Part number: 5041846601
Title Version Type Size   Download
DW3321 CAD Drawing rar 9.53 MB
DW3321 Datasheet pdf 0.31 MB
DX3351_DW3321 User's Manual(English) pdf 7.50 MB
DX3351_DW3321 User's Manual(Spanish) pdf 5.77 MB
DX3351_DW3321User's Manual(French) pdf 6.54 MB
Vivitek Catalog 2019 06/2019 pdf 21.59 MB
Frequently Asked Questions
I plug my computer in to the projector and I don’t get an image.
The projector has many input connectors. Each connector is labelled (HDMI 1, RGB 1 ....). Ensure the projector is switched to that input using the “Source” button on the projector. Also, the computer may require a toggle switch to turn on the output port. This is typically accomplished by holding down the “Fn” at the same time as a Function key. Each laptop manufacturer may use a different “function” key. Typically, it is F4 or F8. The symbol on the key is usually a laptop as well as a square. Please refer to your laptop manufacturers Users Guide for additional information.
Is it OK to use 3rd. party lamps or lamps quoted to be Original Equipment Manufacturer lamps?
Please refer to lamp warranty under Warranty tab and then Vivitek Warranties, as using lamps that are not Vivitek supplied may result in warranties being voided and your projector not meeting required safety standards. Lamp manufacturers provide many different classes of lamps and projectors are built around a specific lamp. While being “original manufacturer” lamps, it is not guaranteed that the class of lamp is the same as the Vivitek specified lamp from the manufacturer.
My projector won’t turn on via an RS232 or IP command. If it is powered on, other commands work fine.
In the menu, go to Settings 2 menu, then Advanced 1 menu. Turn Low Power Mode to OFF.
How often should I change the filters in my DLP?
The majority of Vivitek projectors, due to sealed DLP optics, do not require filters. This eases maintenance requirements.The filters can be cleaned with running water. Please make sure to let them dry completely before installing them back. The filters should be changed if they are torn or worn.
How do I take care of my DLP?
Please refer to Warning and Precautions in the User's Manual.
Why are the lamps so expensive?
The selling price of the lamps is based on the purchase price we obtain from the manufacturers. Vivitek would reflect the price reduction if there is any from the manufacturers.
Why do I have to replace the lamp myself?
Lamp is a consumable part that needs to be replaced regularly. Customers can have a technician do the replacement, but the labor would not be covered by the manufacturer's warranty.
Why can't I order a lamp over the phone?
At the current stage, we don't process orders over the phone to protect our customers' credit card information. When the credit card information is sent to us by fax, only employees with authorization have access to this information.
Does HD really look better than SDTV?
Yes. HDTV has at least twice the linear resolution of standard-definition television (SDTV), thus allowing much more detail to be shown compared with analog television or regular DVD. In addition, the technical standards for broadcasting HDTV are also able to handle 16:9 aspect ratio pictures without using letterboxing or anamorphic stretching, thus further increasing the effective resolution for such content.
Where can I send a letter praising your products and customer support?
Customers can send us an email at customerservice@vivitekcorp.com.
How do I get another copy of my manual?
User's Manual can be downloaded here.
What other kinds of products do you make?
Vivitek also manufactures DLP projectors.
How long has Vivitek been in business
Vivitek was established in 2004.
What are the advantages of DLP over LCD or Plasma?
Please refer to Texas Instrument's website Here
What is DLP and how does it work?
Please refer to Texas Instrument's website Here
How do I get warranty service?
By calling our tech support at 877-603-3582 and providing the proof of purchase when required. Their hours of operation are from Monday to Friday, 9AM to 6PM Pacific time.
What is the life expectancy of my projector lamp?
Lamps typically last about 1,500 ~ 10,000 hours. Usually the higher the brightness, the lower the lamp hours. Keep in mind however that some lamps won't make it all the way to their estimated life spans. If you operate your projector in a warm environment that is not adequately ventilated or at higher elevations without switching to “high altitude” mode in the menu, this will reduce lamp life. It is also strongly recommended that the projectors be connected to a surge protector as power surges can damage your lamp. Adhering to the recommended power-off cycling will assist in maintaining lamp life. Frequent powering on/off will also reduce lamp life expectancy so it may be better to leave the projector on if you intend to use again within 20 minutes. Using the projector in Economy mode will extend your lamp life.
How do I replace the lamp myself?
In the user's manual, there is a section that shows you how to replace the lamp.
How much do replacement lamps/remotes cost?
You will need to contact your local/online reseller. Vivitek is available through authorized retailers, e-tailers, dealers, distributors and resellers. Vivitek has partnered with key partners around the U.S. These authorized partners can be found under the where to buy section.
How do I register my projector for warranty?
Complete and mail in the registration card included with the purchase of your product or fill out the online product registration here.
What is DLP® technology and how does it work?
DLP®-based projectors produce stunning images with digital clarity and precision. The DLP chip uses millions of tiny mirrors to reflect all colors of visible light to project an all-digital image on the screen. Click here for more detailed information.
Where can I purchase your products?
Vivitek is available through authorized retailers, e-tailers, dealers, distributors and resellers. Vivitek has partnered with key partners around the U.S. These authorized partners can be found under the where to buy section.
How do I synchronize my laptop with my projector?
On most laptops, hold down the 'Fn' + 'F4' keys. This may vary, depending on you laptop's brand it may not be 'F4', but 'F5', 'F7' or 'F8'. On the correct function key, there is a symbol 2 squares, have the letters "LCD", or have the symbol of a laptop/square on it. Please refer to your laptops user's guide for additional information.
MHL Expand Your World
Mobile High-Definition Link and is a technology found in many devices, displays and accessories today. MHL-enabled smartphones and tablets connect to HD displays, delivering crystal-clear HD content and immersive surround sound, while simultaneously charging the phone.
BrilliantColor™
BrilliantColor from Texas Instruments is a multi-color processing technology that produces vibrant images. BrilliantColor technology uses up to six colors, instead of just the three primary colors, red, green and blue, to improve color accuracy and brightens secondary colors.
DLP® Technology
DLP® chipset-based projectors produce vivid images with digital clarity and precision. The DLP® chip uses millions of tiny mirrors to reflect all the colors of visible light to project a digital image onto a screen. DLP® technology delivers high contrast ratios and minimizes the gaps between pixels for bright, sharp pictures.
5 year Warranty Parts and Labor - 3year Advanced Replacement
Standard Warranty
5-Year Warranty on Parts and Labor / 3 years Advanced Exchange / 1-year Lamp Warranty
