Large Venue, House of Worship & Professional Installation

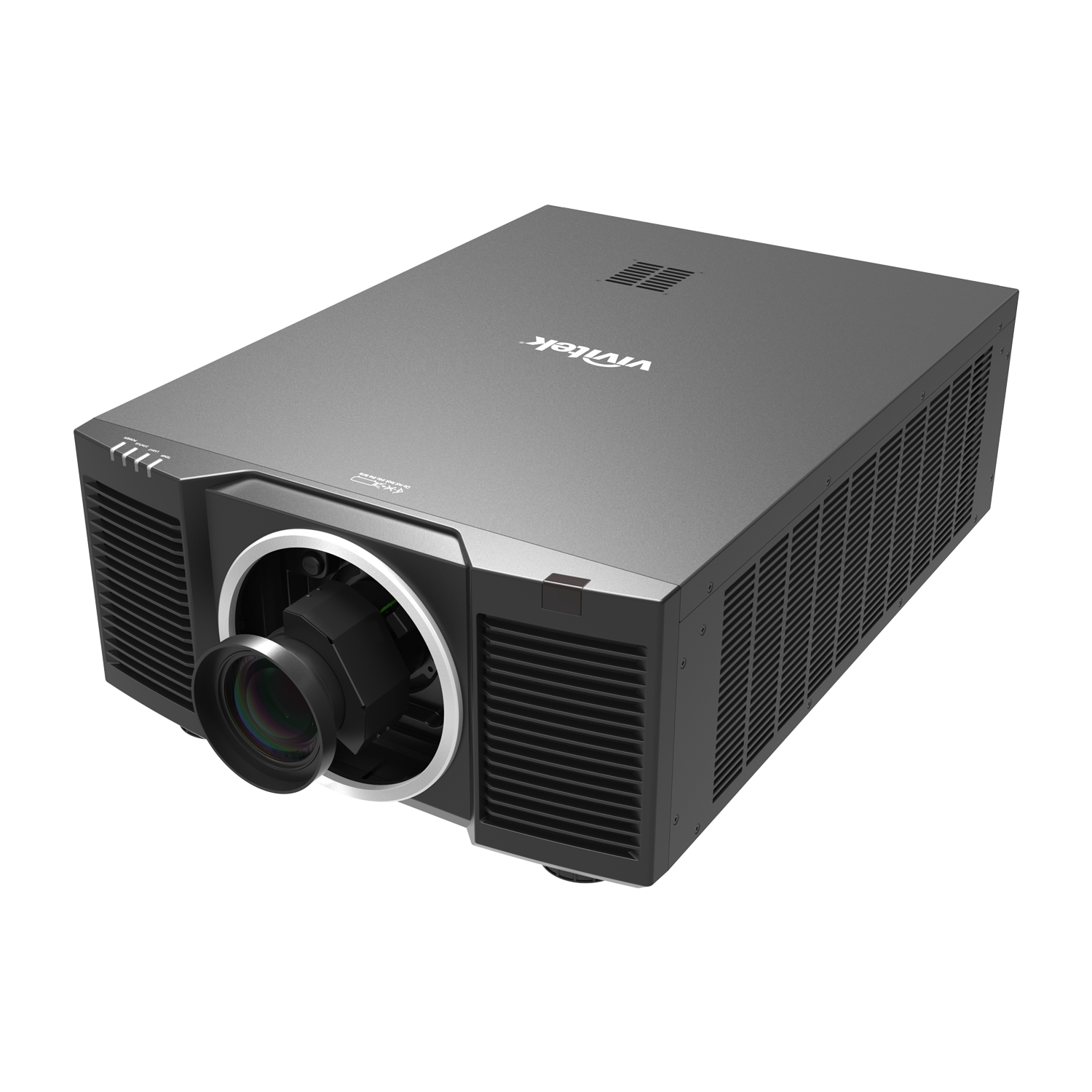

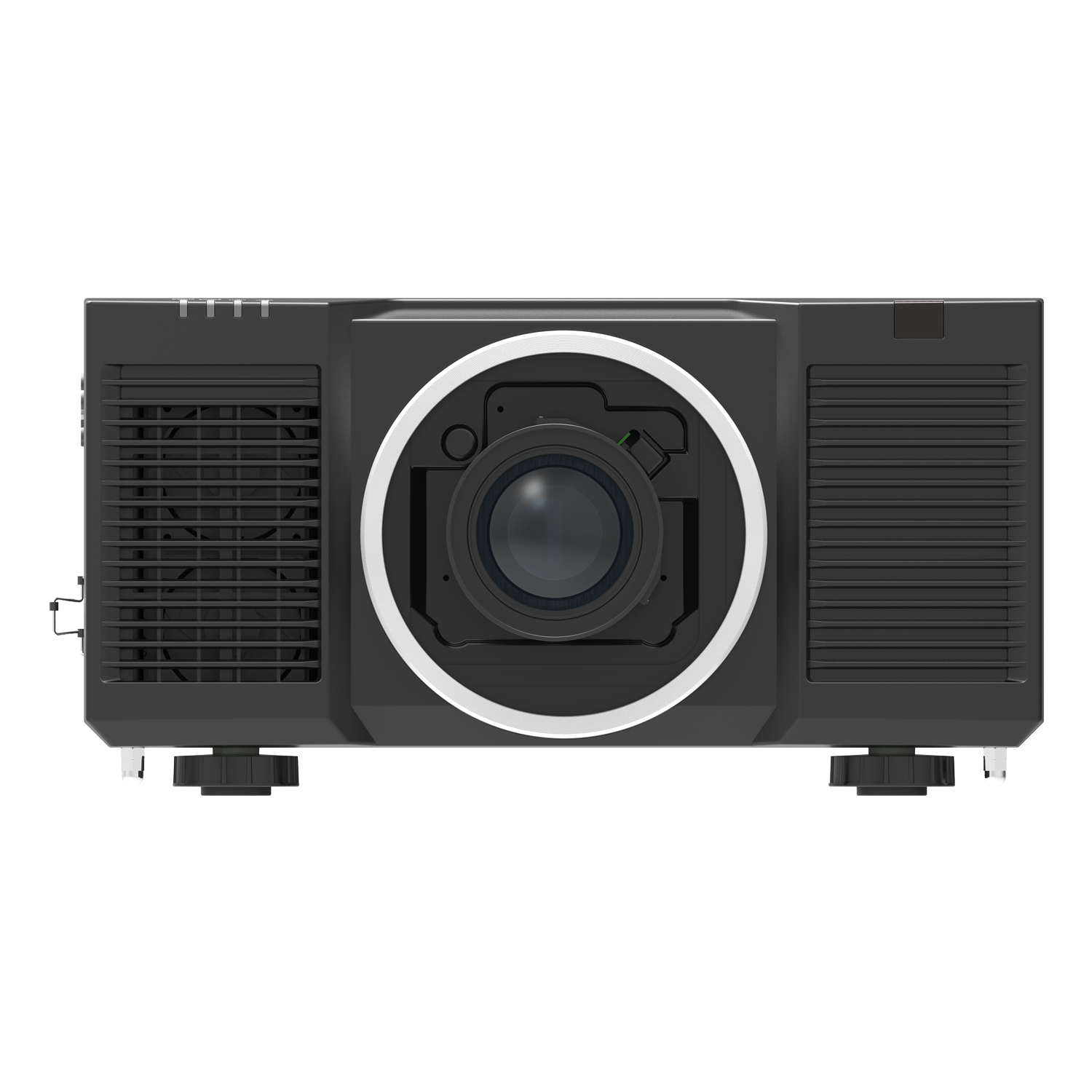

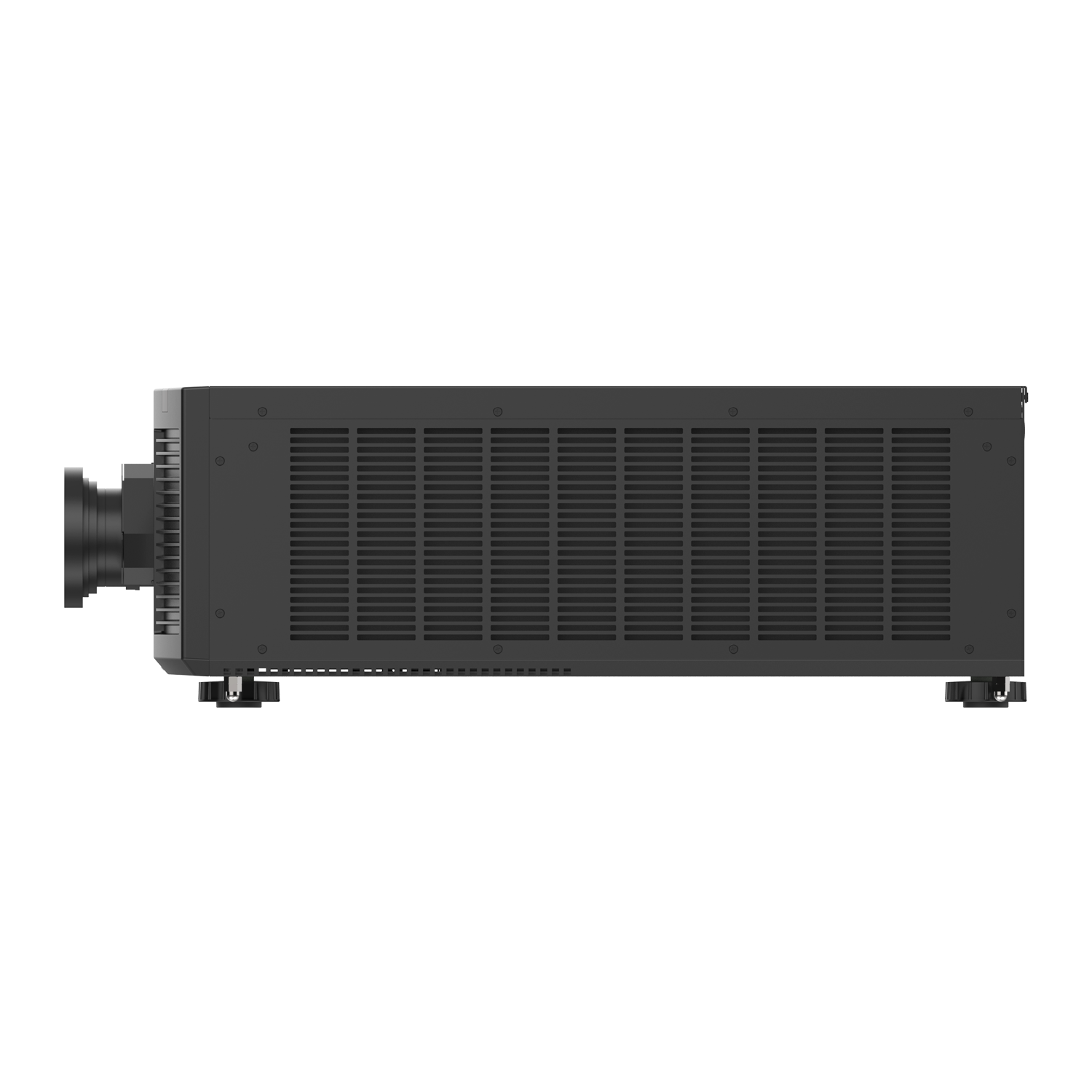

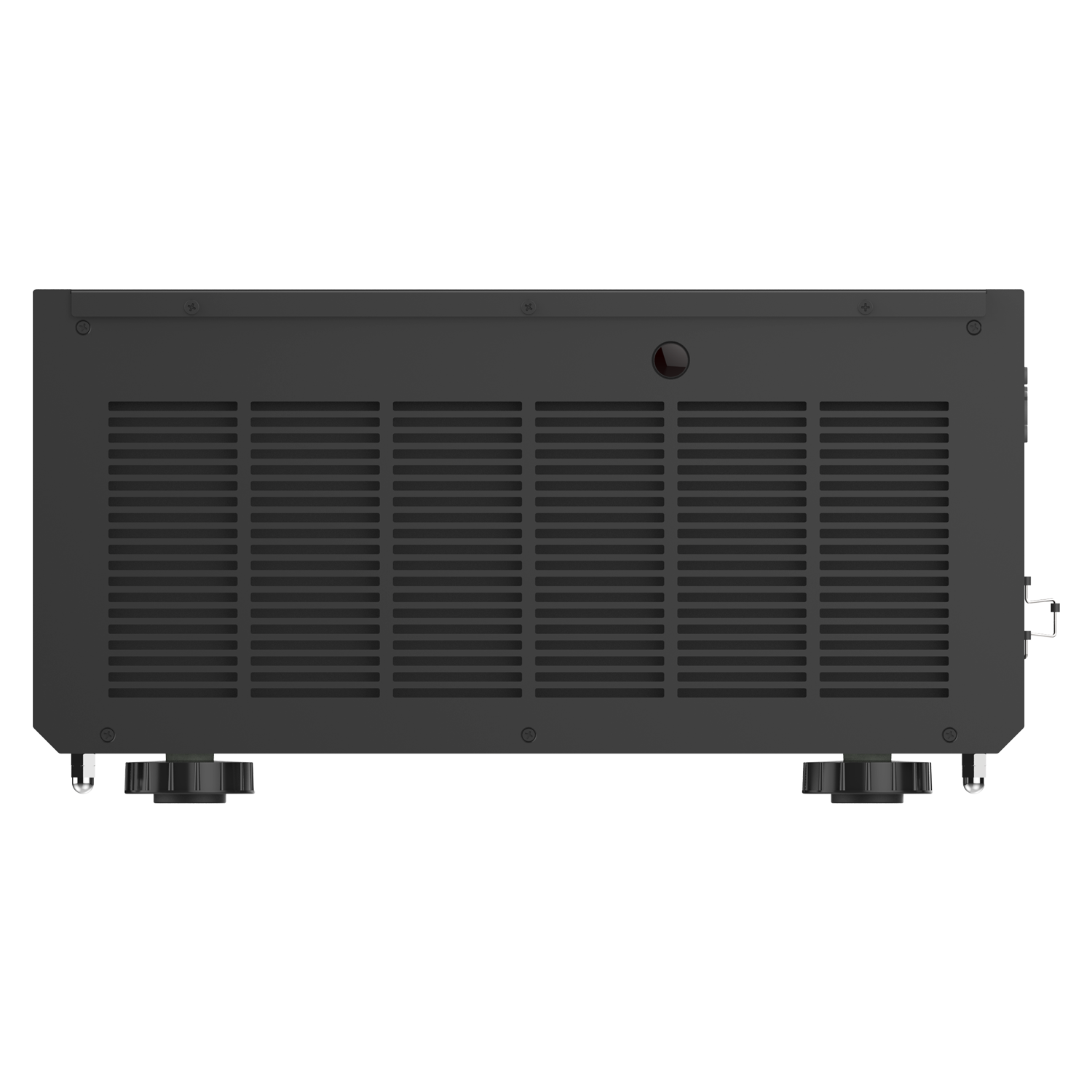

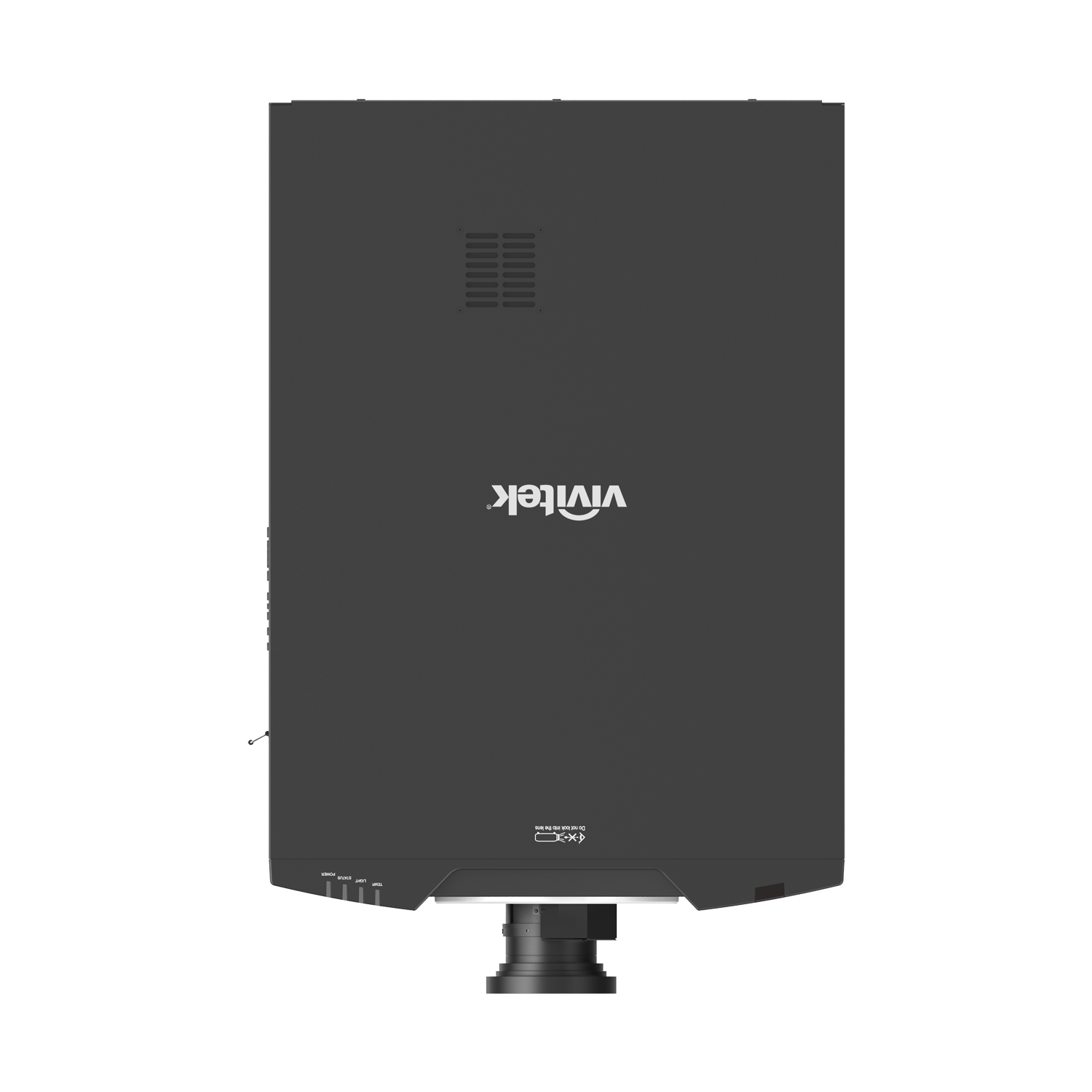

DU9900Z-BK
Ultra High Bright SSL Laser projector delivering 22,000 lumens, rich connectivity, edge-blending, and very low maintenance operating time
  • Bright 22,000 ANSI lumens with a native WUXGA (1920 x 1200)
  • resolution for impeccable colors and outstanding details
  • DLP® DarkChip3™ and BrilliantColor™ technologies for optimal black levels and vibrant, colorful images
  • Solid-state, laser-phosphor light source for reliable projection and performance
  • Environmentally friendly lamp-less design that is mercury-free and energy efficient
  • Almost maintenance-free with up to 20,000 hours of operating time
  • Advanced video processor for fluid video streaming and 10-bit programmable RGB color adjustments
  • Laser light source produces rich colors for an incredible cinematic experience
  • Fine tune and optimize an image with advanced calibrations, including gamma and color management settings
  • Built-in hardware edge blending and warping functionality
  • Powered zoom, focus and lens shift (horizontal/vertical) for easy adjustment and positioning flexibility
  • Picture-in-Picture (PIP) for simultaneous image projection from two active sources
  • Full suite of display connectivity inputs and outputs including: HDMI v1.4, DVI-D, Component (5 BNC) , VGA-In, 3G-SDI-In/Out, VGA-Out, HDBaseT™
  • HDBaseT™ interface with support for distribution of digital video content over standard CAT5e/6 LAN cable
  • Portrait mode projection allows the projector to be easily setup and installed in a 90° installation
  • 360° operation and projection design for set up in all angles
  • Instantaneous power-on & off, so no need for system pre-heating and postcooling
  • Airtight sealed engine and filter-less design for improved performance against dust and fibers
  • Frame sequential and dual channel 3D supported
  • Complete range of motorized interchangeable lens in sizes from 0.9 to 7:1 (optional)
  • Optimized system layout with high efficiency cooling system
  • Heavy duty steel chassis for extra strength and integrity
  • 24/7 continuous operation with no downtime
  • Network ready for integration and system administration via RJ45
Display Type Single Chip 0.96" DLP Technology by TI
Brightness 22,000 ANSI Lumen1
Note: 200-240V is required for full output (NEMA 6-15)
Native Resolution WUXGA (1920 x 1200), 16:10 format
Contrast Ratio 10,000:1 or 30,000:1 (with DB On)
Laser Life/Type 20,000 + hours (Laser Phosphor Light Engine)
Aspect Ratio 16:10 Native
Image Size (Diagonal)* 40” – 500” (See page 2 for specification)
Keystone Correction Vertical ±40°, Horizontal ±60° (Adjustable Range of single direction)
Horizontal Frequency 15, 31 - 90Hz
Vertical Scan Rate 24 - 30Hz, 47 - 85Hz
Projector Lens * 5 lens options (See page 2 for specification)
Lens Shift Range* Vertical: ±50%, Horizontal: ±15%
Offset* Motorize Lens Shift (See page 2 for specification)
Edge Blending Yes (Built-In)
Warping Yes (Built-In)
Computer Compatibility VGA, SVGA, XGA, WXGA,SXGA, SXGA+, UXGA, 1080P, WUXGA@60hz, Mac
Video Compatibility SDTV (480i, 576i), EDTV (480p, 576p), HDTV (720p, 1080i, 1080p

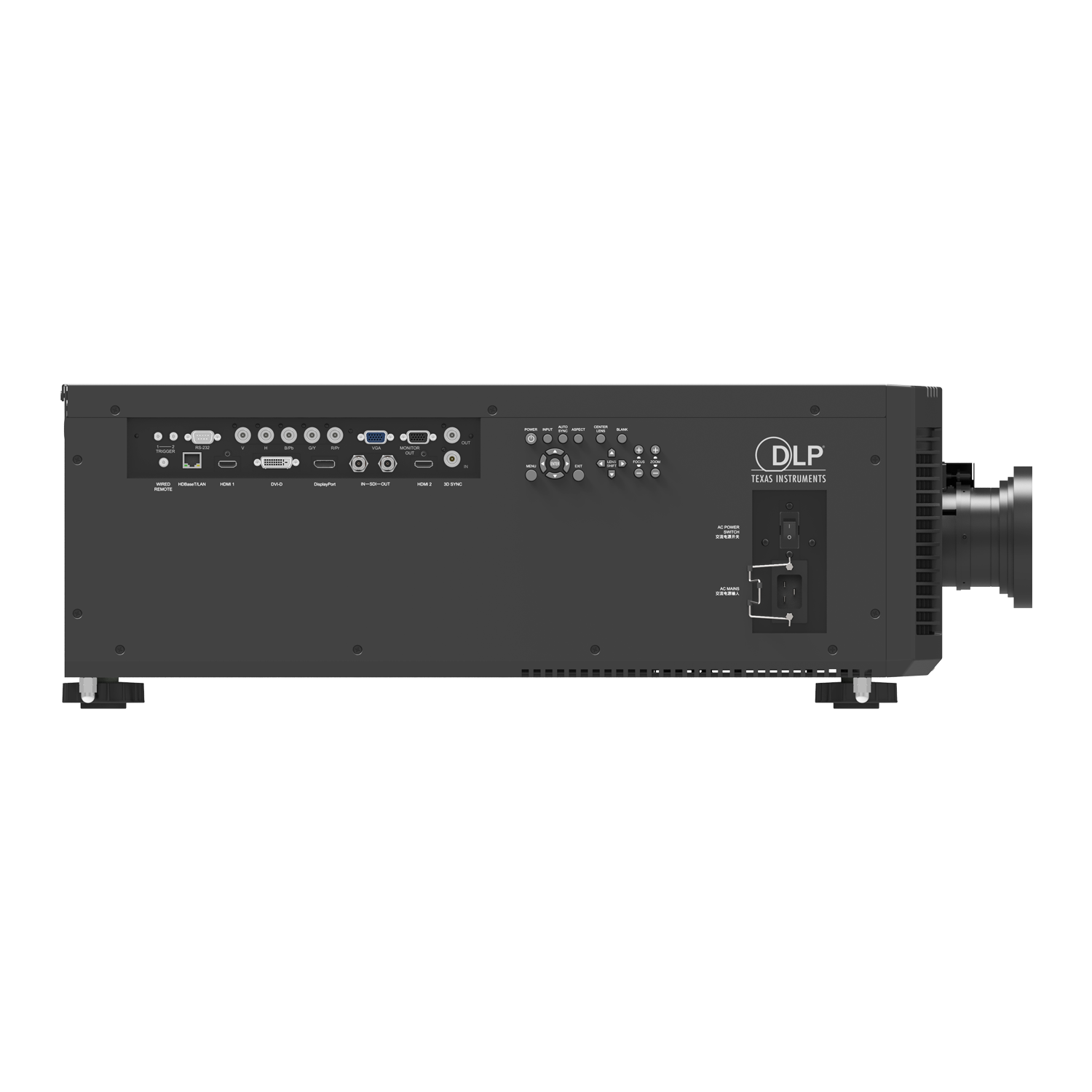

I/O Connection Ports HDMI v1.4 (x2), HDCP v1.4 Compliant
HDBaseT™ / LAN Control (Shared) RJ45
DVI-D Component/RGBHV (5 BNC)
3G-SDI-In/Out RS-232-In/Out (DB-9)
VGA-In/Out Wire Remote (3.5mm Jack)
3D Sync IN/Out 12V Trigger (x2) (3.5mm Jack)
Projection Method Table Top, Ceiling Mount (Front or Rear)
Security Solutions Kensington® Security Slot, Security Bar, Anti-Theft Lens Screw
Dimensions (WxDxH) 26.8” x 20.8” x 9.7” (681x 530 x 248mm)
Weight 115lbs (52.3Kg)
Available ID Colors Black (DU9900Z-BK)
Noise Level 45dB / 39dB (Eco Mode)
Power Supply AC 100-240V, 50/60Hz
Power Consumption Normal Mode 2,100 Watts 100V- 240V@100Vac
Network Standby Less than 6W
Eco Standby Less than 0.5W
Environment Condition Operating 0° to 40°C, (0 to 104°F), humidity 10 to 85% non-condensation
Storage -10° to 60°C (14 - 140°F), humidity 5 - 95% non-condensation
Standard Accessories AC Power Cord, Remote Control, Lens Cap, Anti-Theft Lens Screws, Documentation Kit
Optional Accessories Interchangeable Lens Options (x5)
UPC Code (Projector) 813097025289
NovoEnterprise
• Screen mirroring for Windows/Mac/iOS/Android
• Collaboration
• Flexible GUI
• Enterprise-grade management software
• LauncherPlus Plug-n-Play
• Complete connectivity
NovoDS4k
• HDMI-input, PoE, 1 Gbps LAN Connectivity
• 4K resolution
• Online content widgets
• Flexible, Easy-to-Create Layouts
• Intuitive Easy-to-Use Software
• Centralized Device Management
• Open Software API
Description: 30 Key funtions,New type Black remote
Part number: 5041848301
NovoDS
• Digital signage appliance
• 4K resolution
• Intuitive playlist editing
• Remote management over network
  • Five high-performance lenses designed for a variety of large venue applications
  • Wide throw ratio range starting from 0.9 up to a maximum 7.0:1 (Depends on resolution)
  • Available in a variety of zoom ratios including 1.3x, 1.33x, 1.67x, 1.75x and 2.0x
  • Simple lens insertion and removal
  • Support for powered zoom, focus and lens shift features for easy adjustment and movement
  • Light weight, yet heavy duty construction
  • Sealed structure for dust and moisture resistance
  • Compatible with Vivitek DU9800Z projector



Model Number D98-0912 D98-1215 D98-1520 D98-2040 D98-4070
Part Number 3797976800-SVK 3797859900-SVK 3797886100-SVK 3797893200-SVK 3797858100-SB
Lens Type Ultra-Wide Angle Lens Short Throw Lens Standard Lens Long Throw Lens Ultra-Long Throw Lens
Throw Ratio 0.9 - 1.2:1 1.2 - 1.56:1 1.5 - 2.0:1 2.0 - 4.0:1 4.0 - 7.0:1
Zoom Ratio 1.33x 1.3x 1.33x 2.0x 1.75x
fValue (Focal Length) 19.34 – 25.76mm 25.69mm - 33.22mm 31.9mm - 42.2mm 42.6mm – 84.8mm 83.93mm - 146.85mm
F Number 2.2 – 2.53 2.18 - 2.66 2.17 – 2.65 2.17 - 2.64 2.2 - 2.57
Image Size(Diagonal) 50” – 500” 40” – 500” 40” – 500” 40” – 500” 40” – 500”
Projection Distance(Approximate) Vertical: ±45%,
Horizontal: ±15%
Vertical: ±50%
Horizontal: ±15%
Vertical: ±50%
Horizontal: ±15%
Vertical: ±50%
Horizontal: ±15%
Vertical: ±50%
Horizontal: ±15%
Focus/Zoom Adjustment Motorized Motorized Motorized Motorized Motorized
Available Color Black Black Black Black Black
Accessories Lens Hood, Cap Lens Hood, Cap Lens Hood, Cap Lens Hood, Cap Lens Hood, Cap
Dimensions(Diameter x Length) 136 x 298.7mm
(5.4"x 11.8")
120 x 228.5mm
(4.7” x 9”)
92 x 217.92mm
(4.7" x 8.6")
112 x 251mm
(3.7" x 9.88")
77 x 247mm
(3.0" x 9.7")
Weight 2,676g (5.9bs) 2,010g (4.43lbs) 2,010g (4.43lbs) 2,663g (5.87lbs) 1,930g (4.25lbs)

©2020 VIVITEK. VIVITEK IS A TRADEMARK OF DELTA ELECTRONICS, INC., OTHER TRADEMARKS ARE THE PROPERTIES OF THEIR RESPECTIVE OWNERS. VALUES, WEIGHTS AND DIMENSIONS SHOWN ARE APPROXIMATE. ERRORS AND OMISSIONS ACCEPTED
