Large Venue, House of Worship & Professional Installation

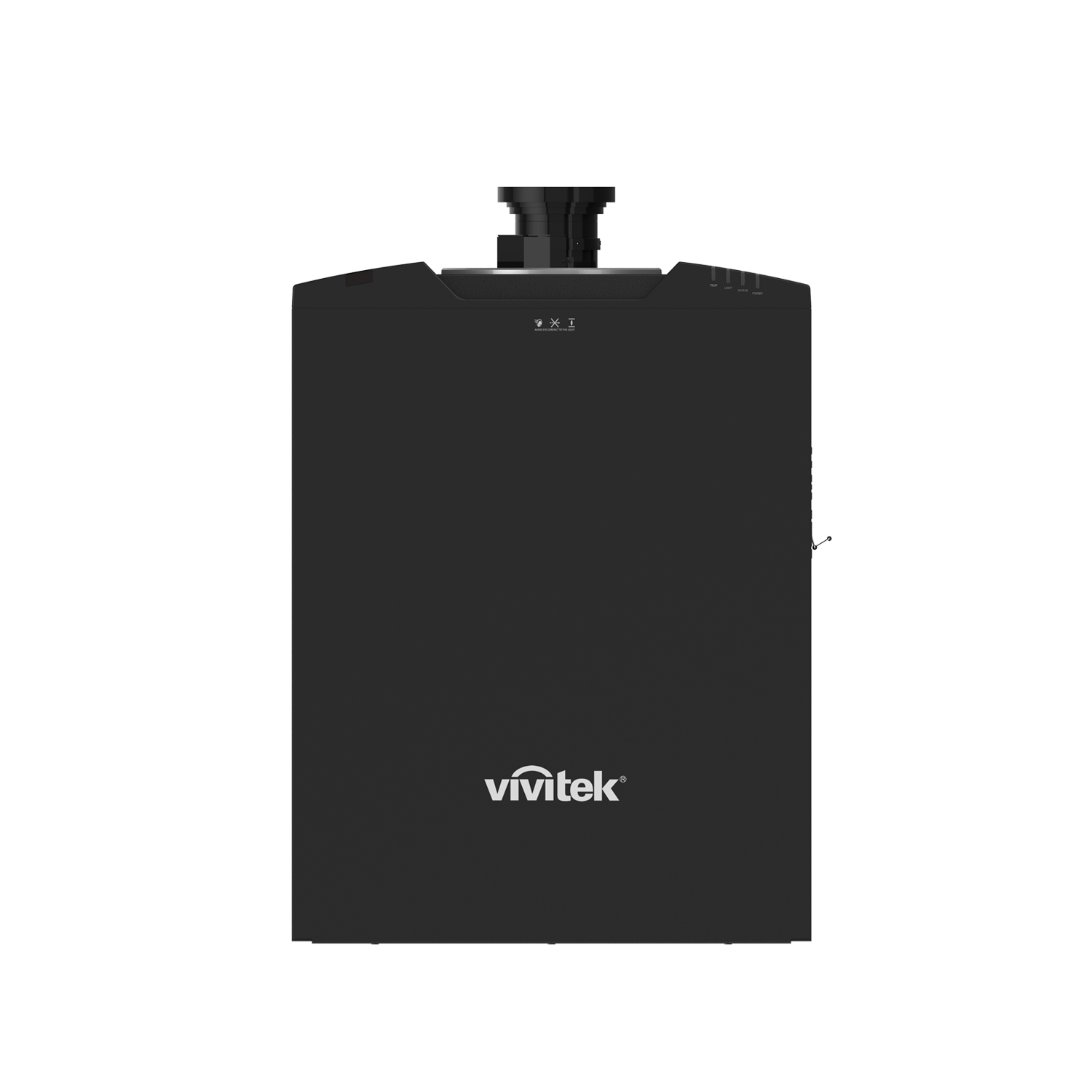

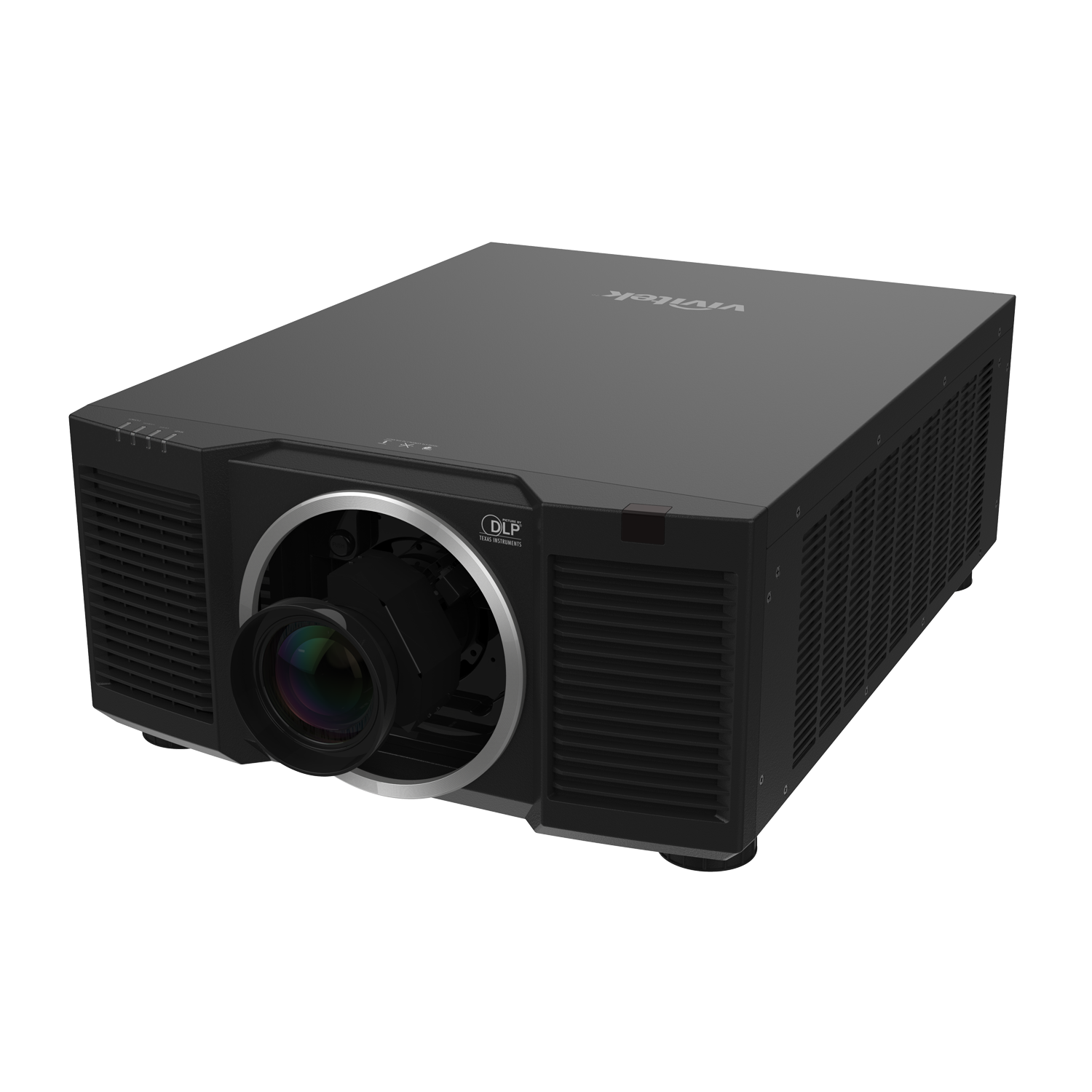

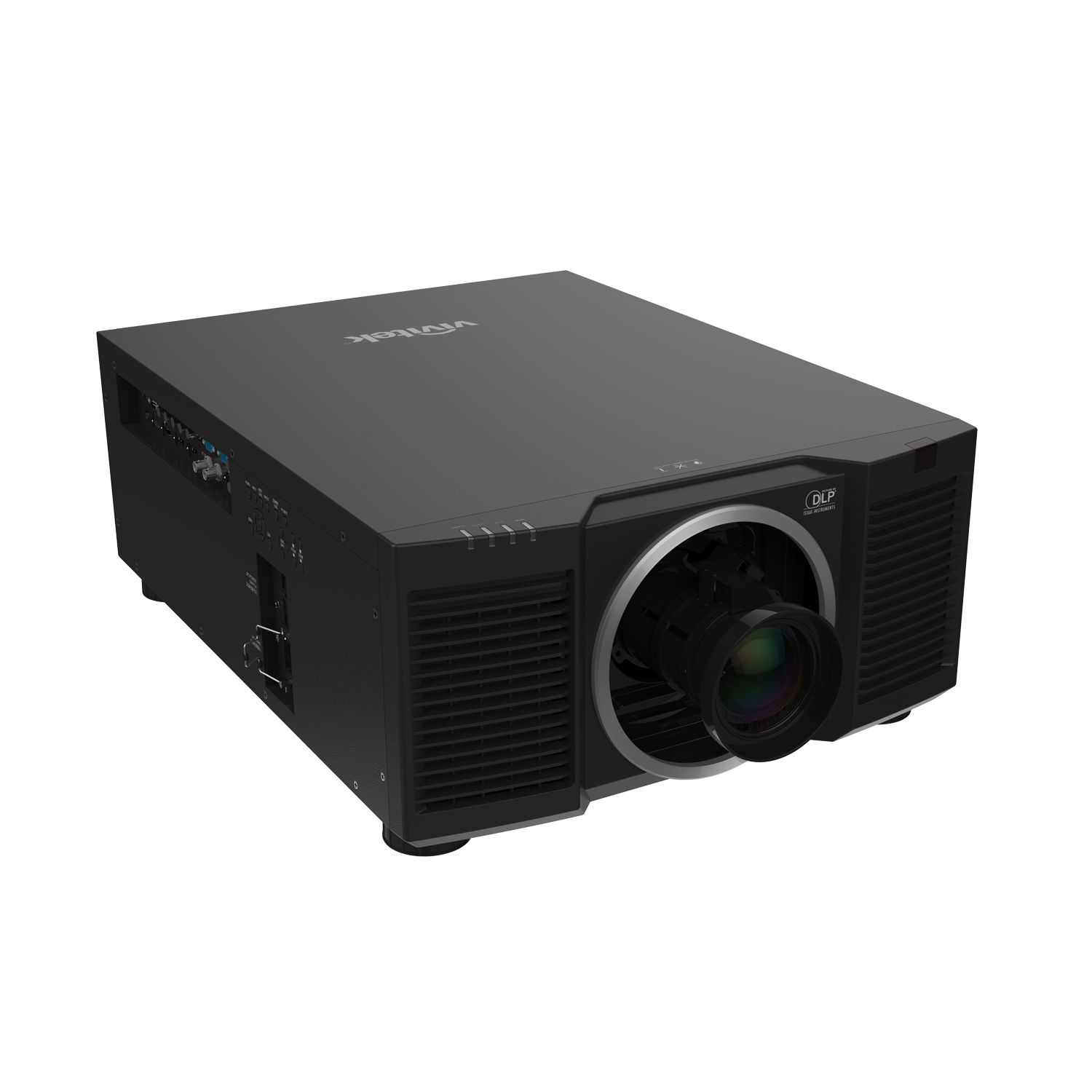

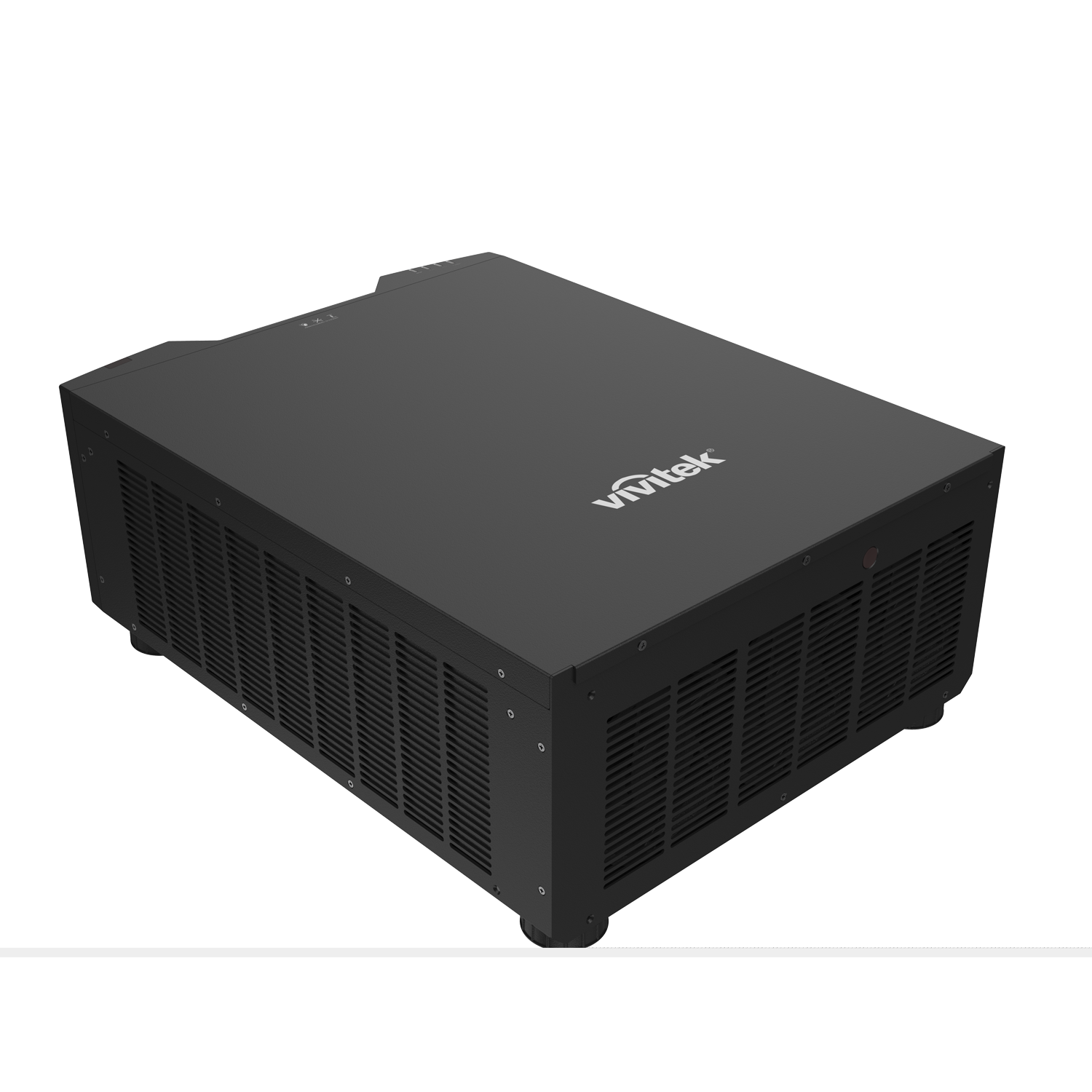

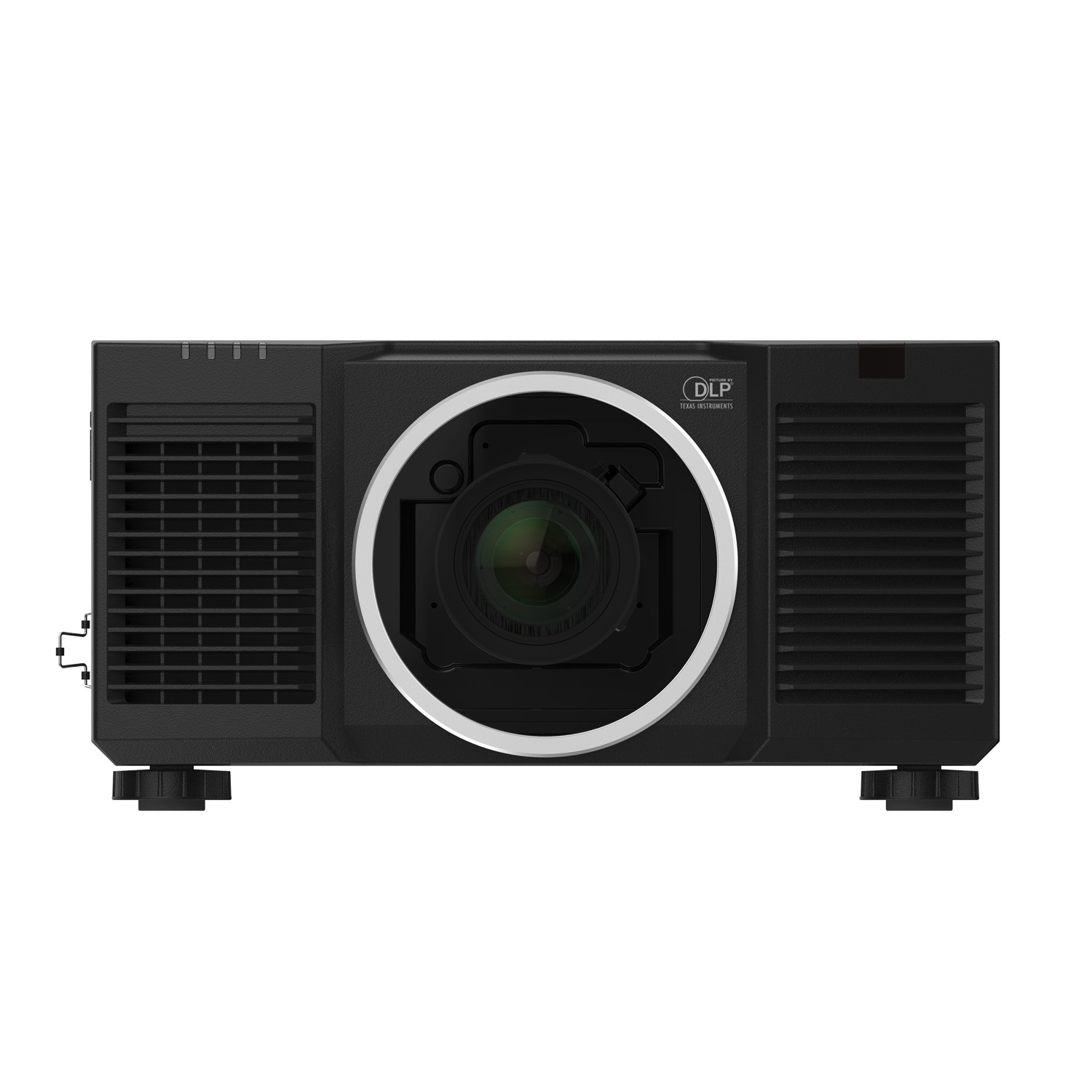

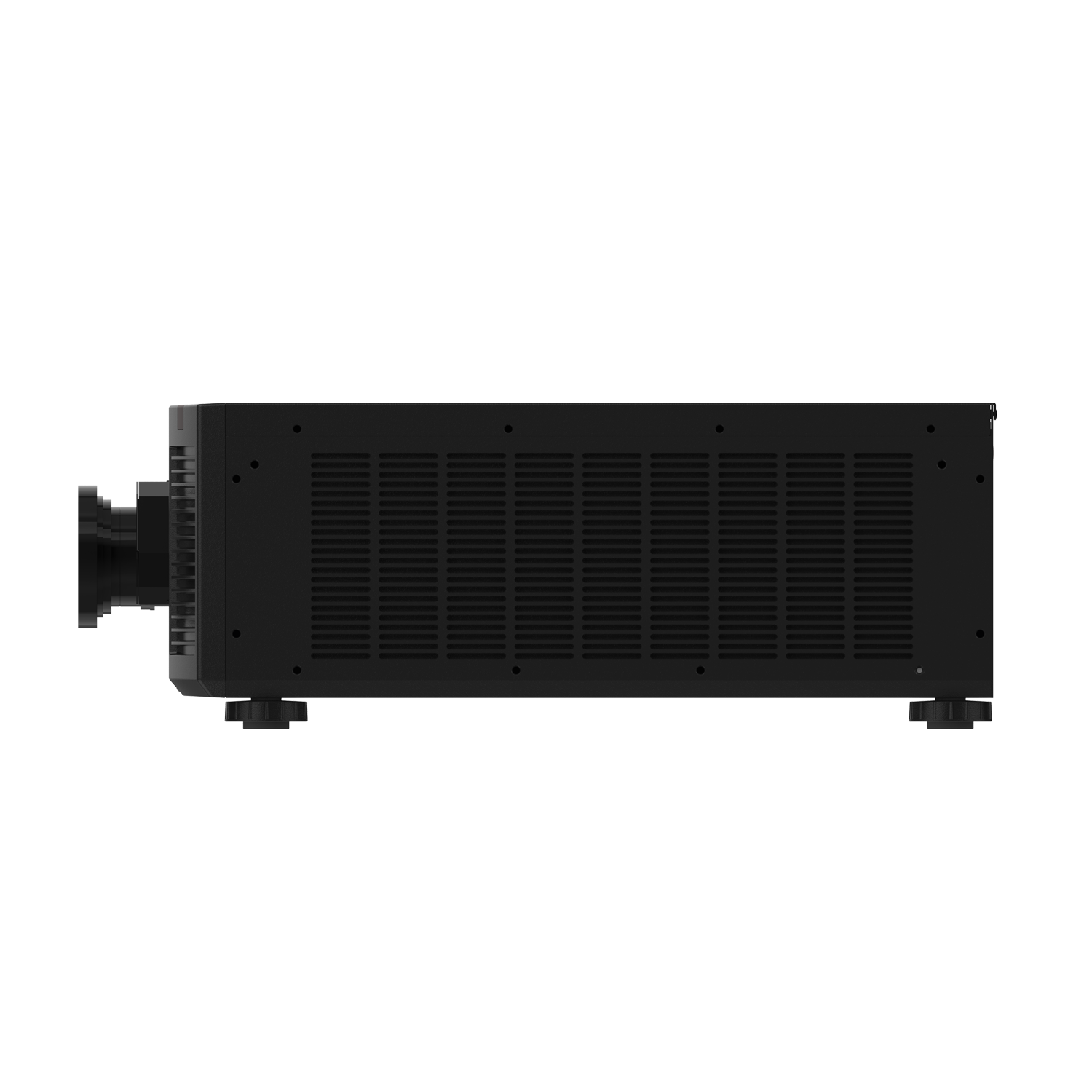

DU9800Z
Shine Bright with an SSL Laser Projector delivering 18,000 Lumens, Rich Connectivity,

Edge-Blending, and Maintenance-Free Operating Time
Excellent Connectivity
The Vivitek DU9800Z provides the connections necessary for many diverse projection environments: HDMI (2), Component (YPbPr), Displayport, VGA input/output, 3D Sync Out, 3G SDI(HD-SDI) -In/Out, RS232, Wired Remote, HDBaseT/LAN and 12V Trigger (2).
  • Bright 18,000 ANSI lumens with a native WUXGA (1,920 x 1,200) resolution for impeciablle colors and outstanding details
  • DLP® DarkChip3™ and BrilliantColor™ technologies for optimal black levels and vibrant colorful images
  • Sold state laser phosphor light source for reliable projection and performance
  • Environmentally friendly lamp-less design that is mercury-free and energy efficient
  • Almost maintenance-free with up to 20,000 hours of operating time
  • Advanced video processor for fluid video streaming and 10-bit programmable RGB color adjustments
  • Laser light source produces rich colors for an incredible cincematic like movie experience
  • Fine tune and optimize an image with advanced calibrations, including gamma and color management settings
  • Built-in hardware edge blending and warping functionality
  • Powered zoom, focus and lens shift (horizontal/vertical) for easy adjustment and positioning flexibility
  • Picture-in-Picture (PIP) for simultaneously image projection from two different active sources
  • Full suite of display connectivity inputs and outputs including: HDMI v1.4, DVI-D, Component (5 BNC) , VGA-In, 3G-SDI-In/Out, VGA-Out, HDBaseT™
  • HDBaseT™ interface with support for distribution of digitalvideo content over standard CAT5e/6 LAN cable
  • Portrait mode projection allows the projector to be easily setup and installed in a 90° installation
  • 360° operation and projection design for set up in all angles
  • Instantaneous power-on & off, so no need for system pre-heating and postcooling
  • Airtight sealed engine and filter-less design for improved performance against fighting dust and fibers
  • Frame sequential and dual channel 3D supported
  • Complete range of motorized interchangeable lens in sizes from 0:84 to 7:01 (Optional)
  • Optimized system layout with high efficiency cooling system
  • Heavy duty steel chassis for extra strength and integrity
  • 24/7 continuous operation with no downtime
  • Network ready for integration and system administration via RJ45
Display Type Single Chip 0.96" DLP Technology by TI
Brightness 18,000 ANSI Lumens
Native Resolution WUXGA (1920 x1200)
Max. Resolution WUXGA (1920 x 1200)@60Hz
Contrast Ratio 1,250:1 or 10,000:1 (with DB On)
Laser Life/Type Up to 20,000 hours (Laser Phosphor Light Engine)
Throw Ratio 1.5 - 2.0:1
Image Size (Diagonal) 40" - 500"
Projection Distance 1.24 - 21.8m (4.06ft to 71.5ft)
Projection Lens F = 2.17 – 2.65
Zoom Ratio 1.33x
Aspect Ratio 16:10 format
Offset Motorized Lens Shift
Keystone Correction Horizontal ±60°, Vertical ±40°
Horizontal Frequency 15, 30 – 90Hz
Vertical Scan Rate 50 - 85Hz
Edge Blending Yes (Built-In)
Warping Yes (Built-In)
3D Compatibility Yes
Lens Shift Range Vertical: ±50%, Horizontal: ±15%
Computer Compatibility VGA, SVGA, XGA, WXGA,SXGA, SXGA+, UXGA, 1080P, WUXGA@60hz
Video Compatibility SDTV (480i, 576i), EDTV (480p, 576p), HDTV (720p, 1080i/p), NTSC (M, 3.58/4.43 MHz), PAL (B, D, G, H, I, M, N), SECAM (B, D, G, K, K1, L)
I/O Connection Ports HDMI v1.4 (x2), DVI-D, Component (5 BNC), 3G-SDIIn/ Out, VGA-In, DisplayPort v1.2, RS-232, VGA-Out, 3D-Sync In/Out, 12v Trigger 1, 12v Trigger 2, Wired Remote, HDBaseT™, RJ45
Projection Method Table Top, Ceiling Mount (Front or Rear)
Dimensions (W x D x H) 681 x 530 x 248mm (26.8” x 20.8" x 9.7")
Weight Estimated 48kg (105.8lbs)
Available Colors Black (DU9800Z-BK)
Noise Level 43dB (Normal Mode)
Power Supply AC 100-240V, 50/60Hz
Power Consumption 1,900W (Normal Mode), 1,100W (Eco. Mode),
Standard Accessories AC Power Cord, Remote Control w/Batteries, Lens Cap, Documentation Kit
Optional Accessories Interchangeable Lens Options (x5)
NovoEnterprise
• Screen mirroring for Windows/Mac/iOS/Android
• Collaboration
• Flexible GUI
• Enterprise-grade management software
• LauncherPlus Plug-n-Play
• Complete connectivity
Description: 30 Key funtions,New type Black remote
Part number: 5041848301
Part Number 3797805500-SVK 3797859900-SVK 3797886100-SVK 3797893200-SVK 3797858100-SB
Lens Type Ultra-Wide Angle Lens Short Throw Lens Standard Lens Long Throw Lens Ultra-Long Throw Lens
UPC Code 813097020062 813097022295 813097023780 813097023780 813097022288
Throw Ratio 0.84 - 1.03:1 1.2 - 1.56:1 1.5 - 2.0:1 2.0 - 4.0:1 4.0 - 7.0:1
Zoom Ratio 1.22x 1.3x 1.33x 2.0x 1.75x
f Value (Focal Length) 17.95 - 21.93mm 25.69mm - 33.22mm 31.9mm - 42.2mm 42.6mm – 84.8mm 83.93mm - 146.85mm
F Number 1.85 - 1.95 2.18 - 2.66 2.17 – 2.65 2.17 - 2.64 2.2 - 2.57
Image Size (Diagonal) 40” – 500” 40” – 500” 40” – 500” 40” – 500” 40” – 500”
Projection Distance
(Approximate)
0.7 -11.44m 0.95 – 17.47m 1.24 – 21.84m 2.65 - 41.77m 4.38 – 74.51m
Lens Shift Range Vertical: ±37.5%,
Horizontal: ±12.5%
Vertical: ±50%,
Horizontal: ±15%
Vertical: ±50%,
Horizontal: ±15%
Vertical: ±50%,
Horizontal: ±15%
Vertical: ±50%,
Horizontal: ±15%
Focus/Zoom Adjustment Motorized Motorized Motorized Motorized Motorized
Available Color Black Black Black Black Black
Accessories Lens Hood, Cap Lens Hood, Cap Lens Hood, Cap Lens Hood, Cap Lens Hood, Cap
Dimensions
(Diameter x Length)
120 x 207.24mm
(4.7"x 8.1")
120 x 228.5mm
(4.7” x 9”)
92 x 217.92mm
(4.7" x 8.6")
112 x 251mm
(3.7" x 9.88")
77 x 247mm
(3.0" x 9.7")
Weight 1,550g (3.4bs) 2,010g (4.43lbs) 2,010g (4.43lbs) 2,663g (5.87lbs) 1,930g (4.25lbs)

*Lenses sold separately.
