Widely regarded as the future of professional and consumer projection technology, laser projectors possess numerous advantages over traditional lamp-based systems. From enhanced brightness to minimal costs of ownership, laser projectors have quickly become the optimal projection choice for a diverse range of applications.

Lamp-based Projector

Laser Projector

Enhanced Imagery

From the first time they power on to their final use before being replaced, high intensity discharge lamps (central to lamp-based projectors) steadily lose fifty percent of their initial brightness capability. While this degradation is an accepted aspect of lamp-based systems, brightness decay affects laser projectors to a much lesser degree. Over the course of their 20,000 hour lifetimes, blue laser diodes only diminish by twenty percent, resulting in greater brightness over dramatically longer periods of use. Furthermore, lasers can achieve significantly greater peak brightness levels than HD lamps, often producing twice as many lumens.

How It Works

To generate a full spectrum of color, the 3 primary colors have to be created from a single color laser – in this case, a blue laser. This is achieved by using a cluster of blue lasers that shine onto a spinning yellow phosphor wheel that also incorporates a clear segment that allows the blue light from the lasers to shine through (this is the blue primary color). The generated yellow light then passes through a color wheel that in turn generates red and green – the other primary colors. After passing through a diffusion window, the colored light is presented to the Digital Micro Mirror chip, the imaging device. The DMD switches at a very high rate and presents the on, colored pixels to the optical lens system for display on the screen or projected surface.

A simple, precise technology that is efficient and generates sharp, and clearly defined images, as only a single chip is required.

Minimal Required Maintenance

Perfect for corporate, education, retail, and government environments, where reliability and low cost of ownership are critical, the lamp-less operation of laser-based projectors grants up to 20,000 hours of sharp, maintenance-free operation. Featuring an instantaneous power-on and off, a sealed optical engine, and an airflow-optimized system layout, the DU8395Z-BK boasts the industry-leading reliability and durability synonymous with Vivitek.

Excellent Connectivity

The Vivitek DU8395Z-BK provides the connections necessary for a large venue and many other enviornments: HDMI input, 3G-SDI, HDBaseT, BNC for YPbPr/RGBHV, VGA input for PC and Laptop, S-Video, Composite video, IR input, Rs232c and 12V Trigger for screen automation.

LAN support compatibility of the following applications:

LAN Control — Cestron Roomview, Connected
LAN Control — Crestron eControl
LAN Control to RS232 (RS232 by Telnet)

Laser phosphor engine incorporating a lamp-less design that is mercury-free and environmentally friendly
15,000 ANSI lumens with a dynamic 10,000:1 contrast ratio for an amazing image quality
Built-in color sensor to maintain constant color and an optimal brightness ratio
Low maintenance with up to 20,000 hours of operating time
Native WUXGA resolution with a maximum WUXGA resolution
Built-in hardware edge blending and warping functionality
Powered zoom, focus and lens shift (horizontal/vertical) for easy adjustment and positioning flexibility
Lens Positioning Memory (LPS) for quick recall of user defined lens positions (focus, zoom and lens shift)
Picture-in-Picture (PIP) for simultaneously image projection from two different active sources
Full suite of display connectivity inputs and outputs including: HDMI v1.4a, DVI-D, Component (5 BNC) , VGA-In, 3G-SDIIn/Out, VGA-Out, HDBaseT™
HDBaseT™ interface with support for distribution of digital HD video content over standard CAT5e/6 LAN cable
3D compatibility with DLP® Link™ and HDMI 1.4 technology support (Blu-ray, side by side, frame packing, top and bottom) for dazzling and realistic life-like images
Portrait mode projection allows the projector to be easily setup and installed in a 90° installation
360° operation and projection design for set up in all angles
Network ready for integration and system administration via RJ45
Crestron® RoomView™ integration for network monitoring and management
Eight (8) interchangeable lens options with quick touch lens release design for easy lens removal and reinstallation
Sealed optical engine and filter-less design keep dust out and improves performance
24/7 continuous operation with no downtime

Display Type	Single Chip 0.67" DLP Technology by TI
Brightness	15,000 ANSI Lumens
Native Resolution	WUXGA (1920 x 1200), 16:10 format
Contrast Ratio	10,000:1
Laser Life/Type	20,000 + hours (Laser Phosphor Light Engine)
Aspect Ratio	16:10 Native
Image Size (Diagonal)*	40” – 500”
Keystone Correction	Vertical ±40°, Horizontal ±60°
Horizontal Frequency	15, 31 - 90Hz
Vertical Scan Rate	24 - 30Hz, 47 - 85Hz
Projector Lens *	8 options (See page 2 for specification)
Lens Shift Range*	Vertical: -33% to +64%, Horizontal: -14% to +24%
Offset*	Motorize Lens Shift (See page 2 for specification)
Edge Blending	Yes (Built-In)
Warping	Yes (Built-In)
Computer Compatibility	VGA, SVGA, XGA, WXGA,SXGA, SXGA+, UXGA, 1080P, WUXGA@60hz, Mac
Video Compatibility	SDTV (480i, 576i), EDTV (480p, 576p), HDTV (720p, 1080i, 1080p
I/O Connection Ports	HDMI v1.4 (x2)	Component/RGBHV (5 BNC)
	HDBaseT™	LAN Control (RJ45)
	DVI	RS-232-In/Out (DB-9)
	3G-SDI-In/Out	Wire Remote (3.5mm Jack)
	VGA In/Out	12V Trigger (3.5mm Jack)
Projection Method	Table Top, Ceiling Mount (Front or Rear)
Security Solutions	Kensington® Security Slot, Security Bar, Anti-Theft Lens Screw
Dimensions (WxDxH)	19.7” x 22.8” x 8.1” (500 x 580 x 205mm)
Weight	66.14lbs (30Kg)
Available ID Colors	Black (DK8500Z-BK)
Noise Level	46dB
Power Supply	AC 100-240V, 50/60Hz
Power Consumption	Normal Mode	1015W@100Vac, 1435W@240Vac
	Network Standby	Less than 3W
	Eco Standby	Less than 0.5W
Environment Condition	Operating	0° to 40°C, (0 to 104°F), humidity 10 to 85% non-condensation
	Storage	-10°to 60°C (14 - 140°F), humidity 5 - 95% non-condensation
Standard Accessories	AC Power Cord, Remote Control, Lens Cap, Anti-Theft Lens Screws, Documentation Kit
Optional Accessories	Interchangeable Lens Options (x8)
UPC Code (Projector)	813097025111

NovoPro

• BYOD Collaboration & Presentation
• Up to 64 users
• iOS/Android full mirroring
• Click-n-display with Launcher

NovoTouch

NovoEnterprise

• Screen mirroring for Windows/Mac/iOS/Android
• Collaboration
• Flexible GUI
• Enterprise-grade management software
• LauncherPlus Plug-n-Play
• Complete connectivity

Description: 30 Key funtions,New type Black remote
Part number: 5041848301

Model Number	D88-UST01B/**	D88-WF18501/**	D88-UWZ01*	D88-WZ01	D88-ST001	D88-SMLZ01	D88-LOZ101	D88-LOZ201
Part Number	3797866500-SVK	3797745100-SVK	3797804200-SVK	3797745200-SVK	3797744200-SVK	3797745000-SVK	3797745400-SVK	3797744900-SVK

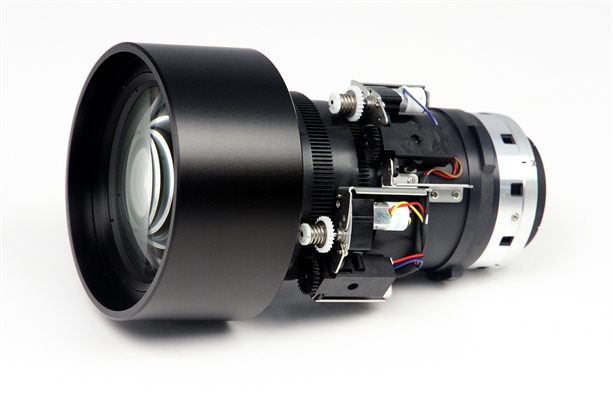

Lens Type	Ultra Short Throw Lens	Wide Fixed Lens	Ultra-Wide Zoom Lens	Wide Zoom Lens	Standard Lens	Semi Long Zoom Lens	Long Zoom Lens 1	Long Zoom Lens 2
