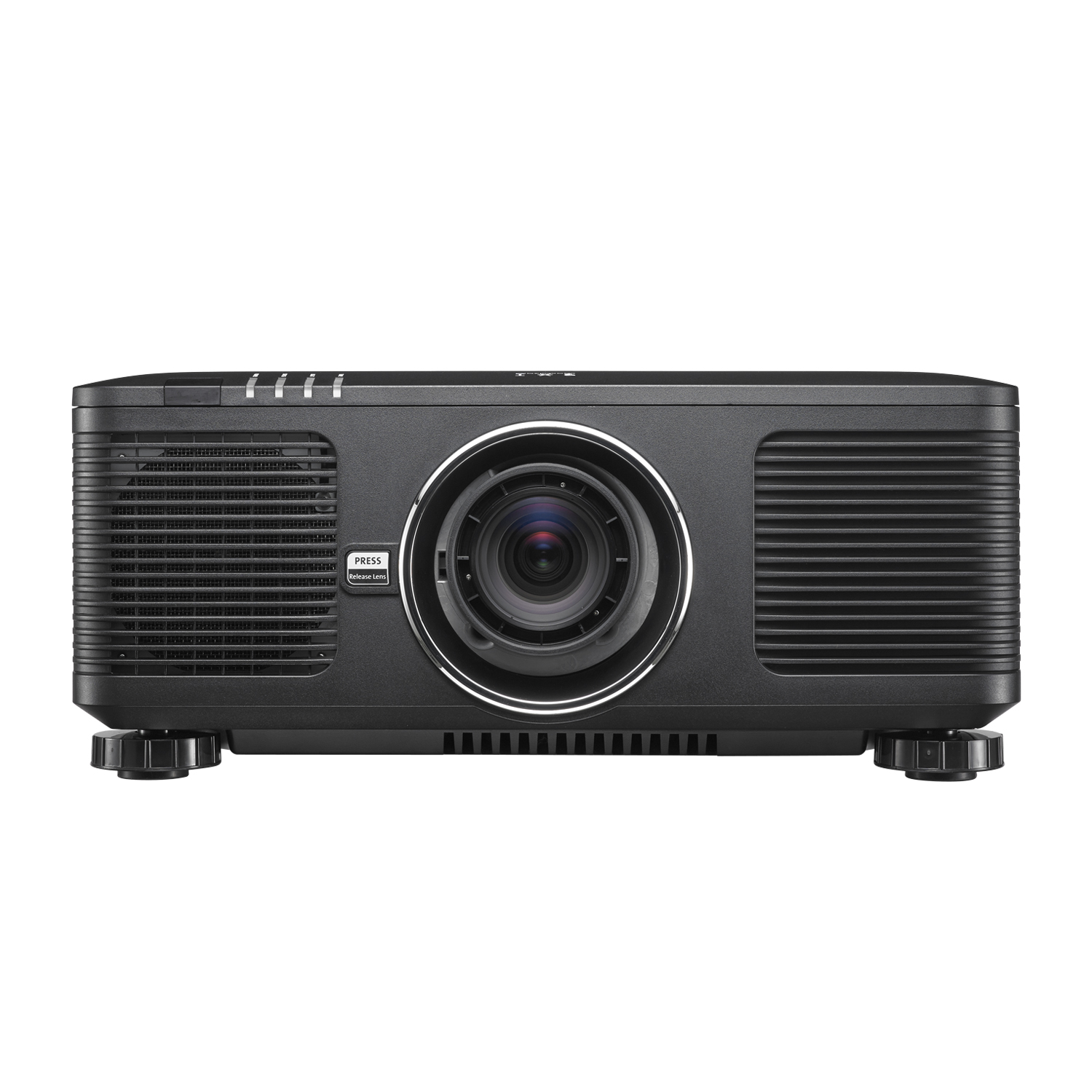

DU8195Z
High performance, high brightness WUXGA laser projector with HDBaseT™, a full suite of display ports and long life laser light source delivering high performance and prestige rich image
The DU8195Z is class leading in the next generation of advanced projection technology — LASER — at 13,500 ANSI Lumens* bright. Built lamp-free, it provides a low cost of ownership, with minimal maintenance, and gives a stable, high-quality projection for up to 20,000 hours. A sealed optical engine and filter-less design provides optimal performance, making it an ideal solution for large venues. With impressively vivid colors, the DU8195Z offers the most immersive big-screen experience available in digital projection.
Widely regarded as the future of professional and consumer projection technology, laser projectors possess numerous advantages over traditional lamp-based systems. From enhanced brightness to minimal costs of ownership, laser projectors have quickly become the optimal projection choice for a diverse range of applications.
Lamp-based Projector
Laser Projector
Enhanced Imagery
From the first time they power on to their final use before being replaced, high intensity discharge lamps (central to lamp-based projectors) steadily lose fifty percent of their initial brightness capability. While this degradation is an accepted aspect of lamp-based systems, brightness decay affects laser projectors to a much lesser degree. Over the course of their 20,000 hour lifetimes, blue laser diodes only diminish by twenty percent, resulting in greater brightness over dramatically longer periods of use. Furthermore, lasers can achieve significantly greater peak brightness levels than HD lamps, often producing twice as many lumens.
How It Works
To generate a full spectrum of color, the 3 primary colors have to be created from a single color laser – in this case, a blue laser. This is achieved by using a cluster of blue lasers that shine onto a spinning yellow phosphor wheel that also incorporates a clear segment that allows the blue light from the lasers to shine through (this is the blue primary color). The generated yellow light then passes through a color wheel that in turn generates red and green – the other primary colors. After passing through a diffusion window, the colored light is presented to the Digital Micro Mirror chip, the imaging device. The DMD switches at a very high rate and presents the on, colored pixels to the optical lens system for display on the screen or projected surface.

A simple, precise technology that is efficient and generates sharp, and clearly defined images, as only a single chip is required.
Minimal Required Maintenance
Perfect for corporate, education, retail, and government environments, where reliability and low cost of ownership are critical, the lamp-less operation of laser-based projectors grants up to 20,000 hours of sharp, maintenance-free operation. Featuring an instantaneous power-on and off, a sealed optical engine, and an airflow-optimized system layout, the DU8190Z boasts the industry-leading reliability and durability synonymous with Vivitek.
Excellent Connectivity
The Vivitek DU8190Z provides the connections necessary for a large venue and many other enviornments: HDMI input, 3G-SDI, HDBaseT, BNC for YPbPr/RGBHV, VGA input for PC and Laptop, S-Video, Composite video, IR input, Rs232c and 12V Trigger for screen automation.

LAN support compatibility of the following applications:
  • LAN Control — Cestron Roomview, Connected
  • LAN Control — Crestron eControl
  • LAN Control to RS232 (RS232 by Telnet)

NovoConnect

A Wireless Presentation & Collaboration

NovoConnect allows participants to seamlessly share content from connected device through a wireless network to conduct interactive presentations with dynamic content sources and HD display quality.

  • Laser phosphor engine incorporating a lamp-less design that is mercury-free and environmentally friendly
  • 13,500 ANSI lumens with a dynamic 10,000:1 contrast ratio for an amazing image quality
  • Built-in color sensor to maintain constant color and an optimal brightness ratio
  • Low maintenance with up to 20,000 hours of operating time
  • Native WUXGA resolution with a maximum WUXGA resolution
  • Built-in hardware edge blending and warping functionality
  • Powered zoom, focus and lens shift (horizontal/vertical) for easy adjustment and positioning flexibility
  • Lens Positioning Memory (LPS) for quick recall of user defined lens positions (focus, zoom and lens shift)
  • Picture-in-Picture (PIP) for simultaneously image projection from two different active sources
  • Full suite of display connectivity inputs and outputs including: HDMI v1.4a, DVI-D, Component (5 BNC) , VGA-In, 3G-SDIIn/ Out, VGA-Out, HDBaseT™
  • HDBaseT™ interface with support for distribution of digital HD video content over standard CAT5e/6 LAN cable
  • 3D compatibility with DLP® Link™ and HDMI 1.4 technology support (Blu-ray, side by side, frame packing, top and bottom) for dazzling and realistic life-like images
  • Portrait mode projection allows the projector to be easily setup and installed in a 90° installation
  • 360° operation and projection design for set up in all angles
  • Network ready for integration and system administration via RJ45
  • Crestron® RoomView™ integration for network monitoring and management
  • Eight (8) interchangeable lens options with quick touch lens release design for easy lens removal and reinstallation
  • Sealed optical engine and filter-less design keep dust out and improves performance
  • 24/7 continuous operation with no downtime
Display Type Single Chip 0.67" DLP Technology by TI
Brightness 13,500 ANSI Lumens
Native Resolution WUXGA (1920 x 1200)
Contrast Ratio 10,000:1
Laser Life/Type 20,000 + hours (Laser Phosphor Light Engine)
Aspect Ratio 16:10 format
Image Size (Diagonal)* 40” – 500”
Keystone Correction Vertical ±40°, Horizontal ±60°
Horizontal Frequency 15, 31 - 90Hz
Vertical Scan Rate 24 - 30Hz, 47 - 85Hz
Projector Lens * 8 options (See page 2 for specification)
Lens Shift Range* Vertical: -33% to +64%, Horizontal: -14% to +24%
Offset* Motorize Lens Shift (See page 2 for specification)
Edge Blending Yes (Built-In)
Warping Yes (Built-In)
Computer Compatibility VGA, SVGA, XGA, WXGA,SXGA, SXGA+, UXGA, 1080P, WUXGA@60hz, Mac
Video Compatibility SDTV (480i, 576i), EDTV (480p, 576p), HDTV (720p, 1080i, 1080p
I/O Connection Ports HDMI v1.4 (x2),Component/RGBHV (5 BNC),HDBaseT™, LAN Control (RJ45), DVI, RS-232-In/Out (DB-9), 3G-SDI-In/Out, Wire Remote (3.5mm Jack), VGA In/Out, 12V Trigger (3.5mm Jack)
Projection Method Table Top, Ceiling Mount (Front or Rear)
Security Solutions Kensington® Security Slot, Security Bar, Anti-Theft Lens Screw
Dimensions (WxDxH) 19.7” x 22.8” x 8.1” (500 x 580 x 205mm)
Weight 64lbs (29Kg)
Available ID Colors Black (DU8195-BK)
Noise Level 40dB
Power Supply AC 100-240V, 50/60Hz
Power Consumption Normal Mode - 890W@100Vac,845W@240Vac
Network Standby - Less than 3W
Eco Standby - Less than 0.5W
Environment Condition Operating | 0° to 40°C, (0 to 104°F), humidity 10 to 85% non-condensation
Storage | -10°to 60°C (14 - 140°F), humidity 5 - 95% non-condensation
Standard Accessories AC Power Cord, Remote Control, Lens Cap, Anti-Theft Lens Screws, Documentation Kit
Optional Accessories Interchangeable Lens Options (x8)
UPC Code (Projector) 813097023155
NovoPro
• BYOD Collaboration & Presentation
• Up to 64 users
• iOS/Android full mirroring
• Click-n-display with Launcher
NovoEnterprise
• Screen mirroring for Windows/Mac/iOS/Android
• Collaboration
• Flexible GUI
• Enterprise-grade management software
• LauncherPlus Plug-n-Play
• Complete connectivity
Description: 30 Key funtions,New type Black remote
Part number: 5041848301
Part Number 3797866500-SVK 3797804200-SVK 3797745100-SVK 3797745200-SVK 3797744200-SVK 3797745000-SVK 3797745400-SVK 3797744900-SVK
Lens Type Ultra Short Throw Lens Ultra-Wide Zoom Lens Wide Fixed Lens Wide Zoom Lens Standard Lens Semi Long Zoom Lens Long Zoom Lens 1 Long Zoom Lens 2
UPC Code 813097021809 814964339379 814964336835 814964336842 814964336828 814964336859 814964336866 814964336873
Compatibility Compatible with DW6035/DW6030/DX6535/DX6530/DH6671/DH6771/DU6675/DX6831/DW6851/DU6871/D8800*/D8900*/D8010W*/DU8090Z***/DU8190Z***
Throw Ratio XGA: 0.39:1
WXGA: 0.40:1
1080p: 0.38:1
WUXGA: 0.38:1
XGA: 0.77-0.97:1
WXGA: 0.78-0.99:1
1080p:0.75-0.93:1v
WUXGA: 0.75-0.93:1
XGA: 0.79:1
WXGA: 0.8:1
1080p: 0.76:1
WUXGA: 0.76:1
XGA: 1.3-1.85:1
WXGA: 1.31-1.87:1
1080p:1.25-1.79:1
WUXGA: 1.25-1.79:1
XGA: 1.79-2.35:1
WXGA: 1.81-2.38:1
1080p: 1.73-2.27:1
WUXGA: 1.73-2.27:1
XGA: 2.3-3.81:1
WXGA: 2.33-3.86:1
1080p:2.22-3.67:1
WUXGA: 2.22-3.67:1
XGA: 3.71-5.57:1
WXGA: 3.76-5.64:1
1080p:3.58-5.38:1
WUXGA: 3.58-5.38:1
XGA: 5.5-8.56:1
WXGA: 5.56-8.67:1
5.31-8.26:1
WUXGA: 5.31-8.26:1
Zoom Ratio N/A 1.25x N/A 1.41x 1.3x 1.65x 1.5x 1.55x
Offset Power Lens Shift*** Power Lens Shift Power Lens Shift*** Power Lens Shift Power Lens Shift Power Lens Shift Power Lens Shift Power Lens Shift
f Value(Focal Length) 5.64mm 11.3–14.1mm 11.6mm 18.7 - 26.5mm 26 - 34mm 32.9 - 54.2mm 52.8 - 79.1mm 78.5 - 121.9mm
F Number 2.0 1.96 – 2.3 1.85 1.85 - 2.5 1.7 - 1.9 1.86 - 2.48 1.85 - 2.41 1.85 - 2.48
Image Size(Minimum/ Maximum Image Diagonal) 100” – 350” 40”– 500” 40”– 500” 40”– 500” 40”– 500” 40”– 500” 40”– 500” 40”– 500”
Projection Distance
(Projection Distance Range)
XGA: 0.83 – 2.68m
WXGA: 0.89 – 2.87m
1080p: 0.87 – 2.81m
WUXGA: 0.85 – 2.74m
XGA: 0.61–10.16m
WXGA: 0.65 –10.91m
1080p:0.64–10.66m
WUXGA:0.62–10.36m
XGA: 0.62 – 8.31m
WXGA: 0.67 – 8.92m
1080p:0.66–8.73m
WUXGA: 0.64– 8.5m
XGA: 1.03 – 19.14m
WXGA: 1.11 – 20.58m
1080p: 1.08 – 20.14m
WUXGA:1.05– 19.59m
XGA: 1.42 – 24.28m
WXGA: 1.53 – 26.11m
1080p:1.50 – 25.55m
WUXGA: 1.45– 24.85m
XGA: 1.83 – 39.42m
WXGA: 1.97 – 42.35m
1080p:1.93 – 41.45
WUXGA:1.87– 40.33m
XGA: 2.94- 57.69m
WXGA: 3.17 – 61.97m
1080p:3.10 - 60.66m
WUXGA:3.01– 59.02m
XGA: 4.31- 89.48m
WXGA: 4.65- 96.13m
1080p:4.55 – 94.09m
WUXGA:4.42– 91.54m
Focus/Zoom Adjustment Motorized Motorized Motorized Motorized Motorized Motorized Motorized Motorized
Dimensions (D x L) 313 x 421mm
(12.3” x16.6”)
100 x 141mm
(3.9 x 5.5”)
102 x 160mm
(4” x 6.3”)
100 x 166mm
(3.9” x 6.5”)
100 x 141mm
(3.9 x 5.5”)
100 x 160mm
(3.9” x 6.3”)
100 x 173mm
(3.9” x 6.8”)
100 x 210mm
(3.9” x 8.3”)
Weight 2,700g (5.9lbs) 1280g (1.8lbs) 910g (2lbs) 1,090g (2.4lbs) 820g (1.8lbs) 950g (2.1lbs) 1,020g (2.2bs) 1,350g (2.9lbs)

*Note: Not compatible with D8800/D8900/D8010W **Note: On-Axis, fixed centre screen, *** D88-WF18501 Wide Fixed Lens (3797745100-SVK) and D88-UST01 Ultra-Short Throw Lens (3797855700-SVK) are not compatible with Lens shift. Lens throw, image size and zoom ratio is subject to a 5% tolerance. Geometry is subject to a 0.6% tolerance of image height and/or width. .©2015 Vivitek. Vivitek is a trademark of Delta Electronics, Inc. Other trademarks are the properties of their respective owners. Values, weights and dimensions shown are approximate. Errors and omissions accepted. Specifications are subjection to change without prior notice.
