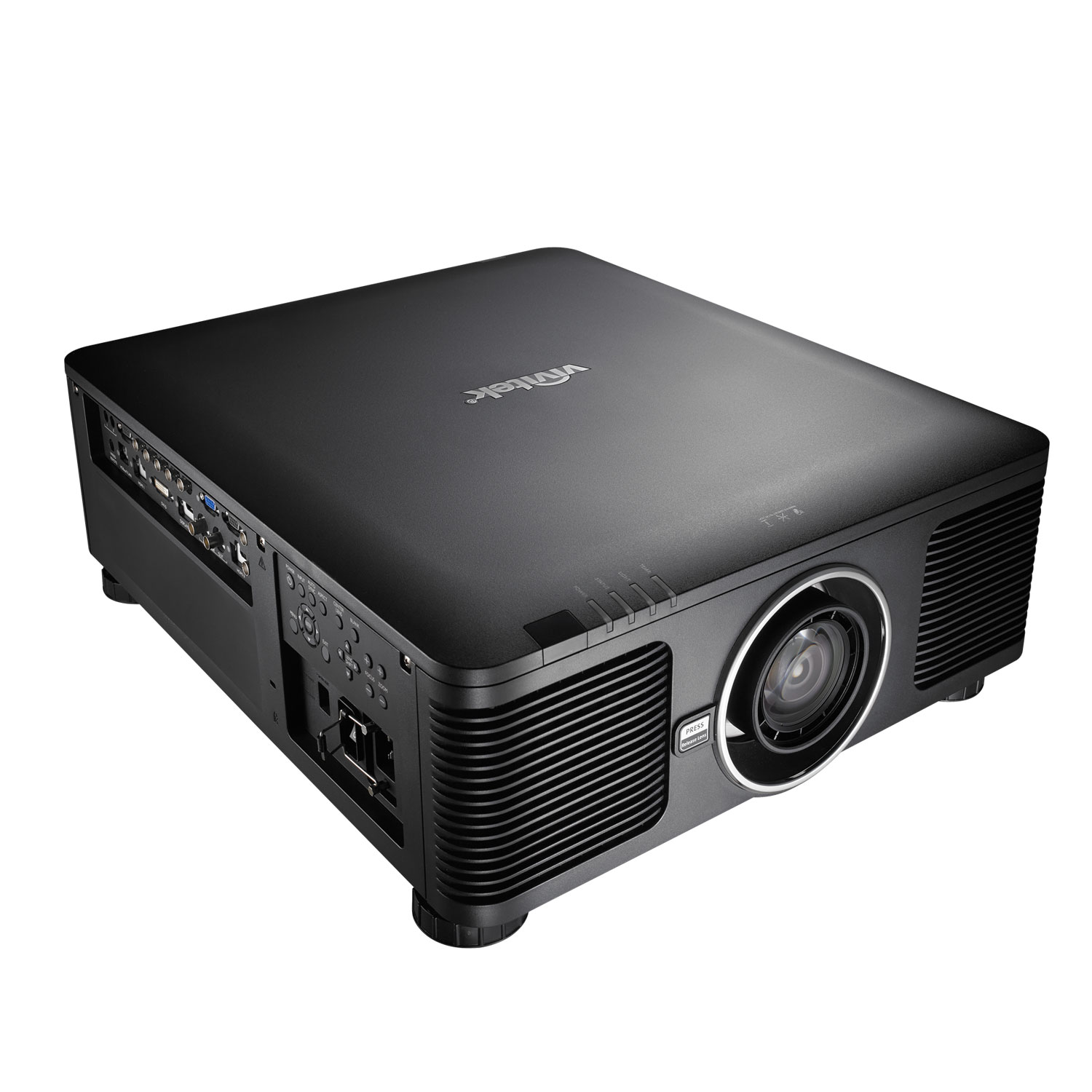

Large Venue, House of Worship & Professional Installation l DU8190Z

Widely regarded as the future of professional and consumer projection technology, laser projectors possess numerous advantages over traditional lamp-based systems. From enhanced brightness to minimal costs of ownership, laser projectors have quickly become the optimal projection choice for a diverse range of applications.

Lamp-based Projector

Laser Projector

Enhanced Imagery

From the first time they power on to their final use before being replaced, high intensity discharge lamps (central to lamp-based projectors) steadily lose fifty percent of their initial brightness capability. While this degradation is an accepted aspect of lamp-based systems, brightness decay affects laser projectors to a much lesser degree. Over the course of their 20,000 hour lifetimes, blue laser diodes only diminish by twenty percent, resulting in greater brightness over dramatically longer periods of use. Furthermore, lasers can achieve significantly greater peak brightness levels than HD lamps, often producing twice as many lumens.

How It Works

To generate a full spectrum of color, the 3 primary colors have to be created from a single color laser – in this case, a blue laser. This is achieved by using a cluster of blue lasers that shine onto a spinning yellow phosphor wheel that also incorporates a clear segment that allows the blue light from the lasers to shine through (this is the blue primary color). The generated yellow light then passes through a color wheel that in turn generates red and green – the other primary colors. After passing through a diffusion window, the colored light is presented to the Digital Micro Mirror chip, the imaging device. The DMD switches at a very high rate and presents the on, colored pixels to the optical lens system for display on the screen or projected surface.

A simple, precise technology that is efficient and generates sharp, and clearly defined images, as only a single chip is required.

Minimal Required Maintenance

Perfect for corporate, education, retail, and government environments, where reliability and low cost of ownership are critical, the lamp-less operation of laser-based projectors grants up to 20,000 hours of sharp, maintenance-free operation. Featuring an instantaneous power-on and off, a sealed optical engine, and an airflow-optimized system layout, the DU8190Z boasts the industry-leading reliability and durability synonymous with Vivitek.

Excellent Connectivity

The Vivitek DU8190Z provides the connections necessary for a large venue and many other enviornments: HDMI input, 3G-SDI, HDBaseT, BNC for YPbPr/RGBHV, VGA input for PC and Laptop, S-Video, Composite video, IR input, Rs232c and 12V Trigger for screen automation.

LAN support compatibility of the following applications:

LAN Control — Cestron Roomview, Connected
LAN Control — Crestron eControl
LAN Control to RS232 (RS232 by Telnet)

Laser phosphor projection engine incorporates a laser design that’s long lasting(20,000 hrs)and environmentally friendly
10,000 ANSI lumens*, with a dynamic 10,000:1 contrast ratio, provide amazing image quality that's stable over time
Built-in ACS (auto color sensor) for color and brightness consistency
Built-in MPS (multi projector system) hardware for edge blending, flexible geometry and warping functionality
Powered zoom, focus and lens shift (horizontal/vertical) for easy adjustment and projector position flexibility together with memory system
Picture-in-Picture (PIP) to simultaneously project images/videos from two different sources
Full suite of display connectivity inputs and outputs including: HDMI v1.4a, DVI-D, Component (5 BNC), VGA-In, 3G-SDI-In/Out, VGA-Out, HDBaseT™ (content over CAT5e/6 cable)
Full 3D compatibility with DLP® Link™ and HDMI 1.4 interface
Flexible mounting positioning - 360 degrees in any axis for ease of installation
Network connectivity for remote projector management - control and status. Ready for integration and system administration via RJ45
Eight interchangeable lens options for flexible installation and optimized brightness
Sealed optical engine and filter-less design improves performance with minimal service maintenance
Instant On/Off

Display Type	Single Chip 0.67" DLP Technology by TI
Brightness	10,000 ANSI Lumens
Native Resolution	WUXGA (1920 x 1200)
Maximum Resolution	WUXGA (1920 x 1200) at 60Hz (Reduced Blanking)
Contrast Ratio	10,000:1
Light Engine Life and Type	Up to 20,000 hours, Laser Phosphor Light Engine
Image Size (Diagonal)*	40” - 500”, 1 - 12.7 m
Aspect Ratio	16:10 format
Offset	Motorized Lens Shift, Horizontal and Vertical
Keystone Correction	Horizontal ± 60°, Vertical ± 40°
Horizontal Frequency	15 - 108 Hz
Vertical Scan Rate	50 - 85 Hz
Edge Blending	Yes (Built-in)
Warping	Yes (Built-in)
3D Functionality	Yes; DLP® Link™, HDMI v1.4 (Blu-ray, Side by Side, Frame Packing, Top and Bottom)
Lens Shift Range**	Vertical: 0-50%, Horizontal: ±10%
Computer Compatibility	VGA, SVGA, XGA, WXGA,SXGA, SXGA+, UXGA, 1080P, WUXGA at 60 Hz, Max
Video Compatibility	SDTV (480i, 576i), EDTV (480p, 576p), HDTV (720p, 1080i/p) NTSC (M, 3.58/4.43 MHz), PAL (B, D, G, H, I, M, N), SECAM (B, D, G, K, K1, L), WUXGA at 60 Hz Max
I/O Connection Ports	HDMI v1.4a (x2) DVI-D, Component (5 BNC), VGA-In, 3G-SDI-In/Out, RS-232, VGA-Out, 3D-Sync In/Out, 12v Trigger, Wired Remote, HDBaseT™/LAN (Shared)
Projection Method	Flexible 360°; Image Correction for Table Top, Ceiling Mount
Security Solutions	Kensington® Security Slot, Security Bar, Keypad Lock, Anti-Theft Lens Screw
Dimensions (WxDxH)	19.7” x 22.8” x 8.1”, 500 x 580 x 205 mm
Weight	28 kg (61.7 lbs)
Cabinet Colors	Black
Noise Level	40 dB (Normal Mode)
Power Supply	AC 100-240 V, 50/60 Hz
Power Consumption	Full Power: 1320 Watts, Standby Power < 6W
Standard Accessories	Interchangeable Lens (8), AC Power Cord, Remote, Lens Cap, Anti-Theft Lens Screw, Documentation Kit
Optional Accessories	Interchangeable Lens Options (x8), NovoPRO

NovoPro

• BYOD Collaboration & Presentation
• Up to 64 users
• iOS/Android full mirroring
• Click-n-display with Launcher

NovoTouch

NovoEnterprise

• Screen mirroring for Windows/Mac/iOS/Android
• Collaboration
• Flexible GUI
• Enterprise-grade management software
• LauncherPlus Plug-n-Play
• Complete connectivity

Description: 30 Key funtions,New type Black remote
Part number: 5041848301

Part Number	3797866500-SVK	3797804200-SVK	3797745100-SVK	3797745200-SVK	3797744200-SVK	3797745000-SVK	3797745400-SVK	3797744900-SVK
Lens Type	Ultra Short Throw Lens	Ultra-Wide Zoom Lens	Wide Fixed Lens	Wide Zoom Lens	Standard Lens	Semi Long Zoom Lens	Long Zoom Lens 1	Long Zoom Lens 2
UPC Code	813097021809	814964339379	814964336835	814964336842	814964336828	814964336859	814964336866	814964336873
Compatibility	Compatible with DW6035/DW6030/DX6535/DX6530/DH6671/DH6771/DU6675/DX6831/DW6851/DU6871/D8800/D8900/D8010W/DU8090Z/DU8190Z*
Throw Ratio	XGA: 0.39:1 WXGA: 0.40:1 1080p: 0.38:1 WUXGA: 0.38:1	XGA: 0.77-0.97:1 WXGA: 0.78-0.99:1 1080p:0.75-0.93:1v WUXGA: 0.75-0.93:1	XGA: 0.79:1 WXGA: 0.8:1 1080p: 0.76:1 WUXGA: 0.76:1	XGA: 1.3-1.85:1 WXGA: 1.31-1.87:1 1080p:1.25-1.79:1 WUXGA: 1.25-1.79:1	XGA: 1.79-2.35:1 WXGA: 1.81-2.38:1 1080p: 1.73-2.27:1 WUXGA: 1.73-2.27:1	XGA: 2.3-3.81:1 WXGA: 2.33-3.86:1 1080p:2.22-3.67:1 WUXGA: 2.22-3.67:1	XGA: 3.71-5.57:1 WXGA: 3.76-5.64:1 1080p:3.58-5.38:1 WUXGA: 3.58-5.38:1	XGA: 5.5-8.56:1 WXGA: 5.56-8.67:1 5.31-8.26:1 WUXGA: 5.31-8.26:1
Zoom Ratio	N/A	1.25x	N/A	1.41x	1.3x	1.65x	1.5x	1.55x
Offset	Power Lens Shift***	Power Lens Shift	Power Lens Shift***	Power Lens Shift	Power Lens Shift	Power Lens Shift	Power Lens Shift	Power Lens Shift
f Value(Focal Length)	5.64mm	11.3–14.1mm	11.6mm	18.7 - 26.5mm	26 - 34mm	32.9 - 54.2mm	52.8 - 79.1mm	78.5 - 121.9mm
F Number	2.0	1.96 – 2.3	1.85	1.85 - 2.5	1.7 - 1.9	1.86 - 2.48	1.85 - 2.41	1.85 - 2.48
Image Size(Minimum/ Maximum Image Diagonal)	100” – 350”	40”– 500”	40”– 500”	40”– 500”	40”– 500”	40”– 500”	40”– 500”	40”– 500”
Projection Distance (Projection Distance Range)	XGA: 0.83 – 2.68m WXGA: 0.89 – 2.87m 1080p: 0.87 – 2.81m WUXGA: 0.85 – 2.74m	XGA: 0.61–10.16m WXGA: 0.65 –10.91m 1080p:0.64–10.66m WUXGA:0.62–10.36m	XGA: 0.62 – 8.31m WXGA: 0.67 – 8.92m 1080p:0.66–8.73m WUXGA: 0.64– 8.5m	XGA: 1.03 – 19.14m WXGA: 1.11 – 20.58m 1080p: 1.08 – 20.14m WUXGA:1.05– 19.59m	XGA: 1.42 – 24.28m WXGA: 1.53 – 26.11m 1080p:1.50 – 25.55m WUXGA: 1.45– 24.85m	XGA: 1.83 – 39.42m WXGA: 1.97 – 42.35m 1080p:1.93 – 41.45 WUXGA:1.87– 40.33m	XGA: 2.94- 57.69m WXGA: 3.17 – 61.97m 1080p:3.10 - 60.66m WUXGA:3.01– 59.02m	XGA: 4.31- 89.48m WXGA: 4.65- 96.13m 1080p:4.55 – 94.09m WUXGA:4.42– 91.54m
Focus/Zoom Adjustment	Motorized	Motorized	Motorized	Motorized	Motorized	Motorized	Motorized	Motorized
Dimensions (D x L)	313 x 421mm (12.3” x16.6”)	100 x 141mm (3.9 x 5.5”)	102 x 160mm (4” x 6.3”)	100 x 166mm (3.9” x 6.5”)	100 x 141mm (3.9 x 5.5”)	100 x 160mm (3.9” x 6.3”)	100 x 173mm (3.9” x 6.8”)	100 x 210mm (3.9” x 8.3”)
Weight	2,700g (5.9lbs)	1280g (1.8lbs)	910g (2lbs)	1,090g (2.4lbs)	820g (1.8lbs)	950g (2.1lbs)	1,020g (2.2bs)	1,350g (2.9lbs)

*Note: Not compatible with D8800/D8900/D8010W **Note: On-Axis, fixed centre screen, *** D88-WF18501 Wide Fixed Lens (3797745100-SVK) and D88-UST01 Ultra-Short Throw Lens (3797855700-SVK) are not compatible with Lens shift. Lens throw, image size and zoom ratio is subject to a 5% tolerance. Geometry is subject to a 0.6% tolerance of image height and/or width. .©2015 Vivitek. Vivitek is a trademark of Delta Electronics, Inc. Other trademarks are the properties of their respective owners. Values, weights and dimensions shown are approximate. Errors and omissions accepted. Specifications are subjection to change without prior notice.

Title	Version	Size
DU8090Z and DU8190Z Remote Communication Manual	09/2018	2.17 MB
DU8090Z DU8190Z DU8193Z DK8500Z Product Drawing (DWG)	09/2018	2.03 MB
DU8090Z DU8190Z DU8193Z DK8500Z Product Drawing (PDF)	09/2018	0.38 MB
DU8190Z Brochure		0.58 MB
Vivitek Catalog 2019	06/2019	21.59 MB
DU8190Z User's Manual	09/2018	4.77 MB
Ultra Short Throw Lens User's Manual		0.59 MB

Title	Version	Type	Size		Download
Projector Set Up Tools			16.23 MB

Low Cost of Ownership

Being lampless systems, laser projectors do not require lamp and filter replacements, resulting in dramatically low costs of ownership. In addition to virtually eliminating the cost of consumables, laser projectors need only minimal maintenance as compared to lamp-based systems, again providing users with valuable savings over time.

BrilliantColor™

BrilliantColor from Texas Instruments is a multi-color processing technology that produces vibrant images. BrilliantColor technology uses up to six colors, instead of just the three primary colors, red, green and blue, to improve color accuracy and brightens secondary colors.

DLP® Technology

DLP® chipset-based projectors produce vivid images with digital clarity and precision. The DLP® chip uses millions of tiny mirrors to reflect all the colors of visible light to project a digital image onto a screen. DLP® technology delivers high contrast ratios and minimizes the gaps between pixels for bright, sharp pictures.

5 year Warranty Parts and Labor - 3year Advanced Replacement

Standard Warranty

5-Year Warranty on Parts and Labor or 20,000 hours; whichever comes first, / 3-Year Advanced Exchange to learn more please click here
