DU5671
High brightness professional-grade WUXGA projector with full connectivity and HDBaseT™
Excellent Connectivity
The Vivitek DU5671 gives you the performance you demand under demanding presentations. Demanding presentation require keen connections: HDMI 2, DVI-D, Display Port, DVI-D, 5 BNC (YPbPr/RGBHV), VGA 2, RJ45 (HDBaseT compatible), 12V Trigger, RS-232C, 3D Sync, Wired Remote, USB (Service)
  • DLP and BrilliantColorTM technologies by Texas Instruments
  • Up to 6,200 ANSI lumens with a 2,000:1 contrast ratio
  • Native WUXGA resolution with a maximum WUXGA resolution
  • Manual zoom and focus for easy adjustment and positioning flexibility
  • Centered lens for easy installation
  • Horizontal and vertical lens shift (manual) for greater installation convenience and flexibility
  • Distorted and trapezoid image issues are easily corrected with H/V keystone, and 4-corner adjustment
  • Full suite of display connectivity inputs and outputs including: HDMI v1.4b, DVI-D, Composite Video, S-Video, Component (5 BNC) (RGBHV), VGA-In, VGA-Out
  • HDBaseT™ interface with support for distribution of HD video and digital audio content over standard CAT5e/6 LAN cable
  • 3D compatibility with DLP® Link™ and HDMI 1.4 Blu-Ray technology support
  • 3D sync port for compatibility with IR (infrared) 3D passive synchronization protocol
  • RS-232c/RJ45 ready for integration and system automation
  • Crestron® RoomView™ integration for network monitoring and management
  • Seven (7) interchangeable lens options with quick touch lens release design for easy lens installation/removal
  • Anti-theft security features include: Kensington® security slot, and security bar
Display Type Single Chip 0.65" DLP Technology by TI
Brightness 6,200 ANSI Lumens
Native Resolution WUXGA (1920 x 1200) @60Hz
Max. Resolution WUXGA (1920 x 1200) @60Hz
Contrast Ratio 2,000:1
Lamp Life/Type 1,500/2,500 hours (Normal/Eco Mode), 430W/230W
Throw Ratio 1.54 - 1.93:1
Image Size (Diagonal) 35.1" – 205.3"
Projection Distance 1.5m - 7m (4.9ft - 22.96ft)
Zoom Ratio 1.25x
Aspect Ratio 16:10
Keystone Correction Vertical ±30°, Horizontal ±30°
Horizontal Frequency 15, 31 - 91.4Hz
Vertical Scan Rate 24 - 30Hz, 47 - 120Hz
3D Yes (DLP® Link™, HDMI 1.4 (Blu-Ray 3D)
Speaker 3W (x1)
Lens Shift Range Vertical: -20% - +60%, Horizontal: -5% - +5%
Computer Compatibility VGA, SVGA, XGA, SXGA, SXGA+, UXGA, WUXGA@60hz, Mac
Video Compatibility SDTV (480i, 576i) / EDTV (480p, 576p) / HDTV (720p, 1080i, 1080p), NTSC (M, 3.58/4.43 MHz), PAL (B,D,G,H,I,M,N) SECAM (B,D,G,K,K1,L)
I/O Connection Ports HDMI v1.4b (x2), DVI-D, Composite Video, S-Video, Component (5 BNC) (RGBHV), VGA-In (x2), Audio- In RCA (L/R), Audio-In (Mini-Jack)(x2), Audio-Out (Mini-Jack), VGA-Out, 3D Sync-Out, USB Type A Power (5V/1.5A), RJ45, 12V Trigger, RS-232-In, Wired Remote-In, HDBaseT™, USB (Service)
Projection Method Table Top, Ceiling Mount (Front or Rear)
Security Solutions Kensington® Security Slot, Security Bar, Keypad Lock
Dimensions (W x D x H) 431 x 344 x 180m (17"x 13.5" x 7.1")
Weight 8.8kg (19.4lbs)
Available Colors White
Noise Level 43dB/38dB (Normal/Eco. Mode)
Power Supply AC 100-240V, 50/60Hz
Power Consumption 540W (Normal Mode), 460W (Eco. Mode), <0.5W (Standby Mode), <2W (LAN Standby Mode)
Standard Accessories AC Power Cord, VGA Cable, Remote Control, Documentation Kit
Optional Accessories Interchangeable Lens Options (x7)

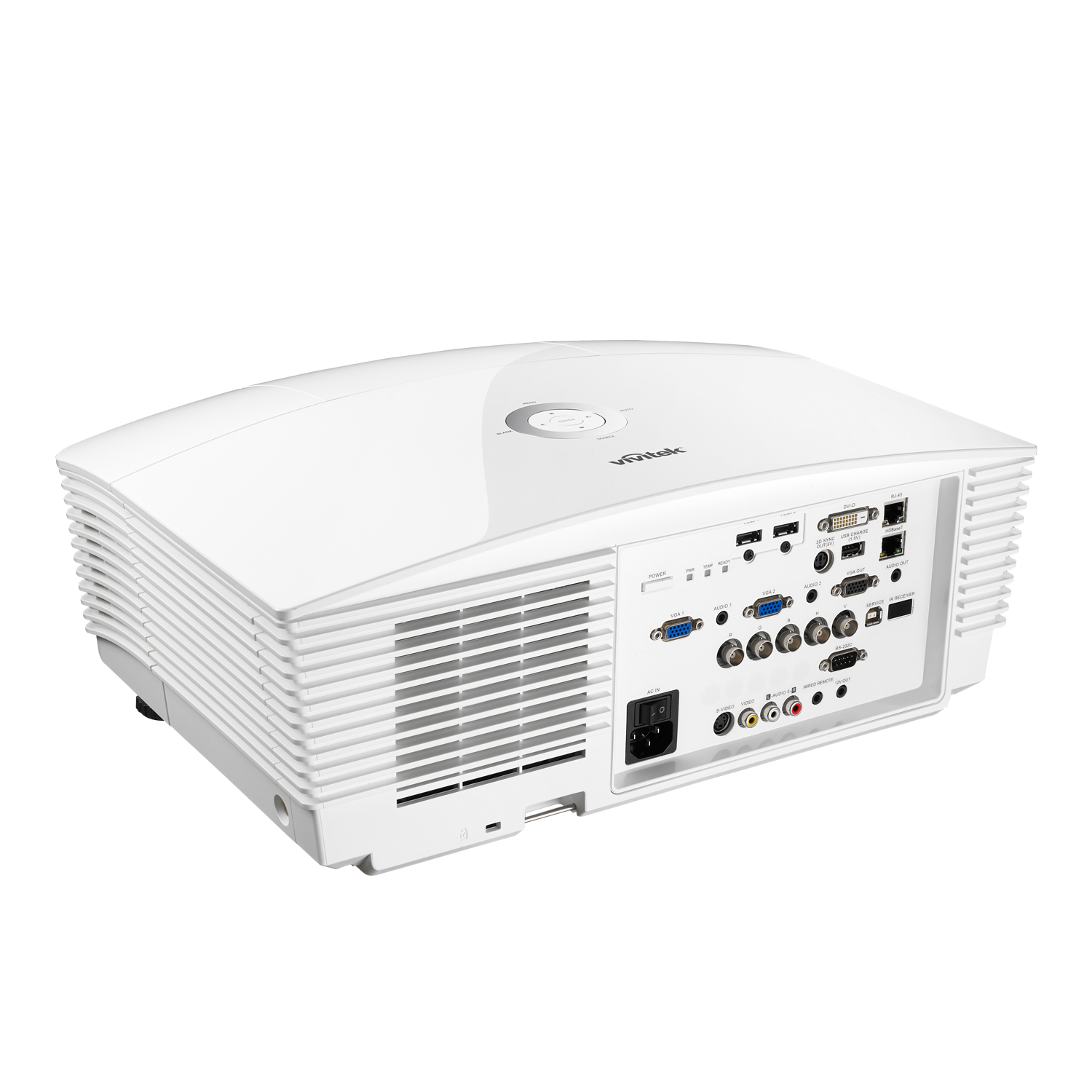

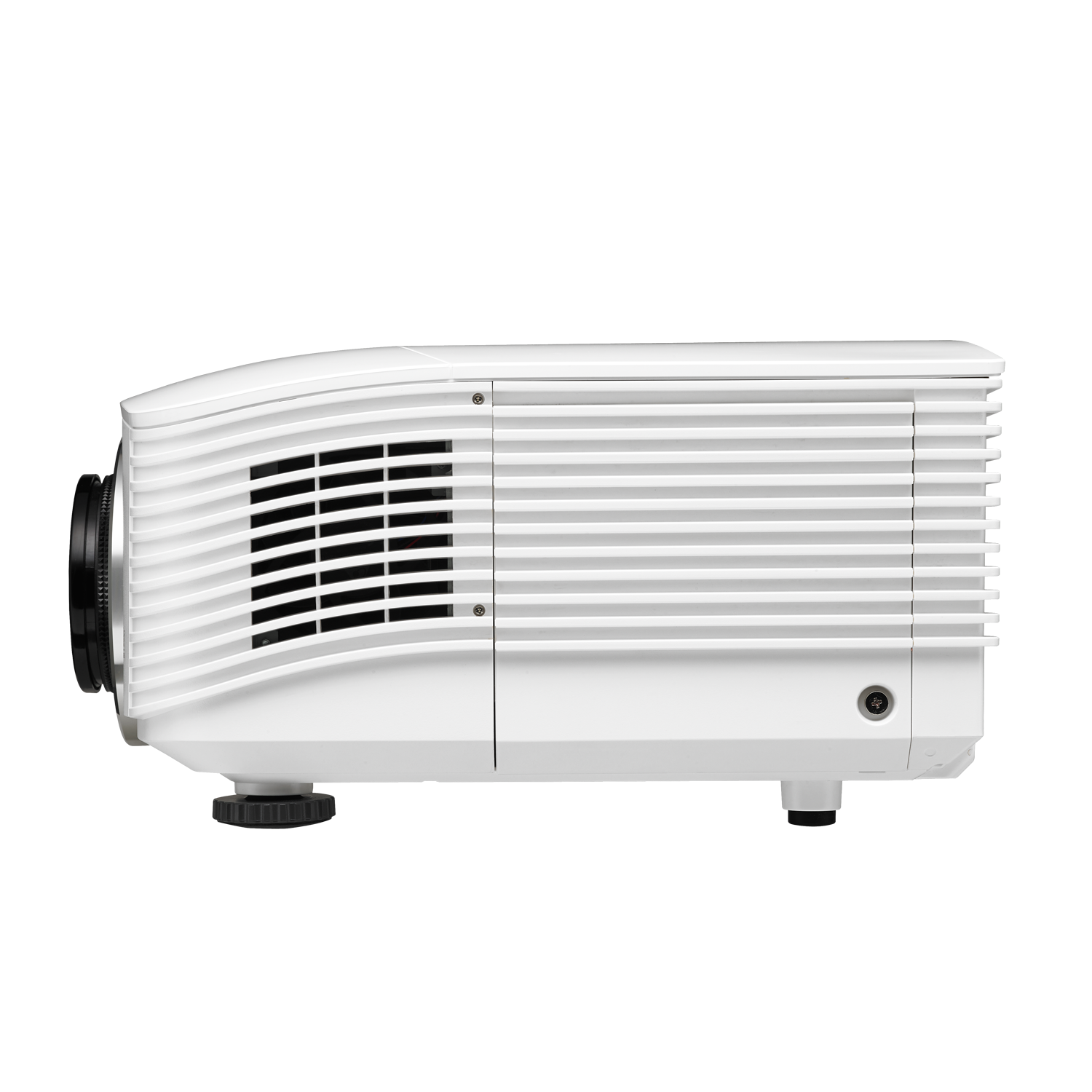

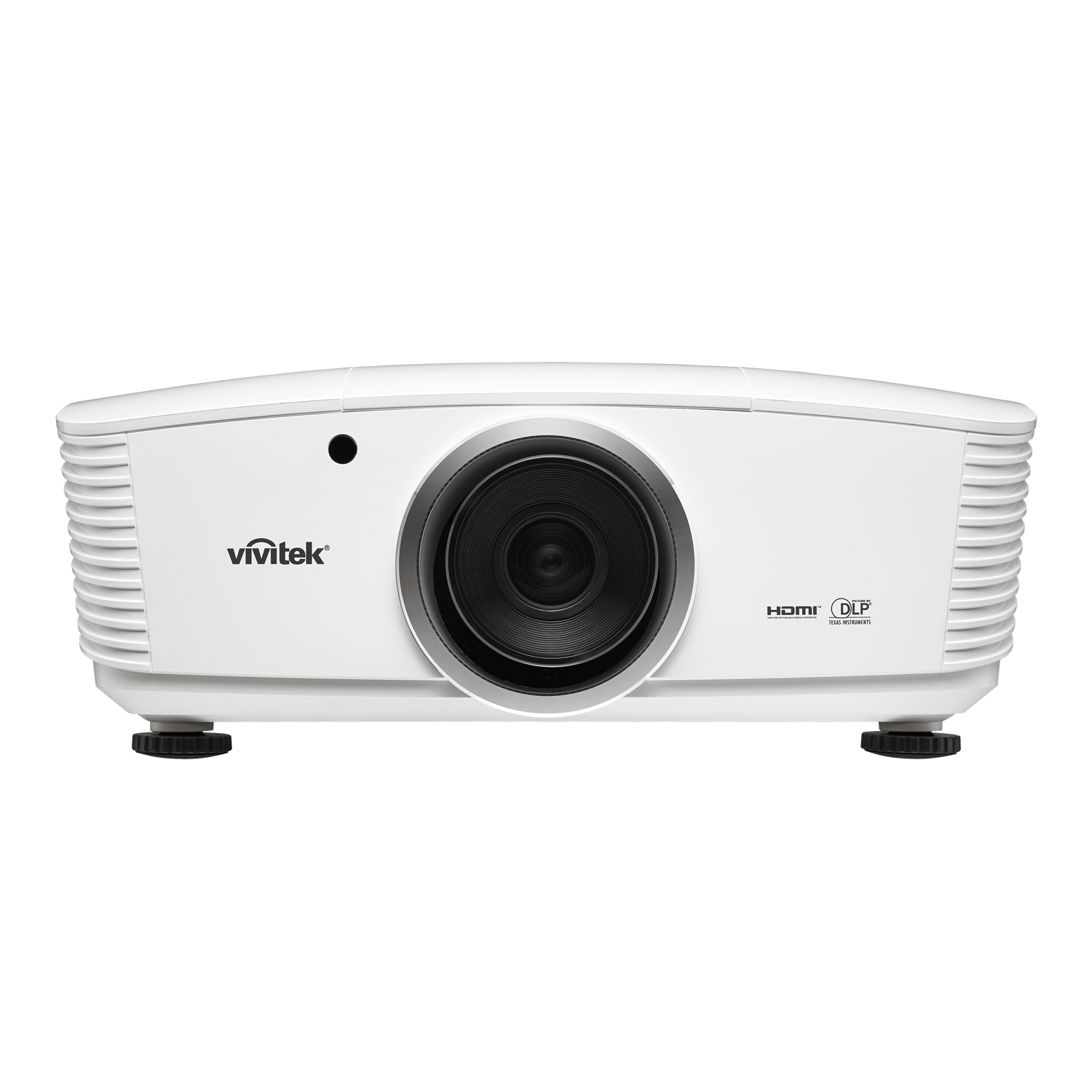

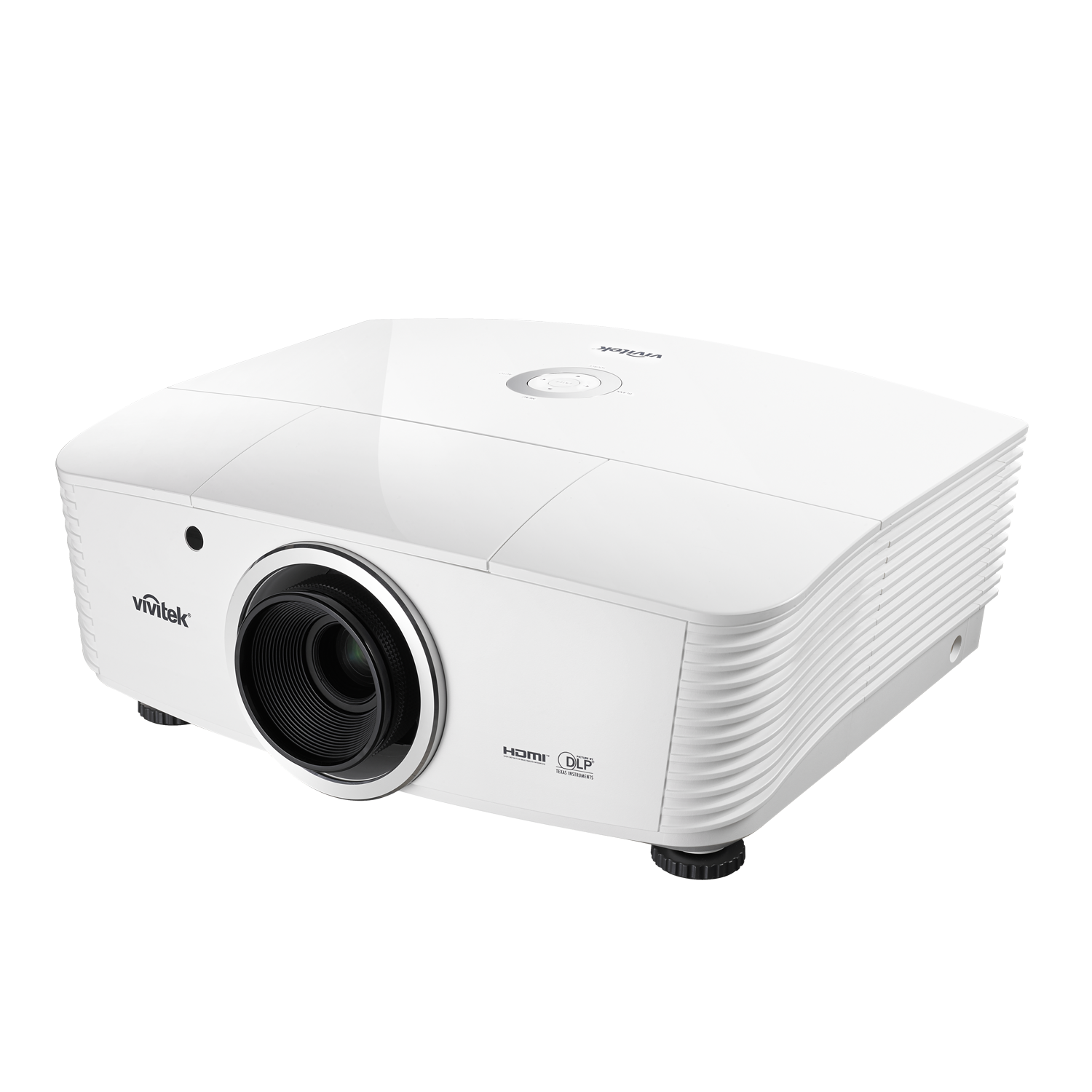

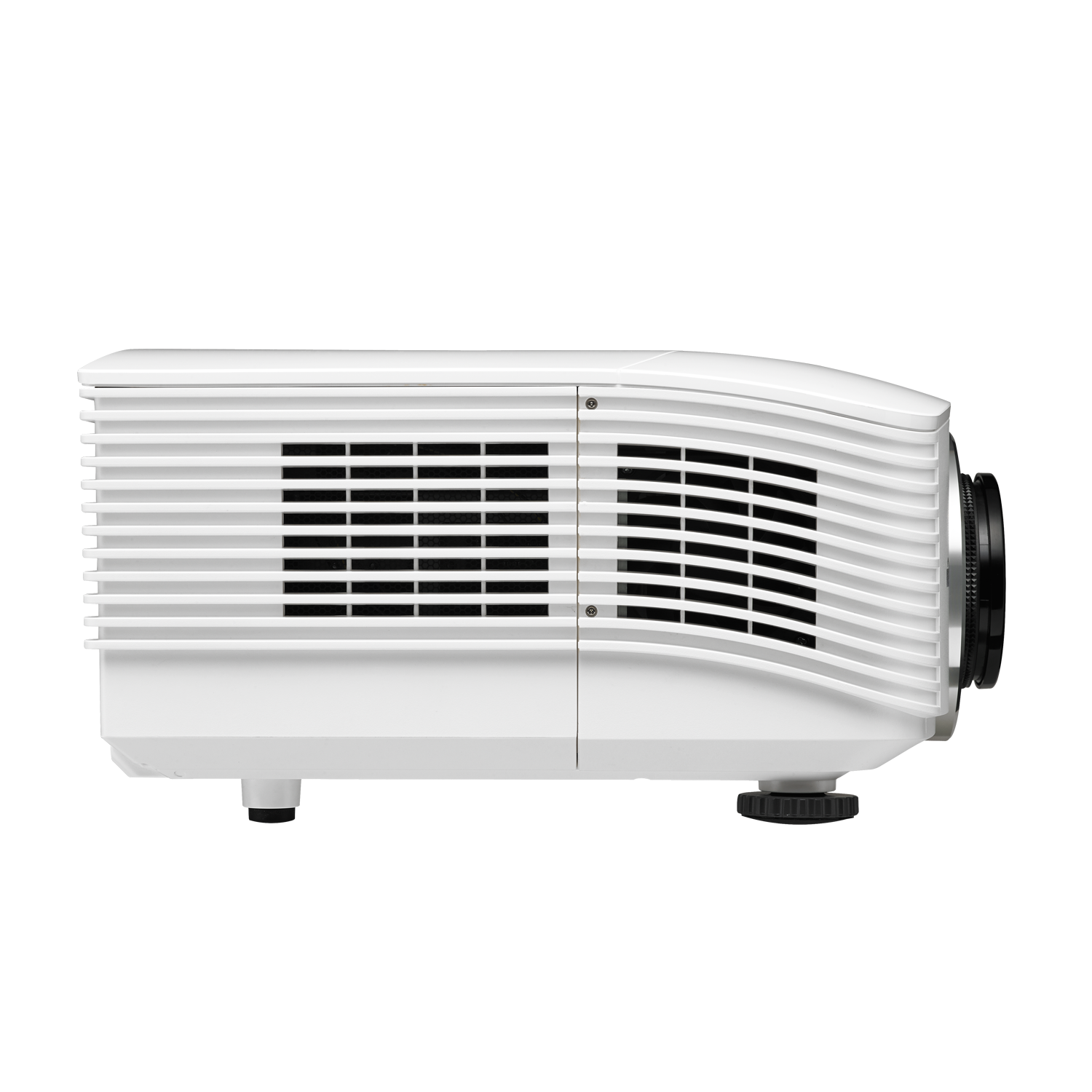

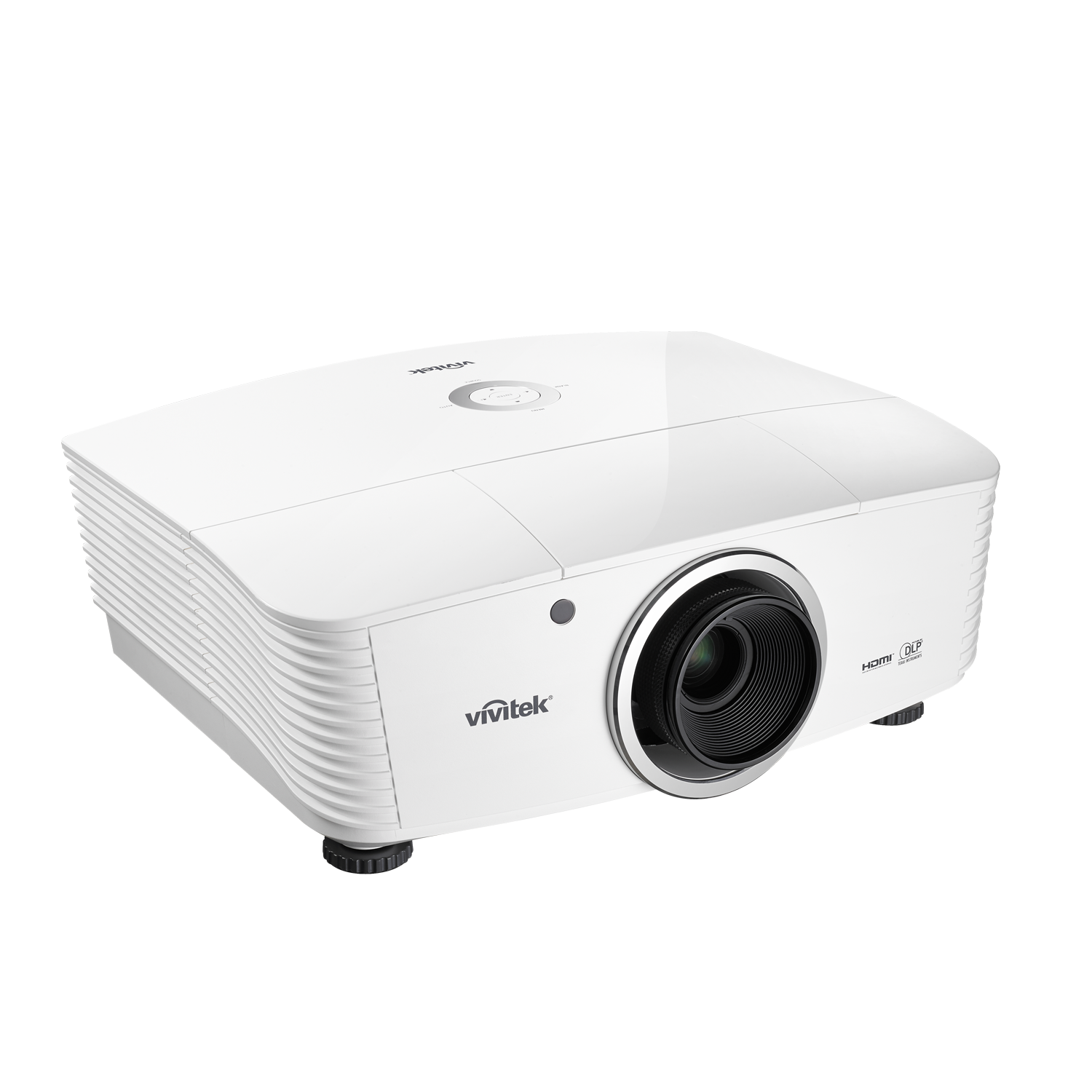

Images
Model Number VL904G/LNS-5FX2 VL907G/LNS-5STZ VL901G/LNS-5SZ1 VL905G/LNS-5LZ1 VL909G/LNS-5LZ2
Part Number 5811120818-SVV 5811120054-SVV 5811116223-SU 5811116224-SU 5811120055-SVV
Lens Type Short Throw Lens Standard Short Throw Lens Standard Lens Long Throw Lens Super Long Throw Lens
Throw Ratio 0.78:1 1.1 - 1.3:1 1.54 - 1.93:1 1.93 - 2.9:1 3 - 5:1
Zoom Ratio N/A 1.18x 1.25x 1.5x 1.67x
f Value(Focal Length) 11.46mm 16.64 - 19.54mm 22.8 - 28.5mm 28.5 - 42.75mm 44.5 - 74.19mm
F Number 2.54 2.05 - 2.27 2.46 - 2.56 2.5 - 3.1 2.2 - 2.5
Image Size 47.8" - 298.3" 35.8" - 379.8" 36.1" - 300" 32.1" - 481.1" 27.9" - 309.5"
Projection Distance
(Approximate)
0.8 - 5m 1 - 9m 1.5 - 9.95m 2 - 20m 3 - 20m
Focus/Zoom Adjustment Manual/NA Manual Manual Manual Manual
Accessories Lens Hood and Cap Lens Hood and Cap Lens Hood and Cap/td> Lens Hood and Cap Lens Hood and Cap
Dimensions 88 x 132mm (3.5” x 5.2”) 126 x 196mm (4.9” x 7.7”) 88 x 131mm (3.5” x 5.1”) 88 x 131mm (3.5” x 5.2”) 98 x 175mm (3.8” x 6.8”)
Weight 450g (0.99lbs) 1240g (2.734lbs) 400g (0.88lbs) 450g (0.99lbs) 810g (1.786lbs)

*Lenses sold separately.
