DU4875Z
High Performance, high brightness WUXGA laser projector with HDBaseT™, MHL Compatibility and 3D Video Ready
Excellent Connectivity
The Vivitek DU4775Z-BK gives you the performance you demand under demanding presentations. Demanding presentation require keen connections: HDMI, HDMI 2, HDMI 3, DVI-D, 5 BNC (YPbPr/RGBHV), VGA, RJ45 (HDBaseT compatible), RS-232C, 3D Sync, Wired Remote, USB (Service), Audio In, Audio Out

NovoConnect

A Wireless Presentation & Collaboration

NovoConnect allows participants to seamlessly share content from connected device through a wireless network to conduct interactive presentations with dynamic content sources and HD display quality.

LEARN MORE BUY NOW
  • 7,000 lumens of brightness with a 20,000:1 contrast ratio
  • Native WUXGA (1920 x 1200) DLP® DarkChip3™ and BrilliantColor™ technologies for sharp, detailed and vibrant colorful image
  • Solid state laser phosphor light source for reliable projection and performance
  • Environmentally friendly lamp-less design that is mercury-free and energy efficient
  • Almost maintenance-free with up to 20,000 hours of operating time
  • Manual zoom and focus for easy adjustment and positioning flexibility
  • Horizontal and vertical lens shift for greater installation convenience and flexibility
  • Distorted and trapezoid image issues are easily corrected with keystone, and 4-corner adjustment
  • MHL device compatibility for streaming of video and audio content from a compatible mobile device
  • HDBaseT™ interface with support for distribution of HD video and digital audio content over standard CAT5e/6 LAN cable
  • Full suite of display connectivity inputs and outputs
  • 10W of total stereo audio power (5W x 2) with multiple audioin and audio-out ports
  • 3D sync port for compatibility with IR (infrared) 3D passive synchronization protocol
  • 360° operation and projection design for set up in all angles
  • Portrait mode projection allows the projector to be easily setup and installed in a 90° installation
  • Airtight sealed engine and filter-less design for improved performance against fighting dust and fibers
  • Network ready for integration and system administration via RJ45
  • Crestron® RoomView™ integration for network monitoring and management
  • Anti-theft security features include: Kensington® security slot, security bar
    •
    Display Type Single 0.67” DLP® Technology by Texas Instruments
    Brightness (Typical) 7,000 ANSI Lumens
    Native Resolution WUXGA (1920 x 1200), 16:10 Format
    Contrast Ratio 20,000:1 (Full On/Off)
    Laser Life and Type 20,000 + hours (Laser Phosphor Light Engine)
    Throw Ratio 1.15 to 1.9:1 (Distance/Width)
    Image Size (Diagonal) 37 – 202”
    Projection Distance 4.9’ to 16.4’ (1.5 to 5m)
    Projection Lens F# 2.45 – 3.13, f=17.23 – 27.9mm
    Zoom Ratio 1.65:1 Manual Zoom/Focus
    Aspect Ratio 16:10 Native
    Offset 115% - 130%
    Keystone Correction ± 30° Vertical, Horizontal ± 30°
    Color Spectrum 1.07 Billion
    Horizontal Scan Rate 15, 31 ~ 102KHz
    Vertical Scan Rate 24 ~ 30Hz, 47 ~ 120Hz
    3D Functionality Full 3D (Via DLP® Link™, Blu-ray and Broadcast 3D)
    Speaker 5W(x2), 10W total
    Lens Shift Range Vertical: 12%,
    Horizontal: +/- 5%
    Remote Control Fully Featured IR Remote
    Projection Method Table Top or Ceiling Mount (Front or Rear)
    Uniformity 85%
    Computer Compatibility WUXGA, UXGA,WXGA, SXGA+, SXGA, XGA, SVGA, VGA Resized; VESA Standards; PC and Macintosh Compatible
    Video Compatibility HDTV (1080i/p, 720p), SDTV(480i, 576i), EDTV (480p, 576p), SDTV(480i, 576i), NTSC 4.43, PAL B/G/H/I/M/N 60, SECAM

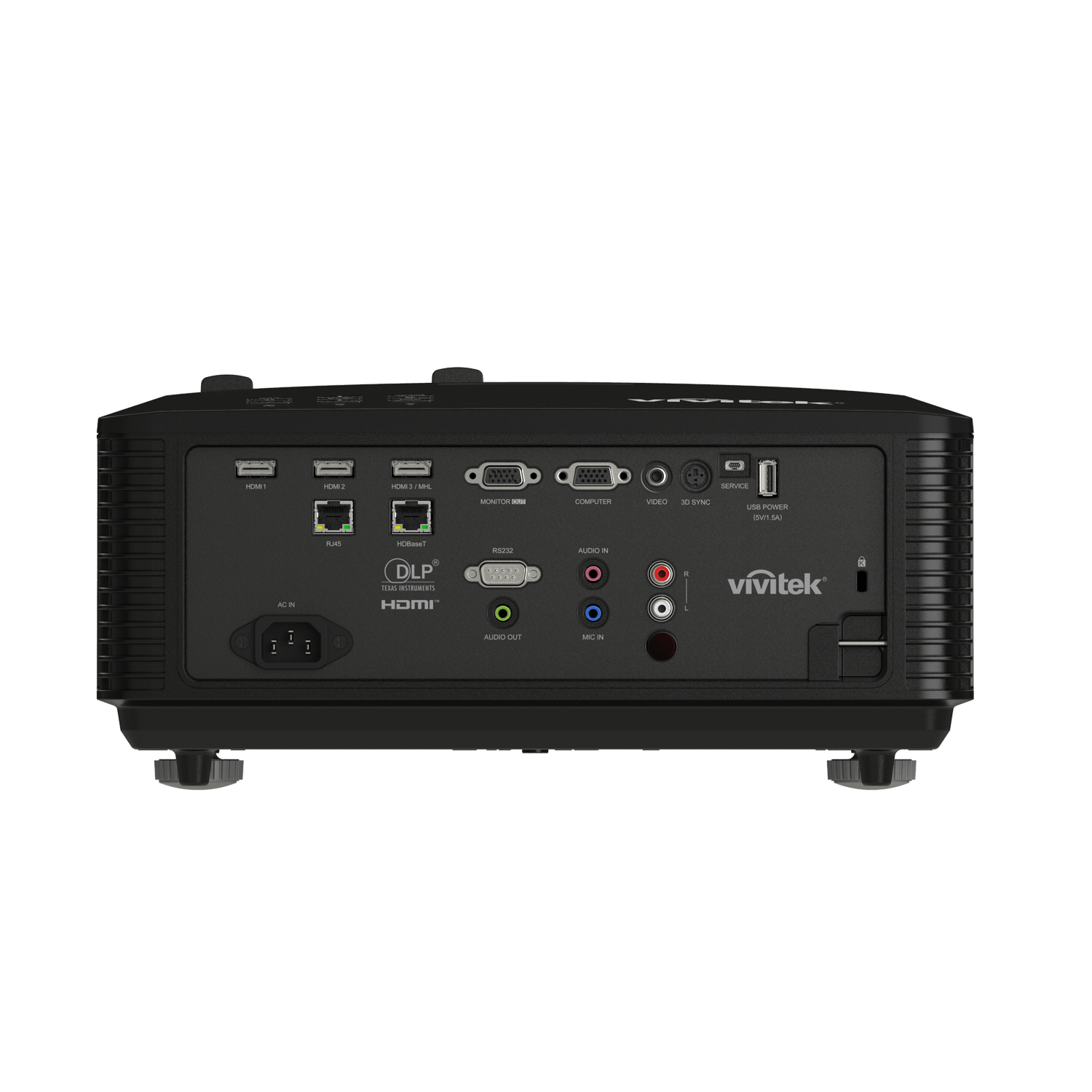

    I/O Connection Ports HDMI (x3) HDMI 1.4b/MHL Microphone-In (Mini-Jack)
    HDMI v1.4b (x2) RJ45 (LAN)
    HDBaseT™ (RJ45) RS-232c
    VGA-In/Out 3D Sync
    Composite Power-Out (5V/1.5A) USB Type A
    Audio-In RCA L/R Audio-Out (Mini Jack)
    Mini-Jack Service Only (USB Type B)
    Security Kensington® Lock Port, Security Bar
    Weight 23.6lbs (10.7kg)
    Dimensions (W x D x H) 14.2" x 17.8" x 6.5" (360 x 451.6 x 166mm) With Feet
    14.2” x 17.8” x 6.0” (360 x 451.5 x 151mm) Without Feet
    Noise Level 38dB / 33dB (Normal / Eco)
    Power Supply: AC 100-240V, 50/60Hz
    Consumption: 530W/380W (Normal/Eco)
    <0.5W (Standby Mode), < 2W (LAN Standby)
    Operating Temperature 41 to 104°F (5 to 40°C)
    Warranty 5-Year Limited Parts/Labor
    Standard Accessories AC Power Cord, VGA Cable, Remote Control, Batteries for Remote, User Manual (CD), Warranty Card
    Optional Accessories Wireless Collaboration System NovoPro
    Wireless Collaboration System NovoDS
    Remote Control P/N: 5041846600
    UPC DU4875Z-BK: 813097026101
    NovoTouch
    NovoEnterprise
    • Screen mirroring for Windows/Mac/iOS/Android
    • Collaboration
    • Flexible GUI
    • Enterprise-grade management software
    • LauncherPlus Plug-n-Play
    • Complete connectivity
    Description: 36 Key funtions,New type white remote
    Part number: 5041846601
    Title Version Type Size   Download
    DU4875Z Datasheet 11/24 pdf 0.54 MB
    DU4771Z/DU4775Z User Manual 04/2021 pdf 0.08 MB
    DX46xxZ Remote IR Codes 04/2021 csv 0.01 MB
    Vivitek Catalog 2019 06/2019 pdf 21.59 MB
    DX46xxZ RS-232 and LAN 04/2021 pdf 1.53 MB
    DX46xxZ Product Drawing 04/2021 pdf 1.03 MB
    DX46xxZ Product Drawing 04/2021 dxf 0.08 MB
    Frequently Asked Questions
    I plug my computer in to the projector and I don’t get an image.
    The projector has many input connectors. Each connector is labelled (HDMI 1, RGB 1 ....). Ensure the projector is switched to that input using the “Source” button on the projector. Also, the computer may require a toggle switch to turn on the output port. This is typically accomplished by holding down the “Fn” at the same time as a Function key. Each laptop manufacturer may use a different “function” key. Typically, it is F4 or F8. The symbol on the key is usually a laptop as well as a square. Please refer to your laptop manufacturers Users Guide for additional information.
    Is it OK to use 3rd. party lamps or lamps quoted to be Original Equipment Manufacturer lamps?
    Please refer to lamp warranty under Warranty tab and then Vivitek Warranties, as using lamps that are not Vivitek supplied may result in warranties being voided and your projector not meeting required safety standards. Lamp manufacturers provide many different classes of lamps and projectors are built around a specific lamp. While being “original manufacturer” lamps, it is not guaranteed that the class of lamp is the same as the Vivitek specified lamp from the manufacturer.
    My projector won’t turn on via an RS232 or IP command. If it is powered on, other commands work fine.
    In the menu, go to Settings 2 menu, then Advanced 1 menu. Turn Low Power Mode to OFF.
    How often should I change the filters in my DLP?
    The majority of Vivitek projectors, due to sealed DLP optics, do not require filters. This eases maintenance requirements.The filters can be cleaned with running water. Please make sure to let them dry completely before installing them back. The filters should be changed if they are torn or worn.
    How do I take care of my DLP?
    Please refer to Warning and Precautions in the User's Manual.
    Why are the lamps so expensive?
    The selling price of the lamps is based on the purchase price we obtain from the manufacturers. Vivitek would reflect the price reduction if there is any from the manufacturers.
    Why do I have to replace the lamp myself?
    Lamp is a consumable part that needs to be replaced regularly. Customers can have a technician do the replacement, but the labor would not be covered by the manufacturer's warranty.
    Why can't I order a lamp over the phone?
    At the current stage, we don't process orders over the phone to protect our customers' credit card information. When the credit card information is sent to us by fax, only employees with authorization have access to this information.
    Does HD really look better than SDTV?
    Yes. HDTV has at least twice the linear resolution of standard-definition television (SDTV), thus allowing much more detail to be shown compared with analog television or regular DVD. In addition, the technical standards for broadcasting HDTV are also able to handle 16:9 aspect ratio pictures without using letterboxing or anamorphic stretching, thus further increasing the effective resolution for such content.
    Where can I send a letter praising your products and customer support?
    Customers can send us an email at customerservice@vivitekcorp.com.
    How do I get another copy of my manual?
    User's Manual can be downloaded here.
    What other kinds of products do you make?
    Vivitek also manufactures DLP projectors.
    How long has Vivitek been in business
    Vivitek was established in 2004.
    What are the advantages of DLP over LCD or Plasma?
    Please refer to Texas Instrument's website Here
    What is DLP and how does it work?
    Please refer to Texas Instrument's website Here
    How do I get warranty service?
    By calling our tech support at 877-603-3582 and providing the proof of purchase when required. Their hours of operation are from Monday to Friday, 9AM to 6PM Pacific time.
    What is the life expectancy of my projector lamp?
    Lamps typically last about 1,500 ~ 10,000 hours. Usually the higher the brightness, the lower the lamp hours. Keep in mind however that some lamps won't make it all the way to their estimated life spans. If you operate your projector in a warm environment that is not adequately ventilated or at higher elevations without switching to “high altitude” mode in the menu, this will reduce lamp life. It is also strongly recommended that the projectors be connected to a surge protector as power surges can damage your lamp. Adhering to the recommended power-off cycling will assist in maintaining lamp life. Frequent powering on/off will also reduce lamp life expectancy so it may be better to leave the projector on if you intend to use again within 20 minutes. Using the projector in Economy mode will extend your lamp life.
    How do I replace the lamp myself?
    In the user's manual, there is a section that shows you how to replace the lamp.
    How much do replacement lamps/remotes cost?
    You will need to contact your local/online reseller. Vivitek is available through authorized retailers, e-tailers, dealers, distributors and resellers. Vivitek has partnered with key partners around the U.S. These authorized partners can be found under the where to buy section.
    How do I register my projector for warranty?
    Complete and mail in the registration card included with the purchase of your product or fill out the online product registration here.
    What is DLP® technology and how does it work?
    DLP®-based projectors produce stunning images with digital clarity and precision. The DLP chip uses millions of tiny mirrors to reflect all colors of visible light to project an all-digital image on the screen. Click here for more detailed information.
    Where can I purchase your products?
    Vivitek is available through authorized retailers, e-tailers, dealers, distributors and resellers. Vivitek has partnered with key partners around the U.S. These authorized partners can be found under the where to buy section.
    How do I synchronize my laptop with my projector?
    On most laptops, hold down the 'Fn' + 'F4' keys. This may vary, depending on you laptop's brand it may not be 'F4', but 'F5', 'F7' or 'F8'. On the correct function key, there is a symbol 2 squares, have the letters "LCD", or have the symbol of a laptop/square on it. Please refer to your laptops user's guide for additional information.
