Consumer
D555WT

Versatile High Contrast Full 3D Projector with MHL Functionality and Built-in Audio

The D555WT 3D digital projector from Vivitek. It features DLP® and BrilliantColor™ technologies to display distinct, vibrant images in a widescreen format. The Vivitek D555WT features numerous connectivity options including MHL/HDMI v1.4, a brightness level of 3000 ANSI Lumens, and a 15000:1 contrast ratio. The projector features also Direct-3D, ensuring that the D555WT is more than capable of handling media applications available now and in the future.
Excellent Connectivity

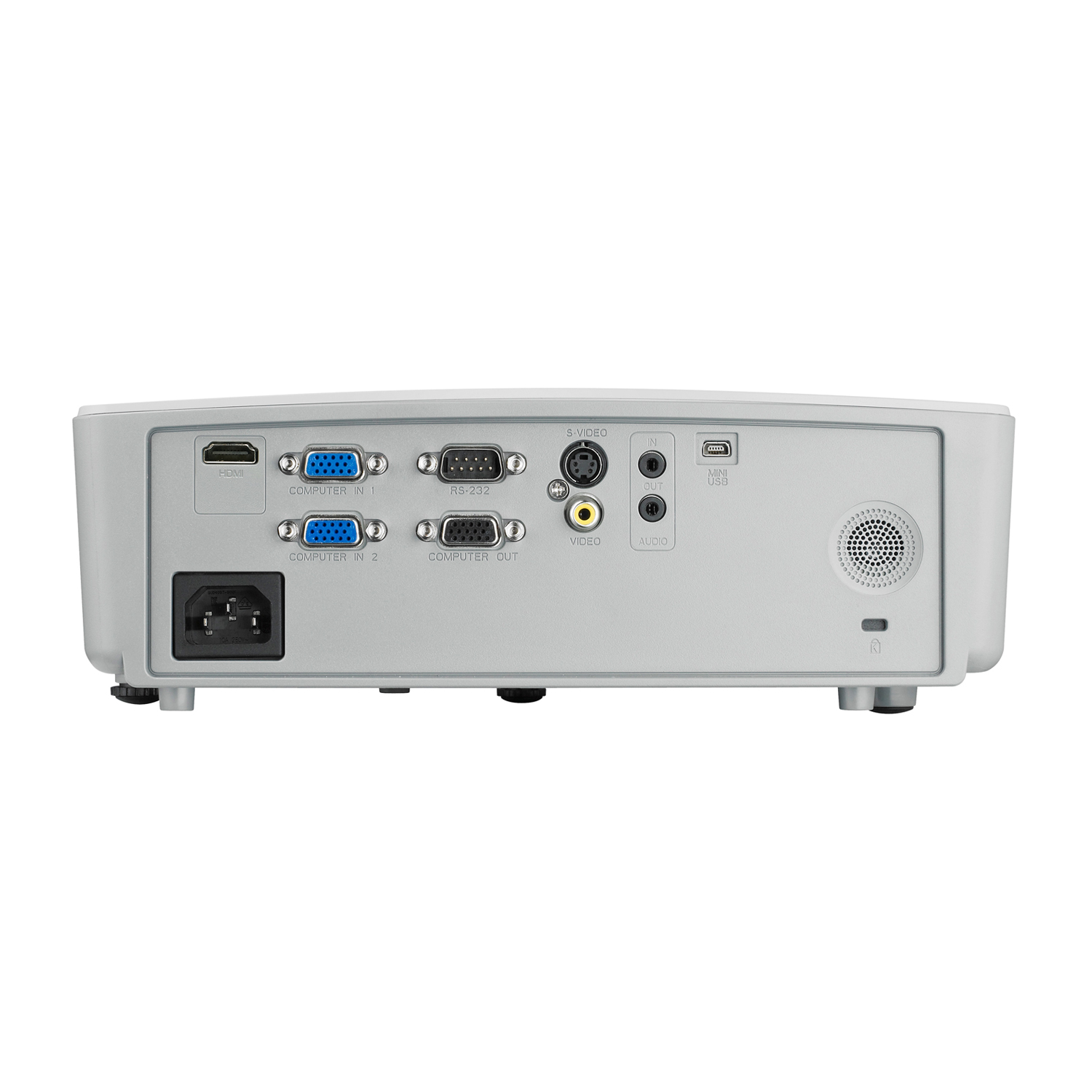

The D555 includes all the necessary connections to deliver the vibrant images you want: HDMI v1.4, VGA-In (x2)for PC/Laptop, Composite Video, S-Video, Mini-Jack Audio-In, RS-232c and Mini-USB (Service)

3D Projection

Thanks to their dedicated internal processors, Vivitek’s 3D-capable projectors are compatible with PCs, game consoles, blu-ray players, and more.

  • Native XGA (1024 x 768) resolution and displays up to WUXGA
  • Bright 3,000 ANSI lumens and a sharp 15,000:1 contrast ratio
  • High-efficiency lamps that last up to 10,000 hours (in Dynamic Eco mode)
  • 5 segment color wheel (RGBYW) for improved color brightness and automatic gain control
  • MHL device compatibility for streaming of video and audio content from a compatible mobile device
  • Full 3D Capability (Via DLP® Link™, BluRay 3D)
  • Built-in 2W audio speaker for high quality audio playback
  • DLP and BrilliantColor technologies by Texas Instruments
  • Advanced connectivity with HDMI v1.4, dual VGA inputs, VGA output, Composite Video and S-Video
  • Video Auto Gain Control to Enhance Color Performance
  • Top-loading cover for quick and easy lamp replacement
  • Closed captioning and rapid on/off feature
  • Keypad lock feature to avoid accidental change to the setting
Brightness 3000 Lumens
Native Resolution XGA (1024 x 768)
Max. Resolution WUXGA (1920 x 1200)
Contrast Ratio 15,000:1 (Full On/Off)
Lamp Life and Type 5000/6000/10,000 Hours (Normal/Eco/Dynamic Eco Mode), 190W
Lamp Part # 5811118154-SVV
Display Type Single 0.55” DLP® Technology by Texas Instruments
Throw Ratio (±3%) 1.92 to 2.14:1 (Distance/Width)
Image Size (Diagonal) 23" to 256" (1.0 to 7.6 m)
Projection Distance 2.95’ to 36.5’ (0.9 to 11.1 m)
Projection Lens F = 2.52-2.73, f = 24.34-25.95 mm
Zoom Ratio 1.1:1 Manual Zoom/Focus
Aspect Ratio 4:3 Native, 16:9 Compatible
Offset 128%
Keystone Correction ±40° Vertical
Color Spectrum 1.07 Billion
Horizontal Scan Rate 2D: 15, 30 to 91.4KHz/ 3D: 101.6 KHz
Vertical Scan Rate 24 to 30, 47 to 120 Hz
Speaker 2 Watt Mono
Remote Control Card-Type IR Remote
Projection Method Table Top or Ceiling Mount (Front or Rear)
Uniformity 95%
Computer Compatibility WUXGA, UXGA, WXGA, SXGA+, SXGA, XGA, SVGA, VGA Resized; VESA Standards; PC and Macintosh Compatible
3D Functionality Full 3D (Via DLP® Link™, BluRay 3D)
2D Video Compatibility SDTV(480i, 576i), EDTV (480p), HDTV (720p, 1080i/p), NTSC/NTSC 4.43, PAL B/G/H/I/M/N 60, SECAM
I/O Connection Ports MHL/HDMI v1,4 Audio-In (Mini Jack)
VGA-In (x2) Audio-Out (Mini Jack)
VGA-Out RS-232c
S-Video Mini USB (Service Only)
Video
Security Kensington® Lock Port
Weight 5.1 lbs (2.3 kg)
Dimensions (W x H x D) 10.8" x 8.35" x 3.94" (275 x 212 x 100)
Noise Level 35dB/32dB (Normal/Eco Mode)
Power Supply: AC 100-240V, 50/60Hz
Consumption: 200W (Eco Mode), 240W (Normal Mode), 0.5W (Standby Mode)
Operating Temperature 41 to 95°F (5 to 35°C)
Warranty 3-Year Limited Parts/Labor, 1-Year on Lamp
Standard Accessories AC Power Cord, VGA Cable, Remote Control, Batteries for Remote, User’s Manual (CD), Warranty Card
UPC 814964338044
Power: 190 W
Part number: 5811118154-SVV
Description: Remote Control Key Card 15 Keys
Part number: 5041823800
NovoPro
• BYOD Collaboration & Presentation
• Up to 64 users
• iOS/Android full mirroring
• Click-n-display with Launcher
NovoEnterprise
• Screen mirroring for Windows/Mac/iOS/Android
• Collaboration
• Flexible GUI
• Enterprise-grade management software
• LauncherPlus Plug-n-Play
• Complete connectivity
NovoDS4k
• HDMI-input, PoE, 1 Gbps LAN Connectivity
• 4K resolution
• Online content widgets
• Flexible, Easy-to-Create Layouts
• Intuitive Easy-to-Use Software
• Centralized Device Management
• Open Software API
LauncherPlus
• Direct Connectivity
• Compatible with Windows and Mac OS
• One-Click Control
NovoDS
• Digital signage appliance
• 4K resolution
• Intuitive playlist editing
• Remote management over network
Title Version Type Size   Download
D555WT Datasheet 08/2019 pdf 0.42 MB
D55X User's Manual pdf 3.11 MB
D55X User's Manual (French) pdf 3.25 MB
D55X User's Manual (Spanish) pdf 3.26 MB
Vivitek Catalog 2019 06/2019 pdf 21.59 MB
Frequently Asked Questions
I plug my computer in to the projector and I don’t get an image.
The projector has many input connectors. Each connector is labelled (HDMI 1, RGB 1 ....). Ensure the projector is switched to that input using the “Source” button on the projector. Also, the computer may require a toggle switch to turn on the output port. This is typically accomplished by holding down the “Fn” at the same time as a Function key. Each laptop manufacturer may use a different “function” key. Typically, it is F4 or F8. The symbol on the key is usually a laptop as well as a square. Please refer to your laptop manufacturers Users Guide for additional information.
Is it OK to use 3rd. party lamps or lamps quoted to be Original Equipment Manufacturer lamps?
Please refer to lamp warranty under Warranty tab and then Vivitek Warranties, as using lamps that are not Vivitek supplied may result in warranties being voided and your projector not meeting required safety standards. Lamp manufacturers provide many different classes of lamps and projectors are built around a specific lamp. While being “original manufacturer” lamps, it is not guaranteed that the class of lamp is the same as the Vivitek specified lamp from the manufacturer.
My projector won’t turn on via an RS232 or IP command. If it is powered on, other commands work fine.
In the menu, go to Settings 2 menu, then Advanced 1 menu. Turn Low Power Mode to OFF.
How often should I change the filters in my DLP?
The majority of Vivitek projectors, due to sealed DLP optics, do not require filters. This eases maintenance requirements.The filters can be cleaned with running water. Please make sure to let them dry completely before installing them back. The filters should be changed if they are torn or worn.
How do I take care of my DLP?
Please refer to Warning and Precautions in the User's Manual.
Why are the lamps so expensive?
The selling price of the lamps is based on the purchase price we obtain from the manufacturers. Vivitek would reflect the price reduction if there is any from the manufacturers.
Why do I have to replace the lamp myself?
Lamp is a consumable part that needs to be replaced regularly. Customers can have a technician do the replacement, but the labor would not be covered by the manufacturer's warranty.
Why can't I order a lamp over the phone?
At the current stage, we don't process orders over the phone to protect our customers' credit card information. When the credit card information is sent to us by fax, only employees with authorization have access to this information.
Does HD really look better than SDTV?
Yes. HDTV has at least twice the linear resolution of standard-definition television (SDTV), thus allowing much more detail to be shown compared with analog television or regular DVD. In addition, the technical standards for broadcasting HDTV are also able to handle 16:9 aspect ratio pictures without using letterboxing or anamorphic stretching, thus further increasing the effective resolution for such content.
Where can I send a letter praising your products and customer support?
Customers can send us an email at customerservice@vivitekcorp.com.
How do I get another copy of my manual?
User's Manual can be downloaded here.
What other kinds of products do you make?
Vivitek also manufactures DLP projectors.
How long has Vivitek been in business
Vivitek was established in 2004.
What are the advantages of DLP over LCD or Plasma?
Please refer to Texas Instrument's website Here
What is DLP and how does it work?
Please refer to Texas Instrument's website Here
How do I get warranty service?
By calling our tech support at 877-603-3582 and providing the proof of purchase when required. Their hours of operation are from Monday to Friday, 9AM to 6PM Pacific time.
What is the life expectancy of my projector lamp?
Lamps typically last about 1,500 ~ 10,000 hours. Usually the higher the brightness, the lower the lamp hours. Keep in mind however that some lamps won't make it all the way to their estimated life spans. If you operate your projector in a warm environment that is not adequately ventilated or at higher elevations without switching to “high altitude” mode in the menu, this will reduce lamp life. It is also strongly recommended that the projectors be connected to a surge protector as power surges can damage your lamp. Adhering to the recommended power-off cycling will assist in maintaining lamp life. Frequent powering on/off will also reduce lamp life expectancy so it may be better to leave the projector on if you intend to use again within 20 minutes. Using the projector in Economy mode will extend your lamp life.
How do I replace the lamp myself?
In the user's manual, there is a section that shows you how to replace the lamp.
How much do replacement lamps/remotes cost?
You will need to contact your local/online reseller. Vivitek is available through authorized retailers, e-tailers, dealers, distributors and resellers. Vivitek has partnered with key partners around the U.S. These authorized partners can be found under the where to buy section.
How do I register my projector for warranty?
Complete and mail in the registration card included with the purchase of your product or fill out the online product registration here.
What is DLP® technology and how does it work?
DLP®-based projectors produce stunning images with digital clarity and precision. The DLP chip uses millions of tiny mirrors to reflect all colors of visible light to project an all-digital image on the screen. Click here for more detailed information.
Where can I purchase your products?
Vivitek is available through authorized retailers, e-tailers, dealers, distributors and resellers. Vivitek has partnered with key partners around the U.S. These authorized partners can be found under the where to buy section.
How do I synchronize my laptop with my projector?
On most laptops, hold down the 'Fn' + 'F4' keys. This may vary, depending on you laptop's brand it may not be 'F4', but 'F5', 'F7' or 'F8'. On the correct function key, there is a symbol 2 squares, have the letters "LCD", or have the symbol of a laptop/square on it. Please refer to your laptops user's guide for additional information.
Filter-Free Design
DLP® technology allows manufacturers to create a filter-free projection design. Filter-free means significant savings and lower maintenance efforts over the projector's lifespan, which means a lower total cost of ownership for the projector.
BrilliantColor™
BrilliantColor from Texas Instruments is a multi-color processing technology that produces vibrant images. BrilliantColor technology uses up to six colors, instead of just the three primary colors, red, green and blue, to improve color accuracy and brightens secondary colors.
DLP® Technology
DLP® chipset-based projectors produce vivid images with digital clarity and precision. The DLP® chip uses millions of tiny mirrors to reflect all the colors of visible light to project a digital image onto a screen. DLP® technology delivers high contrast ratios and minimizes the gaps between pixels for bright, sharp pictures.
Standard Warranty
3-Year Warranty on Parts and Labor / 1-Year Warranty on Lamp.
