NovoConnect allows participants to seamlessly share content from connected device through a wireless network to conduct interactive presentations with dynamic content sources and HD display quality.
Brightness | 2600 ANSI Lumens * |
Native Resolution | XGA (1024 x 768) |
Max. Resolution | UXGA (1600 x 1200) |
Contrast Ratio | 2500:1 (Full On/Off) |
Lamp Life and Type | 2000/3000 Hours (Standard/Economy Mode), 200W |
Lamp Part # | 5811100235 |
Throw Ratio (±3%) | 1.9 to 2.2:1 (Distance/Width) |
Image Size (Diagonal) | 34" to 300" (0.9 to 7.6 m) |
Projection Distance | 5' to 33' (1.5 to 10.0 m) |
Projection Lens | F = 2.55-2.72, f = 21.3-24.5 mm |
Zoom Ratio | 1.15:1 Manual Zoom/Focus |
Aspect Ratio | 4:3 Native, 16:9 Compatible |
Offset | 114% |
Keystone Correction | ±30° Vertical |
Color Spectrum | 134 Million |
Horizontal Scan Rate | 15, 31 to 90 KHz |
Vertical Scan Rate | 50 to 85 Hz |
Speaker | 1 Watt Mono |
Remote Control | Card-Type IR Remote |
Projection Method | Table Top or Ceiling Mount (Front or Rear) |
Uniformity | 85% |
Video Compatibility | NTSC (M, 3.58/4.43 MHz), PAL (B, D, G, H, I, M, N), SECAM (B, D, G, K, K1, L), HDTV (720p, 1080i), EDTV (480i/p, 576i/p) |

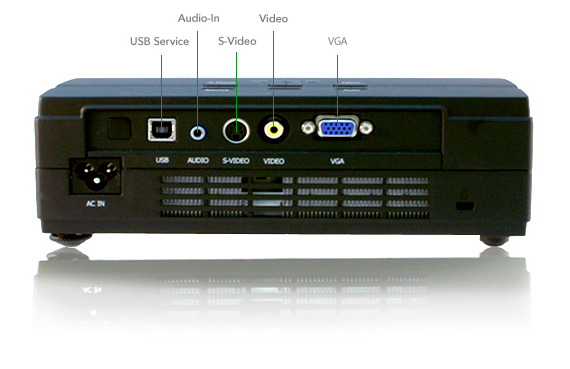

I/O Connection Ports | VGA-In, S-Video, Composite Video, Mini-Jack Audio-In, USB (Service) |
Security | Kensington® Lock Port |
Weight | 3.2 lbs (1.45 kg) |
Dimensions (W x H x D) | 8.66"x 2.8" x 7.0" (220 x 71 x 178 mm) |
Noise Level | 37dB/34dB (Standard/Economy Mode) |
Power | Supply: AC 100-240V Consumption: 210W (Economy Mode), 260W (Standard Mode), <5W (Standby Mode) |
Operating Temperature | 41 to 95°F (5 to 35°C) |
Standard Accessories | AC Power Cord, VGA Cable, Remote Control, Batteries for Remote, Carrying Case, User’s Manual (CD), Warranty Card |
