NovoConnect allows participants to seamlessly share content from connected device through a wireless network to conduct interactive presentations with dynamic content sources and HD display quality.
Brightness | 3300 ANSI Lumens |
Native Resolution | WXGA (1280 x 800) |
Contrast Ratio | 10,000:1 (Full On/Off) |
Lamp Life and Type | 5000/10,000 Hours (Standard/Economy Mode), 230W |
Lamp Part # | 5811118004-SVV |
Display Type | Single DMD DLP® Technology by Texas Instruments |
Throw Ratio (±3%) | 0.35:1 (Distance/Width) |
Image Size (Diagonal) | 80" to 100" (2.2 to 2.4 m) |
Projection Distance | 11.11" to 17.55" (0.282 to 0.446m) |
Projection Lens | F = 2.5, f = 5.09mm |
Zoom Ratio | Fixed Lens, Manual Focus |
Aspect Ratio | 16:10 Native, 4:3 and 16:9 Compatible |
Offset | 120% |
Keystone Correction | ±40° Vertical, ±40 Steps |
Color Spectrum | 1.07 Billion |
Horizontal Scan Rate | 15, 30 to 91.4 KHz |
Vertical Scan Rate | 24 ~ 30Hz, 47 ~ 120Hz |
Speaker | 20W Stereo (10W x 2) |
Remote Control | Full Featured IR Remote with Laser Pointer |
Projection Method | Table Top or Ceiling Mount (Front or Rear) |
Uniformity | 95% |
Computer Compatibility | UXGA, WXGA, SXGA+, SXGA, XGA, SVGA, VGA Resized; VESA Standards; PC and Macintosh Compatible |
Video Compatibility | SDTV(480i, 576i), EDTV (480p, 576p), HDTV (720p,1080i/p), NTSC (M, 3.58/4.43 MHz), PAL (B, D, G, H, I, M, N), SECAM (B, D, G,K, K1, L) |
3D Video Compatibility | Full 3D (Via DLP® Link™, BluRay 3D, Broadcast 3D, and PC-3D) |

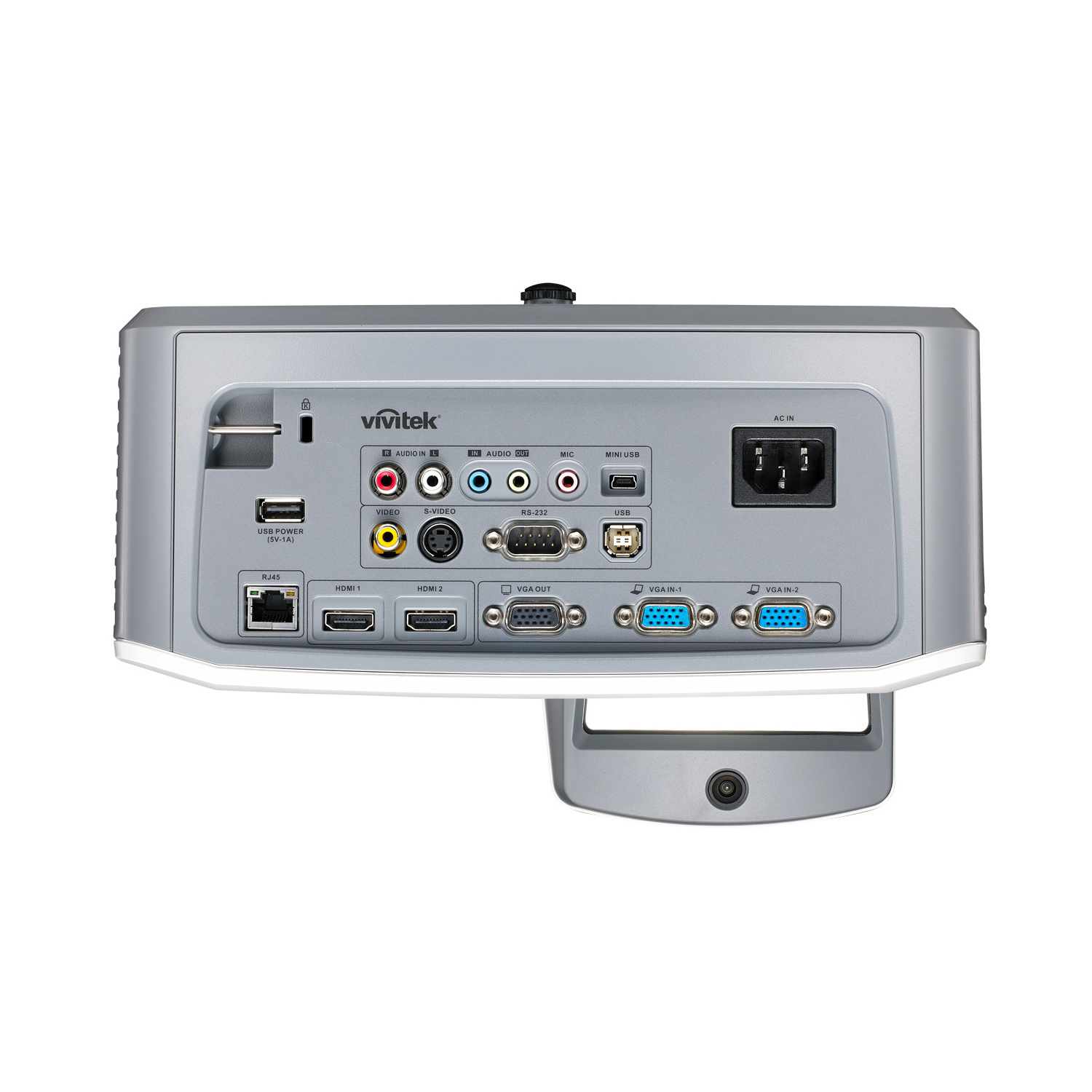

I/O Connection Ports | HDMI v1.4 (x2), VGA-In (x2), VGA-Out, Composite Video, S-Video, Microphone, RCA Audio-In, Mini-Jack Audio-In, Mini-Jack Audio-Out, RJ45, RS-232c, USB Type A (Power only) |
Security | Kensington® Lock Port, Security Bar |
Weight | 11 lbs (5.0 kg) |
Dimensions (W x H x D) | 11.3" x 4.9" x 14.7" (287.7 x 126.6 x 374.5 mm) |
Noise Level | 33dB/29dB (Standard/Economy Mode) |
Power | Supply: AC 100-240V, 50/60Hz Consumption: 290W (Standard Mode), 250W (Economy Mode), <0.5W (Standby Mode) |
Operating Temperature | 41 to 104°F (5 to 40°C) |
Warranty | 5-Year Limited Parts/Labor, 1-Year Lamp |
Standard Accessories | AC Power Cord, VGA Cable, Interactive Pen (x2), Remote Control, Batteries for Remote, User Manual (CD), Warranty Card |
UPC | 814964 339867 |
