NovoConnect allows participants to seamlessly share content from connected device through a wireless network to conduct interactive presentations with dynamic content sources and HD display quality.
| Display Type | Single Chip 0.96" DLP Technology by TI | |
| Brightness | 24,000 Lumens | |
| Native Resolution | WUXGA (1920 x 1200) | |
| Maximum Resolution | 4K UHD (3840x2160) @60Hz | |
| Contrast Ratio | 1,500:1 (Native) / 20,000:1 (Dynamic) / 3,000,000:1 (Full On/Off) | |
| Laser Life/Type | Up to 30,000 hours / Dual Laser Technology | |
| Throw Ratio | 1.5- 2.0:1 | |
| Image Size (Diagonal) | 40" - 500" | |
| Projection Distance | 1.24 - 21.8m (4.06ft to 71.5ft) | |
| Projection Lens | F = 2.17 – 2.65 | |
| Zoom Ratio | 1.33:1 | |
| Aspect Ratio | 16:10 | |
| Offset | Motorized Lens Shift | |
| Lens Shift Range | Vertical: ±50%, Horizontal: ±15% | |
| Keystone Correction | Horizontal ±45°, Vertical ±40° (Adjustable Range of Single Direction) | |
| Horizontal Frequency | 15.31 ~ 135 kHz | |
| Vertical Scan Rate | 24~30Hz ;47~120Hz | |
| Edge Blending | Yes (Built-In) | |
| Warping | Yes (Built-In) | |
| 3D Functionality | Yes (DLP® Link™, HDMI v2.0 Blu-ray, (side by side, frame packing, top and bottom, frame sequential) | |
| Computer Compatibility | VGA, SVGA, XGA, WXGA, SXGA, SXGA+, UXGA, 1080P, WUXGA, 4k UHD@60hz, Mac | |
| Video Compatibility | SDTV (480i, 576i), EDTV (480p, 576p), HDTV (720p, 1080i/p, 4K UHD) | |

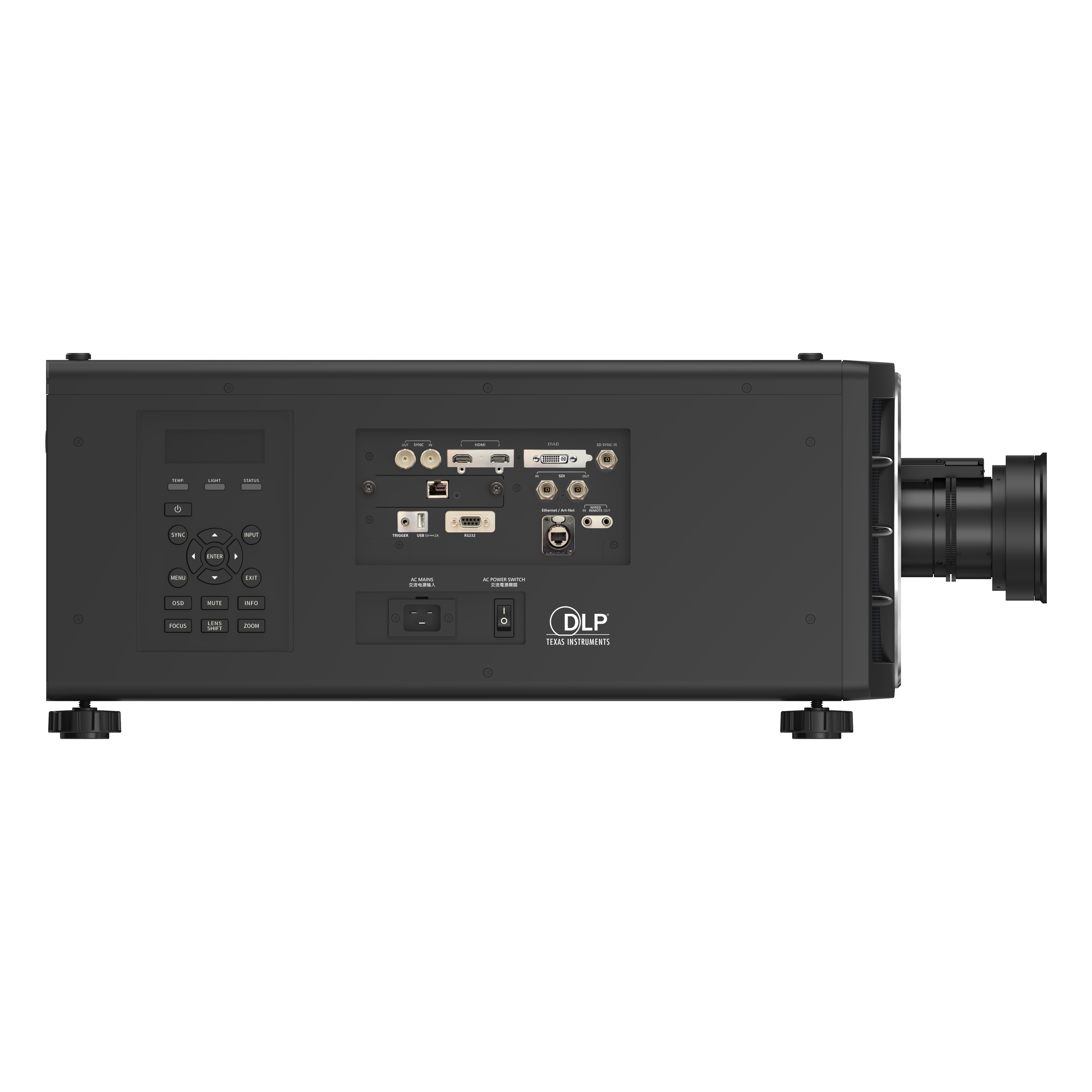

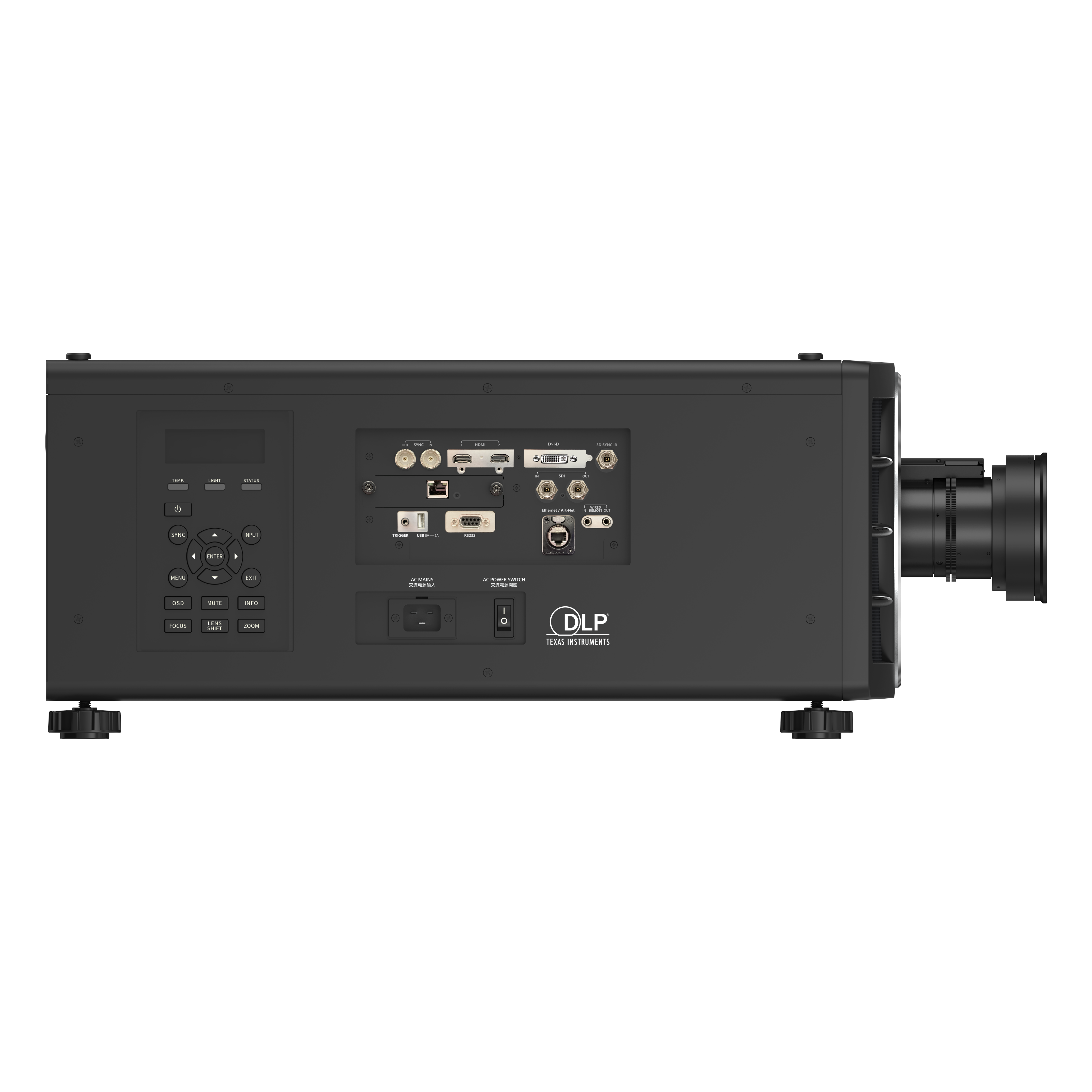

| I/O Connection Ports | HDMI v2.0 (x2) (HDCP v2.2 Compliant), DVI-D x1, 12G SDI-In/Out, 3D Sync In/Out, 3D IR Sync Out x1, RS232-in x1 ,12v Trigger, Wired Remote in/out , USB 5V2A, HDBaseT™x1 (Video only) , LAN (RJ45) x1 | |
| Projection Method | Table Top, Ceiling Mount, Portrait (Front or Rear) | |
| Dimensions (WxDxH) | 676.6 x 598.8 x 270mm (29.7” x 23.6" x 10.6") | |
| Weight | 45.4kg (100 lbs) | |
| Available Colors | Black | |
| Noise Level | 47dB / 45dB (Normal / Eco Mode) | |
| Power Supply | AC 100-240V, 50/60Hz | |
| Power Consumption | Normal \ Eco | 1400W@220Vac \ 1050W@220Vac |
| Network Standby | Less than 6W | |
| Eco Standby | Less than 1W | |
| Environmental Conditions | Operating | At temperature 0 to 40°C, relative humidity 10% to 85%,non-condensation |
| Storage | At temperature -10 to 60°C, relative humidity 5% to 95%,non-condensation | |
| Standard Accessories | AC Power Cord, Remote Control w/Batteries, HDMI Cable, Remote Control Cable, Documentation Kit | |
| Optional Accessories | Interchangeable Lens Options (x7) T/R 0.38 , T/R 0.9 - 1.2 , T/R 1.2-1.56 , T/R 1.5 - 2.0 , T/R 2.0-4.0 , T/R 4.0-7.0 , T/R 6.9 -10.3 | |
