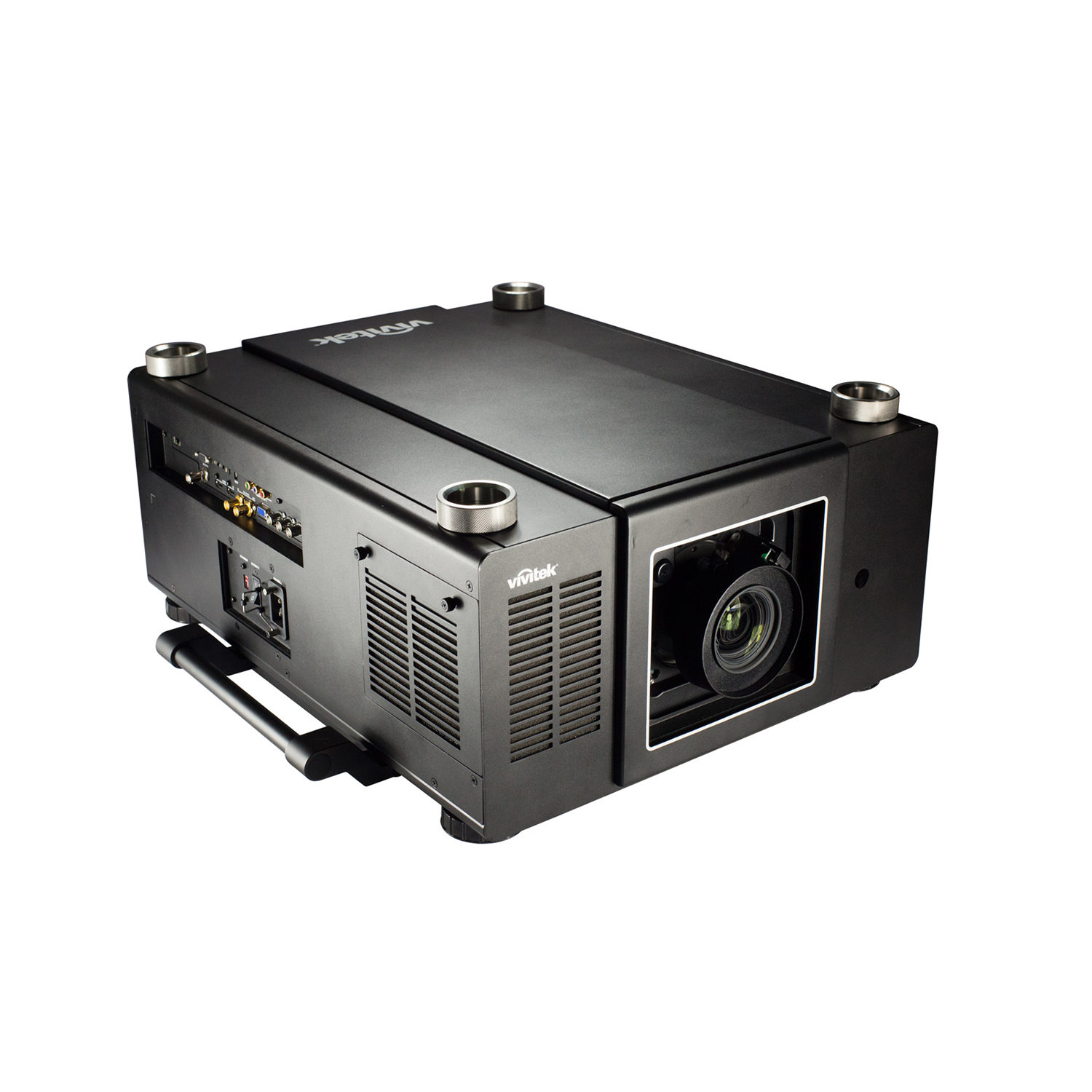

DU9000
Super Bright Large Venue projector with Built-In Edge Blending, Dual Lamp Technology and optional stacking capability
The perfect solution for diverse large-venue applications, the Vivitek DU9000 features native WUXGA resolution, HD-SDI and HDBaseT connectivity, DLP®/BrilliantColor™ and dual-lamp technologies. Designed for stacking(up to 24,000L), the DU9000 features centered optics with motorized lens shift, zoom,focus and lens memory. The Vivitek DU9000 offers four interchangeable bayonet lens options to match up with various installation requirements. Featuring built-in edge blending and warping capabilities, the DU9000 can take you into endless large venue projection possibilities.
Excellent Connectivity
The Vivitek DU9000 provides the connections necessary for many diverse projection environments: HDMI v1.4a input, Component (YPbPr), VGA input for PC and Laptop, 3D Sync Out, 3G SDI(HD-SDI) -In/Out, RS232, USB (service), Wired Remote, HDBaseT/LAN and 12V Trigger for automation.

NovoConnect

A Wireless Presentation & Collaboration

NovoConnect allows participants to seamlessly share content from connected device through a wireless network to conduct interactive presentations with dynamic content sources and HD display quality.

  • Native WUXGA resolution to match today’s display requirements
  • Super bright 12,000 ANSI Center Screen Peak Lumens, 10,600 ANSI Lumens ISO 21118 with a crisp 5,000:1 (with DB On). Stacking brightness to 24,000L peak
  • Dual-lamp engine design for redundancy and brightness picture, limits down-time

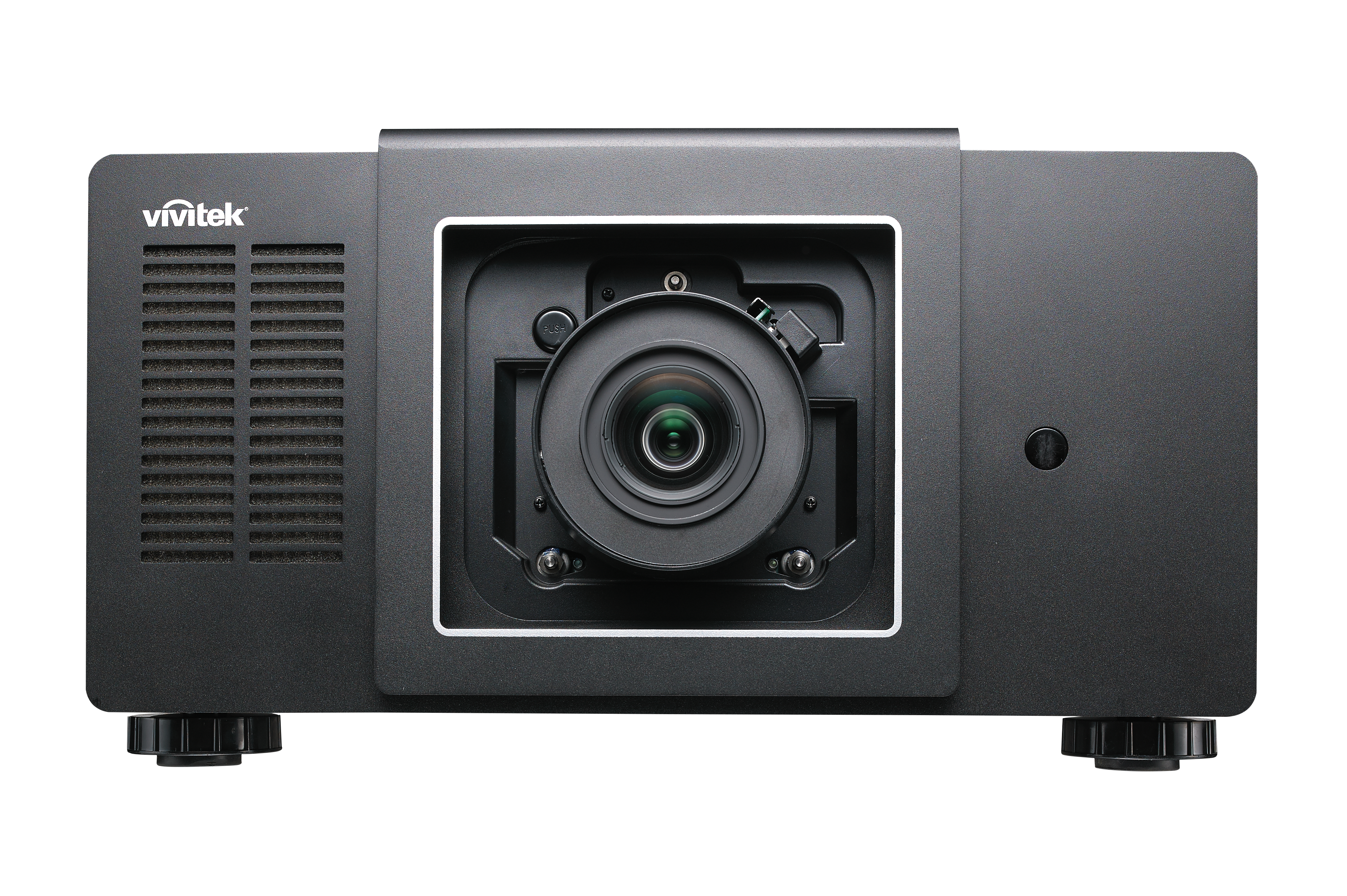

  • Centered lens design with four (4) interchangeable bayonet lens options
  • Built-in hardware for edge blending and warping functionality (3D supported in blending)
  • Powered zoom, focus and lens shift features for easy adjustment and positioning flexibility
  • Connectivity inputs and outputs including: HDMI v1.4a, Component, RGB-In, 12V Trigger, 3D Sync-Out, 3GHD-SDI-In/Out, RS-232, RJ45/HDBaseT
  • HDBaseT interface with support for distribution of HD video and digital audio content over standard CAT5e/6 LAN cable
  • 3D compatibility with DLP® Link™ and HDMI 1.4 technology support (Bluray, and Broadcast 3D) for dazzling and realistic life-like images
  • 3D sync port for compatibility with IR (R/F Infrared) 3D passive synchronization protocol
  • Motorized lens shift (vertical/horizontal) and power zoom/focus
  • Interchangable Color Enhancement color wheel (not included) is also used for ultimate blending performance

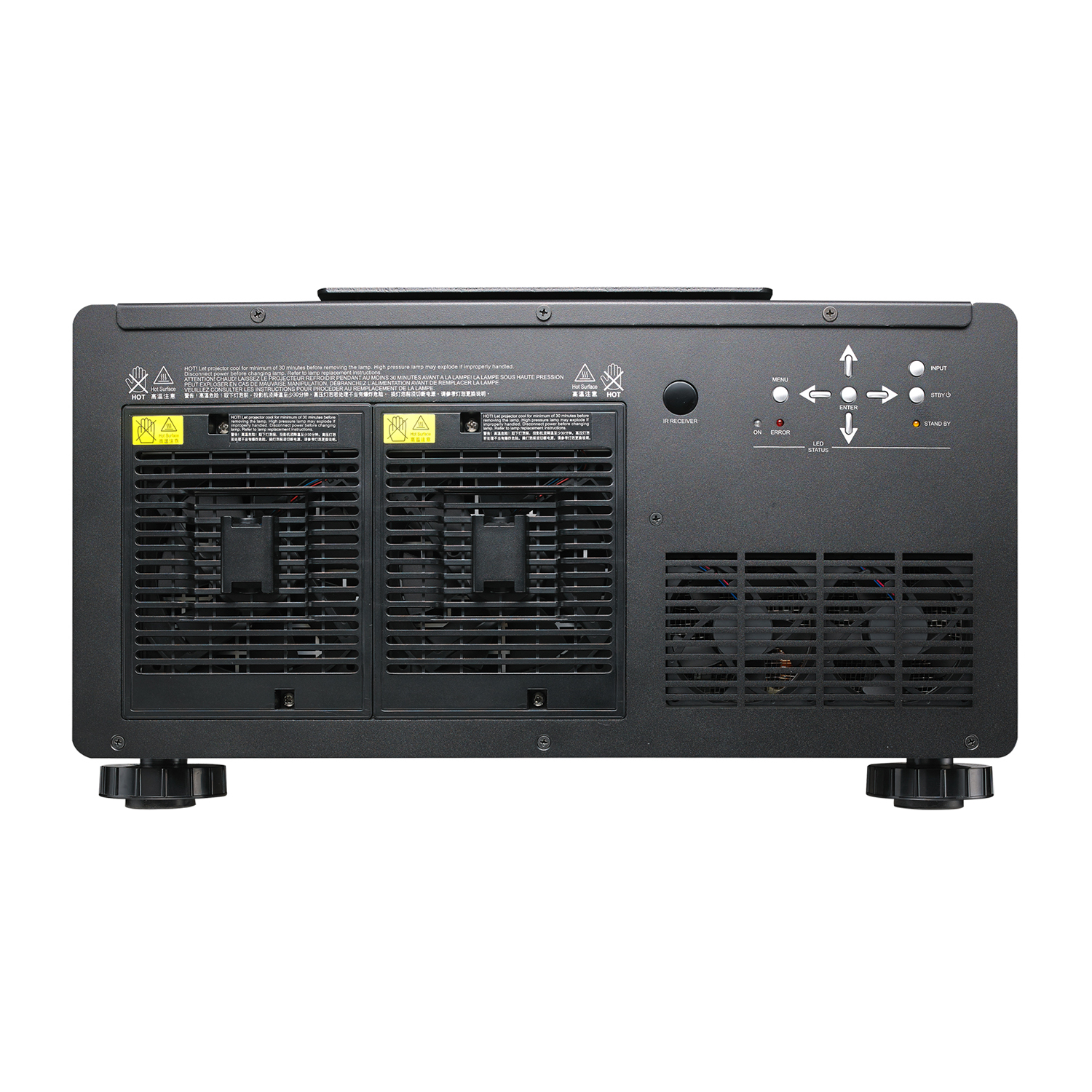

  • Rear cover design for quick and easy lamp replacement
Brightness 12,000 Lumens
Native Resolution WUXGA (1920 x 1200)
Max. Resolution WUXGA (1920x1200)
Contrast Ratio 5000:1 with Dynamic Black on
Lamp Life and Type 2000/1500 Hours (Economy/Normal Mode), 465W Dual Lamp
Lamp Part # 3797818200-SVK
Display Type Single 0.96" DMD DLP® Technology by Texas Instruments
Aspect Ratio 16:10 Native, 4:3 and 16:9 Compatible
Color Spectrum 1.07 Billion
Horizontal Scan Rate 15 to 108 KHz
Vertical Scan Rate 48 to 120Hz
Projection Method Table Top or Ceiling Mount (Front or Rear)
Uniformity 85%
Computer Compatibility WUXGA, 1080p, UXGA, SXGA+, SXGA, XGA, SVGA, VGA Resized; VESA Standards; PC and Macintosh Compatible
3D Video Compatibility Yes (DLP® Link™, HDMI 1.4 (Blu-ray, side by side, frame packing, top and bottom)
Video Compatibility SDTV (480i, 576i), EDTV (480p, 576p), HDTV (720p, 1080i/p), NTSC (M, 3.58/4.43 MHz), PAL (B, D, G, H, I, M, N), SECAM (B, D, G, K, K1, L)
I/O Connection Ports HDMI v1.4a (x2), Component (YPbPr) (x2), VGA-In, 12V Trigger (x2), 3D Sync-Out, 3G-SDI-In/Out, RS-232, USB (Service), Wired Remote, HDBaseT/LAN
Weight (Without Lens) 30kg (66lbs)
Dimensions (W x H x D) 24.8" x 19.7" x 10.9" (630 x 500 x 250mm)
Noise Level Dual Lamp: 47dB/44dB
Power Supply: AC Input 100 - 240V, 50/60Hz
Consumption: Dual Lamp: 1200W (Normal Mode), 910W (Eco. Mode), <2W (Standby Mode
Operating Temperature 41 to 104°F (5 to 40°C), 90% Max Humidity
Warranty 5-Year Limited Parts/Labor, 1-Year Lamp
Standard Accessories AC Power Cord, Remote Control, Batteries for Remote, User's Manual (CD), Warranty Card.
Optional Accessories Replacement Lamp, Color Wheel, Interchangeable Lens Options (x4)
UPC 813097020017
Description: REMOTE CONTROL 27KEYS
Part number: 5041842200
Power: 465 W
Part number: 3797818200-SVK
NovoPro
• BYOD Collaboration & Presentation
• Up to 64 users
• iOS/Android full mirroring
• Click-n-display with Launcher
Image ETA Q2/2016 Arrival
Placeholder Image
Model Number D98-1518 D98-0810 D98-1824 D98-2440 D98-4070 D98-1215
Part Number 3797805300-SVK 3797805500-SVK 3797805200-SVK 3797805400-SVK 3797858100-SB TBD
Lens Type Short Throw Lens Ultra-Wide
Angle Lens
Standard Lens Long Throw Lens Ultra-Long
Throw Lens
Short Throw Lens 1
Throw Ratio 1.56 - 1.86:1 0.84 - 1.03:1 1.85 - 2.4:1 2.4 - 4.0:1 4.0 - 7.0:1 1.25 - 1.56:1
Zoom Ratio 1.19x 1.22x 1.3x 1.67x 1.75x 1.3x
f Value (Focal Length) 33.15- 39.81mm 17.95 - 21.93mm 39 - 50.7mm 50.4 - 80.4mm 83.93mm - 146.85mm TBD
F Number 2.5 - 2.76 1.85 - 1.95 2.17 - 2.46 2.1 - 2.7 2.2 - 2.57 TBD
Image Size (Diagonal) 49.5” - 206” 68” - 217” 48.4” - 224” 46.6” - 230” 50” - 300” TBD
Projection Distance
(Approximate)
2 - 7m 1.5 - 4m 2.5 - 9m 4 - 12m 6.92 - 25.54 m TBD
Lens Shift Range
(H Shift is 0%/V Shift is 0%)
Vertical: ±50%,
Horizontal: ±15%
Vertical: ±37.5%,
Horizontal: ±12.5%d
Vertical: ±50%,
Horizontal: ±15%
Vertical: ±50%,
Horizontal: ±15%
Vertical: ±50%,
Horizontal: ±15%
Vertical: ±50%,
Horizontal: ±15%
Focus/Zoom Adjustment Motorized Motorized Motorized Motorized Motorized Motorized
Available Color Black Black Black Black Black Black
Accessories Lens Hood, Cap Lens Hood, Cap Lens Hood, Cap Lens Hood, Cap Lens Hood, Cap Lens Hood, Cap
Dimensions
(Diameter x Length)
120 x 128.38mm
(4.7"x 5.0")
120 x 207.24mm
(4.7"x 8.1")
120 x 128.38mm
(4.7"x 5.0")
95 x 186mm
(3.7"x 7.3")
85 x 247mm
(3.3"x 9.7")
TBD
Weight 770g (1.7lbs) 1,550g (3.4bs) 760g (1.67lbs) 1,300g (2.86lbs) 1930g (4.25lbs) TBD

*Lenses sold separately.
Title Version Type Size   Download
DU9000 CAD Drawing zip 1.38 MB
DU9000 CAD Drawing rar 0.92 MB
DU9000 Datasheet pdf 0.35 MB
DU9000 User's Manual(English) pdf 8.22 MB
ProAV Installation Brochure pdf 2.03 MB
Vivitek Catalog 2019 06/2019 pdf 21.59 MB
Frequently Asked Questions
I plug my computer in to the projector and I don’t get an image.
The projector has many input connectors. Each connector is labelled (HDMI 1, RGB 1 ....). Ensure the projector is switched to that input using the “Source” button on the projector. Also, the computer may require a toggle switch to turn on the output port. This is typically accomplished by holding down the “Fn” at the same time as a Function key. Each laptop manufacturer may use a different “function” key. Typically, it is F4 or F8. The symbol on the key is usually a laptop as well as a square. Please refer to your laptop manufacturers Users Guide for additional information.
Is it OK to use 3rd. party lamps or lamps quoted to be Original Equipment Manufacturer lamps?
Please refer to lamp warranty under Warranty tab and then Vivitek Warranties, as using lamps that are not Vivitek supplied may result in warranties being voided and your projector not meeting required safety standards. Lamp manufacturers provide many different classes of lamps and projectors are built around a specific lamp. While being “original manufacturer” lamps, it is not guaranteed that the class of lamp is the same as the Vivitek specified lamp from the manufacturer.
My projector won’t turn on via an RS232 or IP command. If it is powered on, other commands work fine.
In the menu, go to Settings 2 menu, then Advanced 1 menu. Turn Low Power Mode to OFF.
How often should I change the filters in my DLP?
The majority of Vivitek projectors, due to sealed DLP optics, do not require filters. This eases maintenance requirements.The filters can be cleaned with running water. Please make sure to let them dry completely before installing them back. The filters should be changed if they are torn or worn.
How do I take care of my DLP?
Please refer to Warning and Precautions in the User's Manual.
Why are the lamps so expensive?
The selling price of the lamps is based on the purchase price we obtain from the manufacturers. Vivitek would reflect the price reduction if there is any from the manufacturers.
Why do I have to replace the lamp myself?
Lamp is a consumable part that needs to be replaced regularly. Customers can have a technician do the replacement, but the labor would not be covered by the manufacturer's warranty.
Why can't I order a lamp over the phone?
At the current stage, we don't process orders over the phone to protect our customers' credit card information. When the credit card information is sent to us by fax, only employees with authorization have access to this information.
Does HD really look better than SDTV?
Yes. HDTV has at least twice the linear resolution of standard-definition television (SDTV), thus allowing much more detail to be shown compared with analog television or regular DVD. In addition, the technical standards for broadcasting HDTV are also able to handle 16:9 aspect ratio pictures without using letterboxing or anamorphic stretching, thus further increasing the effective resolution for such content.
Where can I send a letter praising your products and customer support?
Customers can send us an email at customerservice@vivitekcorp.com.
How do I get another copy of my manual?
User's Manual can be downloaded here.
What other kinds of products do you make?
Vivitek also manufactures DLP projectors.
How long has Vivitek been in business
Vivitek was established in 2004.
What are the advantages of DLP over LCD or Plasma?
Please refer to Texas Instrument's website Here
What is DLP and how does it work?
Please refer to Texas Instrument's website Here
How do I get warranty service?
By calling our tech support at 877-603-3582 and providing the proof of purchase when required. Their hours of operation are from Monday to Friday, 9AM to 6PM Pacific time.
What is the life expectancy of my projector lamp?
Lamps typically last about 1,500 ~ 10,000 hours. Usually the higher the brightness, the lower the lamp hours. Keep in mind however that some lamps won't make it all the way to their estimated life spans. If you operate your projector in a warm environment that is not adequately ventilated or at higher elevations without switching to “high altitude” mode in the menu, this will reduce lamp life. It is also strongly recommended that the projectors be connected to a surge protector as power surges can damage your lamp. Adhering to the recommended power-off cycling will assist in maintaining lamp life. Frequent powering on/off will also reduce lamp life expectancy so it may be better to leave the projector on if you intend to use again within 20 minutes. Using the projector in Economy mode will extend your lamp life.
How do I replace the lamp myself?
In the user's manual, there is a section that shows you how to replace the lamp.
How much do replacement lamps/remotes cost?
You will need to contact your local/online reseller. Vivitek is available through authorized retailers, e-tailers, dealers, distributors and resellers. Vivitek has partnered with key partners around the U.S. These authorized partners can be found under the where to buy section.
How do I register my projector for warranty?
Complete and mail in the registration card included with the purchase of your product or fill out the online product registration here.
What is DLP® technology and how does it work?
DLP®-based projectors produce stunning images with digital clarity and precision. The DLP chip uses millions of tiny mirrors to reflect all colors of visible light to project an all-digital image on the screen. Click here for more detailed information.
Where can I purchase your products?
Vivitek is available through authorized retailers, e-tailers, dealers, distributors and resellers. Vivitek has partnered with key partners around the U.S. These authorized partners can be found under the where to buy section.
How do I synchronize my laptop with my projector?
On most laptops, hold down the 'Fn' + 'F4' keys. This may vary, depending on you laptop's brand it may not be 'F4', but 'F5', 'F7' or 'F8'. On the correct function key, there is a symbol 2 squares, have the letters "LCD", or have the symbol of a laptop/square on it. Please refer to your laptops user's guide for additional information.
Dual Lamp Technology
A dual lamp projector is able to display larger/brighter images beyond what a single lamp can produce. Dual lamp technology automatically switches the projector to single lamp mode when one of the lamps goes out, ensuring usage without any interruptions.
BrilliantColor™
BrilliantColor from Texas Instruments is a multi-color processing technology that produces vibrant images. BrilliantColor technology uses up to six colors, instead of just the three primary colors, red, green and blue, to improve color accuracy and brightens secondary colors.
DLP® Technology
DLP® chipset-based projectors produce vivid images with digital clarity and precision. The DLP® chip uses millions of tiny mirrors to reflect all the colors of visible light to project a digital image onto a screen. DLP® technology delivers high contrast ratios and minimizes the gaps between pixels for bright, sharp pictures.
5 year Warranty Parts and Labor - 3year Advanced Replacement
Standard Warranty
5-Year Warranty on Parts and Labor / 3-years Advanced Exchange / 1-year Lamp Warranty
