NovoConnect allows participants to seamlessly share content from connected device through a wireless network to conduct interactive presentations with dynamic content sources and HD display quality.
Display Type | Single Chip 0.67" DLP Technology by TI |
Brightness | 6,500 ANSI Lumens |
Native Resolution | WUXGA (1920 x 1200) |
Max. Resolution | WUXGA (1920 x 1200) @60Hz,Reduced Blanking |
Contrast Ratio | 3,000:1 |
Lamp Life and Type | 4,500/5,000 Hours (Normal/Eco. Mode), UHP 300W/240W x 2 |
Image Size (Diagonal)* | 40" - 500" |
Aspect Ratio | 16:10 |
Zoom Ratio* | 1.3x |
Keystone Correction | Horizontal ±30°, Vertical ±30° |
Horizontal Frequency | 15, 31 – 91.4kHz |
Vertical Scan Rate | 24 - 30Hz, 47 – 120Hz |
Projection Distance* | 6.0ft - 48.88ft (1.83 - 14.9m) |
Projection Lens* | F = 1.7 - 1.9 f = 26- 34mm |
3D Compatibility | DLP® Link™, HDMI v1.4 (Blu-ray, side by side, frame packing, top and bottom) |
Lens Shift Range* | Vertical: -33%/+64%, Horizontal: -14 - 24% (Motorized) |
Computer Compatibility | VGA, SVGA, XGA, SXGA, SXGA+, UXGA, WUXGA@60hz, Mac |
Video Compatibility | SDTV (480i, 576i) / EDTV (480p, 576p) / HDTV (720p, 1080i, 1080p) |

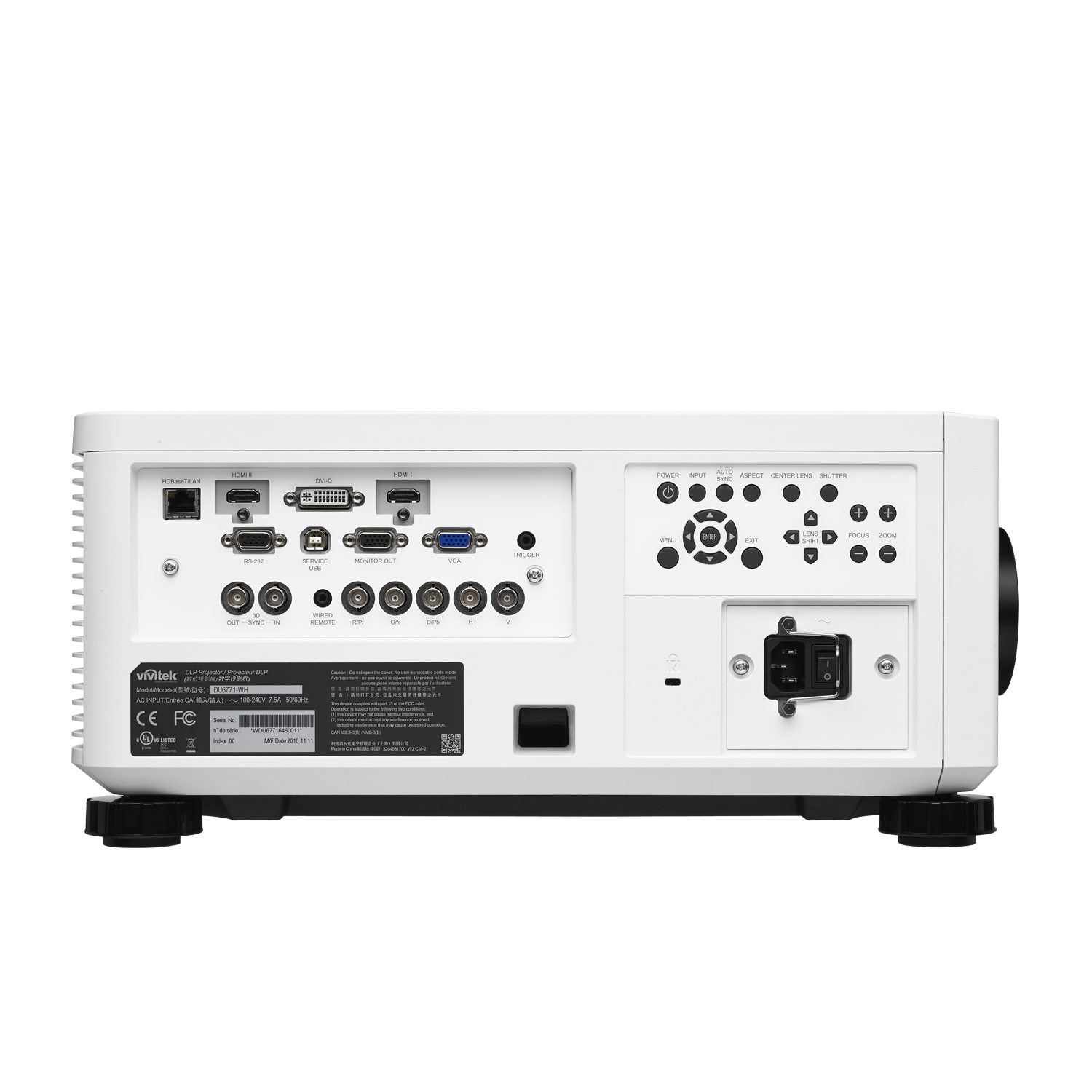

I/O Connection Ports | HDMI v1.4 (x2), DVI-D, VGA-In, Component (5 BNC) (RGBHV), 3D-Sync In, 3D-Sync Out, Monitor Out, 12V Trigger, RS-232, USB (Service), Remote Jack (Wired Remote), RJ45/ HDBaseT™ (Shared Port) |
Projection Method | Table Top, Ceiling Mount (Front or Rear) |
Security Solutions | Kensington® Security Slot, Security Bar, Pin Keypad Lock, Anti-Theft Lens Screw |
Dimensions (WxDxH) | 20.1”x 18.5” x 8.3” (510 x 470 x 210 mm) |
Weight | 44.1 lbs (20 kg) |
Cabinet Colors | Black (DU6771-BK), White (DU6771-WH) |
Noise Level | 35dB/30dB (Normal/Economy Mode) |
Power Supply | AC 100-240V, 50/60Hz |
Power Consumption | Dual Lamp: 715W (Normal Mode), 575W (Eco. Mode), <3W (Network Standby), <0.5W (Standby) |
Standard Accessories | AC Power Cord, VGA Cable, Remote Control, Body Cap, , R/C Wire 3.5mm Jack, Documentation Kit |
Optional Accessories | Replacement Lamp, Interchangeable Lens Options (x8), Interchangeable Color Wheel Module |
Warranty | 5-Year Limited Parts/Labor, 1-Year Lamp or 1,000 hours |
UPC | 813097022509 (White), 813097022523 (Black) |
