Legacy
DU6675

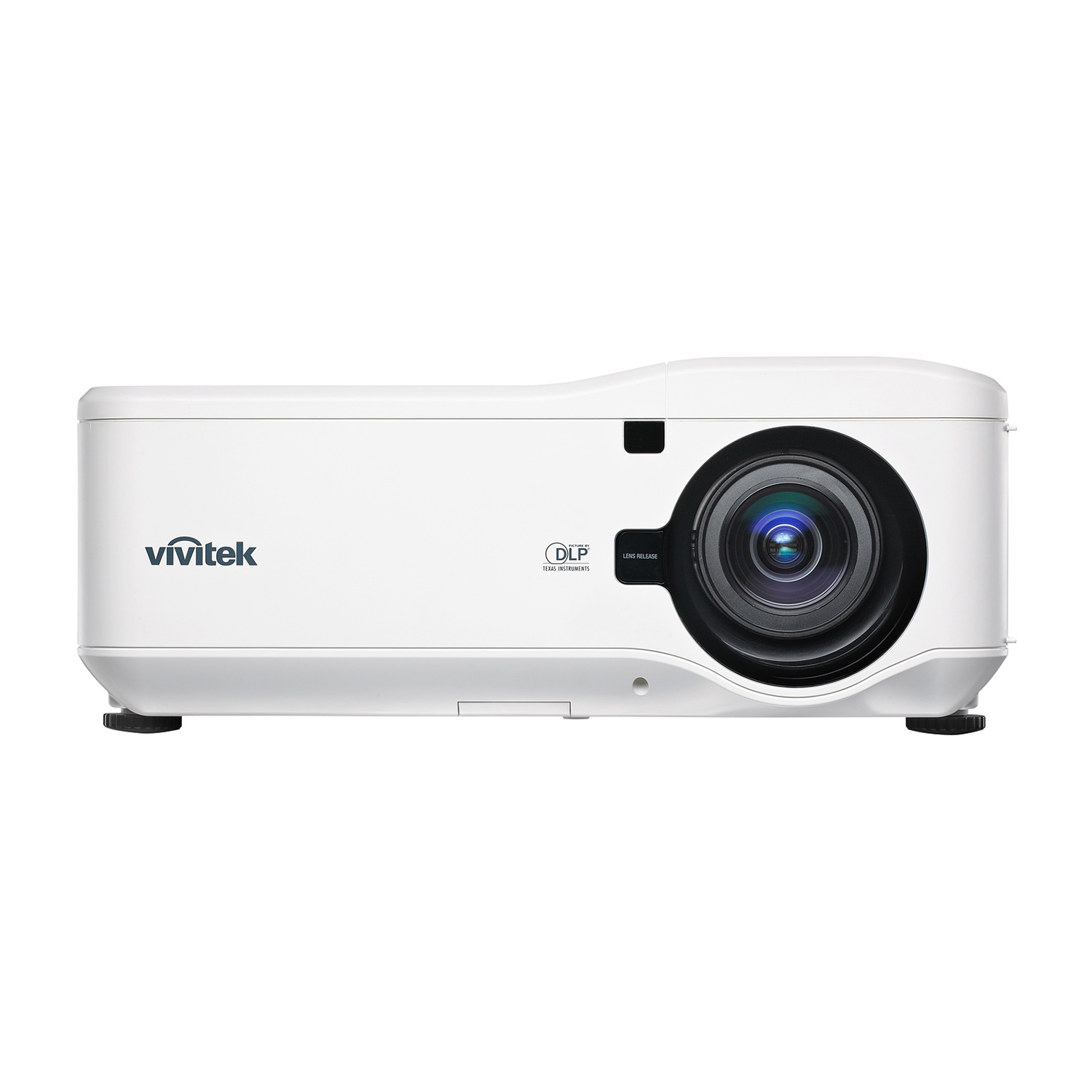

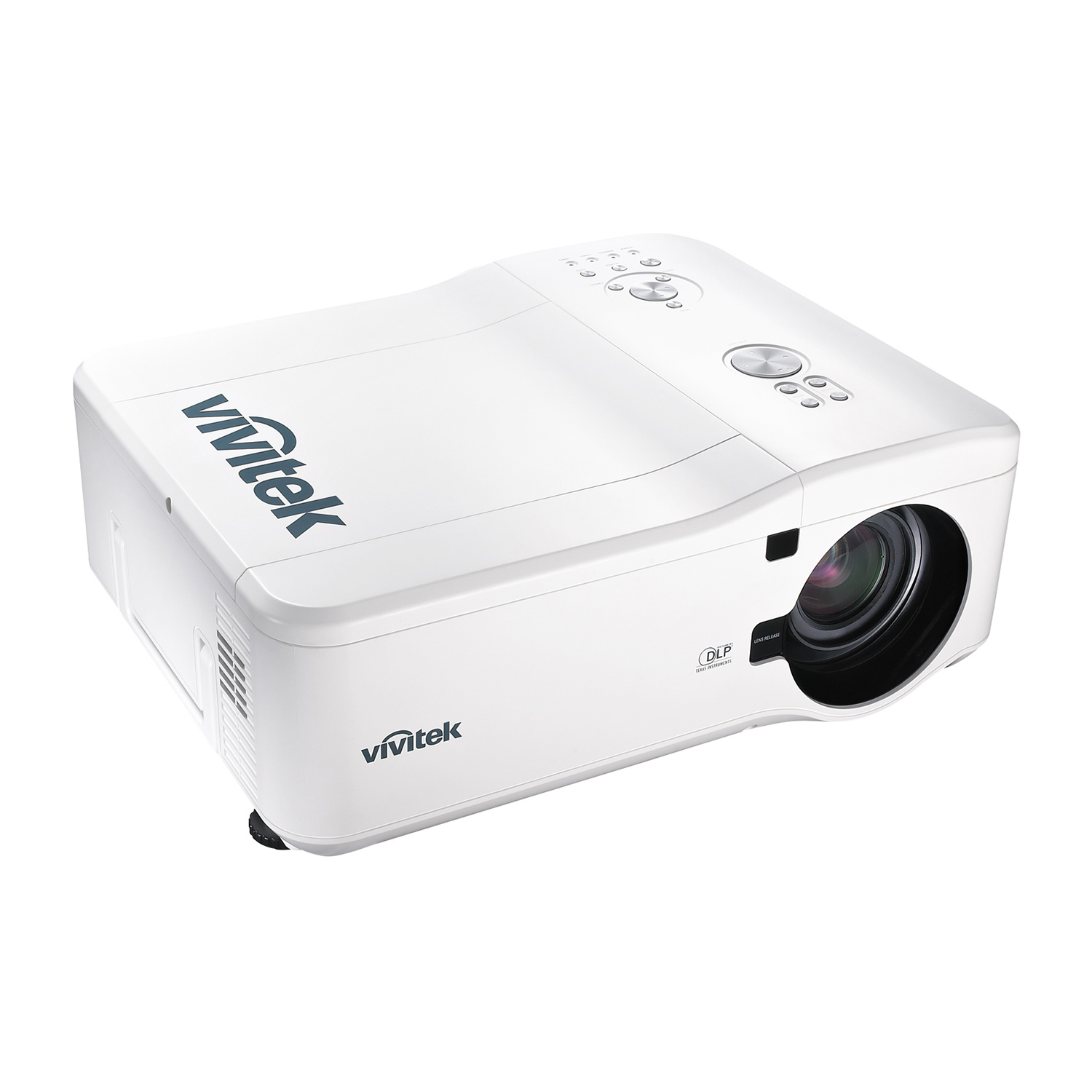

Large Venue Presentation Solution for Demanding Multimedia Applications

The Vivitek DU6675 is designed for conference centres and large venue applications. Featuring dual-lamp technology, interchangeable lenses and advanced display technologies. The DU6675 delivers bright, superb digital images with full color saturation. Intended for the high-end installation and heavy duty applications it can operate 24/7, delivering high brightness of 6000 ANSI Lumens. This WUXGA projector delivers vibrant images from a variety of distances. The model features a high contrast ratio of 3000:1 for deep blacks and rich colours. The DU6675 is unmatched in performance and functionalities.
Excellent Connectivity
The Vivitek DU6675 gives you the performance you demand under demanding presentations. Demanding presentation require keen connections: RGBHV-Input, Component connection, VGA for PC or Laptop, DVI, HDMI, HDBaseT, USB service connections, Rs232c, Screen Trigger input, RCA input, and S-Video input for composite video.

NovoConnect

A Wireless Presentation & Collaboration

NovoConnect allows participants to seamlessly share content from connected device through a wireless network to conduct interactive presentations with dynamic content sources and HD display quality.

  • Native WUXGA (1920 x 1200) resolution and displays up to WUXGA
  • 6000 lumens of brightness with a 3000:1 contrast
  • Dual-lamp switching technology minimizing down-time or prolong time period between lamp chnages
  • Motorized lens control, including zoom, focus, and lens shift
  • Interchangeable color wheels for superior color detail or can maximize brightness
  • DLP®/BrilliantColor™ technologies by Texas Instruments
  • Seven (7) interchangeable bayonet style optional lenses to accommodate a variety of large-venue installation environments
  • HDBaseT and Network-ready for integration and system administration via RJ45
  • HDMI 1.4 for 3D playback with 3D Sync-output port
  • 12V trigger for simple screen/projector automation

Brightness 6000 ANSI Lumens *
Native Resolution WUXGA (1920 x 1200)
Max. Resolution WUXGA (1920x1200)
Contrast Ratio 3000:1 (Full On/Off)
Lamp Life and Type 2500/3500 Hours (Normal/Economy Mode), UHP 280Wx2
Display Type Single 0.67" DLP® Technology by Texas Instruments
Throw Ratio (±3%) 1.73-2.27:1
Image Size (Diagonal) 40" to 500" (1.0 to 12.7 m)
Projection Distance 6' to 48.89' (1.83 to 14.9m)
Projection Lens F = 1.7-1.9, f = 26-34mm
Zoom Ratio 1.3:1 Power Zoom/Focus
Aspect Ratio 16:10 Native, 4:3 and 16:9 Compatible
Keystone Correction Vertical: ±30° , Horizontal: ±30°
Horizontal Scan Rate 15 to 90 KHz
Vertical Scan Rate 48 to 120Hz
Projection Method Table Top or Ceiling Mount (Front or Rear)
Video Compatibility SDTV(480i, 576i), EDTV (480p, 576p), HDTV (720p, 1080i/p), NTSC (M, 3.58/4.43 MHz), PAL (B, D, G, H, I, M, N), SECAM (B, D, G, K, K1, L)
3D Functionality Yes (DLP® Link™, HDMI 1.4 (Blu-ray, side by side, frame packing, top and bottom)

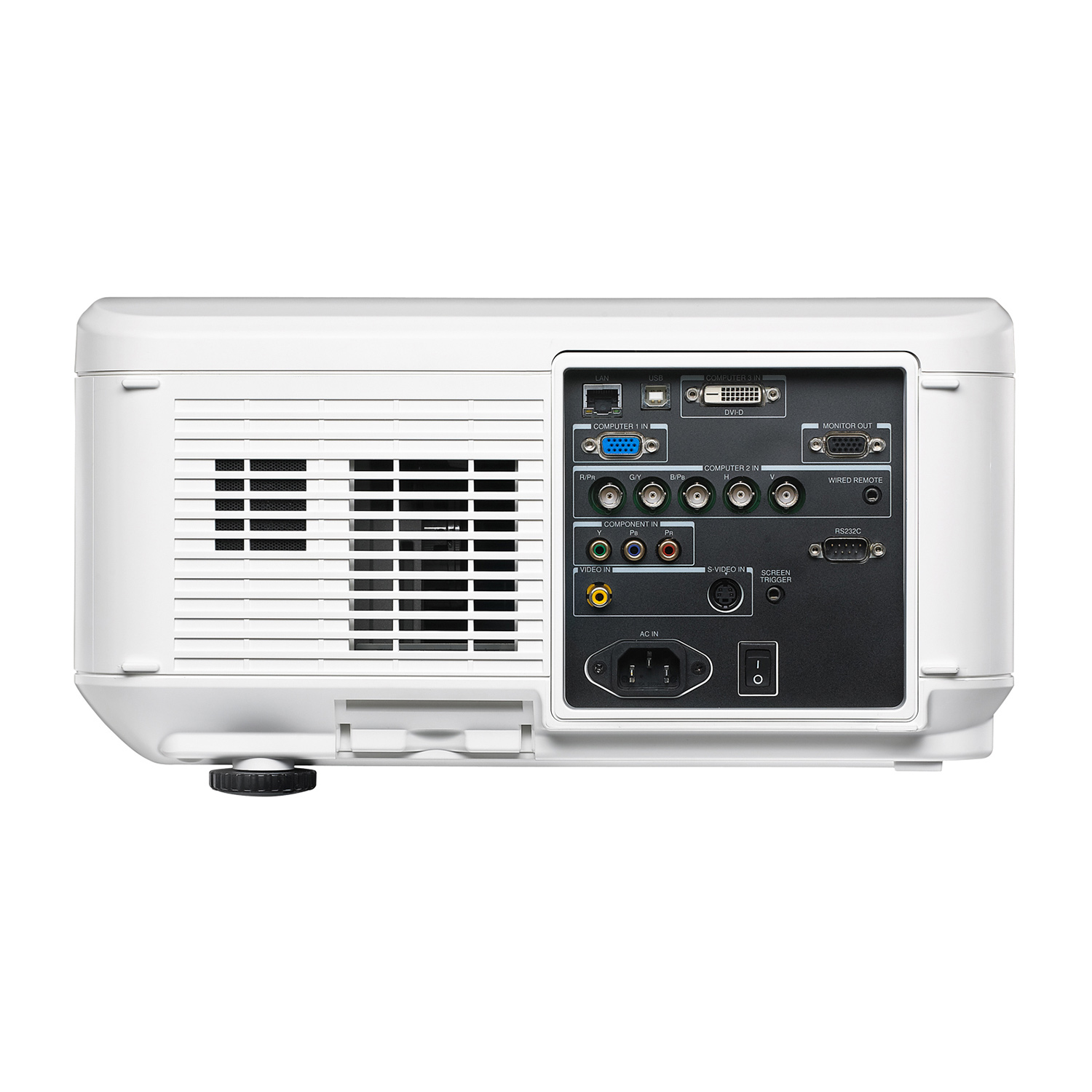

I/O Connection Ports VGA-In (15pin D-Sub), HDMI v1.4a, DVI-D, Component (5 BNC) (RGBHV), Component (YPbPr BNC x I/O Connection Ports 3), S-Video, Composite Video, VGA-Out (15pin D-Sub), RJ45/HDBaseT (Shared Port), IP Telnet Capable Over RJ-45, 12v Trigger, RS-232, 3D-Sync Out, USB B (Service ), Remote Jack (wire remote)
Security Kensington ® Security Slot, Security Bar, Pin Lock Keypad, Anti-Theft Lens Screw
Weight 37.5 lbs (17 kg)
Dimensions (W x H x D) 20" x 7.7" x 15.3" (508 x 195 x 389 mm)
Noise Level 35dB/39dB (Dual-lamp Eco/Standard Mode)
Power Supply: AC 100-240V Consumption: 715W (Normal Mode) , 580W (Eco. Mode), <0.5W (Eco Standby Mode)
Standard Accessories AC Power Cord, VGA Cable, Remote Control w/Batteries, Lens Cap, Interchangeable Color Wheel, Documentation Kit
Optional Accessories Replacement Lamp, Interchangeable Lens Options (x7)
UPC 813097020109
Power: 280 W
Part number: 5811100818-STD
Description: Remote Controller 27 keys
Part number: 5041823400
NovoPro
• BYOD Collaboration & Presentation
• Up to 64 users
• iOS/Android full mirroring
• Click-n-display with Launcher
Images
Model Number D88-UWZ01* D88-WF18501*/*** D88-WZ01 D88-ST001 D88-SMLZ01 D88-LOZ101 D88-LOZ201 D88-UST01*/***
Part Number 3797804200-SVK 3797745100-SVK 3797745200-SVK 3797744200-SVK 3797745000-SVK 3797745400-SVK 3797744900-SVK 3797855700-SVK
Lens Type Ultra-Wide Zoom Lens Wide Fixed Lens Wide Zoom Lens Standard Lens Semi Long Zoom Lens Long Zoom Lens 1 Long Zoom Lens 2 Super Short Throw Lens
Compatibility Compatible with DW6035/DW6030/DX6535/DX6530/DH6671/DU6675/DX6831/DW6851/DU6871/D8800*/D8900*/D8010W*/DU8090Z-WH***/DU8090Z-BK***
Throw Ratio XGA: 0.77-0.97:1
WXGA: 0.78-0.99:1
1080p:0.75-0.93:1v WUXGA: 0.75-0.93:1
XGA: 0.79:1
WXGA: 0.8:1
1080p: 0.76:1
WUXGA: 0.76:1
XGA: 1.3-1.85:1
WXGA: 1.31-1.87:1
1080p:1.25-1.79:1
WUXGA: 1.25-1.79:1
XGA: 1.79-2.35:1
WXGA: 1.81-2.38:1
1080p: 1.25-1.79:1
WUXGA: 1.73-2.27:1
XGA: 2.3-3.81:1
WXGA: 2.33-3.86:1
1080p:2.22-3.67:1
WUXGA: 2.22-3.67:1
XGA: 3.71-5.57:1
WXGA: 3.76-5.64:1
1080p:3.58-5.38:1
WUXGA: 3.58-5.38:1
XGA: 5.5-8.56:1
WXGA: 5.56-8.67:1
5.31-8.26:1
WUXGA: 5.31-8.26:1
XGA: 0.39:1
WXGA: 0.40:1
1080p: 0.38:1
WUXGA: 0.38:1
Zoom Ratio 1.25x N/A 1.41x 1.3x 1.65x 1.5x 1.55x N/A
Offset Power Lens Shift Power Lens Shift*** Power Lens Shift Power Lens Shift Power Lens Shift Power Lens Shift Power Lens Shift Power Lens Shift***
f Value(Focal Length) 11.3–14.1mm 11.6mm 18.7 - 26.5mm 26 - 34mm 32.9 - 54.2mm 52.8 - 79.1mm 78.5 - 121.9mm 5.64mm
F Number 1.96 – 2.3 1.85 1.85 - 2.5 1.7 - 1.9 1.86 - 2.48 1.85 - 2.41 1.85 - 2.48 2.0
Image Size(Minimum/ Maximum Image Diagonal) 40”– 500” 40”– 500” 40”– 500” 40”– 500” 40”– 500” 40”– 500” 40”– 500” 100” – 350”
Projection Distance
(Projection Distance Range)
XGA: 0.61–10.16m
WXGA: 0.65 –10.91m
1080p:0.64–10.66m
WUXGA:0.62–10.36m
XGA: 0.62 – 8.31m
WXGA: 0.67 – 8.92m
1080p:0.66–8.73m
WUXGA: 0.64– 8.5m
XGA: 1.03 – 19.14m
WXGA: 1.11 – 20.58m
1080p: 1.08 – 20.14mW
UXGA:1.05– 19.59m
XGA: 1.42 – 24.28m
WXGA: 1.53 – 26.11m
1080p:1.50 – 25.55m
WUXGA: 1.45– 24.85m
XGA: 1.83 – 39.42m
WXGA: 1.97 – 42.35m
1080p:1.93 – 41.45
WUXGA:1.87– 40.33m
XGA: 2.94- 57.69m
WXGA: 3.17 – 61.97m
1080p:3.10 - 60.66m
WUXGA:3.01– 59.02m
XGA: 4.31- 89.48m
WXGA: 4.65- 96.13m
1080p:4.55 – 94.09m
WUXGA:4.42– 91.54m
XGA: 0.83 – 2.68m
WXGA: 0.89 – 2.87m
1080p: 0.87 – 2.81m
WUXGA: 0.85 – 2.74m
Focus/Zoom Adjustment Motorized Motorized Motorized Motorized Motorized Motorized Motorized Motorized
Dimensions (D x L) 100 x 141mm
(3.9 x 5.5”)
102 x 160mm
(4” x 6.3”)
100 x 166mm
(3.9” x 6.5”)
100 x 141mm
(3.9 x 5.5”)
100 x 160mm
(3.9” x 6.3”)
100 x 173mm
(3.9” x 6.8”)
100 x 210mm
(3.9” x 8.3”)
313 x 421mm
(12.3” x16.6”)
Weight 1280g (1.8lbs) 910g (2lbs) 1,090g (2.4lbs) 820g (1.8lbs) 950g (2.1lbs) 1,020g (2.2bs) 1,350g (2.9lbs) 2,700g (5.9lbs)

*Lenses sold separately.
Title Version Type Size   Download
DU6675 CAD Drawing rar 2.75 MB
DU6675 Datasheet pdf 0.29 MB
DU6675 DW6655 DX6635 Remote Communicaton Manual pdf 0.53 MB
DU6675 User's Manual(English) pdf 8.81 MB
DU6675 User's Manual(French) pdf 8.94 MB
ProAV Installation Brochure pdf 2.03 MB
Vivitek Catalog 2019 06/2019 pdf 21.59 MB
Ultra Short Throw Lens User's Manual pdf 0.59 MB
Frequently Asked Questions
I plug my computer in to the projector and I don’t get an image.
The projector has many input connectors. Each connector is labelled (HDMI 1, RGB 1 ....). Ensure the projector is switched to that input using the “Source” button on the projector. Also, the computer may require a toggle switch to turn on the output port. This is typically accomplished by holding down the “Fn” at the same time as a Function key. Each laptop manufacturer may use a different “function” key. Typically, it is F4 or F8. The symbol on the key is usually a laptop as well as a square. Please refer to your laptop manufacturers Users Guide for additional information.
Is it OK to use 3rd. party lamps or lamps quoted to be Original Equipment Manufacturer lamps?
Please refer to lamp warranty under Warranty tab and then Vivitek Warranties, as using lamps that are not Vivitek supplied may result in warranties being voided and your projector not meeting required safety standards. Lamp manufacturers provide many different classes of lamps and projectors are built around a specific lamp. While being “original manufacturer” lamps, it is not guaranteed that the class of lamp is the same as the Vivitek specified lamp from the manufacturer.
My projector won’t turn on via an RS232 or IP command. If it is powered on, other commands work fine.
In the menu, go to Settings 2 menu, then Advanced 1 menu. Turn Low Power Mode to OFF.
How often should I change the filters in my DLP?
The majority of Vivitek projectors, due to sealed DLP optics, do not require filters. This eases maintenance requirements.The filters can be cleaned with running water. Please make sure to let them dry completely before installing them back. The filters should be changed if they are torn or worn.
How do I take care of my DLP?
Please refer to Warning and Precautions in the User's Manual.
Why are the lamps so expensive?
The selling price of the lamps is based on the purchase price we obtain from the manufacturers. Vivitek would reflect the price reduction if there is any from the manufacturers.
Why do I have to replace the lamp myself?
Lamp is a consumable part that needs to be replaced regularly. Customers can have a technician do the replacement, but the labor would not be covered by the manufacturer's warranty.
Why can't I order a lamp over the phone?
At the current stage, we don't process orders over the phone to protect our customers' credit card information. When the credit card information is sent to us by fax, only employees with authorization have access to this information.
Does HD really look better than SDTV?
Yes. HDTV has at least twice the linear resolution of standard-definition television (SDTV), thus allowing much more detail to be shown compared with analog television or regular DVD. In addition, the technical standards for broadcasting HDTV are also able to handle 16:9 aspect ratio pictures without using letterboxing or anamorphic stretching, thus further increasing the effective resolution for such content.
Where can I send a letter praising your products and customer support?
Customers can send us an email at customerservice@vivitekcorp.com.
How do I get another copy of my manual?
User's Manual can be downloaded here.
What other kinds of products do you make?
Vivitek also manufactures DLP projectors.
How long has Vivitek been in business
Vivitek was established in 2004.
What are the advantages of DLP over LCD or Plasma?
Please refer to Texas Instrument's website Here
What is DLP and how does it work?
Please refer to Texas Instrument's website Here
How do I get warranty service?
By calling our tech support at 877-603-3582 and providing the proof of purchase when required. Their hours of operation are from Monday to Friday, 9AM to 6PM Pacific time.
What is the life expectancy of my projector lamp?
Lamps typically last about 1,500 ~ 10,000 hours. Usually the higher the brightness, the lower the lamp hours. Keep in mind however that some lamps won't make it all the way to their estimated life spans. If you operate your projector in a warm environment that is not adequately ventilated or at higher elevations without switching to “high altitude” mode in the menu, this will reduce lamp life. It is also strongly recommended that the projectors be connected to a surge protector as power surges can damage your lamp. Adhering to the recommended power-off cycling will assist in maintaining lamp life. Frequent powering on/off will also reduce lamp life expectancy so it may be better to leave the projector on if you intend to use again within 20 minutes. Using the projector in Economy mode will extend your lamp life.
How do I replace the lamp myself?
In the user's manual, there is a section that shows you how to replace the lamp.
How much do replacement lamps/remotes cost?
You will need to contact your local/online reseller. Vivitek is available through authorized retailers, e-tailers, dealers, distributors and resellers. Vivitek has partnered with key partners around the U.S. These authorized partners can be found under the where to buy section.
How do I register my projector for warranty?
Complete and mail in the registration card included with the purchase of your product or fill out the online product registration here.
What is DLP® technology and how does it work?
DLP®-based projectors produce stunning images with digital clarity and precision. The DLP chip uses millions of tiny mirrors to reflect all colors of visible light to project an all-digital image on the screen. Click here for more detailed information.
Where can I purchase your products?
Vivitek is available through authorized retailers, e-tailers, dealers, distributors and resellers. Vivitek has partnered with key partners around the U.S. These authorized partners can be found under the where to buy section.
How do I synchronize my laptop with my projector?
On most laptops, hold down the 'Fn' + 'F4' keys. This may vary, depending on you laptop's brand it may not be 'F4', but 'F5', 'F7' or 'F8'. On the correct function key, there is a symbol 2 squares, have the letters "LCD", or have the symbol of a laptop/square on it. Please refer to your laptops user's guide for additional information.
Dual Lamp Technology
A dual lamp projector is able to display larger/brighter images beyond what a single lamp can produce. Dual lamp technology automatically switches the projector to single lamp mode when one of the lamps goes out, ensuring usage without any interruptions.
BrilliantColor™
BrilliantColor from Texas Instruments is a multi-color processing technology that produces vibrant images. BrilliantColor technology uses up to six colors, instead of just the three primary colors, red, green and blue, to improve color accuracy and brightens secondary colors.
DLP® Technology
DLP® chipset-based projectors produce vivid images with digital clarity and precision. The DLP® chip uses millions of tiny mirrors to reflect all the colors of visible light to project a digital image onto a screen. DLP® technology delivers high contrast ratios and minimizes the gaps between pixels for bright, sharp pictures.
High Definition Television
HDTV is a digital TV broadcasting format where the broadcast transmits widescreen pictures with more detail and quality than found in a standard analog television, or other digital television formats. HDTV is a type of Digital Television (DTV) broadcast, and is considered to be the best quality DTV format available.
5 year Warranty Parts and Labor - 3year Advanced Replacement
Standard Warranty
5-Year Warranty on Parts and Labor / 3 years Advanced Exchange / 1-year Lamp Warranty
