| Display Type | Single Chip 0.67" DLP Technology by TI | |
| Brightness | 7,500 Lumens | |
| Native Resolution | WUXGA (1920 x 1200) | |
| Maximum Resolution | UHD (3840x2160) @60Hz | |
| Contrast Ratio | 2,000:1 / 3,000,000:1 (Full On/Off) | |
| Laser Life/Type | Up to 20,000 hours (Laser Phosphor Light Engine) | |
| Throw Ratio | 1.15 - 1.9 :1 (STD) | |
| Image Size (Diagonal) | 36.7” - 322" (STD) | |
| Projection Distance | 1.5m - 8m (STD) | |
| Projection Lens | F#2.45 - 3.13, f =17.23 - 27.9mm | |
| Zoom Ratio | 1.65x | |
| Aspect Ratio | 16:10 (Default) | |
| Offset | +90%~+115% (STD) & +100%~+110% (ST TR0.5) | |
| Keystone Correction | Horizontal ±30°, Vertical ±30° | |
| Horizontal Frequency | 15, 31 – 91.4Hz | |
| Vertical Scan Rate | 24 - 30Hz, 47 – 120Hz | |
| 3D Functionality | Yes (DLP® Link™, HDMI v2.0 Blu-ray, side by side, frame packing, top and bottom, frame sequential) | |
| Lens Shift Range | V: 25% range (STD) \ 10% range (ST) H: Left 4% to Right 4% | |
| Computer Compatibility | VGA, SVGA, XGA, WXGA, SXGA, SXGA+, UXGA, 1080P, WUXGA,4K@60hz, Mac | |

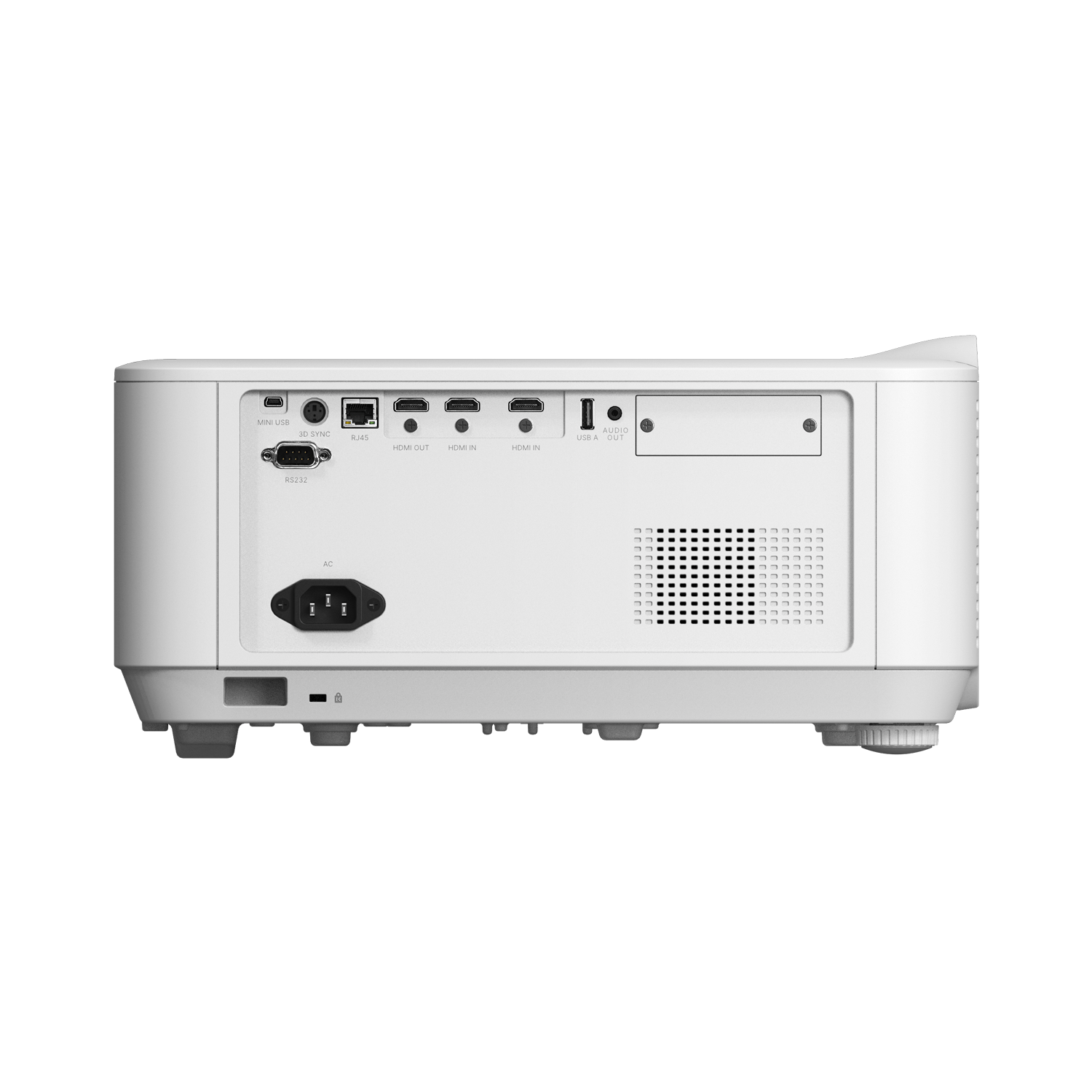

| I/O Connection Ports | HDMI 2.0 (x2) (HDCP v2.3 Compliant), 3D-Sync Out , HDMI Out, Audio-Out (Mini Jack),USB Type A Power (5V/2.0A),RS-232-In,RJ45 (LAN), USB Mini B (Service), HDBaseT™ (option) | |
| Projection Method | Table , Ceiling , Portrait with Front or Rear | |
| Security Solutions | Kensington® Security Slot, Security Bar, Keypad Lock | |
| Dimensions (WxDxH) | 496x380x160mm (19.5” x 14.9” x 6.3") wo foot | |
| Weight | 12kg (2.4lbs) | |
| Available Colors | White and Black | |
| Speakers | 10W x1 | |
| Noise Level | 35dB \ 32dB (Normal \ Eco Mode) | |
| Power Supply | AC 100-240V, 50/60Hz | |
| Power Consumption | Normal | 510W@110Vac |
| Network Standby | Less than 2W | |
| Eco Standby | Less than 0.5W | |
| Environmental Conditions | Operating | At temperature 0 to 40?C, relative humidity 10% to 85%,non-condensation |
| Storage | At temperature -10 to 60?C, relative humidity 5% to 95%,non-condensation | |
| Standard Accessories | AC Power Cord, Remote Control w/Batteries, Documentation Kit | |
