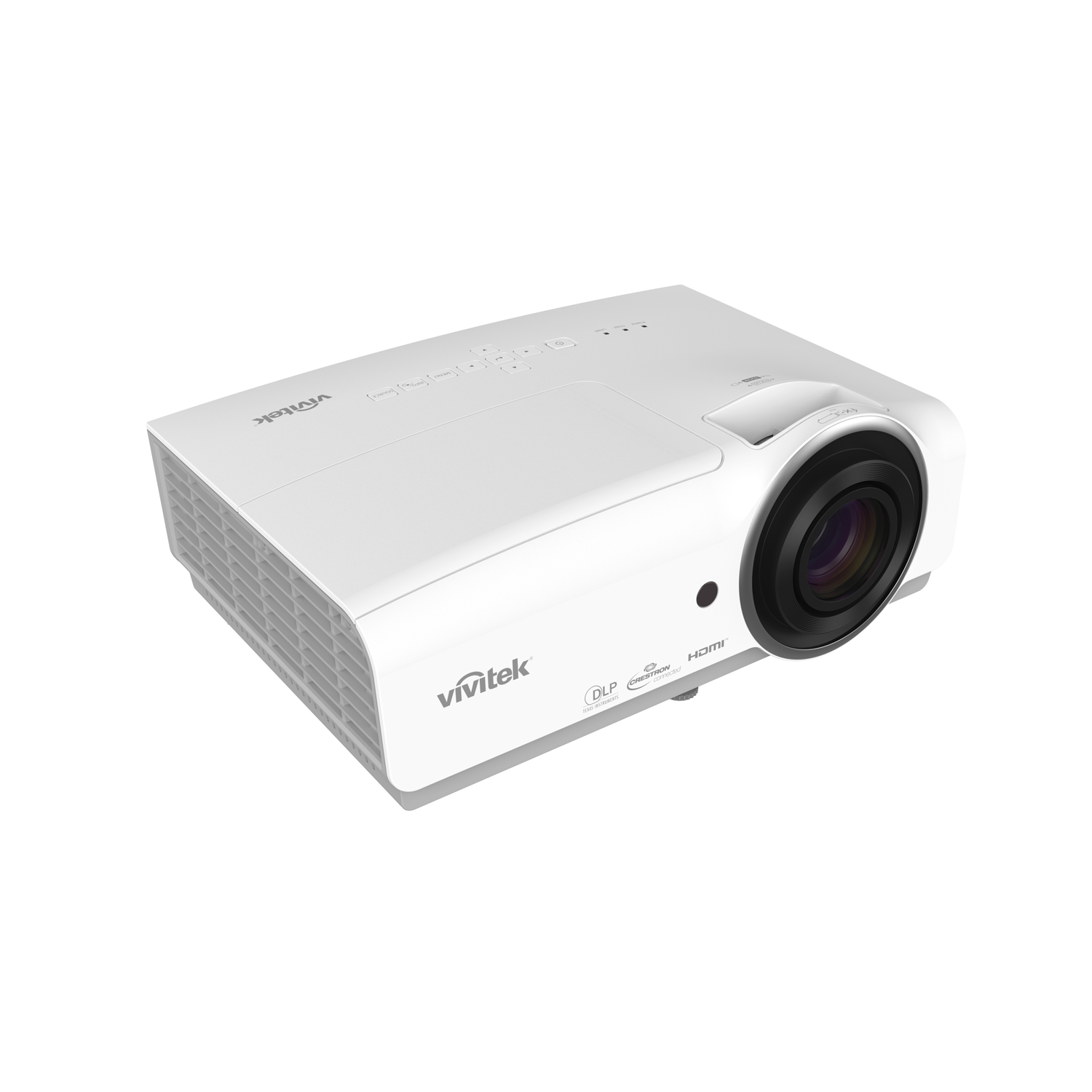

DH856
High Brightness, High Performance In 16:9 Widescreen with Full HD 3D
Designed for high brightness and performance in 16:9 widescreen presentation format. The DH856 offers outstanding brightness in its class together with features like comprehensive Full HD 3D support, installation flexibility and portable with a 1.5x zoom lens, keystone and corner correction all in a compact chassis. With advanced color technology, multiple image modes and hardware features, the DH856 provides optimum picture performance for any use in many environments.
  • Native 1080p (1920x1080) resolution and displays up to WUXGA
  • 4,800 lumens of brightness with a 15,000:1 contrast
  • viviBlack enhances black level for higher contrast ratio
  • 3D-Ready via DLP® Link™, Full 3D From Blu-Ray or broadcasted via cable or satellite
  • 6-segment colorwheel for accurate and detailed color images
  • Easy image corrections with 4 corner geometric correction
  • Variety of display connectivity options including: HDMI (x2), VGA-in (2x), VGA-Out, S-Video and Composite Video
  • Built-in 10W audio speaker with multiple audio-in and audio-out ports
  • High-efficiency lamps that last up to 4000 hours in Eco Mode
  • RJ45/RS-232c for integration and system administration. Integrated network monitoring and management solutions (product certified) including Crestron® RoomView™, Extron, AMX SSDP, and Telnet
  • 12V trigger for simple screen/projector automation
  • Top-loading sliding cover for quick and easy lamp replacement
  • Anti-theft security features include: Kensington® security slot, and security bar
Display Type Single 0.65" DLP Technology by TI
Brightness 4,800 Lumens
Native Resolution 1080p (1920 x 1080), 16:9 Format
Contrast Ratio 15,000:1
Lamp Life and Type 3000/4000/5000 Hours (Normal/Eco/Dynamic Eco), 310W / 250WW
Throw Ratio (±3%) 1.39 to 2.09 (Distance/Width)
Image Size (Diagonal)* 26" - 325" (0.66 – 8.25m)
Projection Distance 3.94’ to 32.8’ (1.2 to 10m)
Projection Lens F=2.42 - 2.97 , f= 20.70 - 31.05mm
Zoom Ratio 1.5X
Aspect Ratio Native: 16:9
Offset 114.9%
Keystone Correction ±30° Vertical, ±30 Steps
Horizontal Scan Rate 15, 31 to 91.4KHz
Vertical Scan Rate 24 ~ 30Hz, 47 ~ 120Hz
Audio 10 Watt Mono
Remote Control Full Featured IR Remote w/ Laser Pointer
Projection Method Table Top or Ceiling Mount (Front or Rear)
Uniformity 85%
Computer Compatibility WUXGA, UXGA, SXGA+, SXGA, XGA, SVGA, VGA Resized; VESA Standards; PC and Macintosh Compatible
Video Compatibility SDTV (480i, 576i), EDTV (480p, 576p), HDTV (720p, 1080i/p), NTSC (M, 3.58/4.43 MHz), PAL (B, D, G, H, I, M, N), SECAM (B, D, G, K, K1, L)
Full 3D Video Compatibility 720p 50/60 Frame Packing, 1080i 50/60 Side-by-Side, 1080p24 Frame Packing, Frame Sequential ( DLP® Link™, HDMI 1.4b (Blu-Ray))

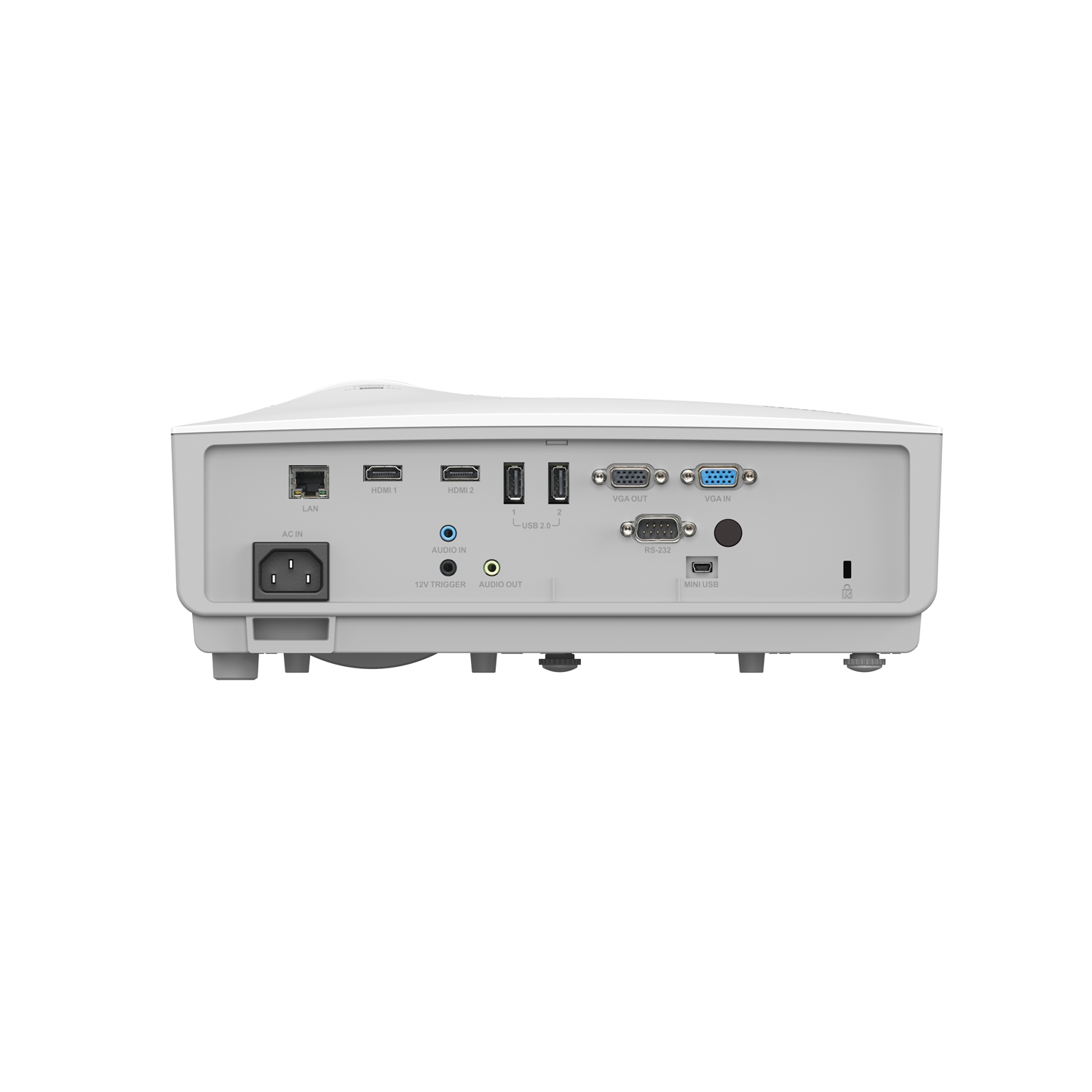

I/O Connection Ports HDMI 1 ver. 1.4b (x2) RJ45 LAN Control
VGA-In (15pin D-Sub) x1 RS-232c Serial Control
VGA-Out (15pin D-Sub) x1 5V-Out 1.5A USB Type A (x2)
Audio-In (3.5mm Mini-Jack) 12V-Trigger (3.5 Mini-Jack)
Audio-Out (3.5mm Mini-Jack) Mini-USB (Service Only)
Security Kensington® Lock Port
Weight 7.48lbs (3.4kg)
Dimensions (W x D x H) 12.36" x 8.39” x 4.96" (314 x 213 x 126mm) ID only
12.36” x 9.06” x 4.96” (314 x 230 x 126mm) with lens
Noise Level 38dB/34dB (Normal/Eco Mode)
Power Supply: AC 100-240V, 50/60Hz
Consumption: TBAW (Normal Mode), TBAW (Eco Mode), <0.5W (Standby Mode), <2W (LAN Standby Mode)
Operating Temperature 41 to 104°F (5 to 40°C)
Warranty 3-Year Limited Parts/Labor, 1year Lamp
Standard Accessories AC Power Cord, VGA Cable, Remote Control, Batteries for Remote, User’s Manual (CD), Warranty Card
Optional Accessories Spare Lamp P/N (SS-5811126482-VV)
Remote Control P/N (5042149001
UPC 813097024732
Title Version Type Size   Download
DH856 Datasheet 04/2022 pdf 0.50 MB
DH856 LAN and Serial Communication Protocol 06/2021 pdf 1.27 MB
DH856 Projector Error Codes 06/2021 pdf 0.18 MB
DH856 User's Manual 06/2021 pdf 7.05 MB
DH856 CAD Drawing 06/2021 zip 2.68 MB
DH856 Remote IR Hex Code 06/2021 csv 0.01 MB
Frequently Asked Questions
I plug my computer in to the projector and I don’t get an image.
The projector has many input connectors. Each connector is labelled (HDMI 1, RGB 1 ....). Ensure the projector is switched to that input using the “Source” button on the projector. Also, the computer may require a toggle switch to turn on the output port. This is typically accomplished by holding down the “Fn” at the same time as a Function key. Each laptop manufacturer may use a different “function” key. Typically, it is F4 or F8. The symbol on the key is usually a laptop as well as a square. Please refer to your laptop manufacturers Users Guide for additional information.
Is it OK to use 3rd. party lamps or lamps quoted to be Original Equipment Manufacturer lamps?
Please refer to lamp warranty under Warranty tab and then Vivitek Warranties, as using lamps that are not Vivitek supplied may result in warranties being voided and your projector not meeting required safety standards. Lamp manufacturers provide many different classes of lamps and projectors are built around a specific lamp. While being “original manufacturer” lamps, it is not guaranteed that the class of lamp is the same as the Vivitek specified lamp from the manufacturer.
My projector won’t turn on via an RS232 or IP command. If it is powered on, other commands work fine.
In the menu, go to Settings 2 menu, then Advanced 1 menu. Turn Low Power Mode to OFF.
How often should I change the filters in my DLP?
The majority of Vivitek projectors, due to sealed DLP optics, do not require filters. This eases maintenance requirements.The filters can be cleaned with running water. Please make sure to let them dry completely before installing them back. The filters should be changed if they are torn or worn.
How do I take care of my DLP?
Please refer to Warning and Precautions in the User's Manual.
Why are the lamps so expensive?
The selling price of the lamps is based on the purchase price we obtain from the manufacturers. Vivitek would reflect the price reduction if there is any from the manufacturers.
Why do I have to replace the lamp myself?
Lamp is a consumable part that needs to be replaced regularly. Customers can have a technician do the replacement, but the labor would not be covered by the manufacturer's warranty.
Why can't I order a lamp over the phone?
At the current stage, we don't process orders over the phone to protect our customers' credit card information. When the credit card information is sent to us by fax, only employees with authorization have access to this information.
Does HD really look better than SDTV?
Yes. HDTV has at least twice the linear resolution of standard-definition television (SDTV), thus allowing much more detail to be shown compared with analog television or regular DVD. In addition, the technical standards for broadcasting HDTV are also able to handle 16:9 aspect ratio pictures without using letterboxing or anamorphic stretching, thus further increasing the effective resolution for such content.
Where can I send a letter praising your products and customer support?
Customers can send us an email at customerservice@vivitekcorp.com.
How do I get another copy of my manual?
User's Manual can be downloaded here.
What other kinds of products do you make?
Vivitek also manufactures DLP projectors.
How long has Vivitek been in business
Vivitek was established in 2004.
What are the advantages of DLP over LCD or Plasma?
Please refer to Texas Instrument's website Here
What is DLP and how does it work?
Please refer to Texas Instrument's website Here
How do I get warranty service?
By calling our tech support at 877-603-3582 and providing the proof of purchase when required. Their hours of operation are from Monday to Friday, 9AM to 6PM Pacific time.
What is the life expectancy of my projector lamp?
Lamps typically last about 1,500 ~ 10,000 hours. Usually the higher the brightness, the lower the lamp hours. Keep in mind however that some lamps won't make it all the way to their estimated life spans. If you operate your projector in a warm environment that is not adequately ventilated or at higher elevations without switching to “high altitude” mode in the menu, this will reduce lamp life. It is also strongly recommended that the projectors be connected to a surge protector as power surges can damage your lamp. Adhering to the recommended power-off cycling will assist in maintaining lamp life. Frequent powering on/off will also reduce lamp life expectancy so it may be better to leave the projector on if you intend to use again within 20 minutes. Using the projector in Economy mode will extend your lamp life.
How do I replace the lamp myself?
In the user's manual, there is a section that shows you how to replace the lamp.
How much do replacement lamps/remotes cost?
You will need to contact your local/online reseller. Vivitek is available through authorized retailers, e-tailers, dealers, distributors and resellers. Vivitek has partnered with key partners around the U.S. These authorized partners can be found under the where to buy section.
How do I register my projector for warranty?
Complete and mail in the registration card included with the purchase of your product or fill out the online product registration here.
Where can I purchase your products?
Vivitek is available through authorized retailers, e-tailers, dealers, distributors and resellers. Vivitek has partnered with key partners around the U.S. These authorized partners can be found under the where to buy section.
How do I synchronize my laptop with my projector?
On most laptops, hold down the 'Fn' + 'F4' keys. This may vary, depending on you laptop's brand it may not be 'F4', but 'F5', 'F7' or 'F8'. On the correct function key, there is a symbol 2 squares, have the letters "LCD", or have the symbol of a laptop/square on it. Please refer to your laptops user's guide for additional information.
