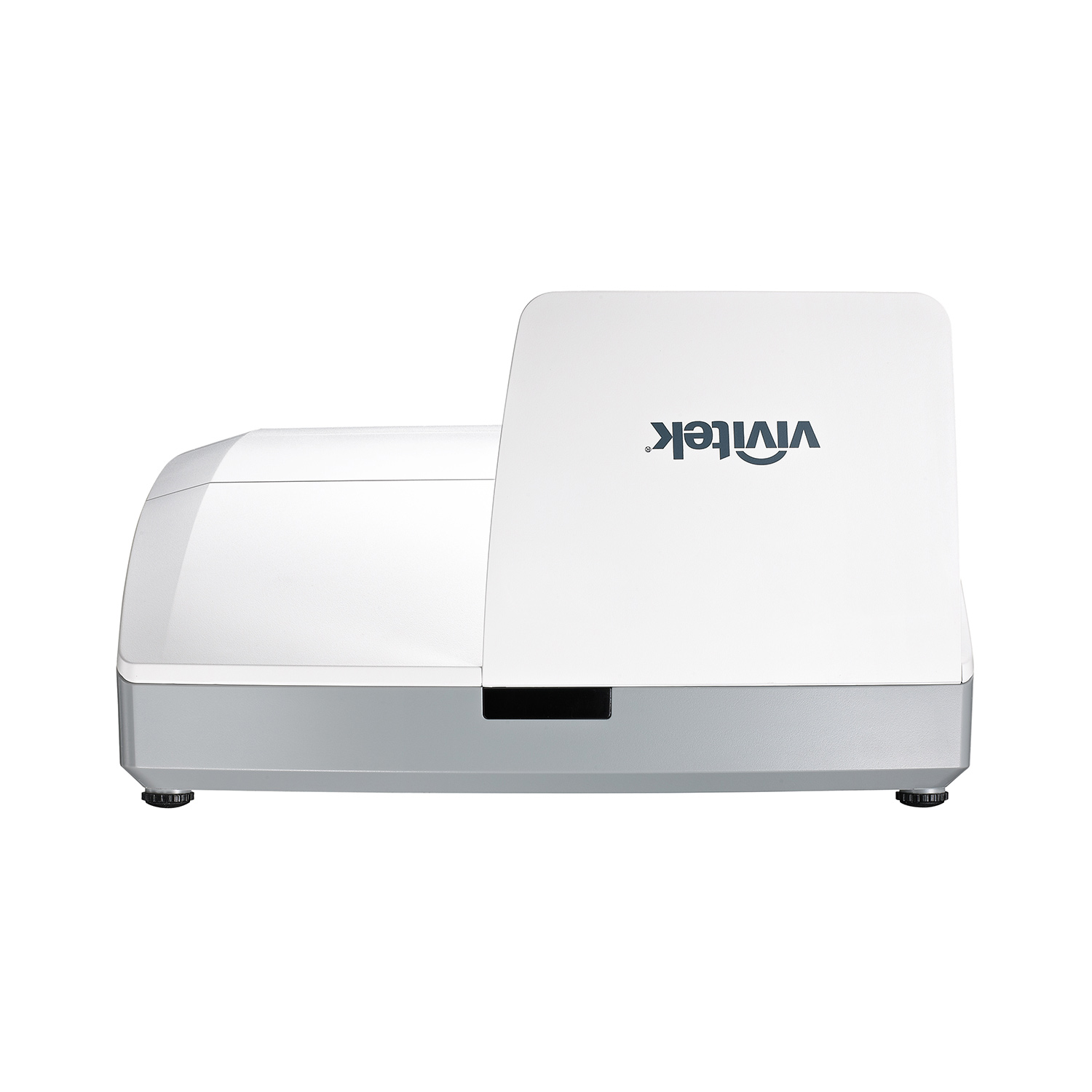

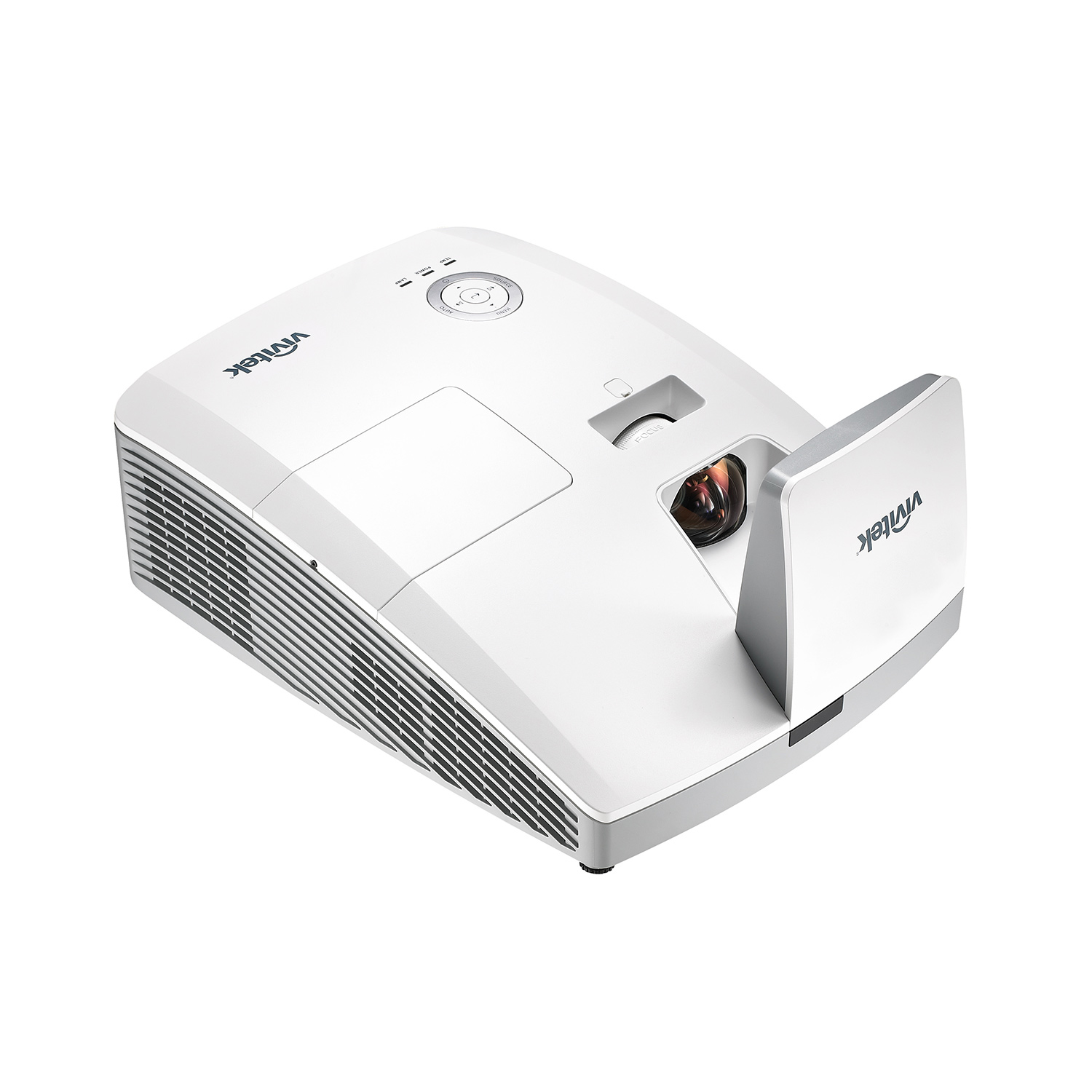

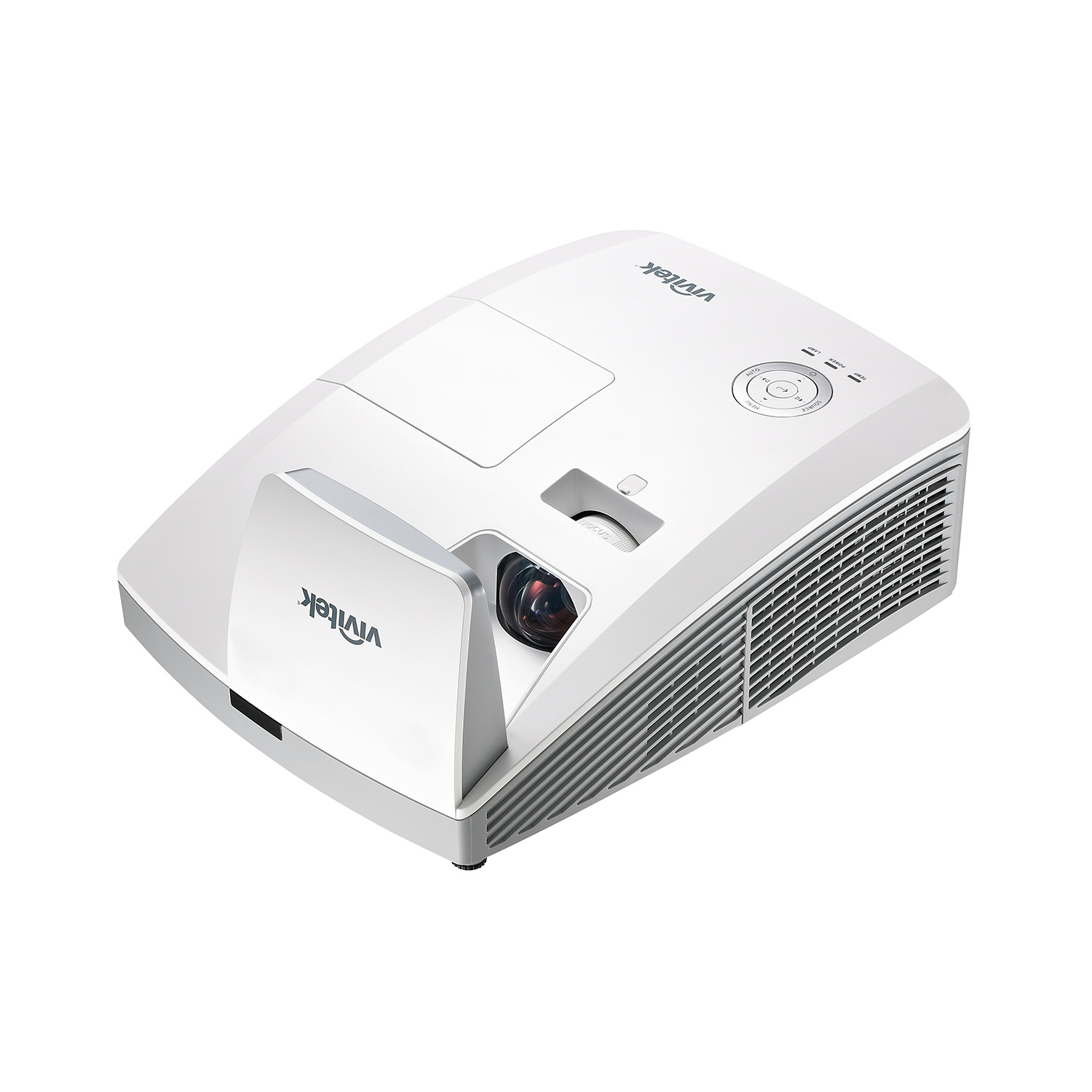

DH759USTi
1080p Ultra-Short-Throw Projector with Built-in Pen Interactivity and 10-point Finger-Touch Upgrade-ability.
The DW759USTi ultra short-throw interactive projector delivers a large 88” to 110” diagonal image from a distance of ~11” to 17” (to the front of the projector). The projector delivers a high bright 3,500 ANSI Lumens and an outstanding contrast ratio of 10,000:1 plus offers a low cost of operation with lamp life up to 10,000 hours. The DW759USTi offers full IWB functionality with IR pen support and 10-point finger touch interactivity with the optional finger touch DT02 Laser Curtain in an intuitive way with minimal set-up and on-going maintenance. Enhanced interactivity is assured with NovoScreenNote interactive software for MAC and PC. Very quiet operation. Full 3D support.
Short throw and extreme short throw projectors
Short throw and extreme short throw projectors enable users to bring big, breathtaking images into small, intimate spaces, without any obstructing shadows from presenters. Requiring only minimal distance from a screen to operate, these projectors are perfect for cozy home theaters and classrooms.
Interactivity
A critical breakthrough in education technology, Vivitek's new line of interactive projectors enable educators to easily interact with students, using pen or finger-touch interactive capabilities, to enhance their learning and retention.
Excellent Connectivity
The Vivitek DH759USTi comes equiped with all the connectivity for your educational needs: two (2) HDMI, two (2) VGA-in, VGA-out for monitor loop through, composite Video, S-Video, and RJ45/Rs232c for integration and system administration.

NovoConnect

A Wireless Presentation & Collaboration

NovoConnect allows participants to seamlessly share content from connected device through a wireless network to conduct interactive presentations with dynamic content sources and HD display quality.

LEARN MORE BUY NOW
  • Brightness 3,500 ANSI lumens with a high 10,000:1 contrast ratio for bright defined and sharp images from single chip technology (no convergence required)
  • Native HD1080 resolution (1920x1080) and signal compatible up to WUXGA resolution (1920x1200)
  • Ultra Short Throw 0.33:1 T.R that delivers a large, up to 110” image
  • Connectivity options include: 2x HDMI v1.4 (1 w/MHL) and, 2x VGA-in, 1x VGA-out, microphone in, audio-in/audioout, RJ-45 for projector status and control
  • Integrated network monitoring and management solutions (product certified) including Crestron® RoomView™, Extron, AMX and Telnet
  • 3D compatibility with DLP® Link™ and HDMI 1.4b Blu-ray technology
  • Wi-Fi compatible with NovoConnect/NovoPRO Wireless Presentation System for B.Y.O.D support of iOS, Android, PC, MAC and Chromebook. Feature rich interactivity and collaboration
  • Integrated audio speakers delivering 10W+10W (20W) for clear and loud audio enhancement
  • Interactivity:
    • Built-in IWB functionality with IR pen support allowing simultaneous writing/ drawing
    • Optional finger touch DT02 Laser curtain module allowing up to 10 simultaneous finger-touch for writing/drawing
    • Easy to use automatic or manual calibration for interactivity set-up
  • Includes at no cost, wall-mount arm and projector mount bracket
  • Optional NovoConnect or NovoPRO provide BYOD interactive collaboration for Mac, PC, Chromebook, iOS and Android
Display Type Single 0.65”DLP® Technology by TI
Brightness 3500 ANSI Lumens
Native Resolution 1080p (1920x1080)
Max. Resolution WUXGA (1920x1200)@60Hz
Contrast Ratio 10,000:1
Lamp Life and Type 5,000 / 10,000 Hours (Normal/Eco Mode), 230W / 200W
Throw Ratio (±3%) 0.33:1
Image Size (Diagonal) 88” - 110” (2032mm – 2540mm) Diagnol
Projection Distance 23.74” to 29.68” (603mm-754mm) Typical to mirror.
Projection Lens F=2.5, f=5.1MM
Zoom Ratio Fixed
Aspect Ratio 16:10 Native, 4:3, 16:9, 2.35:1 switchable
Offset 120% Fixed. Lens Shift adjustent of 1.7%
Keystone Correction +/-40 Degree
Horizontal Frequency 15, 31 – 91Hz
Vertical Scan Rate 24 - 30Hz, 47 - 120Hz, Freemont, CA
Interactive Functionality Yes (via Camera), pen based. (Finger Touch requires optional DT02 Laser Curtain Kit)
3D Functionality Yes, DLP® Link™, HDMI 1.4b (Blu-Ray)
Audio 2 x 10W, Total 20W.
Video Compatibility SDTV (480i, 576i), EDTV (480p, 576p), HDTV (720p, 1080i/p), NTSC (M, 3.58/4.43 MHz), PAL (B, D, G, H, I, M, N), SECAM (B, D, G, K, K1, L)

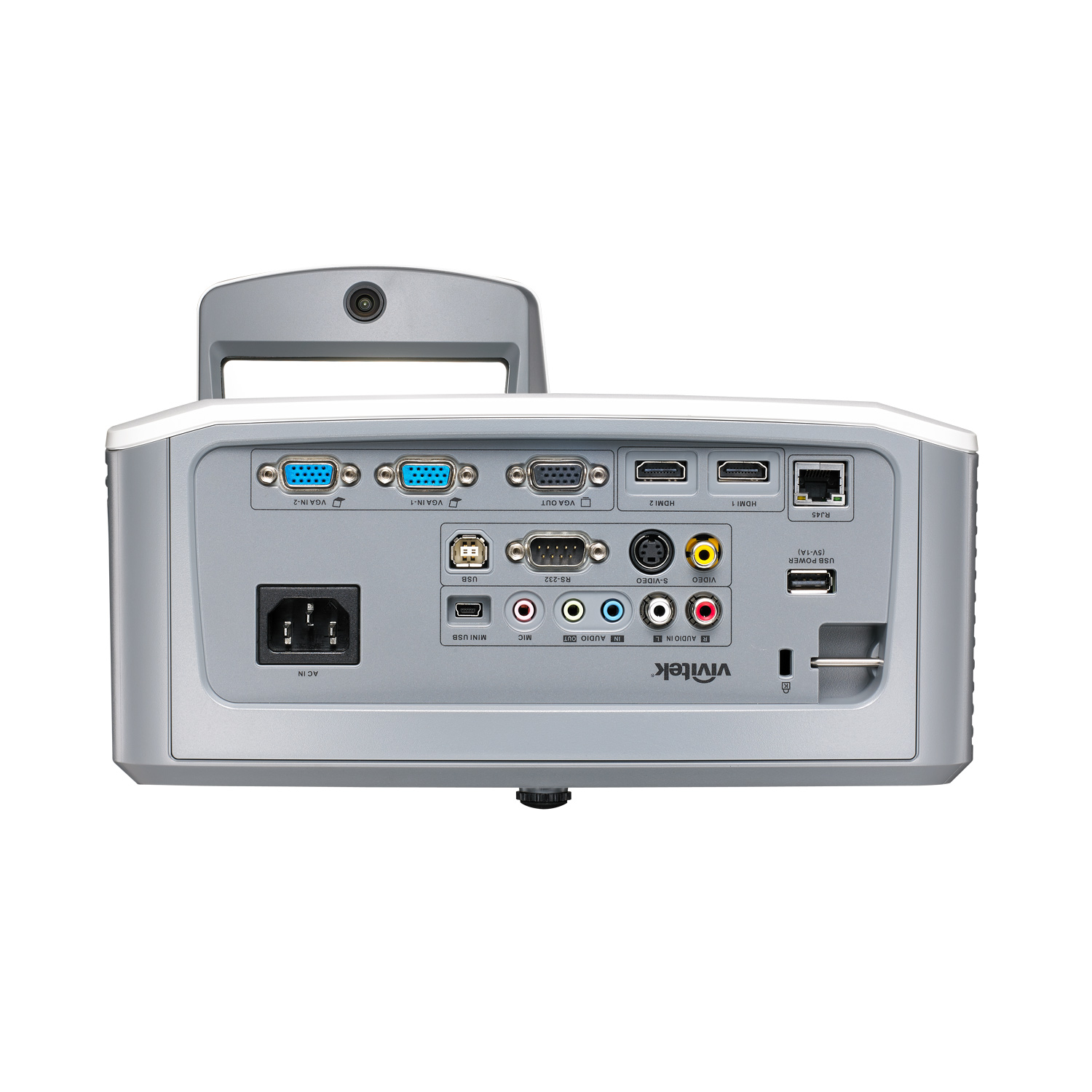

I/O Connection Ports 2x HDMI v1.4 (1w/MHL), VGA-In (x2), S-Video, Composite, Audio-In RCA, Audio-In (Mini-Jack), VGA-Out, Microphone Jack, Audio-Out (Mini-Jack) variable, RJ45, RS-232, USB Power (5V, 1.5A), USB (Service), Mini USB
Security Solutions Kensington® Security Slot, Security Bar, Keypad Lock
Dimensions (W x D x H) 11.3”x14.7”x4.9” (287.7 x 374.5 x 122.6mm) (not including height of mirror)
Weight 11 lb (5 kg)
Noise Level 33dB/29dB (Normal/Eco. Mode)
Power Supply: AC 100-240V, 50/60Hz Consumption: 290W (Normal Mode), 250W (Eco. Mode), <0.5W (Standby Mode)
Standard Warranty 5 years P&L warranty, Lamp -1 year/3500 hours whichever comes first, 3 year Advanced Exchange
Education Warranty 5 years P&L warranty, 1 year/3500 hrs on lamp, 5 years Advanced Exchange
Standard Accessories AC Power Cord, VGA Cable, USB Cable, Remote Control , Interactive Pen (w/Battery) (x2), USB Cable, Documentation Kit
Optional Accessories Laser Curtain Kit (DT02), Replacement Lamp:5811118004-SVV, NovoConnect/NovoPRO Interactive and Collaborative BYOD
UPC 813097021847
Description: Remote Control Full Functions 27 Keys
Part number: 5041818400
Power: 280 W
Part number: 5811119833-SVV
DT02
INTERACTIVE FINGER TOUCH MODULE
Interactive finger touch
optional module for Vivitek D755WTIR and DH758USTIR ultra-short throw projectors
Title Version Type Size   Download
DH759USTi Datasheet pdf 2.24 MB
Vivitek Catalog 2019 06/2019 pdf 21.59 MB
Title Version Type Size   Download
NovoPointer 04/2017 exe 12.11 MB
NovoScreenote exe 116.32 MB
Frequently Asked Questions
I plug my computer in to the projector and I don’t get an image.
The projector has many input connectors. Each connector is labelled (HDMI 1, RGB 1 ....). Ensure the projector is switched to that input using the “Source” button on the projector. Also, the computer may require a toggle switch to turn on the output port. This is typically accomplished by holding down the “Fn” at the same time as a Function key. Each laptop manufacturer may use a different “function” key. Typically, it is F4 or F8. The symbol on the key is usually a laptop as well as a square. Please refer to your laptop manufacturers Users Guide for additional information.
Is it OK to use 3rd. party lamps or lamps quoted to be Original Equipment Manufacturer lamps?
Please refer to lamp warranty under Warranty tab and then Vivitek Warranties, as using lamps that are not Vivitek supplied may result in warranties being voided and your projector not meeting required safety standards. Lamp manufacturers provide many different classes of lamps and projectors are built around a specific lamp. While being “original manufacturer” lamps, it is not guaranteed that the class of lamp is the same as the Vivitek specified lamp from the manufacturer.
My projector won’t turn on via an RS232 or IP command. If it is powered on, other commands work fine.
In the menu, go to Settings 2 menu, then Advanced 1 menu. Turn Low Power Mode to OFF.
How often should I change the filters in my DLP?
The majority of Vivitek projectors, due to sealed DLP optics, do not require filters. This eases maintenance requirements.The filters can be cleaned with running water. Please make sure to let them dry completely before installing them back. The filters should be changed if they are torn or worn.
How do I take care of my DLP?
Please refer to Warning and Precautions in the User's Manual.
Why are the lamps so expensive?
The selling price of the lamps is based on the purchase price we obtain from the manufacturers. Vivitek would reflect the price reduction if there is any from the manufacturers.
Why do I have to replace the lamp myself?
Lamp is a consumable part that needs to be replaced regularly. Customers can have a technician do the replacement, but the labor would not be covered by the manufacturer's warranty.
Why can't I order a lamp over the phone?
At the current stage, we don't process orders over the phone to protect our customers' credit card information. When the credit card information is sent to us by fax, only employees with authorization have access to this information.
Does HD really look better than SDTV?
Yes. HDTV has at least twice the linear resolution of standard-definition television (SDTV), thus allowing much more detail to be shown compared with analog television or regular DVD. In addition, the technical standards for broadcasting HDTV are also able to handle 16:9 aspect ratio pictures without using letterboxing or anamorphic stretching, thus further increasing the effective resolution for such content.
Where can I send a letter praising your products and customer support?
Customers can send us an email at customerservice@vivitekcorp.com.
How do I get another copy of my manual?
User's Manual can be downloaded here.
What other kinds of products do you make?
Vivitek also manufactures DLP projectors.
How long has Vivitek been in business
Vivitek was established in 2004.
What are the advantages of DLP over LCD or Plasma?
Please refer to Texas Instrument's website Here
What is DLP and how does it work?
Please refer to Texas Instrument's website Here
How do I get warranty service?
By calling our tech support at 877-603-3582 and providing the proof of purchase when required. Their hours of operation are from Monday to Friday, 9AM to 6PM Pacific time.
What is the life expectancy of my projector lamp?
Lamps typically last about 1,500 ~ 10,000 hours. Usually the higher the brightness, the lower the lamp hours. Keep in mind however that some lamps won't make it all the way to their estimated life spans. If you operate your projector in a warm environment that is not adequately ventilated or at higher elevations without switching to “high altitude” mode in the menu, this will reduce lamp life. It is also strongly recommended that the projectors be connected to a surge protector as power surges can damage your lamp. Adhering to the recommended power-off cycling will assist in maintaining lamp life. Frequent powering on/off will also reduce lamp life expectancy so it may be better to leave the projector on if you intend to use again within 20 minutes. Using the projector in Economy mode will extend your lamp life.
How do I replace the lamp myself?
In the user's manual, there is a section that shows you how to replace the lamp.
How much do replacement lamps/remotes cost?
You will need to contact your local/online reseller. Vivitek is available through authorized retailers, e-tailers, dealers, distributors and resellers. Vivitek has partnered with key partners around the U.S. These authorized partners can be found under the where to buy section.
How do I register my projector for warranty?
Complete and mail in the registration card included with the purchase of your product or fill out the online product registration here.
What is DLP® technology and how does it work?
DLP®-based projectors produce stunning images with digital clarity and precision. The DLP chip uses millions of tiny mirrors to reflect all colors of visible light to project an all-digital image on the screen. Click here for more detailed information.
Where can I purchase your products?
Vivitek is available through authorized retailers, e-tailers, dealers, distributors and resellers. Vivitek has partnered with key partners around the U.S. These authorized partners can be found under the where to buy section.
How do I synchronize my laptop with my projector?
On most laptops, hold down the 'Fn' + 'F4' keys. This may vary, depending on you laptop's brand it may not be 'F4', but 'F5', 'F7' or 'F8'. On the correct function key, there is a symbol 2 squares, have the letters "LCD", or have the symbol of a laptop/square on it. Please refer to your laptops user's guide for additional information.
MHL Expand Your World
Mobile High-Definition Link and is a technology found in many devices, displays and accessories today. MHL-enabled smartphones and tablets connect to HD displays, delivering crystal-clear HD content and immersive surround sound, while simultaneously charging the phone.
BrilliantColor™
BrilliantColor from Texas Instruments is a multi-color processing technology that produces vibrant images. BrilliantColor technology uses up to six colors, instead of just the three primary colors, red, green and blue, to improve color accuracy and brightens secondary colors.
DLP® Technology
DLP® chipset-based projectors produce vivid images with digital clarity and precision. The DLP® chip uses millions of tiny mirrors to reflect all the colors of visible light to project a digital image onto a screen. DLP® technology delivers high contrast ratios and minimizes the gaps between pixels for bright, sharp pictures.
