NovoConnect allows participants to seamlessly share content from connected device through a wireless network to conduct interactive presentations with dynamic content sources and HD display quality.
Brightness | 5200 ANSI Lumens * |
Native Resolution | XGA (1024 x 768) |
Max. Resolution | UXGA (1600 x 1200) |
Contrast Ratio | 2400:1 (Full On/Off) |
Lamp Life and Type | 2500/2000 Hours (Standard/Boost Mode), 300W |
Lamp Part # | 5811116701-SVV |
Display Type | Single 0.7" DLP® Technology by Texas Instruments |
Throw Ratio (±3%) | 1.8 to 2.1:1 (Distance/Width) |
Image Size (Diagonal) | 41" to 233" (1.04 to 5.9 m) |
Projection Distance | 4.9' to 32.8' (1.5 to 10.0 m) |
Projection Lens | F = 2.6-2.81, f = 26.01- 29.84 mm |
Zoom Ratio | 1.2:1 Manual Zoom/Focus |
Aspect Ratio | 4:3 Native, 16:9 Compatible |
Offset | 124% |
Keystone Correction | ±15° Vertical |
Color Spectrum | 16.7 Million |
Horizontal Scan Rate | 15, 30 to 90 KHz |
Vertical Scan Rate | 43 to 85 Hz |
Speaker | 5W Mono |
Remote Control | Full Featured IR Remote with Laser Pointer |
Projection Method | Table Top or Ceiling Mount (Front or Rear) |
Uniformity | 85% |
Computer Compatibility | UXGA, WXGA, SXGA+, SXGA, XGA, SVGA, VGA Resized; VESA Standards; PC and Macintosh Compatible |
Video Compatibility | SDTV(480i, 576i), EDTV (480p, 576p), HDTV (720p, 1080i/p), NTSC/NTSC 4.43, PAL B/G/H/I/M/N 60, SECAM |

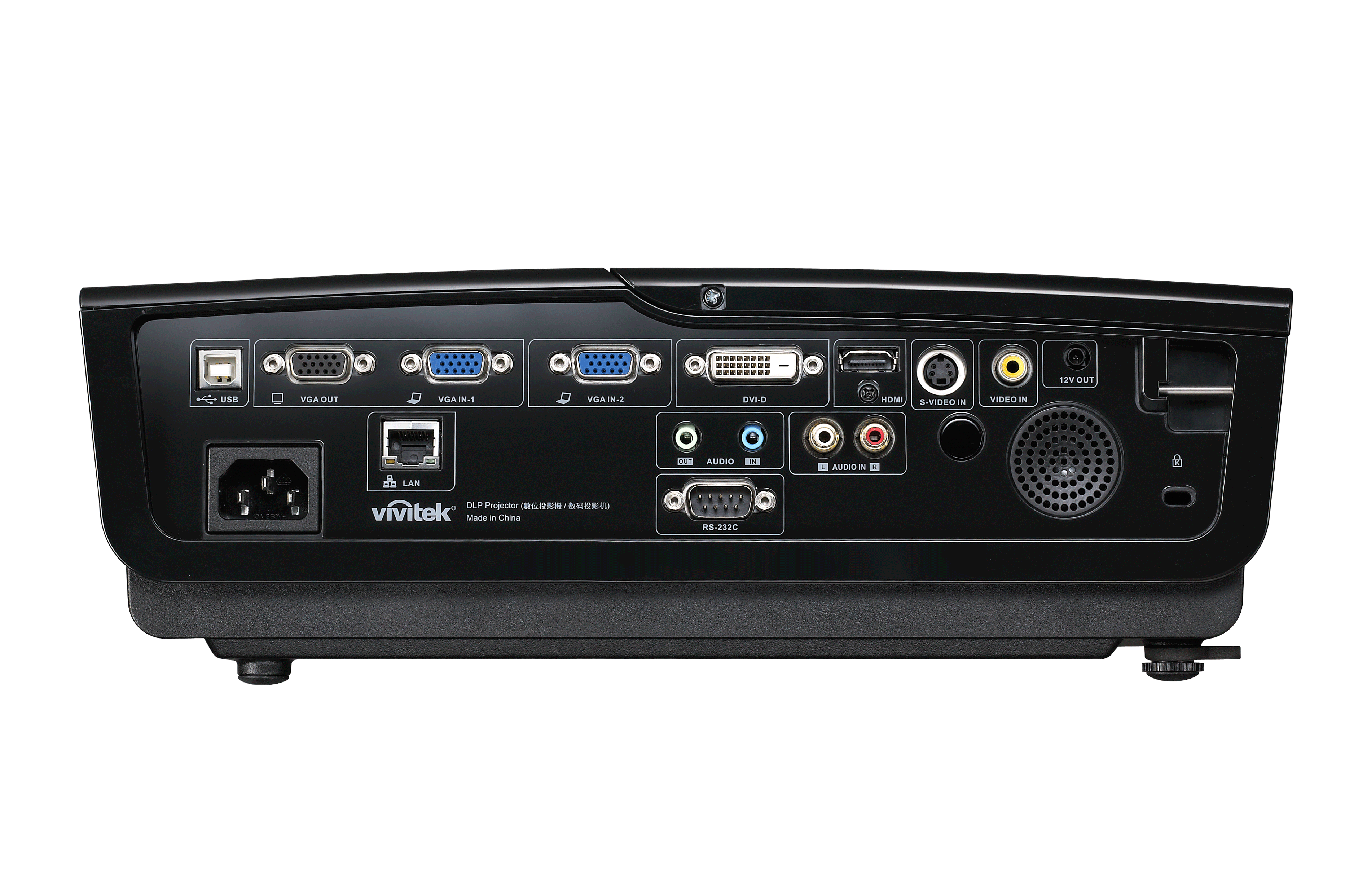

I/O Connection Ports | HDMI v1.3, DVI-D, VGA-In (x2), Composite Video, S-Video, VGA-Out, RCA Stereo-In, Mini-Jack Audio-In, Mini-Jack Audio-Out, RJ45, 12V Trigger,RS-232c, USB (Service) |
Security | Kensington® Lock Port, Security Bar |
Weight | 8.3lbs (3.76kg) |
Dimensions (W x H x D) | 13.1"x 4.4" x 10" (333 x 113 x 255 mm) |
Noise Level | 34dB/39dB (Standard/Boost Mode) |
Power | Supply: AC 100-240V, 50/60Hz Consumption: 320W (Standard Mode) 380W (Boost Mode), <1W (Standby Mode) |
Operating Temperature | 41 to 95°F (5 to 35°C) |
Warranty | 3-Year Limited Parts/Labor, 1-Year Lamp |
Standard Accessories | AC Power Cord, VGA Cable, Remote Control, Batteries for Remote, Carrying Case, User's Manual (CD), Lens Cap, Warranty Card |
UPC | 814964 338211 |
