NovoConnect allows participants to seamlessly share content from connected device through a wireless network to conduct interactive presentations with dynamic content sources and HD display quality.
Brightness | 3000 ANSI Lumens * |
Native Resolution | WXGA (1280 x 800) |
Max. Resolution | UXGA (1600 x 1200) |
Contrast Ratio | 3000:1 (Full On/Off) |
Lamp Life and Type | 4000/6000 Hours (Boost/Standard Mode), 220W |
Lamp Part # | 5811116713-S |
Throw Ratio (±3%) | 0.53:1 (Distance/Width) |
Image Size (Diagonal) | 43.8" to 438" (1.1 to 11.1 m) |
Projection Distance | 1.6 to 16.4 (0.5 to 5.0 m) |
Projection Lens | F = 2.87, f = 7.36 mm , Fixed Lens, Manual Focus |
Aspect Ratio | 16:10 Native, 4:3 and 16:9 Compatible |
Offset | 123% |
Keystone Correction | ±15°, Auto-Keystone |
Color Spectrum | 16.7 Million |
Horizontal Scan Rate | 15, 30 to 90 KHz |
Vertical Scan Rate | 43 to 85 Hz |
Speaker | 10 Watt Mono |
Remote Control | Full Featured IR Remote with Laser Pointer |
Projection Method | Table Top or Ceiling Mount (Front or Rear) |
Uniformity | 85% |
Computer Compatibility | UXGA, WXGA, SXGA+, SXGA, XGA, SVGA, VGA Resized; VESA Standards; PC and Macintosh Compatible |
Video Compatibility | SDTV(480i), EDTV (480p), HDTV (576i/p, 720p, 1080i/p), NTSC/NTSC 4.43, PAL B/G/H/I/M/N 60, SECAM |

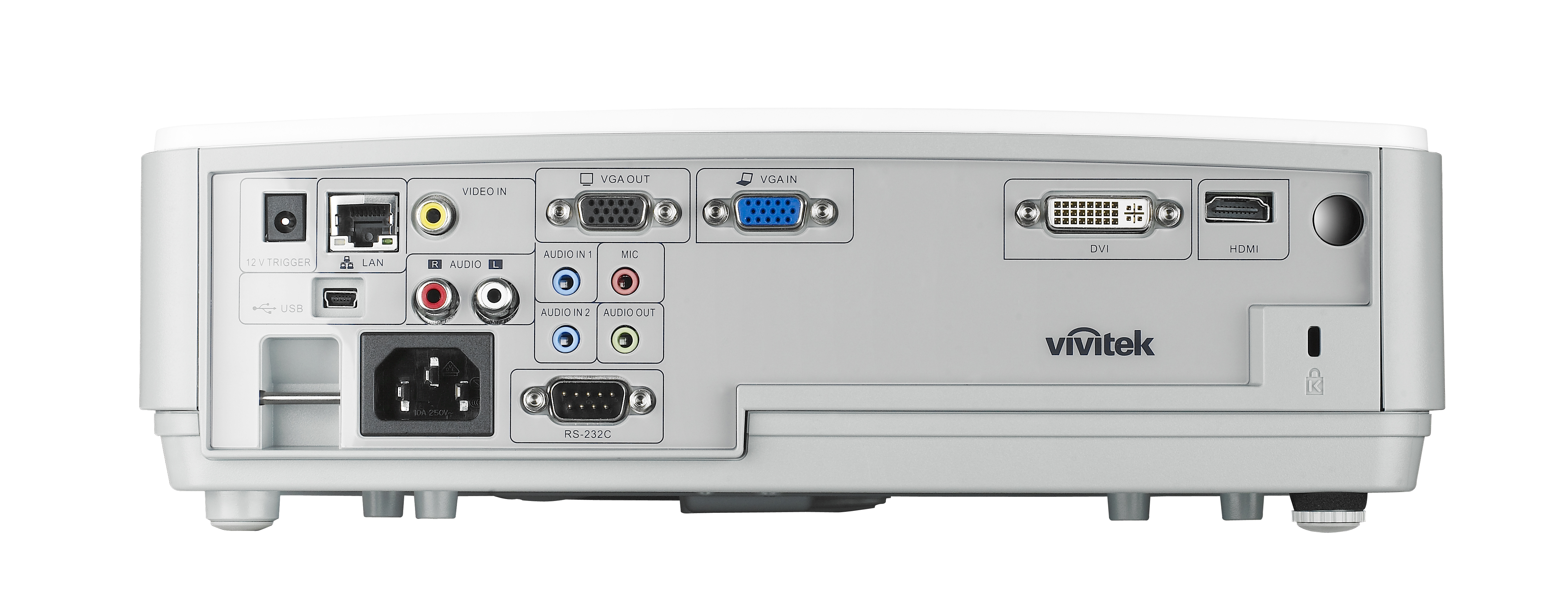

I/O Connection Ports | HDMI v1.3, DVI-I, VGA-In, Composite Video, VGA-Out, RCA Stereo-In, Mini-Jack Audio-In (x2), Mini-Jack Audio-Out, RJ45, RS-232c, 12V trigger, Microphone-In, USB (Service) |
Security | Kensington® Lock Port |
Weight | 6.0 lbs (2.7 kg) |
Dimensions (W x H x D) | 12.0" x 4.1" x 8.1" (306 x 104 x 206 mm) |
Noise Level | 33dB/36dB (Standard/Boost Mode) |
Operating Temperature | 41 to 104°F (5 to 40°C) |
Standard Accessories | AC Power Cord, VGA Cable, Remote Control, Batteries for Remote, Carrying Case, User's Manual (CD), Lens Cap, Warranty Card |
UPC | 8 14964 33535 7 |
