D803W

Heighten Your Viewing Experience

A High-Performace Digital 3D Projector
The Vivitek D803W-3D is a high-performance digital projector that offers outstanding digital images with full color saturation. D803W-3D features native WXGA resolution, multiple connectivity options and 3600 lumens of brightness. With a 3D function and the capability to convert 2D content into 3D from pretty much any video source without an external box. The Vivitek D803W-3D digital projector takes standard and 3D to another level.
Excellent Connectivity
The Vivitek D803W-3D displays 3D content from virtually any video source, and can convert 2D content to 3D without an external box. The D803W-3D connection options include: two (2) HDMI v1.3, component video, VGA-in for standard or 3D-ready laptops, composite video, S-video, and Rs232c for integration and system administration.

NovoConnect

A Wireless Presentation & Collaboration

NovoConnect allows participants to seamlessly share content from connected device through a wireless network to conduct interactive presentations with dynamic content sources and HD display quality.

LEARN MORE BUY NOW
  • Native WXGA resolution and displays up to UXGA
  • 3600 lumens of brightness and a 15000:1 contrast ratio
  • 2D to 3D conversion via HDMI
  • Connect directly to any standard or 3D Blu-RayTM player for 3D viewing
  • View latest 3D content being broadcasted via cable or satellite
  • DLP/BrilliantColorTM technologies by Texas Instruments
  • Built-in 10W speaker
  • High-efficiency lamps that last up to 4000 hours (in standard mode)
  • Connectivity options include: Two (2) HDMI v1.3, VGA-In, S-Video, Composite Video, Audio-In
  • RS-232c for projector control and management
Brightness 3600 ANSI Lumens
Native Resolution WXGA (1280 x 800)
Max. Resolution UXGA (1600 x 1200)
Contrast Ratio 15,000:1 (Full On/Off)
Lamp Life and Type 4000/3000 Hours (Standard/Boost), 240W UHP
Lamp Part # 5811117901-SVV
Display Type Single 0.65" DLP® Technology by Texas Instruments
Throw Ratio (±3%) 1.54 to 1.7:1 (Distance/Width)
Image Size (Diagonal) 25" to 300"(0.6 to 7.6 m)
Projection Distance 3.9' to 32.8' (1.2 to 10.0 m)
Projection Lens F = 2.50-2.72, f = 17.8-21.35mm
Zoom Ratio 1.1:1 Manual Zoom/Focus
Aspect Ratio 16:10 Native, 4:3 and 16:9 Compatible
Offset 123%
Keystone Correction ±40° Vertical
Color Spectrum 1.07 Billion
Horizontal Scan Rate 15, 30 to 90 KHz
Vertical Scan Rate 43 to 120Hz
Speaker 10W Mono
Remote Control IR Remote with Laser Pointer
Projection Method Table Top or Ceiling Mount (Front or Rear)
Uniformity 85%
Computer Compatibility WUXGA, WXGA, SXGA+, SXGA, XGA, SVGA, VGA Resized; VESA Standards; PC and Macintosh Compatible
Video Compatibility SDTV (480i, 576i), EDTV (480p, 576p), HDTV (720p, 1080i/p), NTSC (M, 3.58/4.43 MHz), PAL (B, D, G, H, I, M, N), SECAM (B, D, G, K, K1, L)
3D Video Compatibility 720p 50/60 Frame Packing, 1080i 50/60 Side-by-Side, 1080p24 Frame Packing

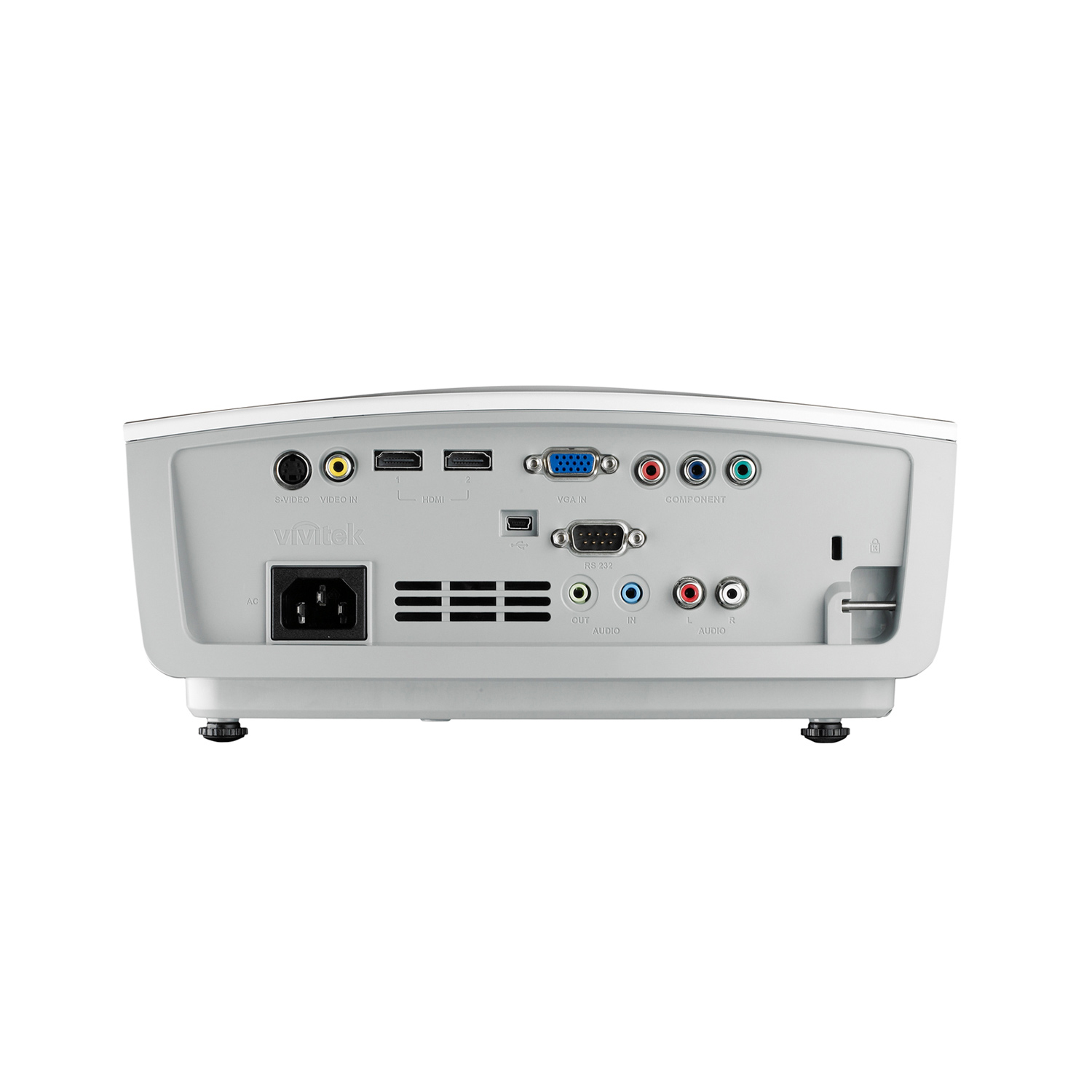

I/O Connection Ports HDMI v1.3 (x2), Component Video, VGA-In, Composite Video, S-Video, RCA Stereo-In, Mini-Jack Audio-In, Mini-Jack Audio-Out, RS-232c, USB (Service)
Security Kensington® Lock Port
Weight 8.0 lbs (3.63 kg)
Dimensions (W x H x D) 11.2" x 5.12" x 10.3" (285 x 130 x 261 mm)
Noise Level 32dB/34dB (Standard/Boost Mode)
Power Supply: AC 100-240V, 50/60Hz
Consumption: 230W (Standard), 260W (Boost), <0.5W (Standby)
Operating Temperature 41 to 95°F (5 to 35°C)
Warranty 3-Year Limited Parts/Labor, 1-Year Lamp
Standard Accessories AC Power Cord, VGA Cable, Remote Control, Batteries for Remote, User Manual (CD), Warranty Card
UPC 814964 336910
Description: Remote Control Full Function 27 Keys
Part number: 5041841300
Power: 240 W
Part number: 5811117901-SVV
Title Version Type Size   Download
2D-3D Setup Guide pdf 0.80 MB
D803W User's Manual(Spanish) pdf 3.61 MB
D803W-3D Datasheet pdf 0.21 MB
D803W-3D RS-232C pdf 0.04 MB
D803W-3D User's Manual(English) pdf 2.84 MB
D803W-3D User's Manual(French) pdf 3.39 MB
DLP Link Setup Guide pdf 0.64 MB
Vivitek Catalog 2019 06/2019 pdf 21.59 MB
Frequently Asked Questions
I plug my computer in to the projector and I don’t get an image.
The projector has many input connectors. Each connector is labelled (HDMI 1, RGB 1 ....). Ensure the projector is switched to that input using the “Source” button on the projector. Also, the computer may require a toggle switch to turn on the output port. This is typically accomplished by holding down the “Fn” at the same time as a Function key. Each laptop manufacturer may use a different “function” key. Typically, it is F4 or F8. The symbol on the key is usually a laptop as well as a square. Please refer to your laptop manufacturers Users Guide for additional information.
Is it OK to use 3rd. party lamps or lamps quoted to be Original Equipment Manufacturer lamps?
Please refer to lamp warranty under Warranty tab and then Vivitek Warranties, as using lamps that are not Vivitek supplied may result in warranties being voided and your projector not meeting required safety standards. Lamp manufacturers provide many different classes of lamps and projectors are built around a specific lamp. While being “original manufacturer” lamps, it is not guaranteed that the class of lamp is the same as the Vivitek specified lamp from the manufacturer.
My projector won’t turn on via an RS232 or IP command. If it is powered on, other commands work fine.
In the menu, go to Settings 2 menu, then Advanced 1 menu. Turn Low Power Mode to OFF.
How often should I change the filters in my DLP?
The majority of Vivitek projectors, due to sealed DLP optics, do not require filters. This eases maintenance requirements.The filters can be cleaned with running water. Please make sure to let them dry completely before installing them back. The filters should be changed if they are torn or worn.
How do I take care of my DLP?
Please refer to Warning and Precautions in the User's Manual.
Why are the lamps so expensive?
The selling price of the lamps is based on the purchase price we obtain from the manufacturers. Vivitek would reflect the price reduction if there is any from the manufacturers.
Why do I have to replace the lamp myself?
Lamp is a consumable part that needs to be replaced regularly. Customers can have a technician do the replacement, but the labor would not be covered by the manufacturer's warranty.
Why can't I order a lamp over the phone?
At the current stage, we don't process orders over the phone to protect our customers' credit card information. When the credit card information is sent to us by fax, only employees with authorization have access to this information.
Does HD really look better than SDTV?
Yes. HDTV has at least twice the linear resolution of standard-definition television (SDTV), thus allowing much more detail to be shown compared with analog television or regular DVD. In addition, the technical standards for broadcasting HDTV are also able to handle 16:9 aspect ratio pictures without using letterboxing or anamorphic stretching, thus further increasing the effective resolution for such content.
Where can I send a letter praising your products and customer support?
Customers can send us an email at customerservice@vivitekcorp.com.
How do I get another copy of my manual?
User's Manual can be downloaded here.
What other kinds of products do you make?
Vivitek also manufactures DLP projectors.
How long has Vivitek been in business
Vivitek was established in 2004.
What are the advantages of DLP over LCD or Plasma?
Please refer to Texas Instrument's website Here
What is DLP and how does it work?
Please refer to Texas Instrument's website Here
How do I get warranty service?
By calling our tech support at 877-603-3582 and providing the proof of purchase when required. Their hours of operation are from Monday to Friday, 9AM to 6PM Pacific time.
What is the life expectancy of my projector lamp?
Lamps typically last about 1,500 ~ 10,000 hours. Usually the higher the brightness, the lower the lamp hours. Keep in mind however that some lamps won't make it all the way to their estimated life spans. If you operate your projector in a warm environment that is not adequately ventilated or at higher elevations without switching to “high altitude” mode in the menu, this will reduce lamp life. It is also strongly recommended that the projectors be connected to a surge protector as power surges can damage your lamp. Adhering to the recommended power-off cycling will assist in maintaining lamp life. Frequent powering on/off will also reduce lamp life expectancy so it may be better to leave the projector on if you intend to use again within 20 minutes. Using the projector in Economy mode will extend your lamp life.
How do I replace the lamp myself?
In the user's manual, there is a section that shows you how to replace the lamp.
How much do replacement lamps/remotes cost?
You will need to contact your local/online reseller. Vivitek is available through authorized retailers, e-tailers, dealers, distributors and resellers. Vivitek has partnered with key partners around the U.S. These authorized partners can be found under the where to buy section.
How do I register my projector for warranty?
Complete and mail in the registration card included with the purchase of your product or fill out the online product registration here.
What is DLP® technology and how does it work?
DLP®-based projectors produce stunning images with digital clarity and precision. The DLP chip uses millions of tiny mirrors to reflect all colors of visible light to project an all-digital image on the screen. Click here for more detailed information.
Where can I purchase your products?
Vivitek is available through authorized retailers, e-tailers, dealers, distributors and resellers. Vivitek has partnered with key partners around the U.S. These authorized partners can be found under the where to buy section.
How do I synchronize my laptop with my projector?
On most laptops, hold down the 'Fn' + 'F4' keys. This may vary, depending on you laptop's brand it may not be 'F4', but 'F5', 'F7' or 'F8'. On the correct function key, there is a symbol 2 squares, have the letters "LCD", or have the symbol of a laptop/square on it. Please refer to your laptops user's guide for additional information.
Filter-Free Design
DLP® technology allows manufacturers to create a filter-free projection design. Filter-free means significant savings and lower maintenance efforts over the projector's lifespan, which means a lower total cost of ownership for the projector.
BrilliantColor™
BrilliantColor from Texas Instruments is a multi-color processing technology that produces vibrant images. BrilliantColor technology uses up to six colors, instead of just the three primary colors, red, green and blue, to improve color accuracy and brightens secondary colors.
DLP® Technology
DLP® chipset-based projectors produce vivid images with digital clarity and precision. The DLP® chip uses millions of tiny mirrors to reflect all the colors of visible light to project a digital image onto a screen. DLP® technology delivers high contrast ratios and minimizes the gaps between pixels for bright, sharp pictures.
Standard Warranty
3-Year Warranty on Parts and Labor / 1-Year Warranty on Lamp.
