Legacy l D795WT

Excellent Connectivity

The Vivitek D795WT comes equiped with all the connectivity for your educational needs: two (2) VGA-in, VGA-out for monitor loop through, composite Video, S-Video, HDMI, and RJ45/Rs232c for integration and system administration.

NovoConnect

A Wireless Presentation & Collaboration

NovoConnect allows participants to seamlessly share content from connected device through a wireless network to conduct interactive presentations with dynamic content sources and HD display quality.

LEARN MORE BUY NOW

3000 lumens of brightness with a 2500:1 contrast ratio
PC 3D-Ready via DLP® Link™
DLP and Brilliant Color technologies by Texas Instruments
Connectivity options include: HDMI v1.3, two (2) VGA-in, composite video, S-video
Vivid Wheel III for improved color reproduction and automatic gain control
Top-loading, cover for quick and easy lamp replacement

Brightness	3000 ANSI Lumens *
Native Resolution	WXGA (1280 x 800)
Max. Resolution	UXGA (1600 x 1200)
Contrast Ratio	2500:1 (Full On/Off)
Lamp Life and Type	4000/6000 Hours (Boost/Standard Mode), 220W
Lamp Part #	5811116635-S
Display Type	Single DMD DLP® Technology by Texas Instruments
Throw Ratio (±3%)	0.19:1 (Distance/Width)
Image Size (Diagonal)	86.7" to 97" (2.2 to 2.4 m)
Projection Distance	0.88" ±0.4" to 2.45" ±0.4" (22.4 ±10 mm to 62.3 ±10 mm)
Projection Lens	F = 2.4
Zoom Ratio	Fixed Lens, Manual Focus
Aspect Ratio	16:10 Native, 4:3 and 16:9 Compatible
Offset	13.5 to 14.5 (342 to 368.3 mm)
Keystone Correction	±15° Vertical
Color Spectrum	16.7 Million
Horizontal Scan Rate	15, 30 to 90 KHz
Vertical Scan Rate	43 to 85 Hz
Speaker	10 Watt Mono
Remote Control	Full Featured IR Remote with Laser Pointer
Projection Method	Table Top or Ceiling Mount (Front or Rear)
Uniformity	85%
Computer Compatibility	UXGA, WXGA, SXGA, XGA, SVGA, VGA Resized; VESA Standards; PC and Macintosh Compatible
Video Compatibility	SDTV(480i), EDTV (480p), HDTV (576i/p, 720p, 1080i/p), NTSC/NTSC 4.43, PAL B/G/H/I/M/N 60, SECAM

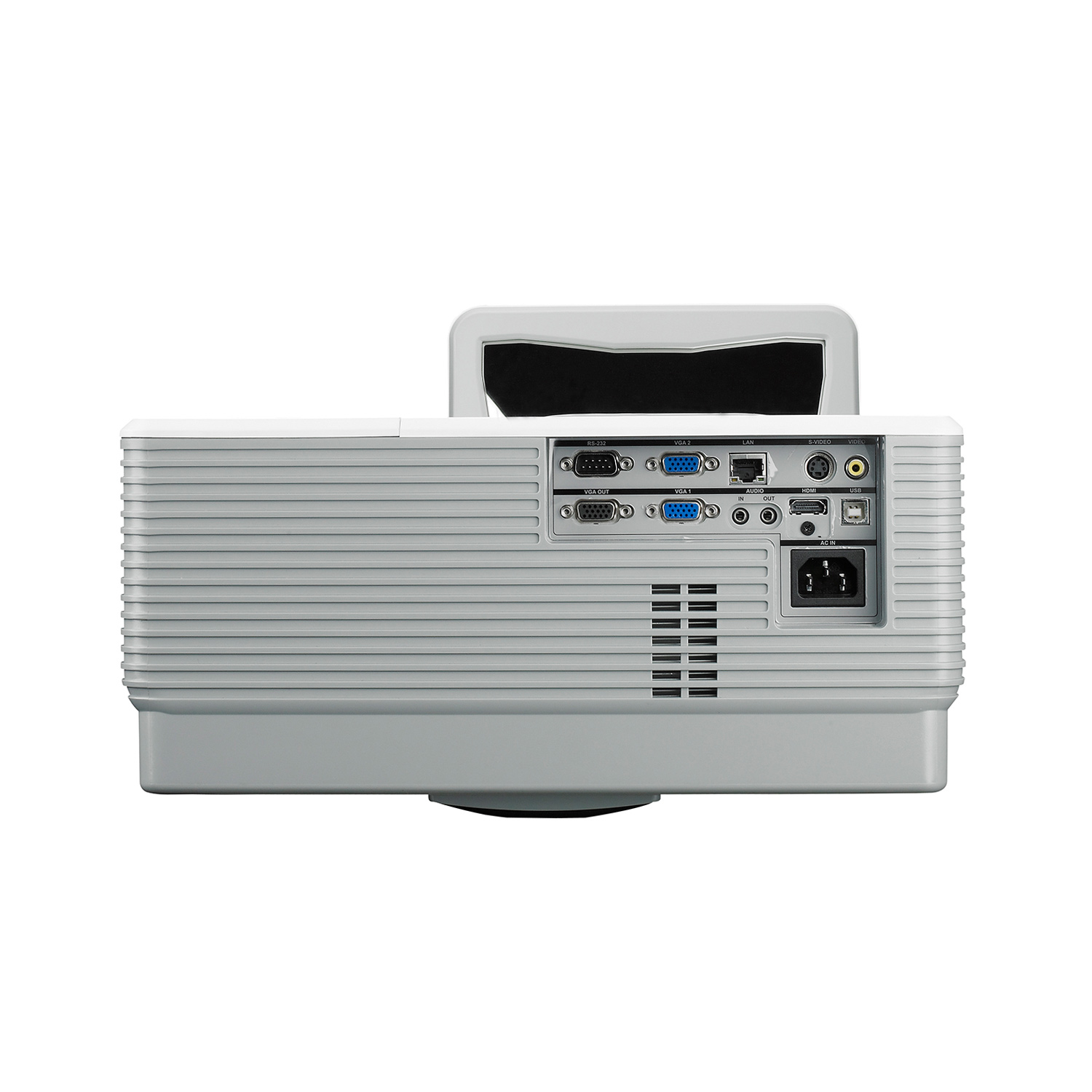

I/O Connection Ports	HDMI v1.3, VGA-In (x2), Composite Video, VGA-Out, S-Video, Mini-Jack Audio-In, Mini-Jack Audio-Out, RJ45, RS-232c, USB (Service)
Security	Kensington® Lock Port, Security Bar
Weight	19.84 lbs (9.0 kg)
Dimensions (W x H x D)	13.94" x 8.62" x 16.16" (354 x 219 x 410.5 mm)
Noise Level	27dB/29dB (Standard/ Boost Mode)
Operating Temperature	41 to 104°F (5 to 40°C)
Standard Accessories	AC Power Cord, VGA Cable, Remote Control, Batteries for Remote, User Manual (CD), Warranty Card
UPC	8 14964 33524 1

Power: 220 W
Part number: 5811116635-SU

NovoPro

• BYOD Collaboration & Presentation
• Up to 64 users
• iOS/Android full mirroring
• Click-n-display with Launcher

Title	Version	Size
3D-Ready Brochure		1.35 MB
D795WT Datasheet		0.12 MB
D795WT RS-232C		0.37 MB
D795WT RS-232C		0.37 MB
D795WT User's Manual		3.49 MB
D795WT_D791ST User's Manual(English)		11.89 MB
D795WT_D791ST User's Manual(French)		4.84 MB
D795WT_D791ST User's Manual(Spanish)		6.53 MB
DLP Link Setup Guide		0.64 MB
Education Brochure		1.09 MB
Vivitek Catalog 2019	06/2019	21.59 MB

Frequently Asked Questions

I plug my computer in to the projector and I don’t get an image.

The projector has many input connectors. Each connector is labelled (HDMI 1, RGB 1 ....). Ensure the projector is switched to that input using the “Source” button on the projector. Also, the computer may require a toggle switch to turn on the output port. This is typically accomplished by holding down the “Fn” at the same time as a Function key. Each laptop manufacturer may use a different “function” key. Typically, it is F4 or F8. The symbol on the key is usually a laptop as well as a square. Please refer to your laptop manufacturers Users Guide for additional information.

My projector won’t turn on via an RS232 or IP command. If it is powered on, other commands work fine.

In the menu, go to Settings 2 menu, then Advanced 1 menu. Turn Low Power Mode to OFF.

How do I take care of my DLP?

Please refer to Warning and Precautions in the User's Manual.

Does HD really look better than SDTV?

Yes. HDTV has at least twice the linear resolution of standard-definition television (SDTV), thus allowing much more detail to be shown compared with analog television or regular DVD. In addition, the technical standards for broadcasting HDTV are also able to handle 16:9 aspect ratio pictures without using letterboxing or anamorphic stretching, thus further increasing the effective resolution for such content.

Where can I send a letter praising your products and customer support?

Customers can send us an email at customerservice@vivitekcorp.com.

How do I get another copy of my manual?

User's Manual can be downloaded here.

What other kinds of products do you make?

Vivitek also manufactures DLP projectors.

How long has Vivitek been in business

Vivitek was established in 2004.

What are the advantages of DLP over LCD or Plasma?

Please refer to Texas Instrument's website Here

What is DLP and how does it work?

Please refer to Texas Instrument's website Here

How do I get warranty service?

By calling our tech support at 877-603-3582 and providing the proof of purchase when required. Their hours of operation are from Monday to Friday, 9AM to 6PM Pacific time.

How do I register my projector for warranty?

Complete and mail in the registration card included with the purchase of your product or fill out the online product registration here.

Where can I purchase your products?

Vivitek is available through authorized retailers, e-tailers, dealers, distributors and resellers. Vivitek has partnered with key partners around the U.S. These authorized partners can be found under the where to buy section.

How do I synchronize my laptop with my projector?

On most laptops, hold down the 'Fn' + 'F4' keys. This may vary, depending on you laptop's brand it may not be 'F4', but 'F5', 'F7' or 'F8'. On the correct function key, there is a symbol 2 squares, have the letters "LCD", or have the symbol of a laptop/square on it. Please refer to your laptops user's guide for additional information.

DLP® Technology

DLP® chipset-based projectors produce vivid images with digital clarity and precision. The DLP® chip uses millions of tiny mirrors to reflect all the colors of visible light to project a digital image onto a screen. DLP® technology delivers high contrast ratios and minimizes the gaps between pixels for bright, sharp pictures.

BrilliantColor™

BrilliantColor from Texas Instruments is a multi-color processing technology that produces vibrant images. BrilliantColor technology uses up to six colors, instead of just the three primary colors, red, green and blue, to improve color accuracy and brightens secondary colors.

Filter-Free Design

DLP® technology allows manufacturers to create a filter-free projection design. Filter-free means significant savings and lower maintenance efforts over the projector's lifespan, which means a lower total cost of ownership for the projector.

Standard Warranty

2-Year Warranty on Parts and Labor / 90-Day Warranty on Lamp.
