NovoConnect allows participants to seamlessly share content from connected device through a wireless network to conduct interactive presentations with dynamic content sources and HD display quality.
Brightness | 2800 ANSI Lumens * |
Native Resolution | WXGA (1280 x 800) |
Max. Resolution | UXGA (1600 x 1200) |
Contrast Ratio | 10000:1 (Full On/Off) |
Lamp Life and Type | 5000/10000Hours (Standard/Economy Mode), 230W |
Lamp Part # | 5811118004-SVV |
Display Type | Single DMD DLP® Technology by Texas Instruments |
Throw Ratio (±3%) | 0.44:1 (Distance/Width) |
Image Size (Diagonal) | 67.8” to 84.8” (1.7 to 2.2 m) |
Projection Distance | 11.11” to 17.55” (0.282 to 0.446m) |
Projection Lens | F = 2.5, f = 5.09mm |
Zoom Ratio | Fixed Lens, Manual Focus |
Aspect Ratio | 4:3 Native, 16:9 and 16:10 Compatible |
Offset | 120% |
Keystone Correction | ±40°Vertical, ±40 steps |
Color Spectrum | 1.07 Billion |
Horizontal Scan Rate | 15, 30 to 91.4 KHz |
Vertical Scan Rate | 43 to 87 Hz |
Speaker | 10W (x2) |
Remote Control | Full Featured IR Remote with Laser Pointer |
Projection Method | Table Top or Ceiling Mount (Front or Rear) |
Uniformity | 85% |
Computer Compatibility | UXGA, WXGA, SXGA+, SXGA, XGA, SVGA, VGA Resized; VESA Standards; PC and Macintosh Compatible |
Video Compatibility | SDTV(480i), EDTV (480p), HDTV (576i/p, 720p, 1080i/p), NTSC/NTSC 4.43, PAL B/G/H/I/M/N 60, SECAM |

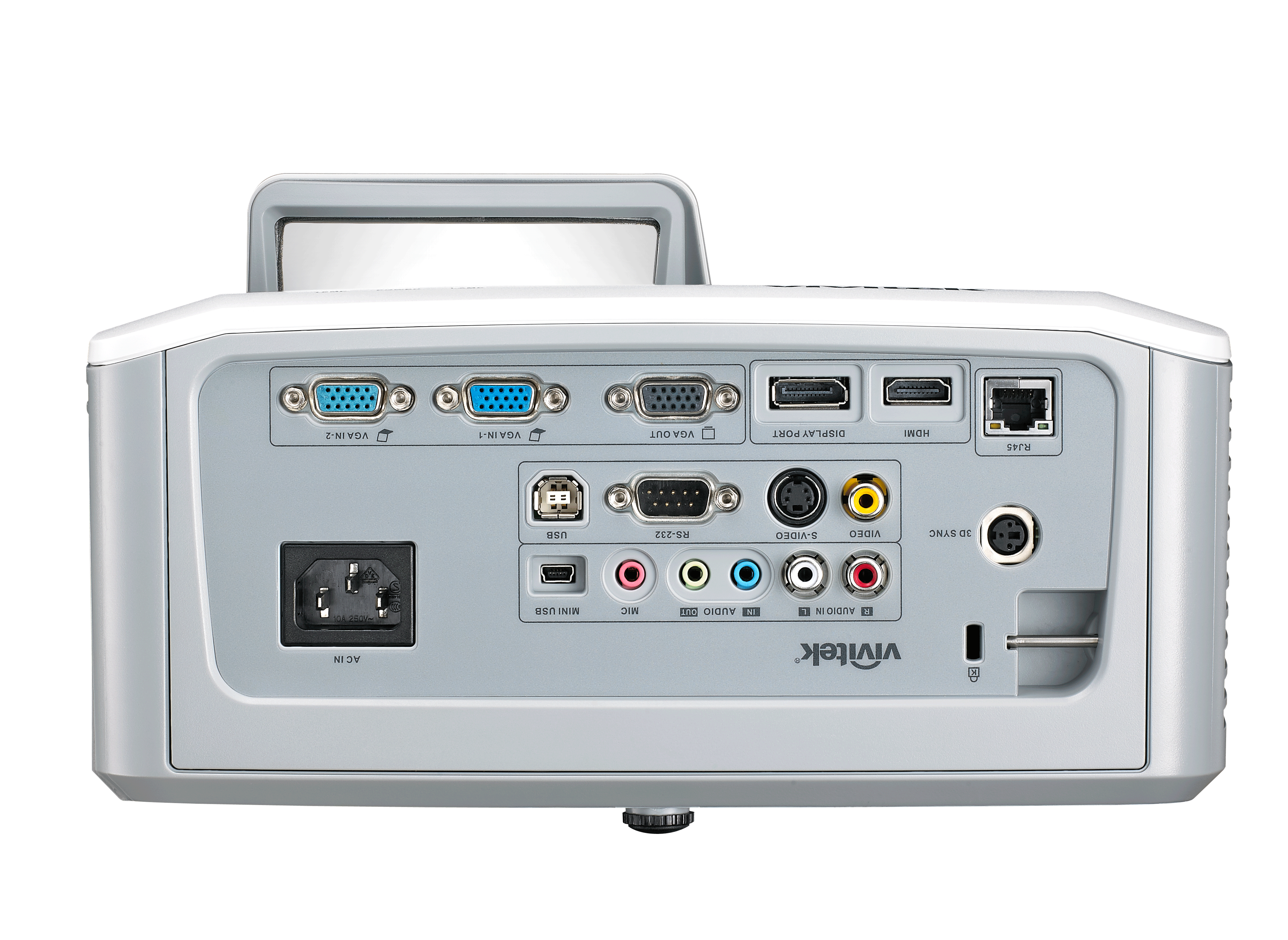

I/O Connection Ports | HDMI v1.4, Display Port, VGA-In (x2), VGA-Out, Composite Video, S-Video, Microphone, RCA Audio-In, Mini-Jack Audio-In, Mini-Jack Audio-Out , RJ45, RS-232c, 3D-Sync, USB (Service) |
Security | Kensington® Lock Port, Security Bar, Keypad Lock |
Weight | 11 lbs (5.0 kg) |
Dimensions (W x H x D) | 11.3" x 4.9" x 14.7" (287.7 x 126.6 x 374.5 mm) |
Noise Level | 33dB/29dB (Standard/Economy Mode) |
Power | Supply: AC 100-240V, 50/60Hz Consumption: 290W (Normal Mode), 250W (Economy Mode), < 0.5W (Standby Mode) |
Operating Temperature | 41 to 95°F (5 to 35°C) |
Warranty | 5-Year Limited Parts/Labor, 1-Year Lamp |
Standard Accessories | AC Power Cord, VGA Cable, Standard Lens, Remote Control, Batteries for Remote, Lens Cap, User's Manual (CD), Warranty Card |
UPC | 814964 338655 |
