NovoConnect allows participants to seamlessly share content from connected device through a wireless network to conduct interactive presentations with dynamic content sources and HD display quality.
Brightness | 3400 ANSI Lumens |
Native Resolution | 1080p (1920 x 1080) |
Max. Resolution | 1080p (1920 x1080) @60Hz |
Contrast Ratio | 1,800:1 (Full On/Off) |
Lamp Life and Type | 4000/3000 Hours (Standard/Boost Mode), 280W |
Lamp Part # | 5811117496-SVV |
Display Type | Single DMD DLP® Technology by Texas Instruments |
Throw Ratio (±3%) | 0.18:1 (Distance/Width) |
Image Size (Diagonal) | 88" to 99" (2.24 to 2.51 m) |
Projection Distance | 0.88" ±0.4" to 2.45" ±0.4" (22.4 ±10 mm to 62.3 ±10 mm) |
Projection Lens | F = 2.4 |
Zoom Ratio | Fixed Lens, Manual Focus |
Aspect Ratio | 16:9 Native, 4:3 Compatible |
Offset | 13.5 to 14.5 (342 to 368.3 mm) |
Keystone Correction | ±15° Vertical |
Color Spectrum | 16.7 Million |
Horizontal Scan Rate | 15, 30 to 90 KHz |
Vertical Scan Rate | 43 to 85 Hz |
Speaker | 10 Watt Mono |
Remote Control | Full Featured IR Remote with Laser Pointer |
Projection Method | Table Top or Ceiling Mount (Front or Rear) |
Uniformity | 85% |
Computer Compatibility | UXGA, WXGA, SXGA+, SXGA, XGA, SVGA, VGA Resized; VESA Standards; PC and Macintosh Compatible |
Video Compatibility | SDTV (480i), EDTV (480p), HDTV (576i, 720p, 1080i/p), NTSC/NTSC 4.43, PAL B/G/H/I/M/N 60, SECAM |

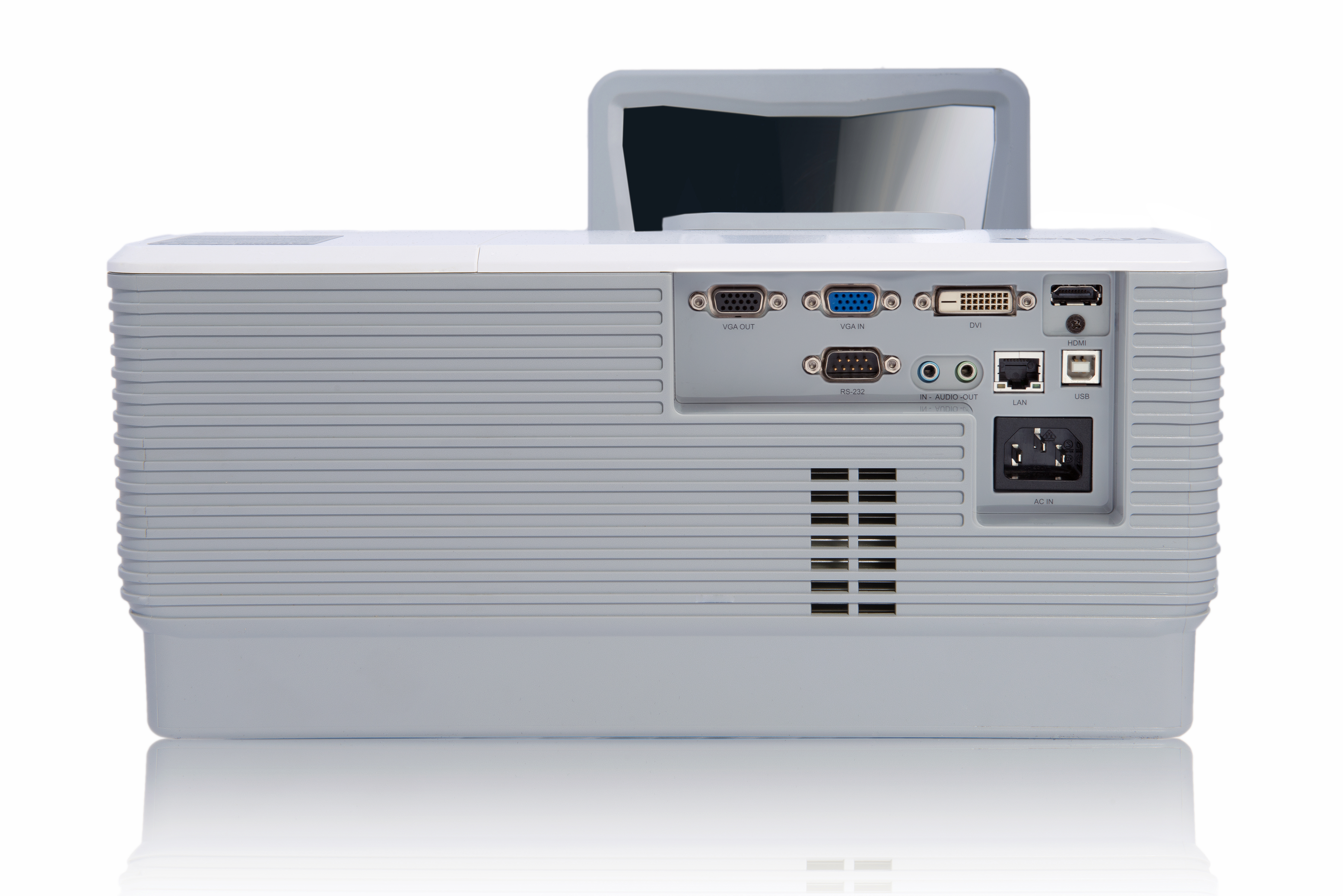

I/O Connection Ports | HDMI v1.3, VGA-In, DVI-D, VGA-Out, Mini-Jack Audio-In, Mini-Jack Audio-Out, RJ45, RS-232c, USB (Service) |
Security | Kensington® Lock Port, Security Bar |
Weight | 19.84 lbs (9.0 kg) |
Dimensions (W x H x D) | 13.94" x 8.62" x 16.16" (354 x 219 x 410.5 mm) |
Noise Level | 30dB/37dB (Standard/ Boost Mode) |
Power | Supply: AC 100-240V, 50/60Hz Consumption: 310W (Standard Mode), 370W (Boost Mode), <1W (Standby Mode) |
Operating Temperature | 41 to 104°F (5 to 40°C) |
Warranty | 1-Year Limited Parts/Labor, 90-Day Lamp |
Standard Accessories | AC Power Cord, VGA Cable, Remote Control, Batteries for Remote, User Manual (CD), Warranty Card |
UPC | 8 14964 33697 2 |
