NovoConnect allows participants to seamlessly share content from connected device through a wireless network to conduct interactive presentations with dynamic content sources and HD display quality.
Brightness | 3000 ANSI Lumens * |
Native Resolution | SVGA (800 x 600) |
Max. Resolution | UXGA (1600 x 1200) |
Contrast Ratio | 15,000:1 (Full On/Off) |
Lamp Life and Type | 5000/6000Hours (Standard/Economy Mode), 190W |
Lamp Part # | 5811118154-SVV |
Display Type | Single 0.65" DLP® Technology by Texas Instruments |
Throw Ratio (±3%) | 1.92 to 2.14:1 (Distance/Width) |
Image Size (Diagonal) | 23" to 256" (1.0 to 7.6 m) |
Projection Distance | 3.28' to 32.8' (1.0 to 10.0 m) |
Projection Lens | F = 2.52-2.73, f = 21.8-24 mm |
Zoom Ratio | 1.1:1 Manual Zoom/Focus |
Aspect Ratio | 4:3 Native, 16:9 Compatible |
Offset | 128% |
Keystone Correction | ±40° Vertical, ±40 Steps |
Color Spectrum | 1.07 Billion |
Horizontal Scan Rate | 15, 30 to 91.4KHz / 3D: 101.6KHz |
Vertical Scan Rate | 24 to 30, 47 to 120Hz |
Speaker | 2W Mono |
Remote Control | Card-Type IR Remote |
Projection Method | Table Top or Ceiling Mount (Front or Rear) |
Uniformity | 95% |
Computer Compatibility | UXGA, WXGA, SXGA+, SXGA, XGA, SVGA, VGA Resized; VESA Standards; PC and Macintosh Compatible |
Video Compatibility | SDTV (480i, 576i), EDTV (480p, 576p), HDTV (720p, 1080i/p), NTSC (M, 3.58/4.43 MHz), PAL (B, D, G, H, I, M, N) |

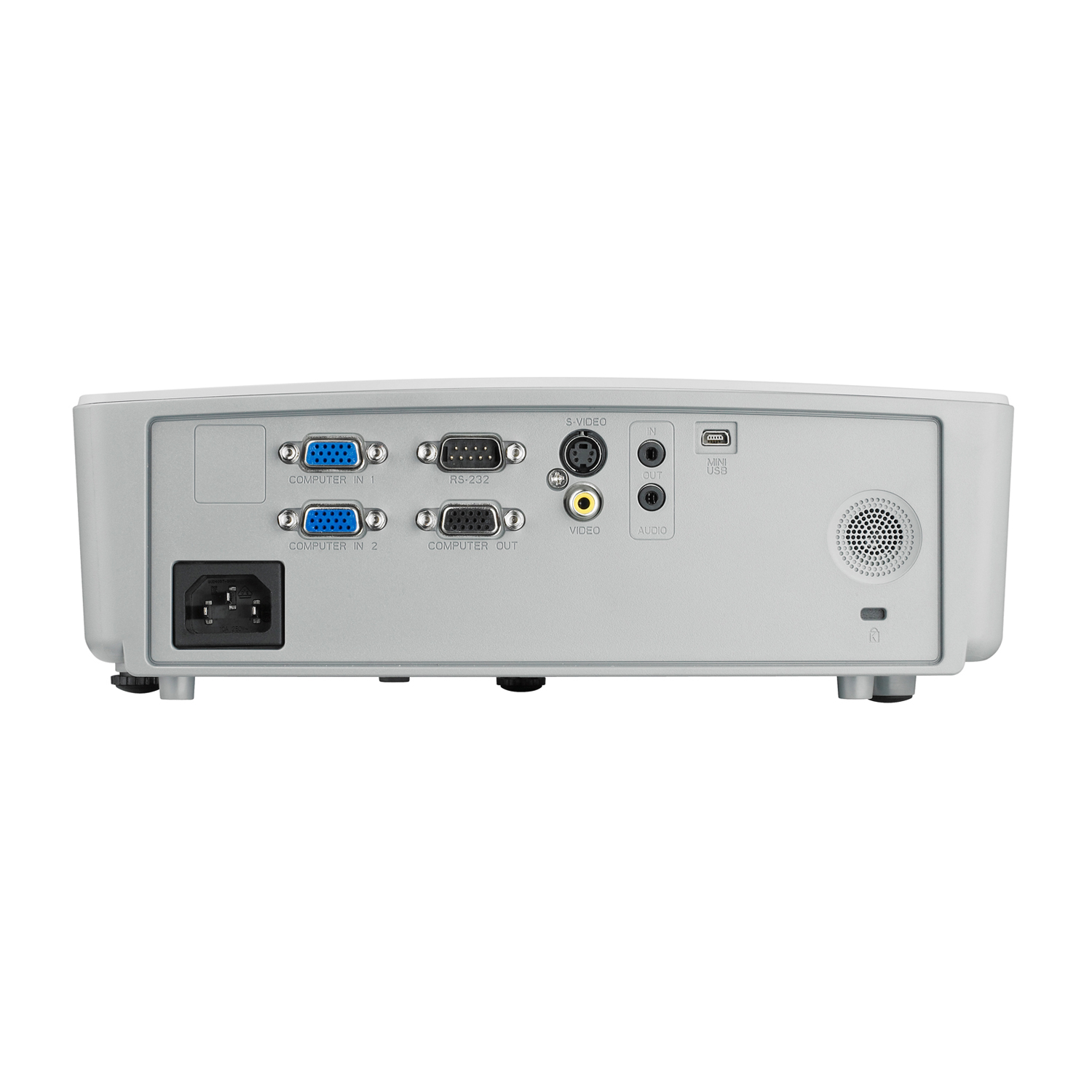

I/O Connection Ports | VGA-In (x2), VGA-Out, Composite Video, S-Video, Mini-Jack Audio-In, Mini-Jack Audio-Out, RS-232c, Mini-USB (Service) |
Security | Kensington® Lock Port |
Weight | 5.1 lbs (2.3 kg) |
Dimensions (W x H x D) | 10.8" x 8.35" x 3.94" (275 x 212 x 100) |
Noise Level | 35dB/32dB (Standard/Economy Mode) |
Power | Supply: AC 100-240V, 50/60Hz Consumption: 240W (Normal Mode), 200W (Economy Mode), < 0.5W (Standby Mode) |
Operating Temperature | 41 to 95°F (5 to 35°C) |
Warranty | 3-Year Limited Parts/Labor, 1-Year Lamp |
Standard Accessories | AC Power Cord, VGA Cable, Remote Control, Batteries for Remote, User Manual (CD), Warranty Card |
UPC | 814964 338006 |
