| Display | Type/Technology | Backlit D-LED (ADS Panel) | |
| Panel Size | 75” | ||
| Brightness (Typ.) | 450cd/m2 | ||
| Contrast Ratio (Typ.) | 5000:1 | ||
| Native Resolution | 4K Ultra-HD (3840 x 2160) | ||
| Viewing Angle (H/V) | 178o/178o | ||
| Aspect Ratio | 16:9 | ||
| Response Time (MS) | 8ms (Typ.) | ||
| Refresh Rate (Hz) | 60Hz | ||
| Estimated Lifetime (Typ.) | 50,000 hours (Min) | ||
| Display Color (Bit) | 1.07 billion (10-bit) | ||
| Installation Orientation | Landscape | ||
| Daily Operation (Hours/Days) | 16/7 | ||
| Interactivity | Technology | Infrared Touch | |
| Touch Points | Writing | 10 Point | |
| Touch | 40 Point | ||
| Accuracy | Finger | ±1mm (Over 90% area) | |
| Passive Pen | ±1mm (Over 90% area) | ||
| Response Time | <5ms | ||
| Touch Resolution | 32,768 x 32,768 | ||
| Surface Protection | 3mm-Thick Toughened Glass | ||
| Touch Tools | Finger, Stylus, Glove, Opaque Objects | ||
| Operating System | System Version | Android™ v14.0 | |
| CPU | Multi-Core High-Performance ARM®CPU | ||
| GPU | Mali™ G52 | ||
| RAM | 8GB DDR4 | ||
| Internal Storage | 64GB (eMMC Flash) | ||

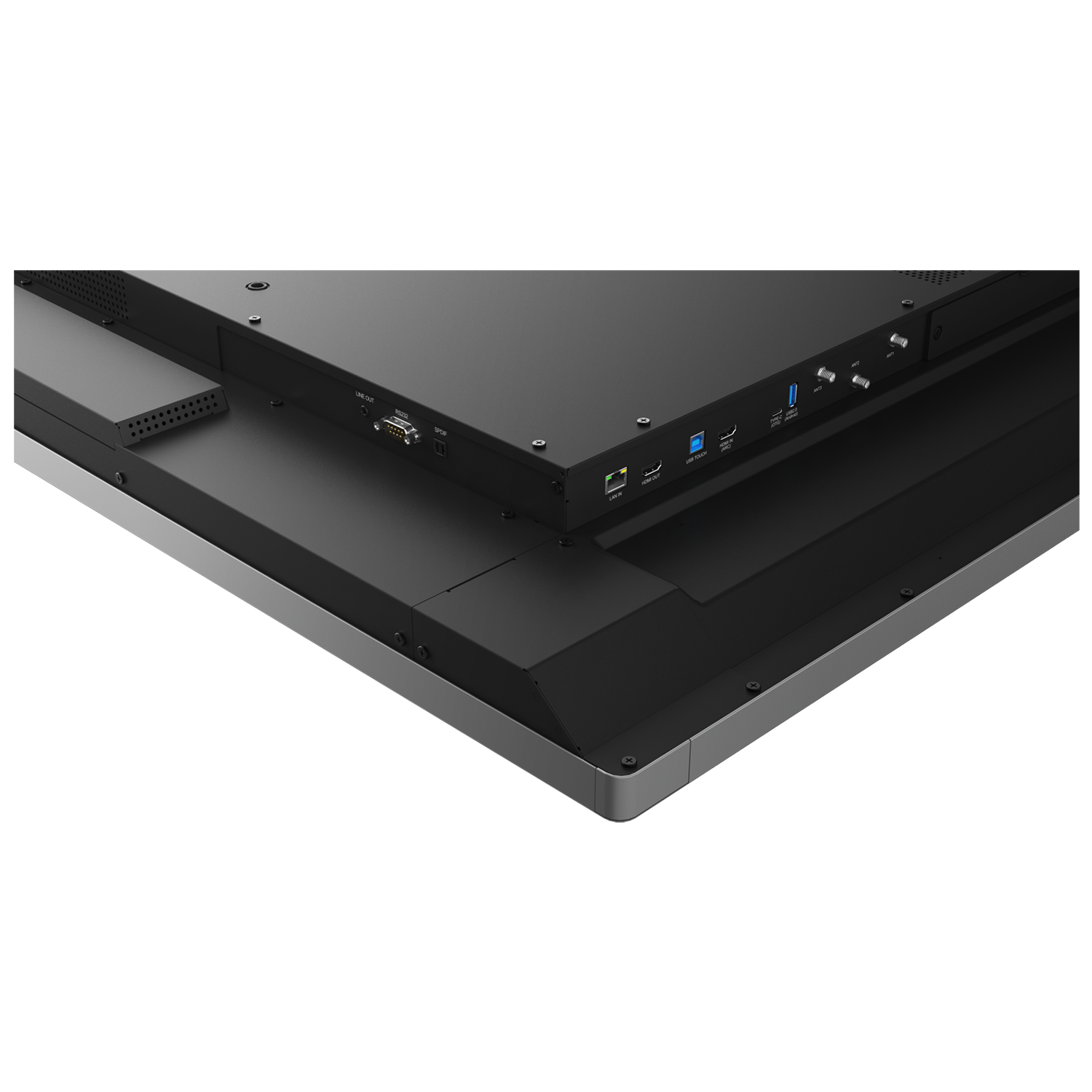

| Connectivity | Input | Display | HDMI v2.0 x1 Side HDMI v2.0 x1 Front USB-C x1 Front (up to PD 15W charging) |
| Output | Display | HDMI-Out v2.0 x1 (up to 4K@60Hz) | |
| Audio | Line-Out (3.5mm) x1 | ||
| Internet | LAN (RJ45) x1 | ||
| Contro | RS232-In x1 | ||
| Wireless | WiFi | WiFi-6 IEEE802.11ax (2.4GHz/5GHz) | |
| Bluetooth | BT 5.2 | ||
| I/R Receiver | Front x1 | ||
| USB-A | Front | USB 3.0 x2 | |
| Side | USB 2.0 x1 | ||
| USB-B | Front | USB-B x1 (For Touch Port) | |
| Side | USB-B x1 (For Touch Port) | ||
| USB-C | Front | USB-C x1 (15W charging & display input) | |
| Expansion | Windows Module (Option) | Standard Intel 80pin OPS (Option) | |
| Audio | Speakers | 18W x2 (Stereo) | |
| Power | Power Supply (Internal) | AC 100 - 240V, 50/60Hz (4.8A) | |
| Consumption | ?360W | ||
| Standby Mode | ?0.5W (Standby) | ||

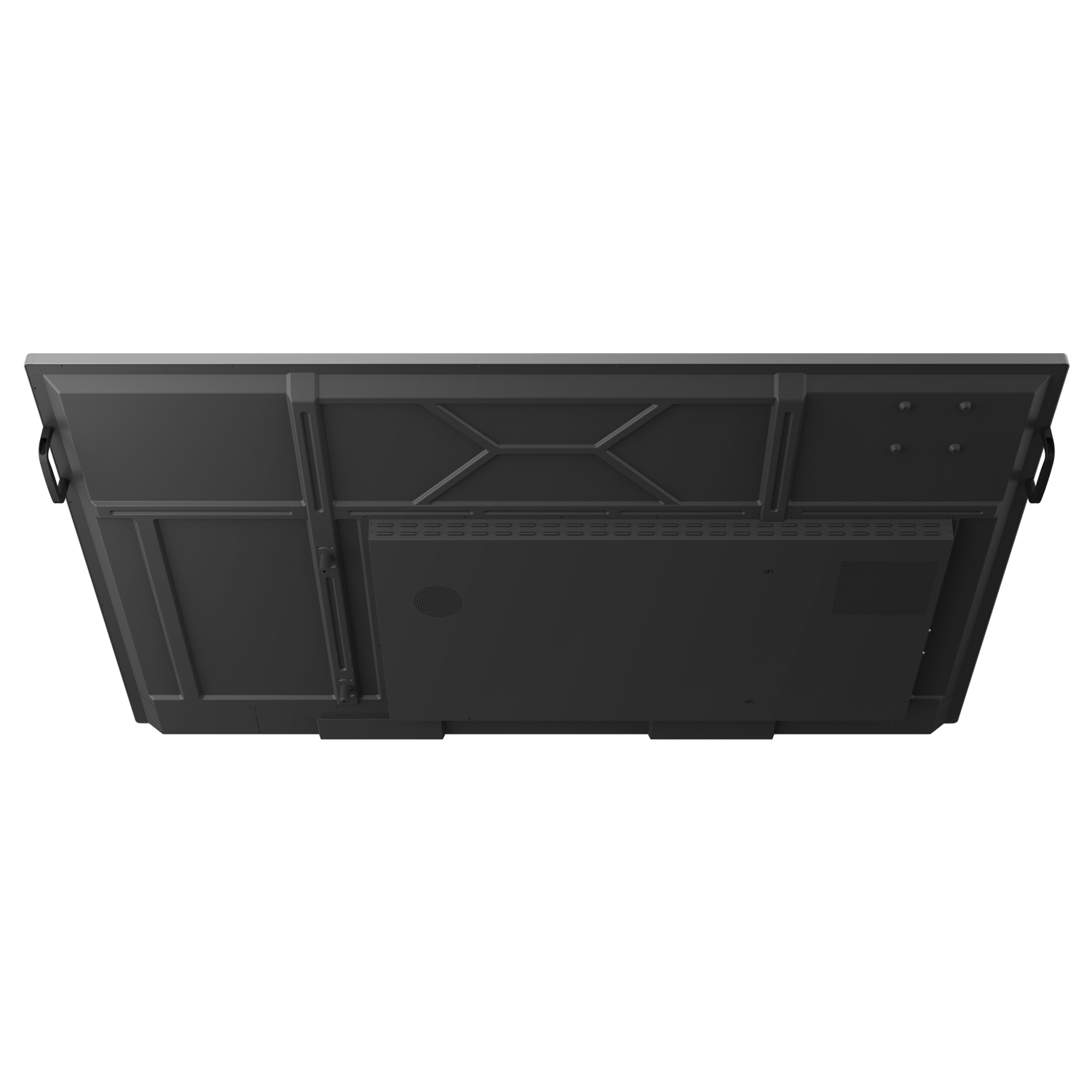

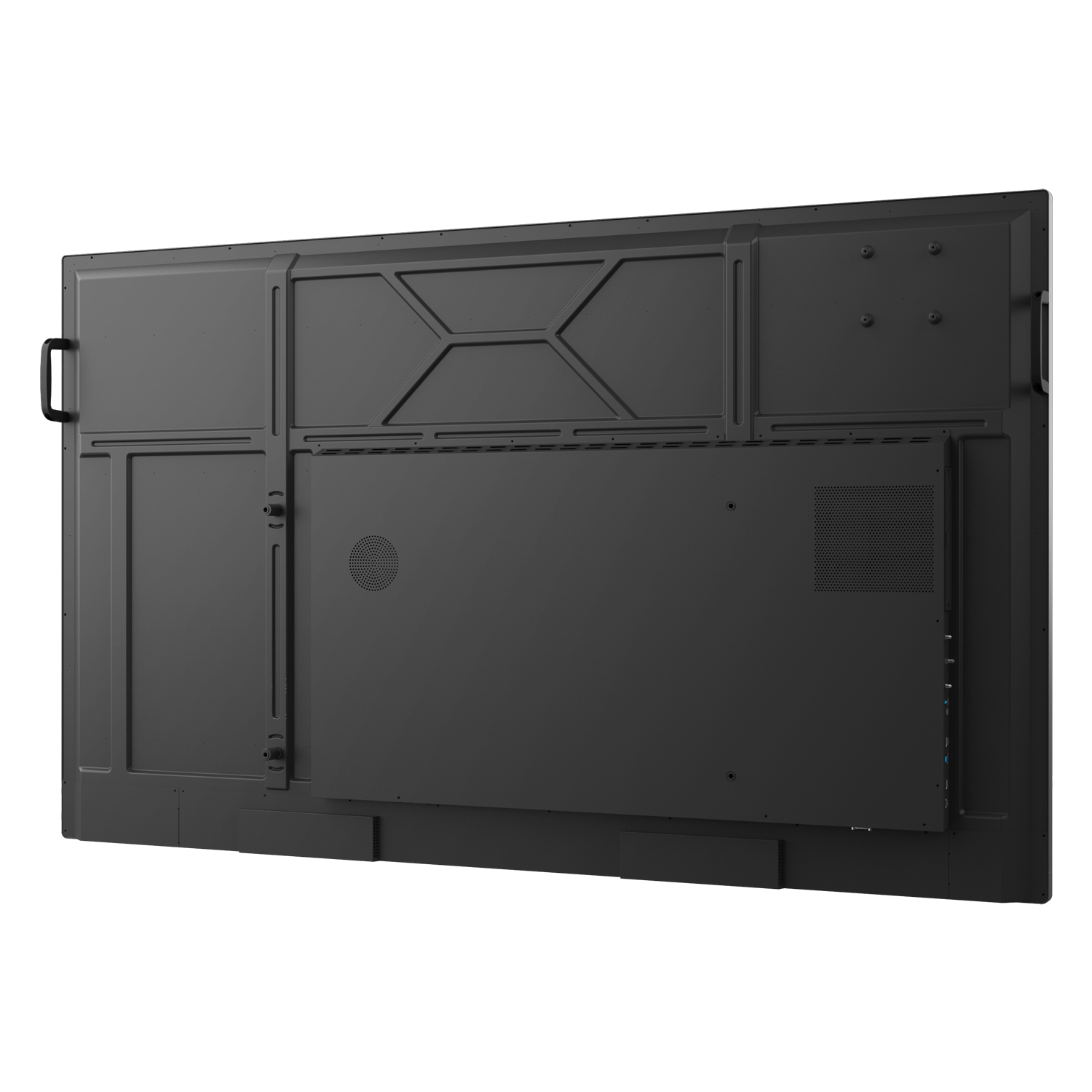

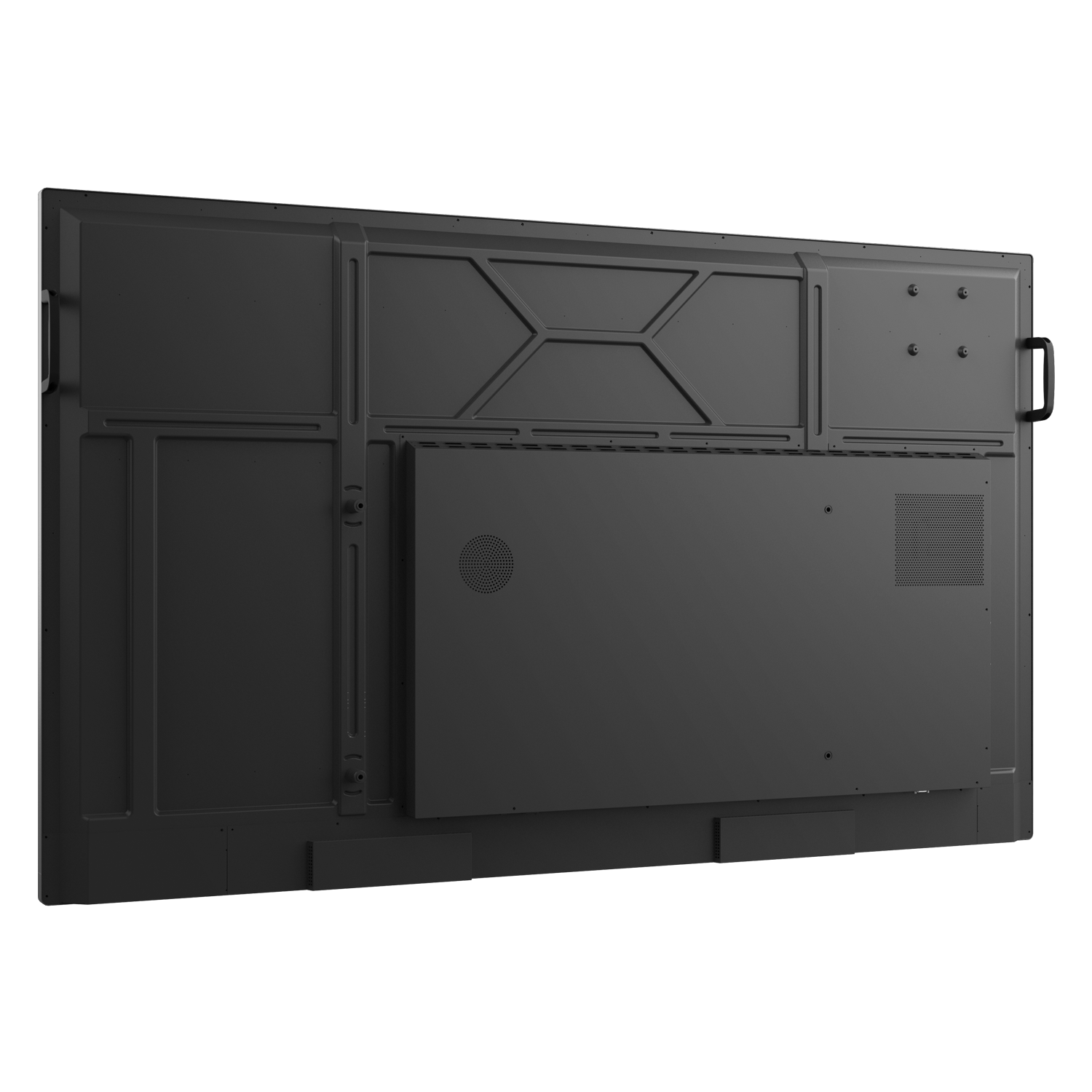

| Physical Characteristics | VESA Mounting (FPMPMI) | 4 - M8 × 25mm, 800 x 400mm | |
| Mini PC VESA Mount | 100 x 100mm | ||
| Dimension (L x H x D) | 1,705.7 x 90.2 x 1,032.3 mm | ||
| Weight | 50.8kg | ||
| Color | Silver | ||
| Accessories | Standard | AC Power Cord, Stylus (x2), Remote Control (W/Batteries), Wall Mount Kit, HDMI Cable (3M), Touch Cable (3M) Documentation Kit | |
| Optional | Windows OPS Module – Standard 80pin | ||
