Easy & Simple

Wireless Presentation & Collaboration in Every BYOD Classroom
Extensive Content


Cross-Platform Screen Mirroring

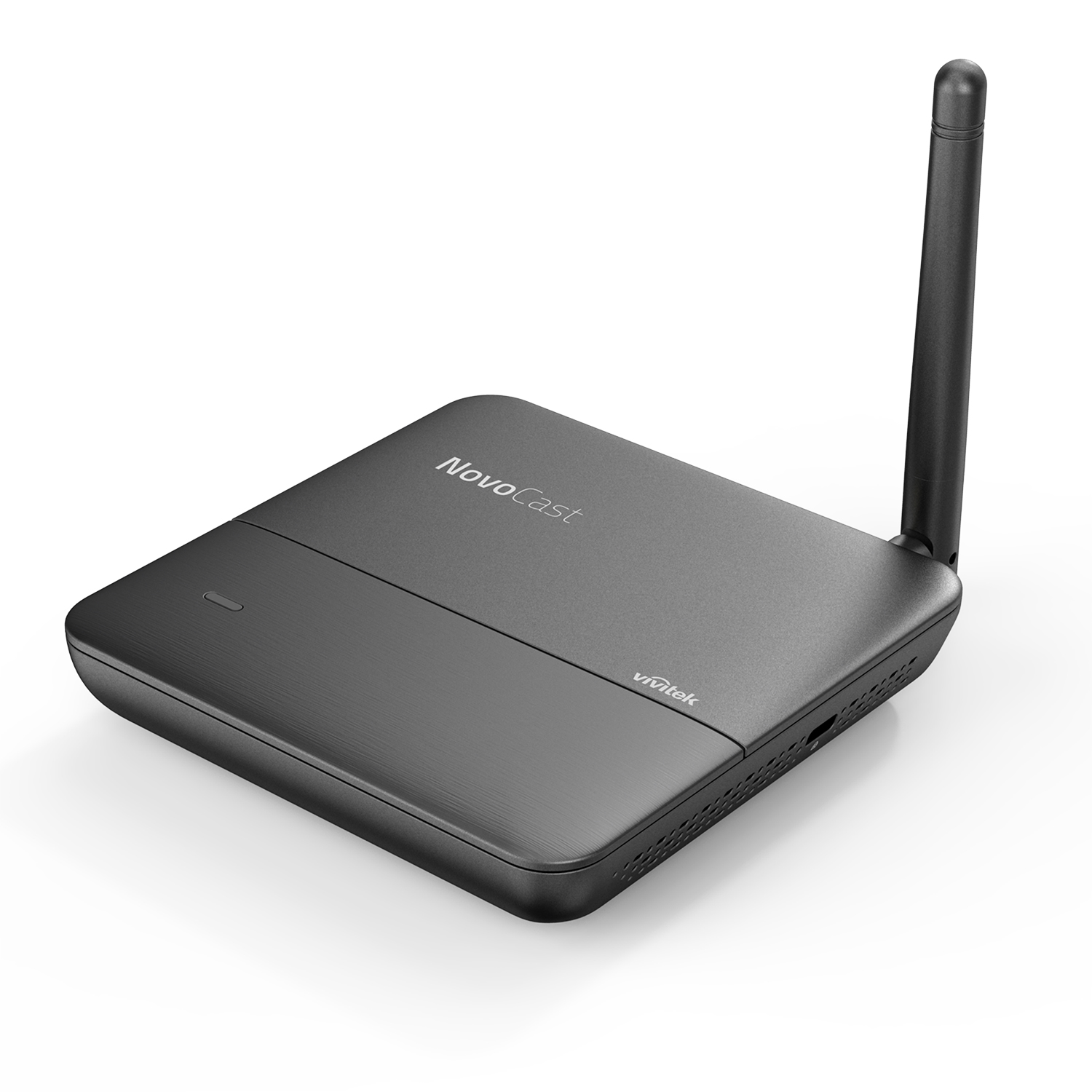

To ensure that collaboration is never impeded by incompatible technologies, NovoCast boasts cross-platform support of Windows, Mac, Android, iOS, and Google devices. This allows educators and students with practically any device to share what they are viewing simultaneously across a single display.
4K Ultra HD


AirPlay & Google Cast Support
Thanks to the widespread popularity of iOS and Android devices, AirPlay and Google Cast have established themselves as the go-to methods for screen mirroring and content streaming. NovoCast fully supports both standards to accommodate virtually every device brought into classrooms today.
Extensive Content

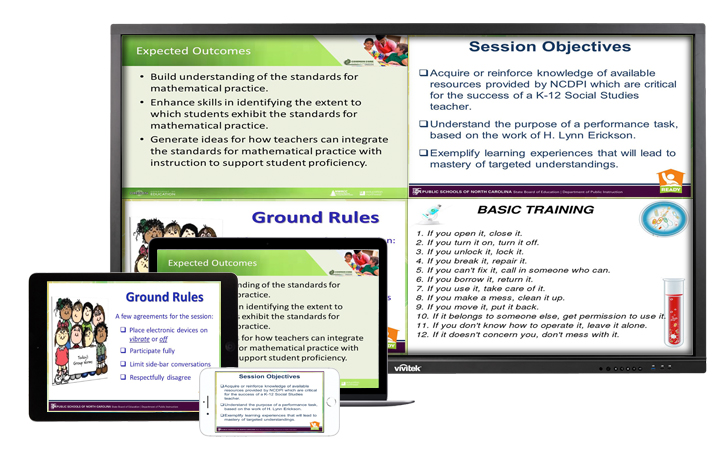

8 Participants & Quad-View Display
In addition to being capable of supporting up to eight users per session, NovoCast also boasts quad-view screen sharing. Ideal for comparing and contrasting different content, quad-view screen sharing enables educators and student presenters to simultaneously view four different screen sources side-by-side.
Extensive Content


Moderation & Screen Preview
To empower educators with the tools they need to lead and maintain control over their lectures, NovoCast features intuitive moderation and screen preview functionalities. These tools serve to structure, focus, and streamline presentations, resulting in more productive and collaborative classroom discussions.
4K Ultra HD

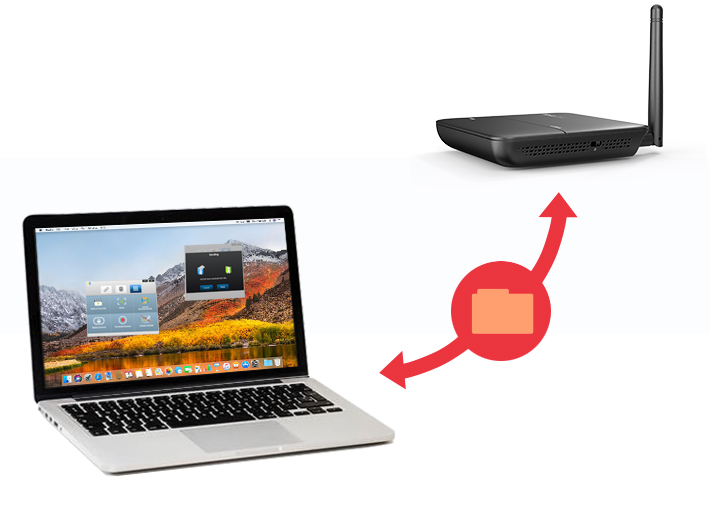

Wireless Collaboration Tools
Beyond screen mirroring and content streaming, NovoCast also features indispensable collaboration tools to further enhance lectures, seminars, and presentations. Wireless file-sharing allows for convenient relaying of digital assets while AirNote enables users to annotate projected screens on their own device.
Extensive Content

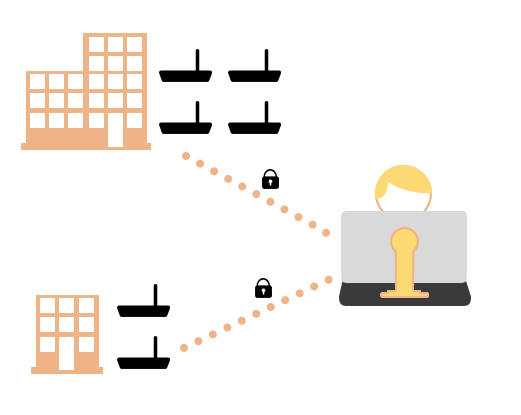

Centralized Management
Especially useful for school and district-wide deployments, NovoCast can be centrally accessed, updated, and operated via the Remote Manager application. Free-to-download and update for Windows and Mac computers, Remote Manager enables network wide control over NovoCast units connected to the same network.
  • Cable and clutter-free wireless collaboration for classrooms
  • Supports fullscreen mirroring of iOS, Android, Chromebook, PC, and Mac devices
  • Intuitive operation and ease of connection
  • Moderator controls and screen preview
  • Includes wireless collaboration tools (file-sharing, AirNote annotating, etc.)
  • Support centralized management
  • One-time hardware purchase, life-time software usage and updates

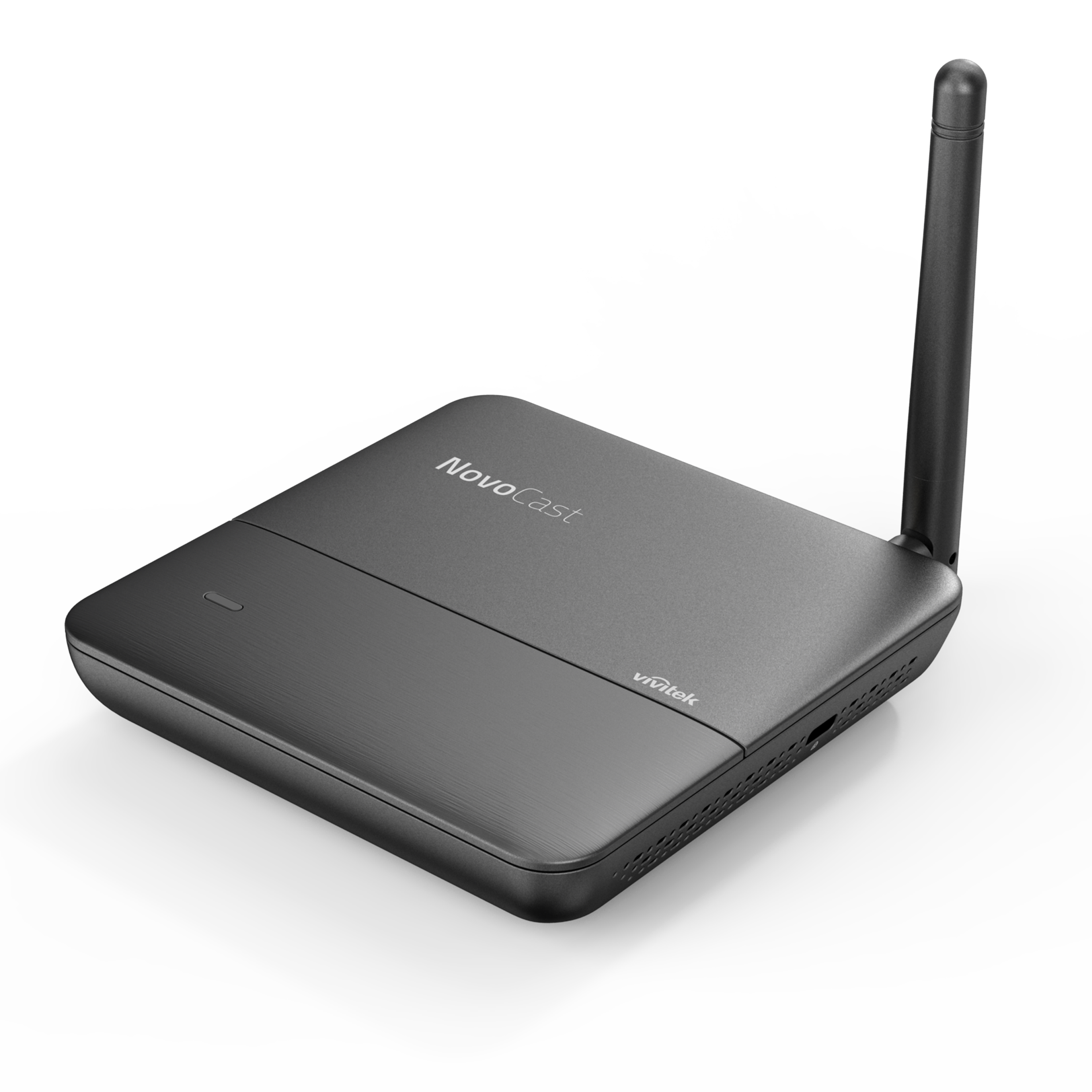

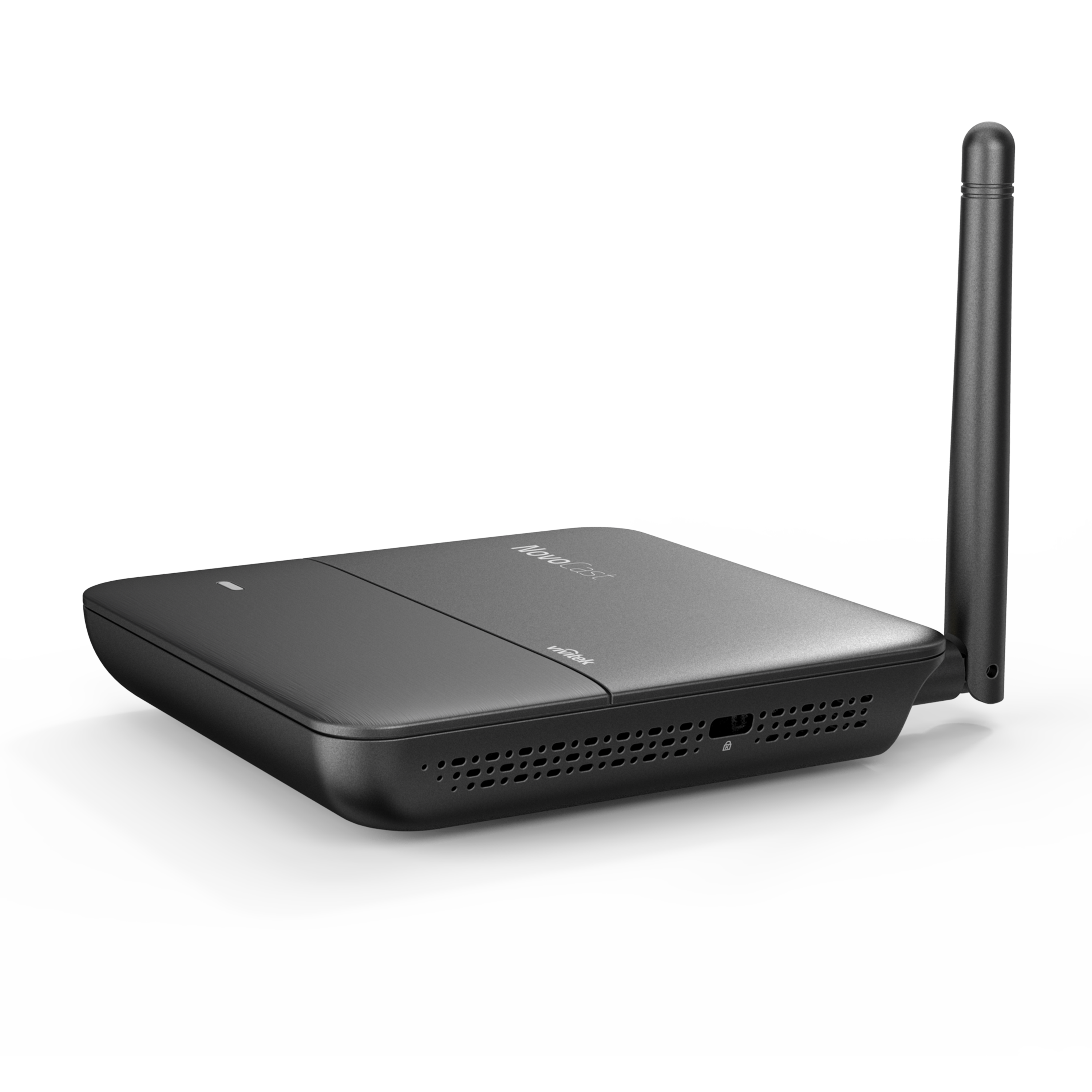

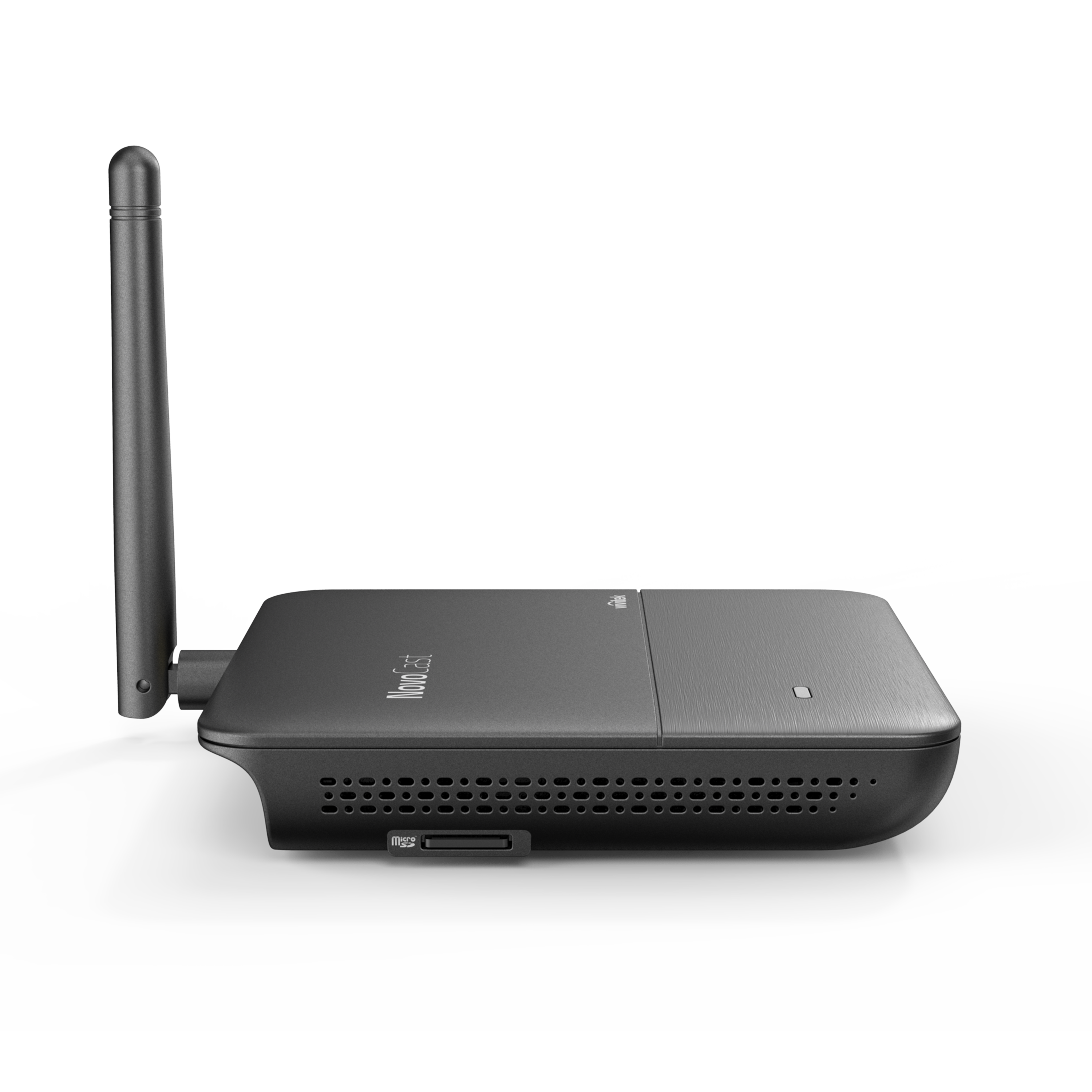

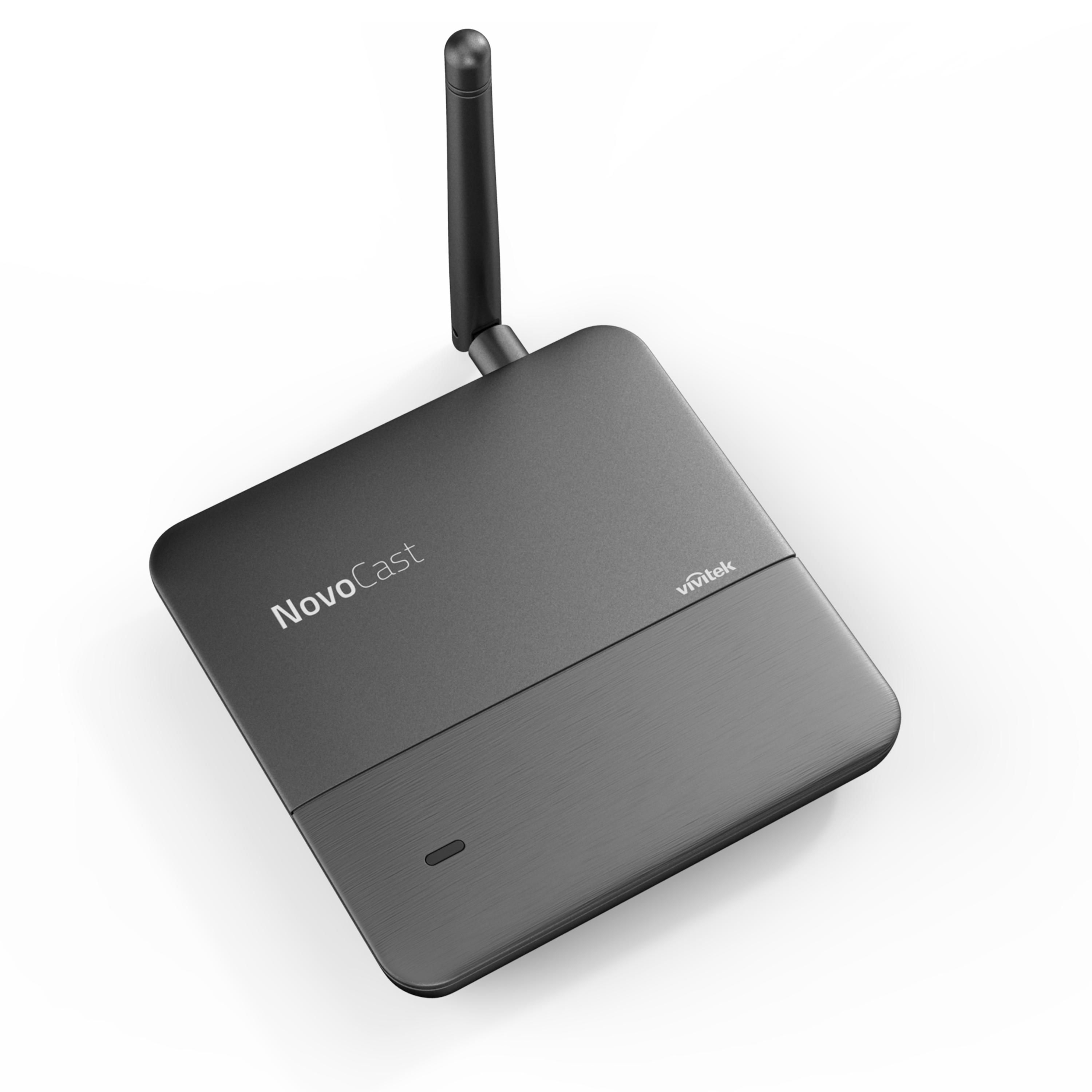

Hardware Model name NC1000US
WiFi 802.11 b/g/n
2.4GHz
Antenna External 1T1R
Display Resolution Up to WUXGA (1920 x 1200)

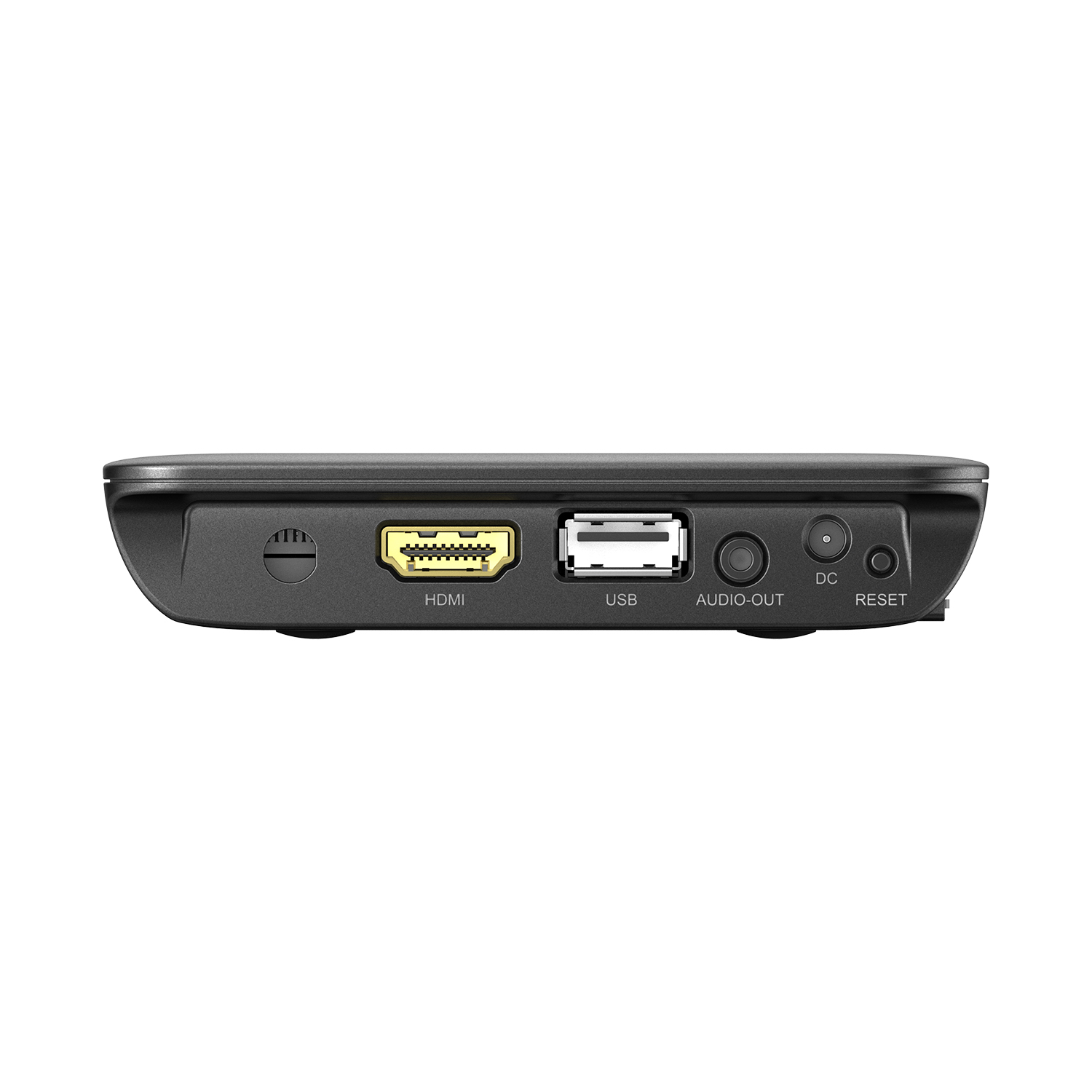

Output HDMI out x 1
Audio out x 1
Input USB Type A x 1
MicroSD card slot x 1
DC Jack x 1
Kensington Lock
Storage Internal - 8GB (eMMC flash)
External -MicroSD card slot (up to 32GB)
Ambient Temperature Operating: 32° ~ 104° F; 0° ~ 40° C ;
Storage: -4° ~ 140° F; -20° C ~ 60° C
Power Input to AC Adaptor: AC 100-240V, 50/60Hz; Output from AC Adaptor: 5V/2A; Consumption: 10W
Dimension (L x W x H) 3.94" x 3.94" x 0.79"
100mm x 100mm x 20mm
Weight 0.4 lbs / 184 g
What is in the box HDMI cable x 1,
Wall Mount Kit x 1,
Power Adapter x 1
Antenna x 1
Power cable (USB to DC Jack) x 1
USB to Ethernet adapter x 1
Quick Start Guide x 1
Software Video Quality FHD (1080P, up to 30 fps)
OS support Windows 7 / 8 / 10 (32 bits and 64 bits), Mac 10.7+,
iOS 7.0 and above, Android 4.0+, Chromebook 37+
Cross-platform Mirroring Yes
AirPlay Yes
Google Cast Yes
4-to-1 Screen (Quad screen) Yes
Simultaneous Connections up to 8
Software Edition Education
Moderator Preview Yes
Screen Annotation tool Yes
File / URL sharing Yes
AirNote Yes
Whiteboarding Yes
Classroom management (attendance, lock student tablets, etc.) Yes
HD Video and YouTube streaming Yes
Device Management Remote Manager
FREE
Software Upgrade
Firmware Upgrade
