D963HD Plus
High brightness 1080p multimedia 3D projector with lens shift
Featuring 4800 lumens true 1080p (1920 x 1080) native resolution projector, with Full HD 3D feature. The Vivitek D963HD Plus 3D digital projector utilizes DLP® dark chip 3, BrilliantColor™ technologies, and 5-segment color wheel delivers impressive color reproduction and amazing performance. With new improved lens performance a built-in speaker, an assortment of connection options, including 3D sync, RJ45, and RS232c, the D963HD Plus integrates effortlessly into almost any situation where a powerful projector is needed.
Excellent Connectivity
The Vivitek D963HD Plus is made with High Definition in mind. This native 1080p projector provides essential connection options: Two (2) HDMI v1.4, Display Port, Two (2) VGA-In with (Component Video Supported), S-Video, VGA-Out for monitor loop through, RCA Stereo-In, Mini-Jack Audio-In, 12V trigger for simple screen/projector automation, RJ45 and Rs232c for integration and system administration.
  • Full high definition 1080p (1920x1080) resolution with 4,800 ANSI lumens and a 15,000:1 contrast ratio
  • DLP® DarkChip3™ and BrilliantColor™ technologies for optimal black levels and vibrant colorful images
  • Vertical lens shift and 1.5x zoom range for flexible image sizing and distance planning
  • 5 segment RYGWB color wheel for improved and vivid color reproduction
  • Assortment of video (HDMI 1.4b, DisplayPort, VGA, S-Video, Composite Video), communication (RJ45, USB, RS232, 12v trigger) and audio (audio-in/out) I/O options for simplified device connectivity
  • Extend lamp life with an energy efficient lamp that deliver up to 4,000 hours of usage (Dynamic Eco. Mode)
  • Project 3D content from DLP® Link™, BluRay HDMI 1.4b for realistic life-like images
  • Built-in 5W audio speaker with multiple audio-in and audio-out ports
  • Integrated network monitoring and management solutions (product certified) including Crestron® RoomView™, Extron, AMX SSDP and Telnet
  • Choice of 8 pre-set display scenario modes including presentation, bright, game, movie, TV, sRGB, blackboard and user
  • Integrated Closed Caption Decoding (CCD) automatically converts the audio portion of a TV signal and displays it as subtitles on the projected screen
  • Hassle-free maintenance with top loading lamp door for convenient lamp replacement
  • Front/Rear infrared sensors for handy remote control from either in front or behind the projector
  • Anti-theft security features include: Kensington® security slot, security bar, and password protected keypad lock
Brightness 4800 Lumens
Native Resolution 1080p (1920 x 1080), 16:9 format
Contrast Ratio 15,000:1 Contrast Ratio (Full on/off)
Lamp Life and Type 2500/3500/4000 Hours (Normal/Eco/Dynamic Eco), 310W/245W
Display Type Single 0.65 DLP® DC3 Technology by Texas Instruments
Throw Ratio (±3%) 1.39 to 2.09:1 (Distance/Width)
Image Size (Diagonal) 25.9" to 324.9" (0.657 to 8.25m)
Projection Distance 3.94’ to 32.8’ (1.2 to 10 m)
Projection Lens F=2.42 ~ 2.97, f=20.9 ~ 31.05mm
Zoom Ratio 1.5:1 Manual Zoom/Focus
Aspect Ratio 16:9 native, 4:3 Compatible
Offset (based on Full Height) 111% ~ 131% ±5%
Lens Shift Range (Manual) 111.2% to 130.8%
Keystone Correction ± 30° Vertical
Color Spectrum 1.07 Billion
Horizontal Scan Rate 15, 31 ~ 91.4KHz
Vertical Scan Rate 24 ~ 30Hz, 47 ~ 120Hz
3D Functionality Full HD 3D (Via DLP® Link™, BluRay 3D)
Speaker 5W Mono
Remote Control Fully Featured IR Remote with Laser Pointer
Projection Method Table Top or Ceiling Mount (Front or Rear)
Uniformity 85%
Computer Compatibility WUXGA, UXGA,WXGA, SXGA+, SXGA, XGA, SVGA, VGA Resized; VESA Standards; PC and Macintosh Compatible
Video Compatibility SDTV(480i, 576i), EDTV (480p, 576p), HDTV (720p, 1080i/p), NTSC/NTSC 4.43, PAL B/G/H/I/M/N 60, SECAM

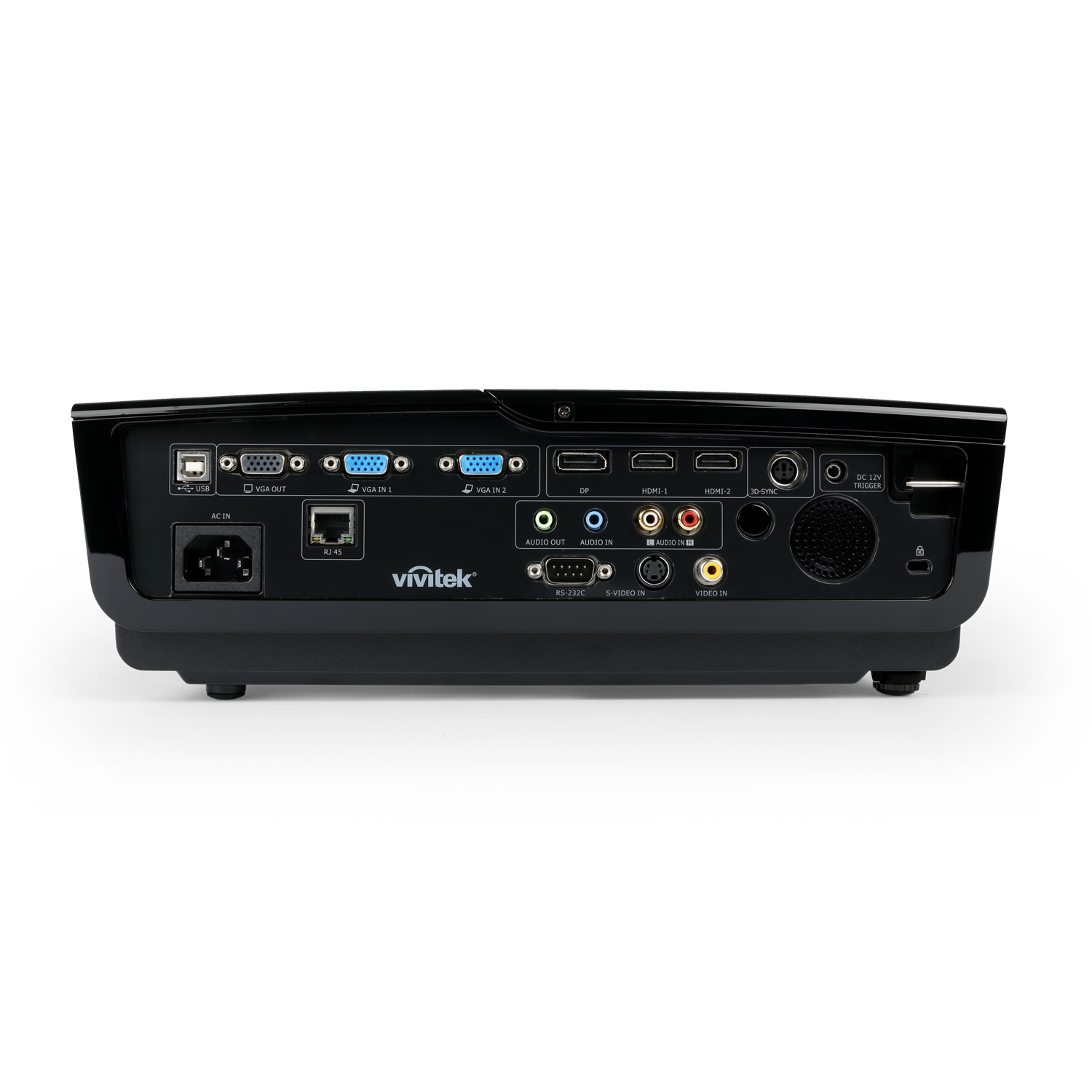

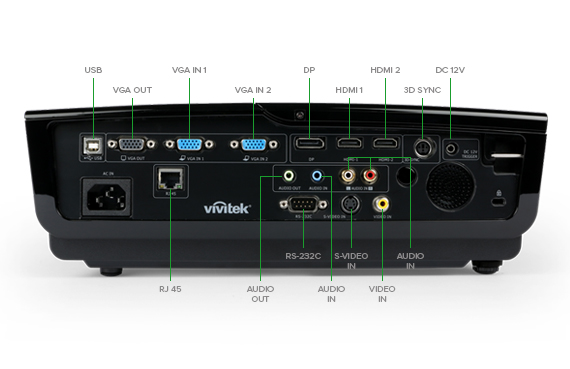

I/O Connection Ports HDMI v.1.4 (x2) VGA-Out
VGA-In (x2) * Audio-Out (Mini-Jack)
DisplayPort 3D-Sync-Out
S-Video RJ45
Composite RS-232
Audio-IN RCA L/R 12V-Trigger
Mini-Jack Mini USB (Service only)
Security Kensington® Lock Port, Security Bar
Weight 8.7lbs (3.95kg)
Dimensions (W x H x D) 13.1" x 4.5" x 10" (333 x 115 x 255 mm)
Noise Level 36dB/30dB (Normal/Eco)
Power Supply: AC 100-240V, 50/60Hz
Consumption: 370W/300W (Normal/Eco)
<0.5W (Standby Mode)
Operating Temperature 41 to 104°F (5 to 40°C)
Warranty 3-Year Limited Parts/Labor, Lamp (1-Year or 1500 hours)
Standard Accessories AC Power Cord, VGA Cable, Carrying Case, Remote Control, Batteries for Remote, Lens Cap, User Manual (CD), Warranty Card
Lamp Part # 5811118436-SVV
UPC 813097021441
Power: 310 W
Part number: 5811118436-SVV
Description: Remote Control Full Function 27 Keys
Part number: 5041841300
NovoPro
• BYOD Collaboration & Presentation
• Up to 64 users
• iOS/Android full mirroring
• Click-n-display with Launcher
NovoTouch
NovoEnterprise
• Screen mirroring for Windows/Mac/iOS/Android
• Collaboration
• Flexible GUI
• Enterprise-grade management software
• LauncherPlus Plug-n-Play
• Complete connectivity
NovoDS
• Digital signage appliance
• 4K resolution
• Intuitive playlist editing
• Remote management over network
Title Version Type Size   Download
D963HD Plus Datasheet 10/2019 pdf 0.43 MB
DU978/DH976/DX977/D963HD Plus User's Manual(English) 05/2019 pdf 8.34 MB
Vivitek Catalog 2019 06/2019 pdf 21.59 MB
DU978/DH976/DX977/D963HD Plus RS-232c Codes 05/2019 pdf 0.12 MB
Frequently Asked Questions
I plug my computer in to the projector and I don’t get an image.
The projector has many input connectors. Each connector is labelled (HDMI 1, RGB 1 ....). Ensure the projector is switched to that input using the “Source” button on the projector. Also, the computer may require a toggle switch to turn on the output port. This is typically accomplished by holding down the “Fn” at the same time as a Function key. Each laptop manufacturer may use a different “function” key. Typically, it is F4 or F8. The symbol on the key is usually a laptop as well as a square. Please refer to your laptop manufacturers Users Guide for additional information.
Is it OK to use 3rd. party lamps or lamps quoted to be Original Equipment Manufacturer lamps?
Please refer to lamp warranty under Warranty tab and then Vivitek Warranties, as using lamps that are not Vivitek supplied may result in warranties being voided and your projector not meeting required safety standards. Lamp manufacturers provide many different classes of lamps and projectors are built around a specific lamp. While being “original manufacturer” lamps, it is not guaranteed that the class of lamp is the same as the Vivitek specified lamp from the manufacturer.
My projector won’t turn on via an RS232 or IP command. If it is powered on, other commands work fine.
In the menu, go to Settings 2 menu, then Advanced 1 menu. Turn Low Power Mode to OFF.
How often should I change the filters in my DLP?
The majority of Vivitek projectors, due to sealed DLP optics, do not require filters. This eases maintenance requirements.The filters can be cleaned with running water. Please make sure to let them dry completely before installing them back. The filters should be changed if they are torn or worn.
How do I take care of my DLP?
Please refer to Warning and Precautions in the User's Manual.
Why are the lamps so expensive?
The selling price of the lamps is based on the purchase price we obtain from the manufacturers. Vivitek would reflect the price reduction if there is any from the manufacturers.
Why do I have to replace the lamp myself?
Lamp is a consumable part that needs to be replaced regularly. Customers can have a technician do the replacement, but the labor would not be covered by the manufacturer's warranty.
Why can't I order a lamp over the phone?
At the current stage, we don't process orders over the phone to protect our customers' credit card information. When the credit card information is sent to us by fax, only employees with authorization have access to this information.
Does HD really look better than SDTV?
Yes. HDTV has at least twice the linear resolution of standard-definition television (SDTV), thus allowing much more detail to be shown compared with analog television or regular DVD. In addition, the technical standards for broadcasting HDTV are also able to handle 16:9 aspect ratio pictures without using letterboxing or anamorphic stretching, thus further increasing the effective resolution for such content.
Where can I send a letter praising your products and customer support?
Customers can send us an email at customerservice@vivitekcorp.com.
How do I get another copy of my manual?
User's Manual can be downloaded here.
What other kinds of products do you make?
Vivitek also manufactures DLP projectors.
How long has Vivitek been in business
Vivitek was established in 2004.
What are the advantages of DLP over LCD or Plasma?
Please refer to Texas Instrument's website Here
What is DLP and how does it work?
Please refer to Texas Instrument's website Here
How do I get warranty service?
By calling our tech support at 877-603-3582 and providing the proof of purchase when required. Their hours of operation are from Monday to Friday, 9AM to 6PM Pacific time.
What is the life expectancy of my projector lamp?
Lamps typically last about 1,500 ~ 10,000 hours. Usually the higher the brightness, the lower the lamp hours. Keep in mind however that some lamps won't make it all the way to their estimated life spans. If you operate your projector in a warm environment that is not adequately ventilated or at higher elevations without switching to “high altitude” mode in the menu, this will reduce lamp life. It is also strongly recommended that the projectors be connected to a surge protector as power surges can damage your lamp. Adhering to the recommended power-off cycling will assist in maintaining lamp life. Frequent powering on/off will also reduce lamp life expectancy so it may be better to leave the projector on if you intend to use again within 20 minutes. Using the projector in Economy mode will extend your lamp life.
How do I replace the lamp myself?
In the user's manual, there is a section that shows you how to replace the lamp.
How much do replacement lamps/remotes cost?
You will need to contact your local/online reseller. Vivitek is available through authorized retailers, e-tailers, dealers, distributors and resellers. Vivitek has partnered with key partners around the U.S. These authorized partners can be found under the where to buy section.
How do I register my projector for warranty?
Complete and mail in the registration card included with the purchase of your product or fill out the online product registration here.
What is DLP® technology and how does it work?
DLP®-based projectors produce stunning images with digital clarity and precision. The DLP chip uses millions of tiny mirrors to reflect all colors of visible light to project an all-digital image on the screen. Click here for more detailed information.
Where can I purchase your products?
Vivitek is available through authorized retailers, e-tailers, dealers, distributors and resellers. Vivitek has partnered with key partners around the U.S. These authorized partners can be found under the where to buy section.
How do I synchronize my laptop with my projector?
On most laptops, hold down the 'Fn' + 'F4' keys. This may vary, depending on you laptop's brand it may not be 'F4', but 'F5', 'F7' or 'F8'. On the correct function key, there is a symbol 2 squares, have the letters "LCD", or have the symbol of a laptop/square on it. Please refer to your laptops user's guide for additional information.
Filter-Free Design
DLP® technology allows manufacturers to create a filter-free projection design. Filter-free means significant savings and lower maintenance efforts over the projector's lifespan, which means a lower total cost of ownership for the projector.
BrilliantColor™
BrilliantColor from Texas Instruments is a multi-color processing technology that produces vibrant images. BrilliantColor technology uses up to six colors, instead of just the three primary colors, red, green and blue, to improve color accuracy and brightens secondary colors.
DLP® Technology
DLP® chipset-based projectors produce vivid images with digital clarity and precision. The DLP® chip uses millions of tiny mirrors to reflect all the colors of visible light to project a digital image onto a screen. DLP® technology delivers high contrast ratios and minimizes the gaps between pixels for bright, sharp pictures.
